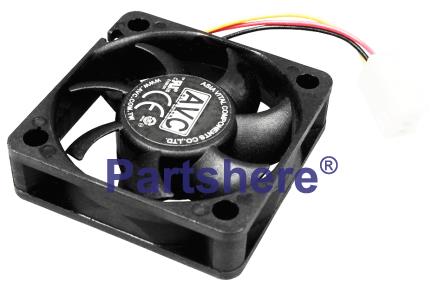

Printer parts diagram for: 40X6501
40X6501 is represented by #10 in the diagram below.
10
40X6501 Fan
CPU cooling fan
11
40X7136 PC Board
System board
2
40X7131 Fan
Main fan
3
40X7128 Duct
LVPS cooling exit duct
5
40X7152 Drive Assembly
MPF drive assembly
7
40X7162 Gear
Waste toner gears parts packet
9
40X7140 PC Board
System board and HVPS card parts packet
