Printer parts diagram for: 40X7614


40X7614 is represented by #6 in the diagram below. 04A 40X7648 Screw Screws parts packet 04B 40X7832 Screw Screw parts packet 08B 40X7623 Fuser Assembly Fuser assembly, 220-240V 3 40X7646 Cover Lower left frame and lower right frame with cable cover 6 40X7614 Motor Paper pick motor drive assembly 7 40X7628 Gear Main gear drive assembly with motors

40X7614 is represented by #6 in the diagram below.

04A

40X7648 Screw Screws parts packet

04B

40X7832 Screw Screw parts packet

08B

40X7623 Fuser Assembly Fuser assembly, 220-240V

40X7646 Cover Lower left frame and lower right frame with cable cover

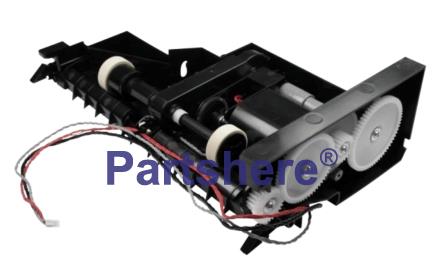

40X7614 Motor Paper pick motor drive assembly

40X7628 Gear Main gear drive assembly with motors
