HP Printer Parts Diagram Finder

Printer parts diagram for: CK837-67001


CK837-67001 is represented by #2 in the diagram below. 1 CK837-67003 Cover Carriage PCA covers - For the DesignJet T1120/620 printer series 2 CK837-67001 Latch Carriage latch - For the DesignJet T1120/620 printer series 4 CK837-67005 PC Board Carriage PCA - Controls movement of carriage assembly - For the DesignJet T1120/620 printer series 5 Q6683-67004 Sensor Line sensor - Detects paper width and skew - Measures calibration accuracy and printhead alignment 6 Q5669-60687 Bushing one Carriage rear bushing (one sold) Carriage Rear Bushing For HP T610 T620 Z2100 Z3100 T1100 T770 T790 and compatible models. 7 CK837-67004 Carriage Carriage assembly - For the DesignJet T1120/620 printer series

CK837-67001 is represented by #2 in the diagram below.

CK837-67003 Cover Carriage PCA covers - For the DesignJet T1120/620 printer series

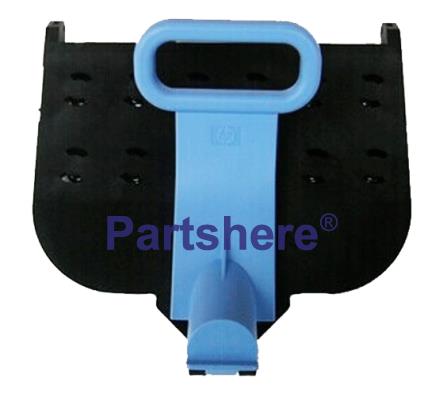

CK837-67001 Latch Carriage latch - For the DesignJet T1120/620 printer series

CK837-67005 PC Board Carriage PCA - Controls movement of carriage assembly - For the DesignJet T1120/620 printer series

Q6683-67004 Sensor Line sensor - Detects paper width and skew - Measures calibration accuracy and printhead alignment

Q5669-60687 Bushing one Carriage rear bushing (one sold) Carriage Rear Bushing For HP T610 T620 Z2100 Z3100 T1100 T770 T790 and compatible models.

CK837-67004 Carriage Carriage assembly - For the DesignJet T1120/620 printer series
