CK839-67001 Printer Parts Diagram


CK839-67001 is represented by #8 in the diagram below. 1 Q6683-60188 Ink Supply Station Left ink supply station - For the DesignJet T1100/T610 printer series 10 CK837-67009 Hard Drive SATA Hard Disk Drive - Includes firmware TJ6-BELUR 11.0.0.x - For the DesignJet T620/T1120 Plotters and other compatible models. Please order CK837-67035 11 Q5669-60705 Pinch Assembly Pinch lift assembly - Molded plastic part - Guides the paper during paper advancement 12 Q5669-60706 Sensor Pinchwheel lifter sensor sv 13 Q5669-60704 Motor Pinchwheel advance drive Media motor - For DesignJet printers 2 Q6718-67017 Motor Starwheel motor assembly - For the DesignJet printers T series and Z series. 3 CK837-67020 PC Board Encoder disk sensor assembly - For the DesignJet T1120SD/T1120/620 printer series 3 Q5669-60703 Sensor Encoder sensor assembly 4 Q5669-60702 Encoder Encoder disk - Helps provide position the information of the paper 5 CK837-67019 Paper Path Module Media advance transmission - For the DesignJet T1120SD/T1120/620 printer series 5 Q5669-60700 Guide Pinchwheel advance transmission Media advance transmission - For DesignJet printers 6 Q5669-67049 Spitton Left-side spittoon assembly - Holds expelled ink from cartridge during refresh cycle 7 Q5669-60693 Power Supply Power supply unit (PSU) assembly 7 Q6718-67005 Power Supply Power supply unit (PSU) assembly - For DesignJet printersPower supply unit (PSU) assembly - For DesignJet printers 8 CK837-67007 PC Board Main PCA - Controls and drives the printer - For the 24-inch DesignJet T1120SD/T1120/T620 printer series 8 CK839-67001 PC Board Main PCA - Controls and drives the printer - For the 44-inch DesignJet T1120SD/T1120/620 printer series 8 Q6683-60192 PC Board Main PCA Only. Does not include power supply. (for PCA and power supply order Q6683-67033). Designjet T1100/610 printer - Controls and drives the printer - For the 24-inch DesignJet T1100/610 series printer 8 Q6687-60057 PC Board T1100/610 Main PCA 44 SVMain PCA - Includes the power supply unit and the engine board - For the 44-inch Designjet T1100/610 printer 9 CK837-67026 PC Board Formatter board assembly - Does not include hard disk drive (CK837-67035)- For the DesignJet Z5200/T1120/T1120ps/T620 printer series 9 Q6684-60008 PC Board Formatter board assembly - For the DesignJet T1100 printer series SV FW9.0.0.X

1

Q6683-60188 Ink Supply Station Left ink supply station - For the DesignJet T1100/T610 printer series

10

CK837-67009 Hard Drive SATA Hard Disk Drive - Includes firmware TJ6-BELUR 11.0.0.x - For the DesignJet T620/T1120 Plotters and other compatible models. Please order CK837-67035

11

Q5669-60705 Pinch Assembly Pinch lift assembly - Molded plastic part - Guides the paper during paper advancement

12

Q5669-60706 Sensor Pinchwheel lifter sensor sv

13

Q5669-60704 Motor Pinchwheel advance drive Media motor - For DesignJet printers

2

Q6718-67017 Motor Starwheel motor assembly - For the DesignJet printers T series and Z series.

3

CK837-67020 PC Board Encoder disk sensor assembly - For the DesignJet T1120SD/T1120/620 printer series

3

Q5669-60703 Sensor Encoder sensor assembly

4

Q5669-60702 Encoder Encoder disk - Helps provide position the information of the paper

5

CK837-67019 Paper Path Module Media advance transmission - For the DesignJet T1120SD/T1120/620 printer series

5

Q5669-60700 Guide Pinchwheel advance transmission Media advance transmission - For DesignJet printers

6

Q5669-67049 Spitton Left-side spittoon assembly - Holds expelled ink from cartridge during refresh cycle

7

Q5669-60693 Power Supply Power supply unit (PSU) assembly

7

Q6718-67005 Power Supply Power supply unit (PSU) assembly - For DesignJet printersPower supply unit (PSU) assembly - For DesignJet printers

8

CK837-67007 PC Board Main PCA - Controls and drives the printer - For the 24-inch DesignJet T1120SD/T1120/T620 printer series

8

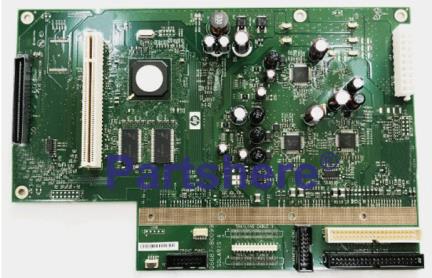

CK839-67001 PC Board Main PCA - Controls and drives the printer - For the 44-inch DesignJet T1120SD/T1120/620 printer series

8

Q6683-60192 PC Board Main PCA Only. Does not include power supply. (for PCA and power supply order Q6683-67033). Designjet T1100/610 printer - Controls and drives the printer - For the 24-inch DesignJet T1100/610 series printer

8

Q6687-60057 PC Board T1100/610 Main PCA 44 SVMain PCA - Includes the power supply unit and the engine board - For the 44-inch Designjet T1100/610 printer

9

CK837-67026 PC Board Formatter board assembly - Does not include hard disk drive (CK837-67035)- For the DesignJet Z5200/T1120/T1120ps/T620 printer series

9

Q6684-60008 PC Board Formatter board assembly - For the DesignJet T1100 printer series SV FW9.0.0.X

Printer parts diagram for: CK839-67001

CK839-67001 is represented by #8 in the diagram below.
