Printer parts diagram for: Q1252-60003


Q1252-60003 is represented by #1 in the diagram below. 1 Q1251-60287 Memory DesignJet 5000 series OEM boot ROM DIMM RTL 06.00.01 1 Q1252-60003 Memory DesignJet 5000 series boot ROM DIMM PS 05.00.01 1 Q1252-60029 Memory DesignJet 5000 series boot ROM DIMM PS 05.00.01 Hewlett Packard plotters. 2 J3263G PC Board Interface HP JetDirect 300X external print server module (10Base-T and 100Base-TX) - Connects between printer parallel port and LAN network 3 C6090-60187 Memory 64MB SDRAM DIMM memory module

Q1252-60003 is represented by #1 in the diagram below.

Q1251-60287 Memory DesignJet 5000 series OEM boot ROM DIMM RTL 06.00.01

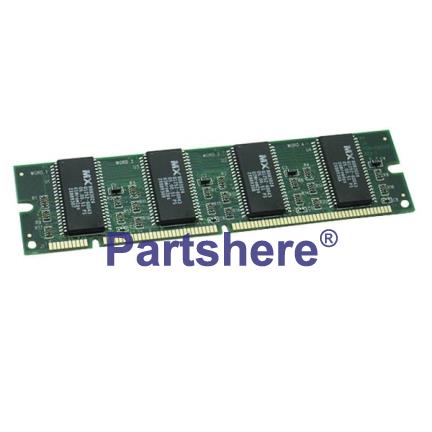

Q1252-60003 Memory DesignJet 5000 series boot ROM DIMM PS 05.00.01

Q1252-60029 Memory DesignJet 5000 series boot ROM DIMM PS 05.00.01 Hewlett Packard plotters.

J3263G PC Board Interface HP JetDirect 300X external print server module (10Base-T and 100Base-TX) - Connects between printer parallel port and LAN network

C6090-60187 Memory 64MB SDRAM DIMM memory module
