Printer parts diagram for: Q1278-60018

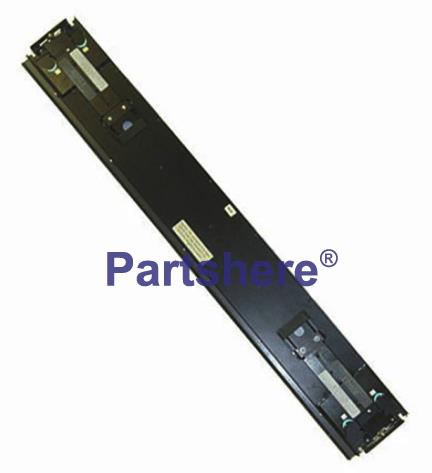

Q1278-60018 is represented by #3 in the diagram below. 1 Q1278-60010 Guide Guide Plate for HP DesignJet 815 MFP 2 Q1261-60010 Glass Assembly Glass Plate for HP DesignJet Copier CC800PS 3 Q1278-60018 Plate Backround Plate (White) - Plastic item used to calibrate the scanner assembly and applies pressure to the top of the document as it moves across the scanner glass 4 Q1261-60027 Lamp Fluorescent Lamp for HP Designjet printers. Lamp only. (Sales is Limited Supply Only for Limited time).

Q1278-60018 is represented by #3 in the diagram below.

Q1278-60010 Guide Guide Plate for HP DesignJet 815 MFP

Q1261-60010 Glass Assembly Glass Plate for HP DesignJet Copier CC800PS

Q1278-60018 Plate Backround Plate (White) - Plastic item used to calibrate the scanner assembly and applies pressure to the top of the document as it moves across the scanner glass

Q1261-60027 Lamp Fluorescent Lamp for HP Designjet printers. Lamp only. (Sales is Limited Supply Only for Limited time).
