HP Printer Parts Diagram Finder

Printer parts diagram for: Q5669-60666


Q5669-60666 is represented by #9 in the diagram below. 1 Q6675-60043 Carriage Carriage rail oiler For HP DesignjetT1200/T770/T790/T620/T110/T610/T1120/T2300/Z5200 Rial oiler assy svc 2 Q5669-67807 Solenoid Pen to paper space (PPS) solenoid - For the DesignJet T1100/T610 printer series 3 CK837-67015 Motor Carriage (scan-axis) motor assembly - For the DesignJet T1120 SD multifunction printer 3 Q5669-60674 Motor Carriage (scan-axis) motor assembly. HP DesignJet CARRIAGE SCAN AXIS MOTOR ASSEMBLY 4 Q6683-60190 PC Board Printmech PC board - Controls the funtion of the print mechanism 5 Q5669-60667 Service Station Spittoon service station (right side) - For DesignJet printers for service station. 7 Q5669-60664 Fan Vacuum/aerosol White connector fan assembly Q6683 power fan for HP DesignJet T610 T770 T790 T1100 T1120 T2300 Z2100 Z3100 Z5200 plotter. 2wire white connector fan. (for 3 wire black connector order E1L21-67033). 8 CK837-67022 Service Station Service station assembly - Collects ink from printheads during spitting - For the Designjet T1120SD/T1120/T620 printer series 8 Q6683-60187 Service Station Service station assembly - Includes the drop detector aerosol fan assembly primer assembly and service station spittoon - For the Designjet T1100/T610 printer series 9 Q5669-60666 Sensor Drop detector sensor assembly

Q5669-60666 is represented by #9 in the diagram below.

Q6675-60043 Carriage Carriage rail oiler For HP DesignjetT1200/T770/T790/T620/T110/T610/T1120/T2300/Z5200 Rial oiler assy svc

Q5669-67807 Solenoid Pen to paper space (PPS) solenoid - For the DesignJet T1100/T610 printer series

CK837-67015 Motor Carriage (scan-axis) motor assembly - For the DesignJet T1120 SD multifunction printer

Q5669-60674 Motor Carriage (scan-axis) motor assembly. HP DesignJet CARRIAGE SCAN AXIS MOTOR ASSEMBLY

Q6683-60190 PC Board Printmech PC board - Controls the funtion of the print mechanism

Q5669-60667 Service Station Spittoon service station (right side) - For DesignJet printers for service station.

Q5669-60664 Fan Vacuum/aerosol White connector fan assembly Q6683 power fan for HP DesignJet T610 T770 T790 T1100 T1120 T2300 Z2100 Z3100 Z5200 plotter. 2wire white connector fan. (for 3 wire black connector order E1L21-67033).

CK837-67022 Service Station Service station assembly - Collects ink from printheads during spitting - For the Designjet T1120SD/T1120/T620 printer series

Q6683-60187 Service Station Service station assembly - Includes the drop detector aerosol fan assembly primer assembly and service station spittoon - For the Designjet T1100/T610 printer series

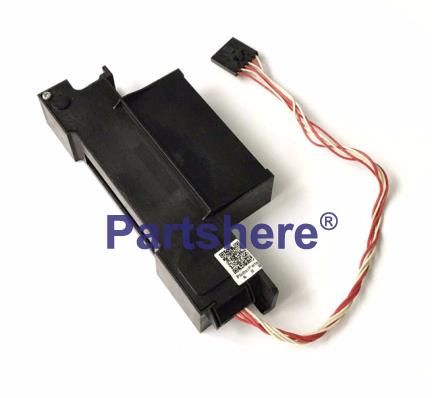

Q5669-60666 Sensor Drop detector sensor assembly
