Printer parts diagram for: Q6659-60176


Q6659-60176 is represented by #5 in the diagram below. 1 Q6683-60195 Tube Ink supply tubes - For 24-inch plotters 1 Q6687-60059 Tube Ink supply tubes - For 44-inch plotters 2 Q6683-60242 Encoder Encoder strip - Includes the encoder spring and nut - For 24-inch plottersEncoder strip - Includes the encoder spring and nut - For 24-inch plotters 2 Q6687-60094 Encoder Encoder strip - Includes the Encoder Strip spring and nut - For DesignJet printers 4 Q6659-67015 Cable Carriage Trailing Cable assembly - this item is only the trailing cable - For the 44-inch Designjet Z3100 photo printer series 5 Q5669-60679 Encoder Encoder strip assembly - Includes encoder strip and encoder strip spring - For 24-inch plotters - 50 units 5 Q6659-60176 Encoder Encoder strip assembly - Includes encoder strip and encoder strip spring - For 44-inch plotters

Q6659-60176 is represented by #5 in the diagram below.

Q6683-60195 Tube Ink supply tubes - For 24-inch plotters

Q6687-60059 Tube Ink supply tubes - For 44-inch plotters

Q6683-60242 Encoder Encoder strip - Includes the encoder spring and nut - For 24-inch plottersEncoder strip - Includes the encoder spring and nut - For 24-inch plotters

Q6687-60094 Encoder Encoder strip - Includes the Encoder Strip spring and nut - For DesignJet printers

Q6659-67015 Cable Carriage Trailing Cable assembly - this item is only the trailing cable - For the 44-inch Designjet Z3100 photo printer series

Q5669-60679 Encoder Encoder strip assembly - Includes encoder strip and encoder strip spring - For 24-inch plotters - 50 units

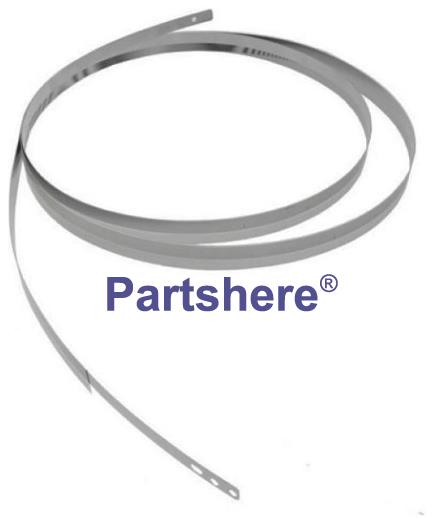

Q6659-60176 Encoder Encoder strip assembly - Includes encoder strip and encoder strip spring - For 44-inch plotters
