Printer parts diagram for: RG5-5651-000CN


RG5-5651-000CN is represented by #11 in the diagram below. 1 RB2-5517-000CN Mount Front Fuser Assembly mount 10 RG5-5772-000CN Cable Fuser Assembly high voltage cable and connectors 11 RG5-5651-000CN Guide Transfer guide assembly (Ribbed plastic piece) - Has slot for the transfer roller assembly 15 RG5-5717-000CN Contact Toner cartridge contact assembly 4 RB2-5518-000CN Mount Rear Fuser Assembly mount 8 RG5-5771-000CN Cable Cable assembly for HP LaserJet 9000 Series

RG5-5651-000CN is represented by #11 in the diagram below.

RB2-5517-000CN Mount Front Fuser Assembly mount

RG5-5772-000CN Cable Fuser Assembly high voltage cable and connectors

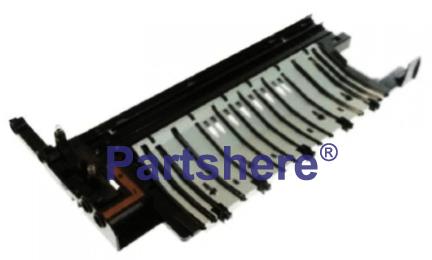

RG5-5651-000CN Guide Transfer guide assembly (Ribbed plastic piece) - Has slot for the transfer roller assembly

RG5-5717-000CN Contact Toner cartridge contact assembly

RB2-5518-000CN Mount Rear Fuser Assembly mount

RG5-5771-000CN Cable Cable assembly for HP LaserJet 9000 Series
