Printer parts diagram for: RG5-7780-060CN
RG5-7780-060CN is represented by #1 in the diagram below.
1

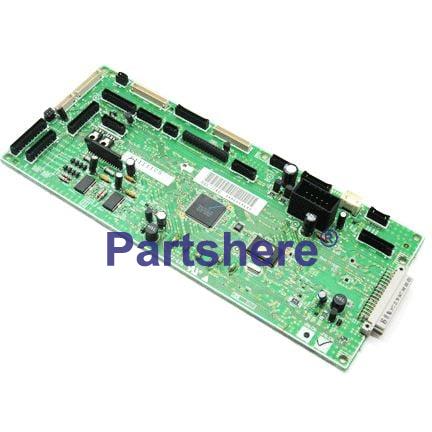

RG5-7780-060CN PC Board
Assy-DC Controller PCB ver R1.02
3
RG5-8009-000CN PC Board
Cartridge memory controller board - Between ECU and the toner cartridge memory antenna
