RK2-1490-000CN Printer Parts Diagram


RK2-1490-000CN is represented by #1 in the diagram below. 1 RK2-1490-000CN Solenoid Solenoid (SL1) - For tray 1 - Mounts on the main drive assembly. 11 RM1-4041-000CN Sensor Multipurpose paper tray sensor - Printed circuit assembly (PCA) - Includes paper sensors (PS3) 12 RC2-0592-000CN Holder Main fan holder - Plastic fan holder for main cooling fan (FM1) - Located on the upper right side of the printer. 13 RK2-1497-000CN Fan Cooling fan - Located on the right side of the printer. 14 RC1-3939-000CN Lever Paper sensor lever - Mechanical device that activates photo sensor PS902 Tray 1 paper sensor 15 RC1-4083-000CN Guide Papre guide - Paper guide under registration roller assembly 17 RM1-3717-000CN Fuser Assembly Fuser Assembly - For 110-127 VAC - Bonds toner to paper by heat - Includes 20-tooth gear 17 RM1-3740-000CN Fuser Assembly Fusing assembly - Bonds toner to paper by heat - For 110VAC to 127VAC operation 17 RM1-3740-030CN Fuser Assembly Fuser Assembly - For 110-127 VAC - Bonds toner to paper by heat 17 RM1-3741-000CN Fuser Assembly Fuser Assembly - For 220 VAC to 240 VAC, 50Hz operation - Bonds toner to paper by heat 17 RM1-3741-030CN Fuser Assembly Fuser Assembly - For 220 VAC to 240 VAC operation - Bonds toner to paper with heat 17 RM1-3761-000CN Fuser Assembly Fuser Assembly - For 220 VAC to 240 VAC - Bonds toner to paper with heat - Includes 20-tooth gear 18 RM1-3730-000CN PC Board Engine controller assembly - Engine controller PC board and metal pan - 110VAC/127VAC 18 RM1-3730-060CN PC Board Engine controller assembly - For 110/127 VAC - Engine controller PC board and metal pan 18 RM1-3731-000CN PC Board PC Board : Engine controller assembly - Engine controller PC board and metal pan - 220VAC/240VAC 18 RM1-3731-060CN PC Board Engine controller assy, Engine controller PC board assembly and metal pan - For 220 VAC to 240 VAC operation 19 RM1-3712-000CN Drive Assembly Main drive assembly - Mounts on the right side of the printer - Metal plate with gears attached - Also known as main gear drive assembly. 2 RM1-3714-000CN Gear Gear - Pick up roller gear assembly 20 RC2-0739-000CN Cover Sensor cable cover - Plastic cover that protects the face up sensor cable 3 RM1-1485-000CN Roller Roller assembly - Black plastic housing that holds rollers in front of Tray 2 pickup roller assembly 4 RU5-2386-000CN Spring Torsion spring - Provides tension for Tray 1 paper sensor flag 5 RC2-0588-000CN Holder Cable holder - Mounts on the main drive assembly. 6 RC2-0593-000CN Rod Fan rod - Metal rod that mounts against fan (FM1) on right side of printer - Used for noise reduction. 9 XA9-1503-000CN Screw M3 truss head (Flanged) phillips screw (Black oxide finish) - 6mm long

1

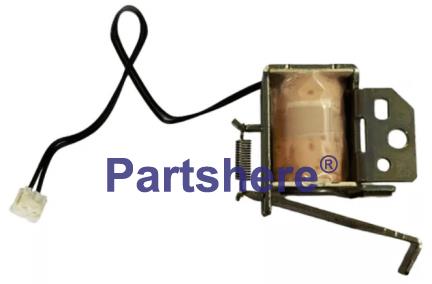

RK2-1490-000CN Solenoid Solenoid (SL1) - For tray 1 - Mounts on the main drive assembly.

11

RM1-4041-000CN Sensor Multipurpose paper tray sensor - Printed circuit assembly (PCA) - Includes paper sensors (PS3)

12

RC2-0592-000CN Holder Main fan holder - Plastic fan holder for main cooling fan (FM1) - Located on the upper right side of the printer.

13

RK2-1497-000CN Fan Cooling fan - Located on the right side of the printer.

14

RC1-3939-000CN Lever Paper sensor lever - Mechanical device that activates photo sensor PS902 Tray 1 paper sensor

15

RC1-4083-000CN Guide Papre guide - Paper guide under registration roller assembly

17

RM1-3717-000CN Fuser Assembly Fuser Assembly - For 110-127 VAC - Bonds toner to paper by heat - Includes 20-tooth gear

17

RM1-3740-000CN Fuser Assembly Fusing assembly - Bonds toner to paper by heat - For 110VAC to 127VAC operation

17

RM1-3740-030CN Fuser Assembly Fuser Assembly - For 110-127 VAC - Bonds toner to paper by heat

17

RM1-3741-000CN Fuser Assembly Fuser Assembly - For 220 VAC to 240 VAC, 50Hz operation - Bonds toner to paper by heat

17

RM1-3741-030CN Fuser Assembly Fuser Assembly - For 220 VAC to 240 VAC operation - Bonds toner to paper with heat

17

RM1-3761-000CN Fuser Assembly Fuser Assembly - For 220 VAC to 240 VAC - Bonds toner to paper with heat - Includes 20-tooth gear

18

RM1-3730-000CN PC Board Engine controller assembly - Engine controller PC board and metal pan - 110VAC/127VAC

18

RM1-3730-060CN PC Board Engine controller assembly - For 110/127 VAC - Engine controller PC board and metal pan

18

RM1-3731-000CN PC Board PC Board : Engine controller assembly - Engine controller PC board and metal pan - 220VAC/240VAC

18

RM1-3731-060CN PC Board Engine controller assy, Engine controller PC board assembly and metal pan - For 220 VAC to 240 VAC operation

19

RM1-3712-000CN Drive Assembly Main drive assembly - Mounts on the right side of the printer - Metal plate with gears attached - Also known as main gear drive assembly.

2

RM1-3714-000CN Gear Gear - Pick up roller gear assembly

20

RC2-0739-000CN Cover Sensor cable cover - Plastic cover that protects the face up sensor cable

3

RM1-1485-000CN Roller Roller assembly - Black plastic housing that holds rollers in front of Tray 2 pickup roller assembly

4

RU5-2386-000CN Spring Torsion spring - Provides tension for Tray 1 paper sensor flag

5

RC2-0588-000CN Holder Cable holder - Mounts on the main drive assembly.

6

RC2-0593-000CN Rod Fan rod - Metal rod that mounts against fan (FM1) on right side of printer - Used for noise reduction.

9

XA9-1503-000CN Screw M3 truss head (Flanged) phillips screw (Black oxide finish) - 6mm long

Printer parts diagram for: RK2-1490-000CN

RK2-1490-000CN is represented by #1 in the diagram below.
