Printer parts diagram for: RM1-0889-020CN

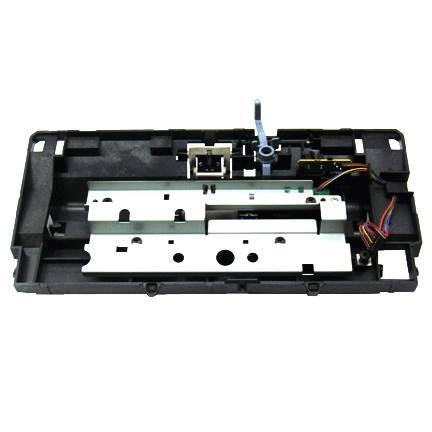

RM1-0889-020CN is represented by #1 in the diagram below. 1 RM1-0889-020CN Guide Scanner guide assembly - Includes the upper frame assembly, separation pad assembly, pressure rollers, white platen and the two document sensors 4 RC1-2543-000CN Lever Scanner media lever (pressure convert) - Extends up through the top rear of the scanner assembly - Used to adjust for media thickness and single sheet operation

RM1-0889-020CN is represented by #1 in the diagram below.

RM1-0889-020CN Guide Scanner guide assembly - Includes the upper frame assembly, separation pad assembly, pressure rollers, white platen and the two document sensors

RC1-2543-000CN Lever Scanner media lever (pressure convert) - Extends up through the top rear of the scanner assembly - Used to adjust for media thickness and single sheet operation
