RM1-5697-000CN Printer Parts Diagram


RM1-5697-000CN is represented by #22 in the diagram below. 10 RC2-5934-000CN Spring Torsion spring - Provides torsion to the switch lever 11 RC2-5954-000CN Lever Cartridge lock lever 12 RC2-5958-000CN Spring Torsion spring - Provides torsion to the cartridge lock lever 13 RC2-5122-000CN Link Interlock link for HP Color LaserJet CP3525 14 RL1-1947-000CN Button Power on/off switch - Located on the front right side of the printer 17 RM1-4953-000CN Sensor Density detect sensor assembly 18 RM1-4980-000CN Guide Lower pick-up guide assembly Pick-up lower guide assembly 19 CC468-67907 Belt Electrostatic transfer belt (ETB) assembly Includes 2nd transfer roller assembly and the intermediate transfer belt assembly 2 RC2-5019-000CN Cover Right lower inner cover - Plastic cover that protects the lower inner part of the printer chassis 20 RM1-5718-000CN Cable Interlock switch (SW3) cable assembly 21 RM1-5532-000CN Lock Front lock arm assembly 22 RM1-5697-000CN Switch Power on/off switch assembly 23 RM1-5732-000CN Switch 5V interlock door switch (SW2) assembly 24 WC4-5171-000CN Switch Black toner cartridge switch - Detects when black cartridge is in correct position 25 CC468-67914 Transfer Assembly Secondary transfer roller assembly - Long black spongy roller that transfers charge to paper. 26 RM1-5533-000CN Lock Rear lock arm assembly 3 RC2-5120-000CN Link Interlock link for HP Color LaserJet CP3525 4 RC2-5123-000CN Mount Interlock switch mount 5 RC2-5121-000CN Arm Interlock link switch arm 6 RC2-5119-000CN Link Interlock link for HP Color LaserJet CP3525 7 RC2-5118-000CN Link Interlock link for HP Color LaserJet CP3525 8 RC2-5124-000CN Lever Power supply switch lever 9 RC2-5913-000CN Shaft Shaft - Mounts on the interlock switch mount

10

RC2-5934-000CN Spring Torsion spring - Provides torsion to the switch lever

11

RC2-5954-000CN Lever Cartridge lock lever

12

RC2-5958-000CN Spring Torsion spring - Provides torsion to the cartridge lock lever

13

RC2-5122-000CN Link Interlock link for HP Color LaserJet CP3525

14

RL1-1947-000CN Button Power on/off switch - Located on the front right side of the printer

17

RM1-4953-000CN Sensor Density detect sensor assembly

18

RM1-4980-000CN Guide Lower pick-up guide assembly Pick-up lower guide assembly

19

CC468-67907 Belt Electrostatic transfer belt (ETB) assembly Includes 2nd transfer roller assembly and the intermediate transfer belt assembly

2

RC2-5019-000CN Cover Right lower inner cover - Plastic cover that protects the lower inner part of the printer chassis

20

RM1-5718-000CN Cable Interlock switch (SW3) cable assembly

21

RM1-5532-000CN Lock Front lock arm assembly

22

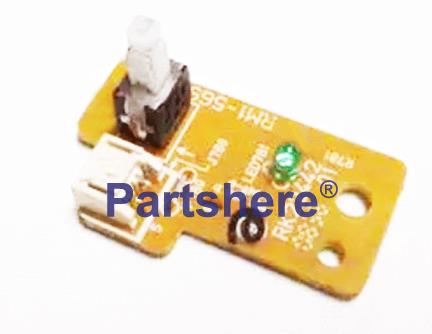

RM1-5697-000CN Switch Power on/off switch assembly

23

RM1-5732-000CN Switch 5V interlock door switch (SW2) assembly

24

WC4-5171-000CN Switch Black toner cartridge switch - Detects when black cartridge is in correct position

25

CC468-67914 Transfer Assembly Secondary transfer roller assembly - Long black spongy roller that transfers charge to paper.

26

RM1-5533-000CN Lock Rear lock arm assembly

3

RC2-5120-000CN Link Interlock link for HP Color LaserJet CP3525

4

RC2-5123-000CN Mount Interlock switch mount

5

RC2-5121-000CN Arm Interlock link switch arm

6

RC2-5119-000CN Link Interlock link for HP Color LaserJet CP3525

7

RC2-5118-000CN Link Interlock link for HP Color LaserJet CP3525

8

RC2-5124-000CN Lever Power supply switch lever

9

RC2-5913-000CN Shaft Shaft - Mounts on the interlock switch mount

Printer parts diagram for: RM1-5697-000CN

RM1-5697-000CN is represented by #22 in the diagram below.
