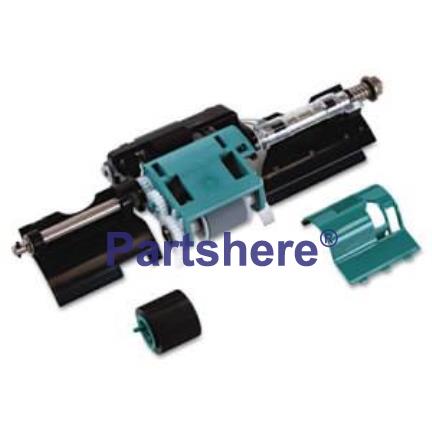

Printer parts diagram for: 40X7220
40X7220 is represented by #11 in the diagram below.
11
40X7220 Guide
ADF feed pick roll assembly with ADF separator roll and guide
2
40X7213 Cable
Feed motor assembly with belt and cable
3
40X4544 Cable
Transport motor bracket assembly with cable
6
40X2750 Bushing
Bushing 6 mm
8
40X2760 Pulley
Front transport drive gear pulley and belt kit
9
40X4548 Solenoid
ADF solenoid assembly
