Printer parts diagram for: 40X8297
40X8297 is represented by #8 in the diagram below.
1
40X8393 Roller
Transfer roll
11
40X8279 Cover
Jam access cover
13
40X8277 Gear
Duplex gear assembly
2
40X9098 Stapler
Stapler diverter spring
3
40X9082 Drive Assembly
Redrive assembly
4
40X9116 Stapler
Stapler cable
6
40X8084 Gearbox
Pick / lift motor gearbox
7
40X9523 Tray
Tray guide

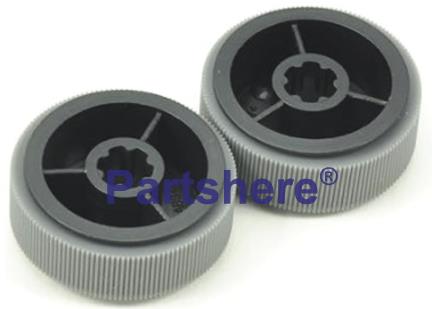

8
40X8297 Service Parts
Pick tire
