Printer parts diagram for: CH539-67011

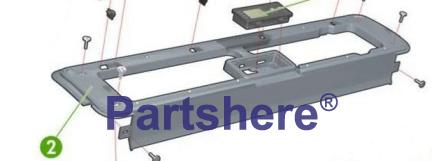

CH539-67011 is represented by #2 in the diagram below. 1 CH538-67030 Window Front panel window cover - For 44-inch plotters 2 CH538-67026 Cover Top cover - For the 44-inch Designjet T1200 printer series 2 CH539-67011 Cover Top cover - For the 44-inch Designjet T770 printer series 6 CH538-67032 Front Panel Front panel - For the 44-inch Designjet T1200 printer series

CH539-67011 is represented by #2 in the diagram below.

CH538-67030 Window Front panel window cover - For 44-inch plotters

CH538-67026 Cover Top cover - For the 44-inch Designjet T1200 printer series

CH539-67011 Cover Top cover - For the 44-inch Designjet T770 printer series

CH538-67032 Front Panel Front panel - For the 44-inch Designjet T1200 printer series
