Printer parts diagram for: RK2-2727-000CN


RK2-2727-000CN is represented by #3 in the diagram below. 10 RK2-2731-000CN Solenoid 24V DC Solenoid (SL1) - Engages the pickup roller gear/clutch assembly for tray 1 (250-sheet tray) 3 RK2-2727-000CN Fan Delivery Fan (FM3) - Provides air to the paper delivery area 5 RM1-6348-000CN Switch Power switch pc board - For power supply PC board, this is the pc board of the switch only- see picture. Does not include button, optional (assembly RM1-6348-080CN). 6 RM1-6397-000CN Pad Separation pad assembly - Includes pad holder and separation pad - For tray 2 7 RM1-6394-000CN Tray 250-sheet paper cassette - Paper cassette used for tray 2 8 RL1-2120-000CN Roller Multi-purpose /tray 1 paper pick-up roller 9 RM1-4275-000CN Gear Pickup roller gear assembly - For the LaserJet P2035/P2055 printer series

RK2-2727-000CN is represented by #3 in the diagram below.

RK2-2731-000CN Solenoid 24V DC Solenoid (SL1) - Engages the pickup roller gear/clutch assembly for tray 1 (250-sheet tray)

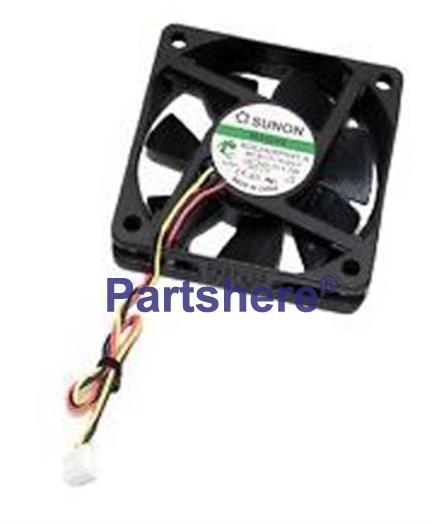

RK2-2727-000CN Fan Delivery Fan (FM3) - Provides air to the paper delivery area

RM1-6348-000CN Switch Power switch pc board - For power supply PC board, this is the pc board of the switch only- see picture. Does not include button, optional (assembly RM1-6348-080CN).

RM1-6397-000CN Pad Separation pad assembly - Includes pad holder and separation pad - For tray 2

RM1-6394-000CN Tray 250-sheet paper cassette - Paper cassette used for tray 2

RL1-2120-000CN Roller Multi-purpose /tray 1 paper pick-up roller

RM1-4275-000CN Gear Pickup roller gear assembly - For the LaserJet P2035/P2055 printer series
