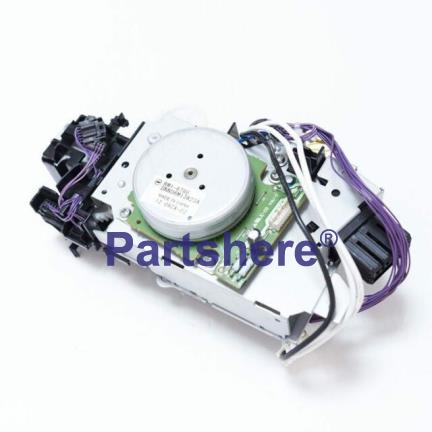

RM1-7914-060CN Printer Parts Diagram


RM1-7914-060CN is represented by #11 in the diagram below. 10 RM1-6074-000CN Motor Fussing motor (M4) assembly - Drives the fuser pressure and delivery rollers, pressurizes and depressurizes the pressure roller, and engages and disengages the primary transfer roller 11 RM1-7914-060CN Gear Assembly Fusing gear assembly 12 RM1-6867-000CN Cable Low-voltage power supply SB joint cable - Used for duplex models only 13 RU6-2710-000CN Spring Tension spring - Provides tension to the registration sensor assembly 14 RC2-7197-000CN Frame Rear support frame - For the registration sensor assembly 15 RM1-7922-000CN Sensor Registration sensor assembly HP LaserJet CP5525/M750/M775 Registration sensor assembly 16 RC2-7196-000CN Frame Front support frame - For the registration sensor assembly 17 CE710-67007 Roller Tray 2 paper pick-up roller assembly - Includes paper pick-up roller and separation padTray 2 paper pick-up roller assembly - Includes paper pick-up roller and separation pad 18 VS1-7207-019CN Connector Snap tight black connector 19 RC2-7297-000CN Guide Paper feed guide assembly 20 RM1-6164-000CN Sensor Last paper presence sensor - Advice that there is just on sheet of paper left at the paper tray cassette 21 RC2-6642-000CN Cover Lower connector cover 3 RM1-6005-000CN Drive Assembly Duplex reverse drive assembly - Used for duplex models only 3 RM1-6120-000CN Drive Assembly Duplex reverse drive assembly - Used for simplex models only 4 RC2-6546-000CN Guide Fusing front guide 5 RC2-6832-000CN Cover Protective cable cover 6 RM1-6180-000CN Fuser Assembly Fusing Assembly - For 110VAC - Bonds toner to paper with heat 6 RM1-6181-000CN Fuser Assembly Fusing Assembly - For 220 VAC - Bonds toner to paper with heat 7 RC2-6547-000CN Guide Fusing rear guide 8 RU6-0775-000CN Gear 18/29-tooth gear - For simplex models only 9 CE707-67904 Drive Assembly Fusing drive assembly - Includes motor (M4) and the fuser gear assembly

10

RM1-6074-000CN Motor Fussing motor (M4) assembly - Drives the fuser pressure and delivery rollers, pressurizes and depressurizes the pressure roller, and engages and disengages the primary transfer roller

11

RM1-7914-060CN Gear Assembly Fusing gear assembly

12

RM1-6867-000CN Cable Low-voltage power supply SB joint cable - Used for duplex models only

13

RU6-2710-000CN Spring Tension spring - Provides tension to the registration sensor assembly

14

RC2-7197-000CN Frame Rear support frame - For the registration sensor assembly

15

RM1-7922-000CN Sensor Registration sensor assembly HP LaserJet CP5525/M750/M775 Registration sensor assembly

16

RC2-7196-000CN Frame Front support frame - For the registration sensor assembly

17

CE710-67007 Roller Tray 2 paper pick-up roller assembly - Includes paper pick-up roller and separation padTray 2 paper pick-up roller assembly - Includes paper pick-up roller and separation pad

18

VS1-7207-019CN Connector Snap tight black connector

19

RC2-7297-000CN Guide Paper feed guide assembly

20

RM1-6164-000CN Sensor Last paper presence sensor - Advice that there is just on sheet of paper left at the paper tray cassette

21

RC2-6642-000CN Cover Lower connector cover

3

RM1-6005-000CN Drive Assembly Duplex reverse drive assembly - Used for duplex models only

3

RM1-6120-000CN Drive Assembly Duplex reverse drive assembly - Used for simplex models only

4

RC2-6546-000CN Guide Fusing front guide

5

RC2-6832-000CN Cover Protective cable cover

6

RM1-6180-000CN Fuser Assembly Fusing Assembly - For 110VAC - Bonds toner to paper with heat

6

RM1-6181-000CN Fuser Assembly Fusing Assembly - For 220 VAC - Bonds toner to paper with heat

7

RC2-6547-000CN Guide Fusing rear guide

8

RU6-0775-000CN Gear 18/29-tooth gear - For simplex models only

9

CE707-67904 Drive Assembly Fusing drive assembly - Includes motor (M4) and the fuser gear assembly

Printer parts diagram for: RM1-7914-060CN

RM1-7914-060CN is represented by #11 in the diagram below.
