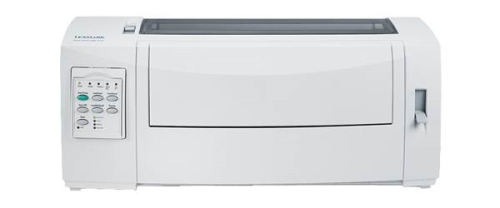

11C0099 9-Pin Dot Matrix Forms Printer 2580

Lexmark 9-Pin Dot Matrix Forms 2580 (11C0099)

MFG Part Number: 11C0099 240 x 144 DPI, Parallel, USB 2.0

Printer Support Linksshow
- Repair It
- Exchange It
- View Supplies
- Service Diagrams
- Service Manual
- Partsurfer Tool

Lexmark parts list for 11C0099 Lexmark 9-Pin Dot Matrix Forms Printer 2580

40X2903 Bracket - Serial interface card bracket

40X2934 Cable - Serial interface cable

40X7984 Cable - Operator panel cable

40X8069 Cable - Power supply cable, narrow

40X2887 Carrier - Carrier roller set

40X2988 Carrier - Carrier shaft, narrow

40X3021 Carrier - Carrier plate assembly, narrow

40X7987 Carrier - Carrier unit, narrow

40X8010 Carrier - Carrier motor with BKT

40X8014 Carrier - Carrier fan

40X2897 Cover - Operator panel front cover with overlay packs

40X2911 Cover - Rear Cover

40X2992 Cover - Front unit cover assembly, narrow

40X2994 Cover - Front cover guide, narrow

40X3013 Cover - Ribbon access unit cover (2480, 2580)

40X7978 Cover - Top cover, narrow

40X8032 Cover - Bottom cover, narrow

40X3028 Feeder - Narrow auto feeder assembly

40X2966 Frame - Left side frame (248x, 258x)

40X2980 Frame - Right side sub frame

40X3007 Frame - Frame support plate, narrow

40X2909 Fuse - Fuse kit (LV)

40X2890 Gear - ASF Gears and bushings Parts Packet

40X2910 Gear - Gears and bushings Parts Packet

40X2986 Gear - Ribbon drive rack gear, narrow

40X3136 Gear - ASF Gear, bushings and bearing Parts Packet

40X2912 Guide - Left paper guide

40X2913 Guide - Right paper guide

40X2969 Guide - Paper guide assembly, narrow

40X2956 Idler - Idler gear (248x, 258x)

40X2922 Kit - Head Gap adjustment kit

40X2931 Kit - Pull tractor actuator kit

40X2894 Lever - Forms Thickness lever

40X2907 Lever - Paper Select lever

40X8008 Motor - Paper feed motor with BKT

40X2996 Panel - Operator panel overlay pack (248x, 258x)

40X7982 Panel - Operator panel assembly, 258x+

40X8071 PC Board - Logic board, 2580+

40X2915 Plate - Serial interface card plate

40X2930 Plate - Serial interface card with plate

40X2908 Platen - Platen holder

40X2973 Platen - Platen, narrow

40X0294 Power Cord - Power cord 2.5 m 8 ft. Right angle Denmark

40X8011 Power Supply - Power supply unit

40X7985 Printhead - Printhead assembly, 258x+

40X7991 Printhead - Printhead cable, 2580+

40X2888 Roller - ASF upper feed roller, narrow

40X2889 Roller - ASF lower feed roller, narrow

40X2978 Roller - Upper feed roller, narrow

40X2981 Roller - Lower feed roller, narrow

40X2984 Roller - ASF Pickup (left and right) roller - narrow

40X3019 Roller - Lower pinch roller, narrow

40X2926 Screw - Screws, washers and clips Parts Packet

40X7995 Sensor - Sensor, pull tractor and paper select

40X7997 Sensor - Sensor, head gap and home position

40X7998 Sensor - Sensor, top-of-form and paper present

40X2891 Service Parts - ASF Springs Parts Packet

40X2892 Service Parts - ASF Screws Parts Packet

40X2906 Service Parts - Springs Parts Packet

40X2918 Service Parts - Left and right tractors

40X2975 Service Parts - Paper separator, narrow

40X2977 Service Parts - Tension pulley plate assembly

40X2937 Stand - Paper stand

40X2927 Support - ASF Right Paper support

40X2928 Support - ASF Left Paper support

40X2880 Tractor - Tractor 2 Motor

40X2882 Tractor - Tractor 2 Parts Packet

40X2905 Tractor - Tractor paper support

40X2960 Tractor - Tractor 2 Board Assembly with cable and Ferrite - Narrow

40X3000 Tractor - Tractor shaft set, narrow

40X3002 Tractor - Tractor unit, narrow

9-Pin Dot Matrix Forms Printer 2580 parts list
