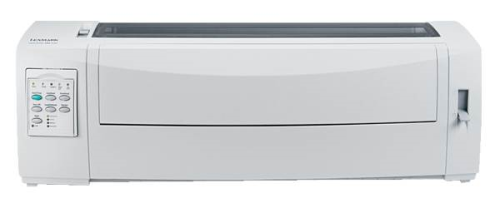

11C0119 24-Pin Dot Matrix Forms Printer 2591

Lexmark 24-Pin Dot Matrix Forms 2591 (11C0119)

MFG Part Number: 11C0119 360 x 360 DPI, Parallel, USB 2.0

Printer Support Linksshow
- Repair It
- Exchange It
- View Supplies
- Service Diagrams
- Service Manual
- Partsurfer Tool

Lexmark parts list for 11C0119 Lexmark 24-Pin Dot Matrix Forms Printer 2591

40X2903 Bracket - Serial interface card bracket

40X2934 Cable - Serial interface cable

40X7984 Cable - Operator panel cable

40X8070 Cable - Power supply cable, wide

40X2887 Carrier - Carrier roller set

40X2989 Carrier - Carrier shaft, wide

40X3022 Carrier - Carrier plate assembly, wide

40X7988 Carrier - Carrier unit, wide

40X8010 Carrier - Carrier motor with BKT

40X8014 Carrier - Carrier fan

40X2897 Cover - Operator panel front cover with overlay packs

40X2911 Cover - Rear Cover

40X2993 Cover - Front unit cover assembly, wide

40X2995 Cover - Front cover guide, wide

40X3026 Cover - Ribbon access unit cover (2491, 2591)

40X7979 Cover - Top cover, wide

40X7980 Cover - Bottom cover, wide

40X2967 Frame - Left side frame (249x, 259x)

40X2980 Frame - Right side sub frame

40X3008 Frame - Frame support plate, wide

40X2909 Fuse - Fuse kit (LV)

40X2890 Gear - ASF Gears and bushings Parts Packet

40X2987 Gear - Ribbon drive rack gear, wide

40X3136 Gear - ASF Gear, bushings and bearing Parts Packet

40X2912 Guide - Left paper guide

40X2913 Guide - Right paper guide

40X2970 Guide - Paper guide assembly, wide

40X2957 Idler - Idler gear (249x, 259x)

40X2922 Kit - Head Gap adjustment kit

40X2931 Kit - Pull tractor actuator kit

40X2894 Lever - Forms Thickness lever

40X2907 Lever - Paper Select lever

40X8008 Motor - Paper feed motor with BKT

40X2997 Panel - Operator panel overlay pack (249x, 259x)

40X7983 Panel - Operator panel assembly, 259x+

40X8077 PC Board - Logic board, 2591+

40X2915 Plate - Serial interface card plate

40X2930 Plate - Serial interface card with plate

40X2908 Platen - Platen holder

40X2974 Platen - Platen, wide

40X0294 Power Cord - Power cord 2.5 m 8 ft. Right angle Denmark

40X8011 Power Supply - Power supply unit

40X7986 Printhead - Printhead assembly, 259x+

40X7994 Printhead - Printhead cable, 2591+

40X2971 Roller - Lower feed roller, wide

40X2979 Roller - Upper feed roller, wide

40X2985 Roller - ASF Pickup (left and right) roller - wide

40X3020 Roller - Lower pinch roller, wide

40X3023 Roller - ASF Upper feed roller - wide

40X3024 Roller - ASF Lower feed roller - wide

40X2926 Screw - Screws, washers and clips Parts Packet

40X7995 Sensor - Sensor, pull tractor and paper select

40X7997 Sensor - Sensor, head gap and home position

40X7998 Sensor - Sensor, top-of-form and paper present

40X2891 Service Parts - ASF Springs Parts Packet

40X2892 Service Parts - ASF Screws Parts Packet

40X2906 Service Parts - Springs Parts Packet

40X2918 Service Parts - Left and right tractors

40X2976 Service Parts - Paper separator, wide

40X2977 Service Parts - Tension pulley plate assembly

40X3035 Service Parts - Wide dual tractor assembly

40X2937 Stand - Paper stand

40X2927 Support - ASF Right Paper support

40X2928 Support - ASF Left Paper support

40X2880 Tractor - Tractor 2 Motor

40X2882 Tractor - Tractor 2 Parts Packet

40X2905 Tractor - Tractor paper support

40X2961 Tractor - Tractor 2 Board Assembly with cable and Ferrite - Wide

40X3001 Tractor - Tractor shaft set, wide

40X3003 Tractor - Tractor unit, wide

24-Pin Dot Matrix Forms Printer 2591 parts list
