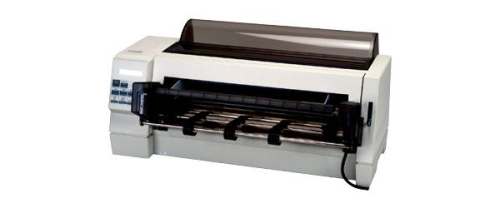

13L0180 Dual 9-Pin Dot Matrix Forms Printer 4227

Lexmark Dual 9-Pin Dot Matrix Forms 4227 (13L0180)

MFG Part Number: 13L0180 240 x 144 DPI, Parallel, Serial

Printer Support Linksshow
- Repair It
- Exchange It
- View Supplies
- Service Diagrams
- Service Manual
- Partsurfer Tool

Lexmark parts list for 13L0180 Lexmark Dual 9-Pin Dot Matrix Forms Printer 4227

40X3084 Base - Base assembly

40X3098 Bearing - Bearing Parts Packet

40X3063 Belt - Belt tension pulley, plate assembly

40X3057 Bracket - Paper feed motor assembly with bracket

40X3107 Bracket - Sub logic board and bracket

40X3121 Bracket - Auto Gap motor Bracket

40X3049 Cable - Operator panel cable

40X3108 Cable - Sub logic board cable

40X3115 Cable - Serial port card to main logic board cable

40X3037 Cam - Release slider Cam

40X3038 Cam - Sub slider Cam

40X3114 Cards - Serial port card and bracket assembly

40X3065 Carrier - Carrier shaft

40X3066 Carrier - Carrier roller and spring

40X3072 Carrier - Carrier plate

40X3120 Carrier - Carrier motor cooling fan

40X3122 Carrier - Carrier motor bracket

40X3123 Carrier - Carrier motor assembly

40X3124 Carrier - Carrier Assembly with belt & head cooling gum

40X3033 Cover - Front cover

40X3039 Cover - Right cover

40X3043 Cover - Front cover assembly, complete

40X3045 Cover - Ribbon access cover assembly

40X3050 Cover - Cover with cover switch plate Switch assembly

40X3051 Cover - Acoustic cover

40X3103 Cover - Main logic card dust cover

40X3106 Cover - Cover assembly with logo (top)

40X3118 Cover - Rear cover

40X3134 Cover - Left cover

40X3135 Cover - Right cover

40X3138 Cover - Left gear cover

40X3087 Fan - Power supply Fan

40X3052 Frame - Left tractor side frame

40X3053 Frame - Right tractor side frame

40X3075 Frame - Frame support shaft

40X3080 Frame - Right side frame assembly

40X3113 Frame - Left Side frame assembly

40X3086 Fuse - Power supply Fuse

40X3062 Gear - Ribbon drive and gear plate motor assembly

40X3097 Gear - Gear kit

40X3105 Gear - Gears Parts Packet

40X3136 Gear - ASF Gear, bushings and bearing Parts Packet

40X3081 Guide - Paper guide/platen assembly

40X3126 Guide - Right paper guide

40X3131 Guide - Front cover guide

40X3094 Kit - Operator panel overlay kit

40X3119 Kit - ROM Kit

40X3078 Latch - Ribbon latch

40X3070 Lever - Paper select lever

12G9625 Manual - 4227-300 Service Manual

40X3112 Motor - Auto gap motor

40X3048 Overlay - Operator panel assembly with English overlay

40X3109 PC Board - Main logic board without ROM (HV)

40X3110 PC Board - Main logic board without ROM (LV)

40X3056 Plate - Right gear plate

40X0294 Power Cord - Power cord 2.5 m 8 ft. Right angle Denmark

40X3140 Power Cord - Power cord;2.5 m, 8 ft. Peru, Bolivia

40X3143 Power Cord - Power cord;2.5 m, 8 ft. Switzerland

40X3144 Power Cord - Power cord;2.5 m, 8 ft. South Africa

40X3125 Power Supply - Power supply, 100 - 240 V ac

12G0224 Printhead - Printhead (4227-300) DOT MATRIX PRINTHEAD FOR LEXMARK 4227

40X3116 Printhead - Printhead (4227-300) DOT MATRIX PRINTHEAD FOR LEXMARK 4227

40X3117 Printhead - Printhead and retainer Cable

40X2985 Roller - ASF Pickup (left and right) roller - wide

40X3023 Roller - ASF Upper feed roller - wide

40X3024 Roller - ASF Lower feed roller - wide

40X3073 Roller - Upper feed roller

40X3083 Roller - Lower feed roller

40X3132 Roller - Lower pinch roller

40X3096 Screw - Screw, Clip Parts Packet

40X3071 Sensor - Auto gap sensor

40X3079 Sensor - Paper select sensor

40X3082 Sensor - Paper sensors with flags & springs

40X3074 Separator - Paper Separator

40X2891 Service Parts - ASF Springs Parts Packet

40X2892 Service Parts - ASF Screws Parts Packet

40X2918 Service Parts - Left and right tractors

40X3111 Service Parts - Torroid

40X3127 Service Parts - Right Hopper

40X3128 Service Parts - Left Hopper

40X3099 Spring - Spring Parts Packet

40X3130 Stand - Paper stand

40X3104 Strip - Paper guide MyLar strip

40X2927 Support - ASF Right Paper support

40X2928 Support - ASF Left Paper support

40X3040 Support - Cut sheet support with guides

40X3133 Support - Center paper support

40X3137 Support - Stacking support

40X2880 Tractor - Tractor 2 Motor

40X2881 Tractor - Tractor 2 paper guide

40X2882 Tractor - Tractor 2 Parts Packet

40X2905 Tractor - Tractor paper support

40X2959 Tractor - Tractor 2 support shaft - Wide

40X2961 Tractor - Tractor 2 Board Assembly with cable and Ferrite - Wide

40X3054 Tractor - Tractor pair with sensors

40X3055 Tractor - Tractor shaft kit

40X3091 Tractor - Tractor cable

40X3092 Tractor - Tractor cable bracket

40X3093 Tractor - Tractor and Frame Assembly

40X3095 Tractor - Tractor kit (left and right) with sensors

Dual 9-Pin Dot Matrix Forms Printer 4227 parts list
