Lexmark parts list for 28C0050 Color Laser CS310dn

40X7046 Block - Waste toner bottle contact block

40X7639 Cable - Operator panel cable, CS310

40X7647 Cable - Cable parts packet

3073173 Cartridge - Cartridge Standard Yield

40X7620 Cartridge - Toner meter cycle card assembly

40X7621 Cartridge - Toner supply door

40X7636 Cartridge - Toner cartridge contacts (Pogo pin)

70C0D10 Cartridge - Cartridge Standard Yield, 40,000 pages

70C0D20 Cartridge - Cartridge Standard Yield, 40,000 pages

70C0D30 Cartridge - Cartridge Standard Yield, 40,000 pages

70C0D40 Cartridge - Cartridge Standard Yield, 40,000 pages

70C0H10 Cartridge - Cartridge High Yield, 4,000 pages

70C0H20 Cartridge - Cartridge High Yield, 3,000 pages

70C0H30 Cartridge - Cartridge High Yield, 3,000 pages

70C0H40 Cartridge - Cartridge High Yield, 3,000 pages

70C0P00 Cartridge - Cartridge Standard Yield, 40,000 pages

70C0Z10 Cartridge - Cartridge Standard Yield, 40,000 pages

70C0Z50 Cartridge - Cartridge Standard Yield, 40,000 pages

70C0Z5G Cartridge - Cartridge Standard Yield, 40,000 pages

70C10C0 Cartridge - cs/cx310, 410, 510 1k cyan toner (rp)

70C10K0 Cartridge - cs/cx310, 410, 510 1k black toner (rp)

70C10M0 Cartridge - cs/cx310, 410, 510 1k magenta toner (rp)

70C10Y0 Cartridge - cs/cx310, 410, 510 1k yellow toner (rp)

70C1HC0 Cartridge - cs310, cs/cx410, 510 3k cyan toner (rp)

70C1HK0 Cartridge - cs310, cs/cx410, 510 4k black toner (rp)

70C1HM0 Cartridge - cs310, cs/cx410, 510 3k magenta toner (rp)

70C1HY0 Cartridge - cs310, cs/cx410, 510 3k yellow toner (rp)

40X7613 Controller - Controller card, CS310

40X7643 Controller - Controller card cover, CS310, CS410

40X7618 Cover - Front and right side interlock switch cover

40X7619 Cover - Front cover straps

40X7630 Cover - Right cover assembly

40X7632 Cover - Left cover assembly

40X7633 Cover - Top cover assembly

40X7635 Cover - Front cover assembly

40X7646 Cover - Lower left frame and lower right frame with cable cover

40X7649 Deflector - Exit deflector Parts Pack

40X5413 Fuser Assembly - Fuser exit sensor

40X7622 Fuser Assembly - Fuser assembly, 110-120V Lexmark Fuser CS310 CS410 CS510 CX310 CX410 CX510 MFP 110V 85K (CX410DE)

40X7623 Fuser Assembly - Fuser assembly, 220-240V

40X7624 Fuser Assembly - Fuser assembly, 100V

40X7629 Fuser Assembly - Fuser drive motor assembly

40X7628 Gear - Main gear drive assembly with motors

40X0395 Kit - Relocation packaging Kit C54x

40X5413 Kit - Fuser exit sensor

40X7061 Kit - MarkNet N8352 802.11b/g/n Wireless Print Server Kit

40X7301 Kit - Photo sensor and retainer (one per package)

40X7615 Kit - CS/CX 310/410/510 Fuser+ITU Maintenance kit, 110-120V

40X7616 Kit - CS/CX 310/410/510 Fuser+ITU Maintenance kit, 220-240V

40X7617 Kit - CS/CX 310/410/510 Fuser+ITU Maintenance kit, 100V

40X7622 Kit - Fuser assembly, 110-120V Lexmark Fuser CS310 CS410 CS510 CX310 CX410 CX510 MFP 110V 85K (CX410DE)

40X7624 Kit - Fuser assembly, 100V

70C0D10 Kit - Cartridge Standard Yield, 40,000 pages

70C0D20 Kit - Cartridge Standard Yield, 40,000 pages

70C0D30 Kit - Cartridge Standard Yield, 40,000 pages

70C0D40 Kit - Cartridge Standard Yield, 40,000 pages

70C0P00 Kit - Cartridge Standard Yield, 40,000 pages

70C0Z10 Kit - Cartridge Standard Yield, 40,000 pages

70C0Z50 Kit - Cartridge Standard Yield, 40,000 pages

40X7615 Maintenance Kit - CS/CX 310/410/510 Fuser+ITU Maintenance kit, 110-120V

40X7616 Maintenance Kit - CS/CX 310/410/510 Fuser+ITU Maintenance kit, 220-240V

40X7617 Maintenance Kit - CS/CX 310/410/510 Fuser+ITU Maintenance kit, 100V

40X7445 Memory - 2GB x32 DDR3 RAM

40X7567 Memory - 1GB x32 DDR3 RAM

40X7610 Module - Transfer module assembly

40X7614 Motor - Paper pick motor drive assembly

40X7637 Panel - Operator panel bezel and name plates

40X7638 Panel - Operator panel and display assembly, CS310

40X7634 PC Board - System fan

40X8555 PC Board - 256MB flash card

40X8556 PC Board - Traditional Chinese font card

40X8557 PC Board - Simplified Chinese font card

40X8568 PC Board - Korean font card

40X8569 PC Board - Japanese font card

40X8570 PC Board - Arabic font card

40X8571 PC Board - Hebrew font card

40X3609 Power Cord - Power cord 2.5 m 8 ft. Straight Japan

40X7625 Power Supply - HighG��voltage power supply

40X7626 Power Supply - LowG��voltage power supply (universal)

40X7627 Printhead - Printhead laser

40X7648 Screw - Screws parts packet

40X5414 Sensor - Toner patch sensors left or right (one in package)

40X7301 Sensor - Photo sensor and retainer (one per package)

40X5168 Service Parts - Pick tires

40X5429 Service Parts - ITU paper path thermistor

40X5803 Service Parts - Duplex reference edge

40X8701 Service Parts - Relocation packaging kit

40X9244 Service Parts - Front toner door pivot Bracket

40X7652 Spring - Spring parts package

40X7645 Tray - 250-Sheet tray insert

40X8089 Tray - 550-Sheet Duo Tray with 100-Sheet MPF

40X8091 Tray - 550-Sheet duo tray insert

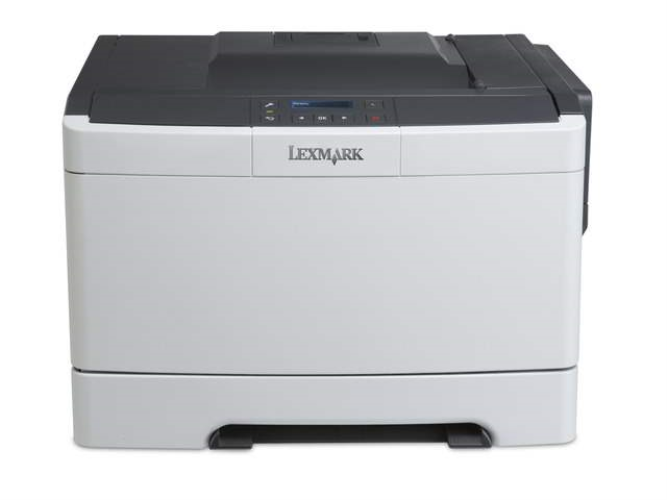

Lexmark Color Laser CS310dn (28C0050)

Lexmark parts list for 28C0050 Lexmark Color Laser CS310dn
