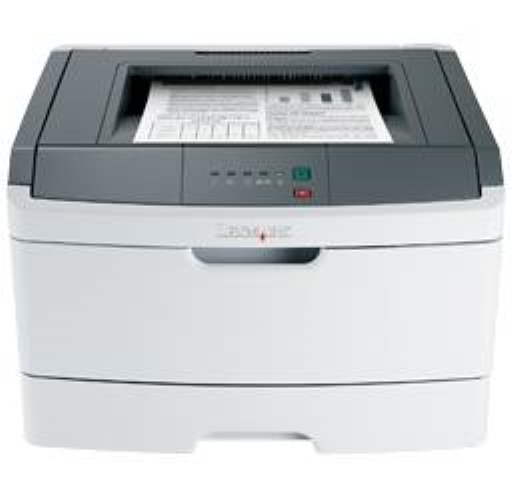

Lexmark E260dn (34S0300)

MFG Part Number: 34S0300 33ppm black, 1200 x 1200 DPI, 0

Printer Support Linksshow
- Repair It
- Exchange It
- View Supplies
- Service Diagrams
- Service Manual
- Partsurfer Tool

Lexmark parts list for 34S0300 Lexmark E260dn Printer

40X5364 Bearing - Transfer roll bearings gear spring (CBM)

40X1367 Cable - Parallel cable packaged (3 m)

40X1368 Cable - USB cable packaged (2 m)

E260A11A Cartridge - Smart-Supply Program Welcome Kit. Page Yield : 3500 -Black

E260A21A Cartridge - Toner Cartridge. Page Yield : 3500 -Black

E260X22G Cartridge - Photoconductor Kit. Page Yield : 30000

E260X42 Cartridge - Cartridge Standard Yield, 30,000 pages

40X5368 Clutch - Manual feed clutch CBM

40X5370 Clutch - Media feed (ACM) clutch

40X5348 Controller - Controller board, E260dn

40X5359 Cover - Nameplate cover

40X5373 Cover - Top cover assembly

40X5374 Cover - Left side cover

40X5375 Cover - Right side cover

40X5377 Cover - Rear upper and lower cover assembly

40X5379 Cover - Front door cover

40X5389 Cover - LCD bezel cover, E260dn

40X5378 Door - Front access door assembly

40X5398 Drawer - Optional 250-sheet drawer

40X5399 Drawer - Optional 550-sheet drawer

40X5453 Drive Assembly - Media (ACM) drive assembly

40X5380 Duplexer - Complete duplex assembly

40X5344 Fuser Assembly - Fuser assembly 110-120V

40X5345 Fuser Assembly - Fuser assembly 220-240V, Fuser 220-240V E260 E360 E460 (E460DN E460DTN E462DTN ES460DN, X264DN MFP)

40X5346 Fuser Assembly - Fuser assembly 100V

40X5363 Gear - Duplex gear drive CBM

40X5367 Gear - Main drive gearbox (in motor)

40X0407 Guide - Left Assembly Cartridge Guide

40X5372 Guide - Media exit guide assembly (redrive)

40X5344 Kit - Fuser assembly 110-120V

40X5345 Kit - Fuser assembly 220-240V, Fuser 220-240V E260 E360 E460 (E460DN E460DTN E462DTN ES460DN, X264DN MFP)

40X5364 Kit - Transfer roll bearings gear spring (CBM)

40X5380 Kit - Complete duplex assembly

7470094 Kit - Relocation package kit, E46x, E360, E260

E260X22G Kit - Photoconductor Kit. Page Yield : 30000

40X5937 Memory - 128MB DDR DRAM DIMM

40X5397 Mount - Front mounts

40X5352 Panel - LED operator panel assembly, E260d/E260dn

40X5361 PC Board - LVPS HVPS card assembly 110-120V 100V

40X5362 PC Board - LVPS HVPS card assembly 220-240V

40X5969 PC Board - Korean font card

40X5972 PC Board - Japanese font card

40X0270 Power Cord - Power Cord 2.5 m 8 ft. Straight Japan

40X0274 Power Cord - Power cord 1.8 m 6 ft. Straight Switzerland

40X0276 Power Cord - Power cord 1.8 m 6 ft. Straight Botswana South Africa

40X0277 Power Cord - Power cord;1.8 m, 6 ft. Straight, Brazil

40X0278 Power Cord - Power cord 1.8 m 6 ft. Straight Europe Middle East Indonesia Africa

40X0279 Power Cord - Power cord 1.8 m 6 ft. Straight Denmark

40X0280 Power Cord - Power cord 1.8 m 6 ft. Straight Korea

40X0281 Power Cord - Power cord 1.8 m 6 ft. Straight Taiwan

40X0282 Power Cord - Power cord 1.8 m 6 ft. Straight PR China

40X0286 Power Cord - Power cord 1.8 m 6 ft. Straight UK Ireland Hong Kong

40X0287 Power Cord - Power cord 1.8 m 6 ft. Straight Chile Italy Uruguay

40X0296 Power Cord - Power cord 1.8 m 6 ft. Straight Australia New Zealand

40X0297 Power Cord - Power cord 1.8 m 6 ft. Straight US Canada Latin America AP

40X4596 Power Cord - Power cord 2.5 m 8 ft. Straight Brazil

40X7229 Power Cord - Power cord; 2.5 m, 8 ft. Straight, India

40X5387 Printhead - Lexmark 40X5387 print head

40X5392 Screw - Cooling fan (screws included)

40X5396 Screw - Screws miscellaneous

40X5360 Sensor - Access door open sensor assembly

40X5365 Sensor - Duplex and media sensor assembly

40X5366 Sensor - Manual input sensor assembly

40X5385 Sensor - Toner low sensor

40X0275 Service Parts - Power cord; 2.5 m, 8 ft. Straight, Isreal

40X0288 Service Parts - 40X0288

40X5451 Service Parts - Paper feed ACM tires

40X5970 Service Parts - 40X5970

40X5971 Service Parts - 40X5971

40X5369 Solenoid - Manual feed solenoid

40X2855 Strip - Tray 2 wear strips 550-sheet

40X5382 Strip - Wear strips (250-Sheet Tray)

40X5381 Tray - Primary tray

40X5394 Tray - 250-sheet tray assembly

40X5395 Tray - 550-sheet tray assembly

40X5440 Tray - Tray 2 paper feed tires

E260dn Printer parts list
