HP parts list for 3GY04A Color LaserJet Managed E65160dn

P1B93-67901 Belt - Image transfer belt KIT - Includes tray 2 transfer roller paper pick-up roller tray 2 separation roller retard roller and transfer roller guide Estimated Yield 150000 pages

RK2-7768-000CN Cable - Flexible flat cable

RK2-7771-000CN Cable - Flexible Flat Cable

RK2-7776-000CN Cable - Flexible flat cable

RM2-8880-000CN Cable - Envelope feeder option upper cable assembly

RM2-8881-000CN Cable - Envelope feeder option lower cable assembly

RM2-9286-000CN Cable - Drawer upper cable assembly

RM2-6620-000CN Carriage - Toner carry assembly

RM2-5147-000CN Clip - 550-sheet feeder auto close clip assembly

VS1-7258-012CN Connector - Drawer connector

RM2-1267-010CN Control Panel - Control Panel Assembly

RC4-0213-000CN Cover - HIP cover - Rectangular shaped plastic cover that snaps on the upper cover assembly - For duplex models only

RC4-1778-000CN Cover - 550-sheet feeder right door link - Links the right door assembly with the right lower cover assembly

RC4-6425-000CN Cover - Right rear cover assembly - Plastic cover that protects the rear right side of the printer

RC4-6429-000CN Cover - Top cover assembly - Plastic L shaped cover that protects the top side of the printer

RC4-6858-000CN Cover - Left rear cover assembly - Plasic cover that protects the left rear side of the printer

RC4-7682-000CN Cover - 550-sheet paper feeder left cover

RC4-7683-000CN Cover - 550-sheet paper feeder rear cover

RC4-7684-000CN Cover - 550-sheet paper feeder right lower cover

RC4-8239-000CN Cover - Panel back cover assembly - For the LCD Duplex/Simplex models only

RC4-9423-000CN Cover - USB plastic cover

RC5-0383-000CN Cover - 3x550-sheet paper feeder front lower cover

RC5-0384-000CN Cover - 2,500-sheet paper feeder right lower cover

RC5-0385-000CN Cover - 1x550-sheet feeder left lower cover

RC5-0386-000CN Cover - 1x550-sheet feeder rear cover

RC5-0387-000CN Cover - 1x550-sheet feeder left cover

RC5-0399-000CN Cover - 1x550-sheet feeder rear lower cover

RC5-0417-000CN Cover - 3x550-sheet paper feeder right caster cover

RC5-0418-000CN Cover - 3x550-sheet paper feeder left caster cover

RC5-1812-000CN Cover - Cover, Hip

RM2-1951-000CN Cover - Rear cover assembly

RM2-6657-000CN Cover - Formatter cover assembly - Plastic cover that provides access to the formatter PC board

RM2-6621-000CN Delivery - Paper delivery assembly HP M681/M652/M653/E650X0 Paper Delivery and similar models.

RC5-0405-000CN Door - 1x550-sheet feeder stock door

RL2-1500-000CN Door - Left drop down door

RM2-1218-000CN Door - 2,500-sheet paper feeder right door

RM2-1226-000CN Door - 1x550-sheet paper feeder right door assembly

RM2-1230-000CN Door - 3x550-sheet paper feeder right door assembly

RM2-6622-000CN Door - Right door assembly

RM2-6658-000CN Door - Front door assembly

RM2-6937-000CN Door - 550-sheet paper feeder right door assembly

RM2-0915-000CN Drive Assembly - 2550-sheet paper feeder tray lifter motor drive assembly

RM2-1222-000CN Drive Assembly - 1x550-sheet paper feeder drive assembly

RM2-1927-000CN Drive Assembly - Main drive assembly

RM2-1934-000CN Drive Assembly - Fuser drive assembly

RM2-2091-000CN Drive Assembly - 1x550-sheet paper tray feeder lifter drive assembly

RM2-6669-000CN Drive Assembly - Lifter drive assembly

RM2-6933-000CN Drive Assembly - 550-sheet paper feeder lifter drive assembly

RM2-6934-000CN Drive Assembly - 550-sheet paper feeder drive assembly

RK2-2416-000CN Fan - Low voltage power supply fan (FM1)

RK2-2416-010CN Fan - Fan

RK2-6124-000CN Fan - Cartridge Fan (FM2) - Provides air to the cartridge assembly area

RK2-7949-000CN Fan - Cooling fan (FM4) assembly

RK2-7951-000CN Fan - Cooling fan (FM3) assembly

RM2-5145-000CN Feeder - 550-sheet paper feeder assembly

RM2-1928-030CN Fuser Assembly - Fuser assembly - For 110 VAC operation - Bonds toner to the paper with heat for LJ M652 / M653 / M681 / M682 / E67660 series

RM2-1929-030CN Fuser Assembly - 220V Fuser Assembly

RC4-0548-000CN Guide - NIP guide

RC4-9410-000CN Handle - Printer main body rear handle

RM2-1958-000CN Handle - Left handle assembly

RM2-6659-000CN Handle - Assembly-Right Handle

RC4-6497-000CN Holder - Holder-Drawere Connector

RC4-7680-000CN Holder - 550-sheet paper feeder upper drawer holder

RC4-8914-000CN Holder - 550-sheet feeder paper tray drawer connector holder

RM2-1223-000CN Holder - 1x550-sheet paper feeder pick-up alienation holder

RM2-6650-000CN HP Parts - Assembly-Guide

3GY32-67901 Kit - Kit-PEFS

9460B005BA Kit - laserjet 110v maintenance kit

J8030-61001 Kit - NFC accessory wireless (802.11 b/g) - Includes one Hi-Speed USB 2.0 and one wireless ethernet ports

P1B91A Kit - laserjet 110v maintenance kit

RC4-9824-000CN Link - 2,500-sheet paper feeder right door link

E5K48-67902 Memory - 1GB DDR3 x32, 144-Pin, 800MHz SODIMM - Optional DIMM for expanding the memory

E5K48A Memory - 1GB DDR3 x32 144-Pin 800MHz SODIMM - Optional DIMM for expanding the memory

RK2-6027-000CN Motor - Developing disengagement motor (M6)

RK2-7757-000CN Motor - Pick-up motor

RK2-7831-000CN Motor - Stepping motor (M3402)

RM2-1955-000CN Motor - Fuser motor (M4) assembly

RM2-1956-000CN Motor - Drum motor assembly - Can be uses as motor 1,2 or 3

B5L28-67902 PC Board - Internal USB Ports

B5L32-60003 PC Board - 8GB embedded MultiMedia Card (eMMC)

RM2-7138-000CN PC Board - Memory PC board assembly

RM2-7157-000CN PC Board - Estrangement detect sensor (SR5) PC board assembly

RM2-8421-000CN PC Board - Power supply PC board assembly - For 110 VAC operation

RM2-8422-000CN PC Board - Power supply PC board assembly - For 220 VAC operation

RM2-8424-000CN PC Board - Upper high voltage power supply PC board assembly

RM2-8424-010CN PC Board - Assy Hv Up Power Supply Pcb

RM2-8440-000CN PC Board - Environmental sensor PC board assembly

RM2-8481-000CN PC Board - Paper deck cont PC board assembly (HCI)

RM2-8482-000CN PC Board - 1x550-sheet paper feeder paper deck cont PC board assembly

RM2-8483-000CN PC Board - 3x550-sheet paper feeder paper deck cont PC board assembly

RM2-8491-000CN PC Board - 550-sheet feeder feeder controller PC baord assembly

RM3-7006-000CN PC Board - Lower high voltage power supply PC board assembly

RM3-7046-000CN PC Board - Pre-exposure PC board assembly

RM3-7047-000CN PC Board - Pre-exposure PC board assembly

J7Z98-67902 Pickup Assembly - 550-sheet feeder paper pick-up roller assembly Includes separation rollers feed roller pick up rollers pickup roller tool feed roller tool separation roller kit

RM2-1235-000CN Pickup Assembly - 3x550-sheet paper feeder paper pick-up assembly

RM2-5154-000CN Pickup Assembly - 550-sheet feeder paper pick-up assembly

RM2-6556-000CN Pickup Assembly - Paper pick-up assembly

RM2-6613-000CN Reservoir - Toner collection/reservoir unit Yield: 100000 pages HP Toner Collection Unit for Color LaserJet M652 / M653 / M681 / M682 Printer

9460-B012 Roller - Multi/purpose pick-up, feed, and separation rollers

RM2-1275-000B Roller - Paper Pick-Up Roller Assy

RM2-1275-000CN Roller - Paper pick-up roller assembly

RM2-1957-000CN Roller - Registration roller assembly

RM2-1957-020CN Roller - Assy-Registration

RM2-1957-030CN Roller - Assy-Registration

RM2-6561-000CN Roller - Secondary transfer roller assembly

RM2-6575-000CN Roller - Kit-Secondary Transfer Roller

RM2-6682-000CN Roller - Secondary transfer roller assembly For HP M652/M653/M681/M682/E67550 Transfer

RM2-6684-000CN Roller - Feed roller assembly

RM2-6772-000CN Roller - Retard roller assembly

RM2-1237-000CN Scanner - Laser scanner assembly

RM2-0857-000CN Sensor - Size sensor assembly - Includes (SW4/SW5) sensors

RM2-0921-000CN Sensor - 2550-sheet paper feeder paper size detect sensor (SW4501) assembly

RM2-7160-000CN Sensor - Density detect sensor assembly

3GY03-67901 Service Parts - Kit-Formatter E65150/60 Formatter Board Fit For HP Color LJM E65150 E65160 A4 3GY03A 3GY04A

3GY03-67902 Service Parts - Kit-Formatter E65150/60 India/China

3GY03-69001 Service Parts - MPS Maintenance Kit

5851-7697 Service Parts - Cable-Ffc Echo

P1B91-69001 Service Parts - 110V Fuser Kit

P1B92-69001 Service Parts - 220V Fuser Kit

P1B93-67901-BU Service Parts - Image Transfer Belt Maintenance Kit. Image transfer belt KIT - Includes tray 2 transfer roller paper pick-up roller tray 2 separation roller retard roller and transfer roller guide Estimated Yield 150000 pages

P1B93-69001 Service Parts - Intermediate Transfer Belt PM Kit

Q8260-00016 Service Parts - Label- serial, 18.3mm

RC4-6519-000CN Service Parts - Lever-Detect

RC4-6533-000CN Service Parts - Holder-Door Link

RC4-6540-000CN Service Parts - Hinge-Inner Door

RC4-9411-000CN Service Parts - Strap-Door Front

RC4-9422-000CN Service Parts - Strap-Door Front

RC5-0384-010CN Service Parts - Cover-Right Lower

RC5-0388-000CN Service Parts - Cover-Latch

RC5-0389-000CN Service Parts - Cover-Door Hinge

RC5-0404-000CN Service Parts - Holder-Hinge

RL2-1504-000CN Service Parts - Door-Inner

RM2-1219-010CN Service Parts - Assembly-Cassette

RM2-1275-000BU Service Parts - Assy-Paper Pickup Roller

RM2-1275-000MP Service Parts - MultiPack Qty 20 PAPER PICK-UP ROLLER AS

RM2-1929-030BU Service Parts - Assy-Fixing

RM2-1947-020CN Service Parts - Assy-Power Supply Switch

RM2-1974-000BU Service Parts - Assy-Cassette

RM2-1975-000CN Service Parts - Assy-Face Down Tray

RM2-2097-000CN Service Parts - Cover-Caster Right

RM2-6648-000CN Service Parts - Assembly-Door Link Lever

RM2-6651-000CN Service Parts - Assembly-Guide Upper

RM2-6702-000CN Service Parts - Assy-Front Door

RM2-6772-000BU Service Parts - Assy-Retard Roller

RM2-6772-000MP Service Parts - MultiPack Qty 10, RETARD ROLLER ASSY

RM2-8421-010CN Service Parts - Assy-Power Supply Pcb

RM2-8422-010CN Service Parts - Assy-Power Supply Pcb

RM2-8626-000CN Service Parts - Assembly-Interlock Switch Cable

RM3-7020-000CN Service Parts - Interlock Switch Cable Assembly

RM3-7020-020CN Service Parts - Interlock Switch Cable Assembly

RM3-7603-000CN Service Parts - DC controller PCA E65150-E65160

RU9-2364-000CN Service Parts - Spring

RK2-0535-000CN Switch - Microswitch (SW2)

RM2-1947-000CN Switch - Power supply switch assembly

WC2-5762-000CN Switch - 550-sheet feeder push switch

WC2-5803-000CN Switch - 550-sheet feeder push switch

WC2-5806-000CN Switch - Button switch (SW21) - For the 550-sheet paper tray feeder

P1B09-67901 Tray - 1 x 550-sheet paper feeder kit

RM2-1231-000CN Tray - 3x550-sheet feeder middle/lower tray cassette assembly

RM2-1953-000CN Tray - Output bin assembly - Face down door tray

RM2-1974-000CN Tray - Assy-Cassette

RM2-6618-000CN Tray - Paper input tray 2 cassette assembly

RM2-6618-020CN Tray - Assy-Cassette

RM2-6935-000CN Tray - 550-sheet paper feeder tray cassette assembly

P1B10-67901 Tray Assembly - 1 x 550-sheet paper feeder assembly with stand

P1B11-67901 Tray Assembly - 3 x 550-sheet paper feeder assembly with stand

P1B12-67901 Tray Assembly - 2,550-sheet paper feeder assembly with stand

RM2-0856-000CN Tray Assembly - Paper output bin tray assembly - Holds paper after it has been printed

RM2-0918-000CN Tray Assembly - 2550-sheet paper feeder tray auto close assembly

RM2-1220-000CN Tray Assembly - 2,500-sheet paper feeder tray 4 assembly

RM2-1220-010CN Tray Assembly - Tray Assembly

3JN69-61001 Wireless PC Board - HP Jetdirect 3100w BLE/NFC/ wireless accessory - Wi-Fi direct accessory for touch and Bluetooth printing from mobile devices

J8031-61001 Wireless PC Board - USB wireless print server kit

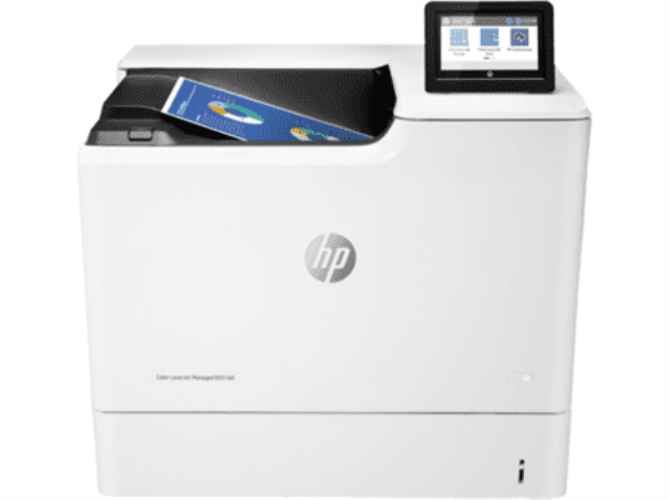

HP Color LaserJet Managed E65160dn (3GY04A)

HP parts list for 3GY04A HP Color LaserJet Managed E65160dn Printer
