HP parts list for C7790B DesignJet 20ps

C7796-67001 Absorber - Ink Service Station (ISS) rear absorber foam - Absorbs ink during the cleaning process

J7934-69011 Backbone - JetDirect 620n internal print server - 10BaseT and 100BaseTX LAN interface board - Plugs into peripheral EIO slot - Has an RJ-45 connector;Click to order the functional equivalent: J7934-69021

J7934-69021 Backbone - JetDirect 620n internal print server - 10BaseT and 100BaseTX LAN interface board - Plugs into peripheral EIO slot - Has an RJ-45 connector

C8108-67048 Belt - Output Belt (1 per) Svc Output Belt (1 per) Svc

Q1292-67001 Belt - Output Belt (1 per) Svc Output Belt (1 per) Svc

Q1293-67005 Belt - Carriage drive belt - Moves printhead side to side

C2392A Cable - Universal serial bus (USB) interface cable - Type `A` connector to type `B` connector - 5.0m (16ft) long

C4530-60091 Cable - Trailing cable assembly - Two ribbon cables attached to a plastic mounting bracket - 55.9cm (22in) long

C7790-67001 Cable - Duplexer OOP (Out Of Paper) sensor harness

Q1292-67029 Cable - Motor harness uly svc kit

Q1293-67001 Cable - Motor harness b one per svc

C8108-67050 Cam - Drawer and spring cam

C7790-60278 Carriage - Ink cartridge carriage assembly - Includes carriage PC board

C4530-40216 Clamp - Clamp-Trailing Cable

C7790-60100 Cover - Back cover - Covers the back of the printer - Located under the access door

C7790-60102 Cover - Front cover - Covers the front and center of the printer

C7790-60117 Cover - Right side cover assembly - Houses the ink cartridges

C7790-60118 Cover - Left side cover assembly - Houses the control panel

C7790-60150 Cover - Left trim assembly - Located between the left cover assembly and the chassis

C7790-60086 Door - Access Door - Covers the top of the printer and provides access to the print heads and carriage

C7790-60106 Door - Printhead door assembly - Provides access to the printheads - Includes ink cartridge door hinge

C7790-60292 Door - Ink Cartridge Door - Provides access to the ink cartridges - For the 10ps version ONLY

C7790-60293 Door - Ink Cartridge Door - Provides access to the ink cartridges - For ther 20ps version ONLY

C7790-60294 Door - Ink cartridge door - Provides access to the ink cartridges - For the 50ps version only

C8108-67036 Door - Rear cleanout door assembly - Paper jam cleanout door

Q1293-60067 Door - Rear cleanout door assembly - Paper jam cleanout door

C8108-67053 Duplexer - Duplexer module - Two sided printing accessory

C8219A Duplexer - Duplexer module - Two sided printing accessory

C8108-67051 Encoder - Paper motor encoder disk Disc-Encoder One Per Svc Paper motor encoder disk

Q1292-67019 Encoder - Disc-encoder one per svc Paper motor encoder disk

Q1292-67039 Encoder - Disc-Encoder One Per Svc Paper motor encoder disk

Q1293-67002 Encoder - Encoder harness - B-size

Q1293-67004 Encoder - Encoder strip - B-size - Clear strip with position marks - Used by the sensor in the carriage assembly to determine position

C3835A Film - Film (Transparency) for DeskJet 1200 Series, DeskJet 500 Series, DeskJet 550C Series, DeskJet 850 Series

C7790-60295 Filter - Filter Assembly - Located inside the right cover assembly

Q1292-67009 Filter - Filter assembly - Located inside the right side cover

C2688-67020 Foam - Foam, I/O Tray Svc

Q1292-67007 Foam - Ink Service Station (ISS) bottom absorber foam - Absorbs ink during the cleaning process - Smaller of the two

C7790-67002 Front Panel - Front panel assembly

C8108-67002 Guide - Upper paper guide - Spring loaded flat plate

C8108-67043 Guide - Lower paper guide for Hewlett Packard inkjet products.

C8108-67049 Guide - Inner paper guide

Q1293-60066 Guide - Upper paper guide - Spring loaded flat plate

Q1292-60152 Holder - Encoder strip holder - Wire loop that connects to the carriage assembly that is used to hold the encoder strip

Q1292-67005 Holder - Ink tube holder

C4530-40274 Idler - Idler pulley assembly - Holds right end of carriage belt

C4530-60136 Idler - Idler pulley assembly - Holds right end of carriage belt

C7790-60112 Ink Delivery System - RIDS assembly for HP DesignJet 10ps 20ps 50ps

C4530-67815 Ink Supply Station - New# C4530-67816 S/A Ink Supply Station

C4530-67816 Ink Supply Station - Old# C4530-67815 S/A Ink Supply Station

C4530-67817 Ink Supply Station - Ink supply station assembly

C4530-67818 Ink Supply Station - Ink Supply Station Svc

C8108-67029 Kicker - Kicker bar - Restacks paper in paper input tray stack after the top sheet is picked

C8119-67904 Kit - Kit Bij 2230/2280 Asp

C4530-40227 Latch - Latch Handle

C8119-67907 LCD - Assy- LCD Label Std English

C8119-67908 LCD - Assy - LCD Label UGFIDA

C8119-67909 LCD - Assy - LCD Label PCHSPT

C8119-67910 LCD - Assy - LCD Label NFSD

C8119-67911 LCD - Assy - LCD Label UGRH

C8119-67912 LCD - Assy - LCD Label UF

C8119-67913 LCD - Assy - LCD Label UFPS

C8119-67914 LCD - Assy - LCD Label ESPFJ SVC

C8108-67035 Link - Pin linkage assembly for feed roller assembly

5990-4289 Media - Gde Inkjet Print Media

C8108-67040 Motor - Ramp motor assembly

Q1292-60218 Motor - Paper motor assembly

Q1292-60219 Motor - Ramp motor assembly

Q1293-60080 Motor - Carriage drive motor

51634Y Paper - HP Premium Inkjet Paper - A size (8.5 x 11-inches) - 200 sheets

51634Z Paper - InkJet non-glossy LX paper - A4 size (21.0cm x 29.7cm) - 200 sheets per package

C1824A Paper - Bright White InkJet Paper - A size (8.5 x 11-inches) - 500 sheets

C1825A Paper - Bright White InkJet Paper - A4 size (21.0cm x 29.7cm) - 500 sheets

C1852A Paper - Premium InkJet heavyweight paper - A size (8.5 x 11-inches) - 15 sheets per package

C1853A Paper - Premium InkJet Heavyweight Paper - A4 size (21.0cm x 29.7cm) - Coated on both sides - 100 sheets

C1855A Paper - HP Premium Presentation Paper - B size (11 x 17-inches)- 100 sheets

C1856A Paper - Premium InkJet paper - A3 size (29.7cm x 42.0cm) - 100 sheets

C1858A Paper - Bright white InkJet paper - A3 size (29.7cm x 42.0cm) - 200 sheets per package

C5976A Paper - Bright white InkJet paper - A size (8.5 x 11-inches) - 200 sheets per package

C5976B Paper - Bright White InkJet Paper - A size (8.5 x 11-inches) - 250 sheets

C5977A Paper - Bright White InkJet Paper - A4 size (21.0cm x 29.7cm) - 200 sheets

C5977B Paper - Bright White InkJet Paper - A4 size (21.0cm x 29.7cm) - 250 sheets

C6039A Paper - HP Delux Advance Glossy Photo Paper 25 sheets of A size HP Advanced glossy photo paper

C6059A Paper - Paper (Photo) for DeskJet 1000 Series, DeskJet 1100 Series, DeskJet 1120 Series, DeskJet 1220 Series

C6790A Paper - Paper (Coated) for DeskJet 1220 Series, DesignJet 10ps 20ps 50ps, Business InkJet 2600 Series, PhotoSmart 8750 Series

C6791A Paper - Paper (Glossy) for DeskJet 1220 Series, DesignJet 10ps 20ps 50ps, Business InkJet 2600 Series, PhotoSmart 8750 Series

C6817A Paper - Brochure and flyer paper - Glossy on both sides - A size (8.5 x 11-inches), 98 brightness - 50 sheets

C6818A Paper - Paper (Glossy) for OfficeJet 5615 Series, OfficeJet 5605 Series, OfficeJet 6310 All-in-One, OfficeJet 6301 Series

C6820A Paper - Professional InkJet brochure and flyer paper (Glossy) - Glossy on both sides - B size (11 x 17-inches) - 50 sheets

C6821A Paper - Professional glossy InkJet brochure and flyer paper - A3 size (29.7cm x 42.0cm) - Glossy on both sides - 50 sheets per box

C6831A Paper - HP Premium Plus Glossy Photo Paper - A size (8.5 x 11-inches) - 20 sheets

C6832A Paper - Paper (Glossy) for DeskJet F4180 Series, HP Deskjet F4100 All-in-One printer series, DeskJet F4140 Series, DeskJet F4135 All-In-One

C6951A Paper - Paper (Matte) for PSC 1400 Series, OfficeJet 5610 Series, OfficeJet 5605 Series, OfficeJet 5615 Series

C6955A Paper - Professional Brochure and Flyer Paper (Matte) - A size (8.5 x 11-inches) - 50 sheets

C6979A Paper - Premium Photo Paper (Glossy) - A size (8.5 x 11-inches) - 50 sheets

C7013A Paper - Colorfast photo paper - A size (8.5 x 11-inches) - 20 sheets per package

C7014A Paper - Paper (Photo) for DeskJet 656 Series, DeskJet 3400 Series, DeskJet 3325 Series, DeskJet 3800 Series

C7040A Paper - Paper (Glossy) for Business Inkjet 2280 Series, Business InkJet 1100 Series, Business Inkjet 2300 Series, DeskJet 9600 Series

C7884A Paper - Paper (Semi-Glossy) for DesignJet 10ps 20ps 50ps, DesignJet 30, Designjet 120, DesignJet 130 Series

Q1785A Paper - Paper (Glossy) for DeskJet 1220 Series, DeskJet 1200 Series, DesignJet 1055 Series, DeskJet 640 Series

Q1786A Paper - Paper (Glossy) for DeskJet 450 Series, OfficeJet V40 Series, PSC 700 Series All in One, PSC 900 Series All-in-One

Q1934A Paper - Paper (Matte) for DeskJet 1220 Series, DeskJet 1200 Series, DesignJet 1055 Series, OfficeJet G55 Series

Q1935A Paper - Paper (Glossy) for Photosmart 475 series compact photo printer, PhotoSmart A430 Series, PhotoSmart D71XX Series, PhotoSmart D73XX Series

Q1969A Paper - Paper (Glossy) for DeskJet 660 Series, DeskJet 300, DeskJet 420C, DeskJet 1220 Series

Q1970A Paper - Paper (Glossy) for DesignJet 10ps 20ps 50ps, Designjet 120, DesignJet 100 Series, PhotoSmart 8750 Series

Q1971A Paper - Paper (Photo) for DeskJet 660 Series, DeskJet 300, DeskJet 420C, DeskJet 1220 Series

Q1977A Paper - Paper (Glossy) for Deskjet 460 Series, OfficeJet Pro K550 Series, Business Inkjet 2800 Series, DeskJet 9800

Q1978A Paper - Premium Plus Photo Paper (High Gloss) - 10.2cm (4in) x 15.2cm (6in), finished size - 10.2cm (4in) x 16.5cm (6.5in), with tab - 60 sheets

Q1979A Paper - Premium Plus Photo Paper (High Gloss) - 10.0cm (3.9in) x 15.0cm (5.9in), finished size - 10.0cm (3.9in) x 16.3cm (6.4in), with tab - 20 sheets

Q1980A Paper - Premium Plus Photo Paper (High Gloss) - 10.0cm (3.9in) x 15.0cm (5.9in), finished size - 10.0cm (3.9in) x 16.3cm (6.4in), with tab - 60 sheets

Q1987A Paper - Paper (Glossy) for OfficeJet G85 Series, OfficeJet K60, OfficeJet K80 Series, PSC 500 Series

Q1993A Paper - Paper (Matte) for DeskJet 1220 Series, DeskJet 1200 Series, DesignJet 1055 Series, Color InkJet cp1160 Series

Q1994A Paper - Paper (Matte) for PSC 1400 Series, OfficeJet 5610 Series, OfficeJet 5605 Series, OfficeJet 5615 Series

Q2506A Paper - Premium Plus Photo Paper (Satin Matte) - 10.2cm (4in) x 15.2cm (6in) finished size - 10.2cm (4in) x 16.5cm (6.5in) with tab - 60 sheets

Q6568A Paper - Paper (Glossy) for DeskJet 660 Series, DeskJet 300, DesignJet 1055 Series, DeskJet 5550 Series

Q6569A Paper - Premium Plus Soft-Gloss Photo Paper (Matte) - A size (8.5 x 11-inches) - 25 sheets (North America)

Q6594A Paper - HP Premium Presentation Paper - A3 size (29.7cm x 42.0cm) - 100 sheets

Q6595A Paper - HP Premium Presentation Paper - B size (11 x 17-inches)- 100 sheets

C7790-67003 PC Board - Secondary paper tray PCA - Provides the electrical connection to power the paper tray

C7790-69418 PC Board - Main Logic PCA Module - PCA is housed in a metal chassis

C8108-67031 PC Board - Pca Duplexer Inte Rohs Pca Duplexer Inte Rohs

Q1293-67808 PC Board - Pca Duplexer Inte Rohs Pca Duplexer Inte Rohs

J3110A PC Board Interface - Ethernet 10Base-T (RJ-45) EIO network HP JETDIRECT 600N internal print server PC board

J3111A PC Board Interface - Ethernet 10Base-T/10Base2 and LocalTalk (RJ-45, BNC, LocalTalk) EIO network PCA

J4167A PC Board Interface - JetDirect 610N token ring LAN interface board - DB-9 and RJ-45 connectors

J4169A PC Board Interface - JetDirect 610N internal print server (10Base-T and 100Base-TX) LAN interface board - Plugs into peripheral EIO slot - Has a RJ-45 connector - Comes with software on CD-ROM and manual

J6057AR PC Board Interface - JetDirect 615N internal print server (10Base-T and 100Base-TX) LAN interface board - Plugs into peripheral EIO slot - Has a RJ-45 connector - Comes with software on CD-ROM and manual

J7934G PC Board Interface - HP JetDirect 620n internal print server - 10BaseT and 100BaseTX LAN interface board - Plugs into peripheral EIO slot - Has an RJ-45 connector - Comes with software on CD-ROM and manual on CD-ROM

C8108-67039 Pickup Assembly - Pickup roller assembly - Shaft with large rollers and 1 gear - Feeds paper from the paper input tray into the print mechanism

8120-6798 Power Cord - Power cord (Flint Gray) - 18 AWG, 2.3m (7.5ft) long - Has straight (F) C13 receptacle (For 100VAC in Japan)

8120-6810 Power Cord - Power cord (Flint Gray) - 2.3m (7.5ft) long - Has straight (F) receptacle (For 240V operation in Australia, New Zealand)

8120-6811 Power Cord - Power cord (Flint Gray) - 17 AWG, 2.3m (7.5ft) long - Has straight (F) C13 receptacle (for 220V in Europe, Saudi Arabia, South Africa, India, and Korea)

8120-6812 Power Cord - Power cord (Flint Gray) - 18 AWG, three conductor, 2.3m (7.5ft) long - Has straight (F) C13 receptacle (For 120VAC in the United States, Canada, Mexico, Philippines, and Taiwan)

8120-6813 Power Cord - Power cord (Dove Gray) - Three Conductor, 2.3M (7.5ft) long - Has straight (F) C13 receptacle (For 240VAC in the United Kingdom, Hong Kong, Singapore, Malaysia)

8120-6814 Power Cord - Power cord (Flint Gray) - 17 AWG, three conductor, 2.3m (7.5ft) long - Has straight (F) C13 receptacle (For 220VAC in Denmark)

8120-6815 Power Cord - Power cord (Flint Gray) - 17 AWG, three conductor, 2.3m (7.5ft) long - Has straight (F) C13 receptacle (For 220VAC in Switzerland)

8120-6869 Power Cord - Power cord (Flint Gray) - 3-wire, 2.3m (7.5ft) long - Has straight (F) receptacle (for 220V in Argentina)

8120-8705 Power Cord - Power cord (Mint Gray) - 17 AWG, 2.3m (7.5ft) long - Has straight (F) receptacle (for 240V in the UK, Hong Kong, Singapore, and Malaysia)

8120-8707 Power Cord - Power cord (Flint Gray) - 17 AWG, three conductor, 2.3m (7.5ft) long - Has straight (F) C13 receptacle (For 220VAC in China)

8120-8871 Power Cord - Power cord (Black) - 17 AWG, 2.3m (7.5ft) long - Has straight (F) receptacle (for 220V in Thailand, Cambodia, Vietnam, and the Philippines)

C7790-60091 Power Supply - Power supply rohs sv power supply rohs sv Worldwide input power supply - 100-240VAC, 50/60Hz, 68W - Includes fan

Q1292-67033 Power Supply - Power supply rohs sv power supply rohs sv Worldwide input power supply - 100-240VAC, 50/60Hz, 68W - Includes fan

Q1292-67038 Power Supply - POWER SUPPLY ROHS SV Worldwide input power supply - 100-240VAC 50/60Hz 68W - Includes fan. Does not include Formatter board C7796-69156

C4810-60067 Printhead - 11 Cyan ink printhead

C4811A Printhead - No. 11 cyan ink printhead

C4812-60005 Printhead - 11 Magenta ink printhead

C4812A Printhead - No. 11 magenta ink printhead

C4813-60004 Printhead - 11 - Yellow ink printhead

C4813A Printhead - No. 11 yellow ink printhead

C5021A Printhead - No.84 light magenta printhead

C7790B-Repair_DesignJet Repair Service - Ship your product to us for a small diagnostic fee; and a professional service job. We will contact you with repair total and your diagnostic fee will be waived if unit is repaired. Service warranty is 30days labor and 90days for parts. Extended warranty option is available.

C2688-67022 RIDS - Sprt, Rids Tubes Svc

Q1293-67810 Rod - Carriage rod - The carriage slides on this rod

C8108-67041 Roller - Output mechanism assembly

Q1293-67809 Roller - Feed roller assembly - Includes shaft with six rollers, gears, and encoder disk - Feeds the media under the carriage assembly

C2688-67023 Screw - Screw, Mach 4-20 Svc

C2688-67024 Screw - Screw, Plastic Svc

C2688-67093 Screw - Screw, Hill 1 Svc

Q1292-67022 Sensor - Door sensor assembly - Senses when the access door is opened or closed

C7790B-Manual_DesignJet Service Manual - Printer Service Manual - Includes troubleshooting, error messages, paper jams, parts and parts diagrams.

0515-3030 Service Parts - Scr-M3x0.5x6mm

C2688-67095 Service Parts - Scr.M3x0.5x6mm

C4530-40020 Service Parts - Ink supply station assembly

C4530-67813 Service Parts - New#c4530-67815

C7886A Service Parts - LF Proofing Gloss

C8108-69053 Service Parts - Rstrd C8108-67053

C8119-67901 Service Parts - Ij2230/2280 Svce Mnl

C8119-67915 Service Parts - Cd Bij2230/2280 S/S Asp

C8119-69005 Service Parts - Rstrd C8119-67005

C8119A #100 Service Parts - Bus Inkjet 2230/2280

C7790-60419 Service Station - Ink supply service station (ISS) assembly - Holds the ink cartridges and pumps ink out to the printheads

C7790-60420 Service Station - Ink supply service station (ISS) assembly - Includes the service station motor and wiper assembly - Mounts behind right side cover;Click to order the functional equivalent: C7790-60419

Q6655-60127 Shield - Side shield sv for HP C7790A

Q1292-67006 Spring - Belt tensioner spring

C8108-67033 Starwheel - Starwheel assembly - Keeps downward pressure on media as it passes over the feed rollers

Q1293-60068 Support - Output mechanism support assembly

C4530-60051 Trailing Cable - Trailing Cable Short Assy

C7790-60149 Tray - Output tray assembly - Includes output tray, slid out tray extender, and envelope width stop

C8108-67044 Tray - Input tray assembly - Holds paper supply for printer - Pullout tray with paper length/width stop

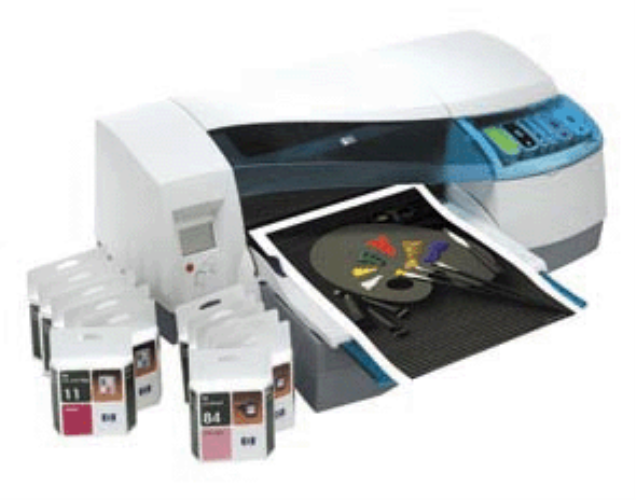

HP DesignJet 20ps (C7790B)

HP parts list for C7790B HP DesignJet 20ps Printer
