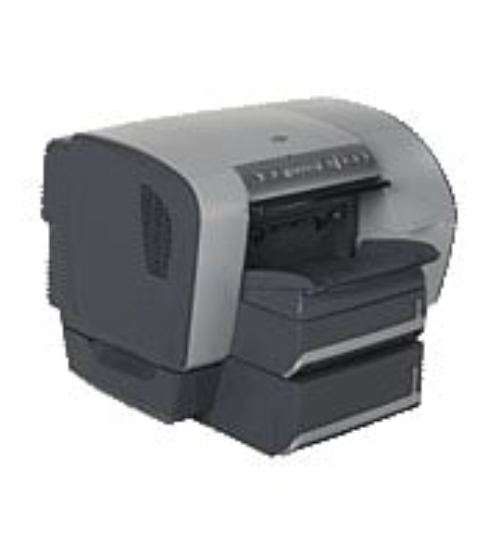

HP parts list for C8118A Business Inkjet 3000DTN

C8118A-Absorber Absorber - Ink service station (ISS) bottom absorber foam - absorbs ink during the cleaning process. Service station absorber (sponge) - soaks up used ink during cartridge cleaning. Works as sled filters.

C8118A-AC_Adapter AC Adapter - Power supply module or adapter - one end for connecting to the printer and other end to the power cord, or your ac adapter may have the pwr cord attached.

C8118A-Actuator Actuator - Actuating unit. this part usually causes the carriage assembly to stalls on the left side of the printer, verify that the clutch actuator arm (slider arm).

C8118A-Arm_Delivery Arm Delivery - Paper sensing arm - for 'paper out' or delivering paper sensing arm

C8118A-Arm_Door Arm Door - Carriage access door sensor arm

C8118A-Arm_Pickup Arm Pick Up - Paper detection arm - for registration plate on picking up paper

C8118A-Arm_Plate Arm Plate - Lever arm - used to lift the pressure plate lifter

C8118A-Arm_Sensing Arm Sensing - Arm assembly senses paper in bottom tray

C8118A-Arm_Tension Arm Tension - Tension arm - maintains tension on carriage belt

C8116-67009 Assembly - Assy - Manual Trough Svc

C8116-67001 Base - Base assembly for HP Business InkJet 3000 Series

C8116-69001 Base - Bulkpack - Maxwell Base Svc

C8116-67056 Bearing - Paper feeder roller

C8116-67005 Belt - A-size carriage belt

C8118A-Belt_ADF Belt ADF - Transport belt motor - provides the drive to transport paper through the ADF unit. this belt goes in the ADF assembly drive unit

C8118A-Belt_Carriage Belt Carriage - Carriage belt - moves the carriage assembly across the carriage rod

C8118A-Belt_Duplex Belt Duplex - Duplex timing belt - small belt that goes on the duplexer unit

C8118A-Belt_Paper Belt Paper - Paper drive belt (usually a small belt) - this belt attaches to a gear which is driven by the paper drive motor assembly.

C8118A-Bezel Bezel - Front panel overlay (bezel) - (english) control panel bezel - frame around display and control panel

C8116-67055 Blower Assembly - Blower-Vacuum assembly

C8118A-Bracket_Left Bracket Left - Left bracket - carriage rod adjustment bracket (left)

C8118A-Bracket_Right Bracket Right - Right bracket - carriage rod adjustment bracket (right)

C8118A-Bracket_Tension Bracket Tension - Belt tension bracket - holds the carriage belt idler pulley

5063-1256 Cable - IEEE-1284 Bi-Tronics parallel cable - DB-25 (M) connector (type A) to 36-pin Centronics (M) connector (type B) - 2.0m (6.6ft) long

5063-1257 Cable - IEEE 1284 Bi-Tronics parallel cable - DB-25 (M) connector (type A) to 36-pin Centronics (M) connector (type B) - 3.0m (9.8ft) long

C2950A Cable - IEEE 1284 Bi-Tronics parallel cable - DB-25 (M) connector (type A) to 36-pin Centronics (M) connector (type B) - 2.0m (6.6ft) long

C2951A Cable - IEEE-1284 Bi-Tronics parallel cable - DB-25 (M) connector (type A) to 36 pin Centronics (M) connector (type B) - 3.0m (9.8ft) long

C6518A Cable - Universal Serial Bus (USB) interface cable - Type 'A' connector to type 'B' connector - 2.0m (6.6ft) long

C8116-67035 Cable - Assy - Cable, Maxwell Left Svc

C8116-67036 Cable - Assy - Cable, Maxwell Right Sv

C8116-67037 Cable - Power supply harness

C8116-67042 Cable - Trailing cable for HP Business InkJet 3000 Series

C8118A-Cable_Carriage Cable Carriage - Cable assembly which connects the main logic board to the carriage motor

C8118A-Cable_Interface Cable Interface - Parallel cable - connects from your printer to computer via your parallel port.

C8118A-Cable_Mchnsm Cable Mechanism - Cable assembly which connects the main logic board to the print mechanism

C8118A-Cable_Panel Cable Panel - Cable Panel assembly - includes ribbon cable this is the cable that connects to the control panel or display.

C8118A-Cable_USB Cable USB - This interface cable is the standard 2.0 usb cable that connects to your printer and computer for printing.

C8118A-Cam Cam - Drawer cam - short, spring loaded lever attached to the paper tray frame - used to draw input tray into position

C8118A-Cap_Lifter Cap Lifter - These lifter caps hold the pressure plate lifter and the kicker spring in place.

C8116-67043 Carriage - Carriage assembly

C8118A-Carriage_Assy Carriage Assembly - Ink cartridge carriage assembly - includes carriage, felt, felt retainers, ink cartridge latches, trailing cable, pc board, belt attachment hardware, and slider.

C8118A-Carriage_Base Carriage Base - Carriage base or pre-loader assembly - mounted to bottom of carriage base

C8118A-Carriage_Belt Carriage Belt - Carriage drive belt, this belt is attached to the carriage and carriage motor, it moves the carriage side to side while priting.

C8118A-Carriage_Cable Carriage Cable - Flex circuit cable which connects the head driver board to the carriage assembly. in some units it is also known as the trailing cable, this cable moves along with the carriage unit (side to side).

C8118A-Carriage_Latch Carriage Latch - A-arm latch - retains latch over the printheads on the carriage

C8118A-Carriage_Latch_CVR Carriage Latch Cover - The carriage latch is used to keep the cartridge(s) in place. this latch(s) hold the cartridge(s) in place while carriage is printing or idle.

C8118A-Carriage_Motor Carriage Motor - Carriage motor moves the carriage unit side to side. the carriage belt goes arround this motor, which controls carriage movement.

C8118A-Carriage_Only Carriage Only - Carriage only - includes carriage, felt, felt retainers, ink cartridge latches - does not include trailing cable, pc board, belt attachment hardware, or slider (for complete carriage unit, please see carriage assembly).

C8118A-Carriage_PC_BRD Carriage PC Board - This pc board attaches on the carriage, it is usually a small pc board that has carrage cable attached to it.

C8118A-Chassis Chassis - Chassis assembly - the large plastic item that forms the base of the print mechanism

C8118A-Clutch_Feed Clutch Feed - Clutch unit resposible for unit picking up paper from the pick up unit.

C8118A-Control_Panel Control Panel - Control panel assembly - control buttons and display on top front of the unit.

C8116-67065 Core - Ferrite Core Cp Svc

C8116-67003 Cover - Left-side end cap

C8116-67004 Cover - Rear cover for HP Business InkJet 3000 Series

C8116-67006 Cover - Cover - Front Left Svc

C8116-67007 Cover - Left rail cover

C8116-67008 Cover - Right rail cover

C8116-67013 Cover - Main cover for HP Business InkJet 3000 Series

C8116-67014 Cover - Right-side end cap

C8116-67016 Cover - Front keypad cover

C8116-67030 Cover - DIMM cover for HP Business InkJet 3000 Series

C8116-67031 Cover - Formatter cover

C8118A-Cover_Back Cover Back - Back cover of printer, it is usually removed to clear paper jams.

C8118A-Cover_Cartridge Cover Cartridge - This is the cover/ door that is opened to remove the cartridge(s) - usually, when this door opens the carriage moves.

C8118A-Cover_Main Cover Main - This is the main cover of the printer. it is the biggest piece of plastic the printer is made off.

C8118A-Deflector Deflector - Paper deflector - guides paper out of dispose assembly - through the internal paper path cover. paper deflector - directs paper from the media chassis to the print section of the printer chassis assembly

C8118A-Display Display - Status led display (LCD display assembly).

C8116-67002 Door - Top/front main access door assembly

C8116-67012 Door - Main access door - Installs on the main cover

C8118A-Door_Carriage Door Carriage - Main front access door - covers the top of the printer and provide access to the carriage when open.

C8118A-Door_Cartridge Door Cartridge - Small front access door (drop down door) - for accessing print cartridge window - for print cartridge access door.

C8118A-Door_Rear Door Rear - Rear cleanout door assembly - rear paper jam clean out door assembly.

C8118A-Drive_Assy Drive Assembly - Paper drive roller kit - includes roller assembly, bushings, gear on roller, transmission gear kit, encoder disc, end thrust (axial) spring.

C8116-67063 Duplexer - Assy - Duplexer Svc

C8118A-Duplexer Duplexer - Auto duplexer assembly - provides double sided printing capability

C8228A Duplexer - Business InkJet 3000 series auto duplex unit

C8116-67070 Elevator - Assy - Elevator Drive Svc

C8116-67027 Enclosure - Engine enclosure

C8116-67028 Enclosure - Formatter enclosure

C8116-67029 Enclosure - EIO enclosure for HP Business InkJet 3000 Series

C8116-67066 Encoder - Spring-Encoder Svc

C8118A-Encoder Encoder - Encoder spring - provides tension for encoder strip

C8118A-Encoder_Disk Encoder Disk - Disk encoder - helps to provide position information of the paper

C8116-67067 Encoder Strip - Encoder Strip, A-Size Svc

C8118A-Encoder_Strip Encoder Strip - Encoder strip - carriage position sensor reference

C8118A-Extender_Input Extender Input - Tray extension assembly (stopper) - tray with a paper stop on the input tray - extends to accomodate different media lenths

C8118A-Extender_Output Extender Output - Paper exit tray extension

C8118A-Fan_PC_BRD Fan PC Board - Fan to cool power supply unit

C8118A-Fan_Vaccum Fan Vaccum - Vacuum fan assembly

C8118A-Feed_Rollers Feed Rollers - Feed roller assembly - includes frame asembly, shaft with rollers, and encoder disk

C8116-67052 Feeder - Paper feeder - Includes encoder

C8125-67013 Feeder - Bij2300 250-Sht Bin/Feeder Svc

C3828A Film - Film (Transparency) 8.5 x 11 5mil thick. for OfficeJet R65 Series PhotoSmart P1000 PhotoSmart P1100 OfficeJet G55 Series Transparency Film 200 SHEETS.

C3832A Film - Premium InkJet transparency film - A4 size (21.0cm x 29.7cm) - 20 sheets per package

C3834A Film - Film (Transparency) for DeskJet 1600 Series, DeskJet 2000 Series, DeskJet 800 Series, DeskJet 600 Series

C3835A Film - Film (Transparency) for DeskJet 1200 Series, DeskJet 500 Series, DeskJet 550C Series, DeskJet 850 Series

C8118A-Flag_Paper Flag Paper - OOPS flag - out of paper sensor

C8116-67023 Foot - Rubber foot - Replacement rubber foot for the bottom of the printer (four used)

C8118A-Formatter Formatter - Formatter board assembly, this board communicates with your computer device and has MAC port connector.

C8118A-Front_Panel Front Panel - Front panel assembly - includes lcd and actuator buttons

C8118A-Gear_Assy Gear Assembly - ADF gear assembly driven by ADF main motor

C8118A-Gear_Cluster Gear Cluster - Cluster gear, large gear on service station

C8118A-Gear_Double Gear Double - Transfer gear - has double gear attached on service station

C8118A-Gear_Main Gear Main - Paper pickup drive assembly - gear assembly located on right side of paper pickup assembly. gear moves the main paper pick up roller.

C8118A-Gear_Station Gear Station - Gears on shaft of spittoon station

C8118A-Glass_Assy Glass Assembly - Main top copier glass assembly.

C8116-67051 Guide - Front paper feeder guide

C8116-67053 Guide - Lower paper feeder guide

C8116-67058 Guide - Tray 2/3 - Rp Guide Svc

C8118A-Guide_Paper Guide Paper - Upper paper guide - spring loaded flat plate that presses the media against the top of the feed roller assembly - caution: this part can easily be broken

C8116-67038 Harness - Harness - Power On Svc

C8116-67054 Heater - Post heater and aerosol system

C8118A-Holder Holder - Ink cartridge holder - located on carriage unit, holder secures ink cartridge in place.

C8118A-Idler Idler - Scanner belt idler assembly - maintains scannter belt tension.

C8116-67049 Ink Delivery System - Replaceable ink delivery system

C8118A-Ink_DLVRY Ink Delivery System - RIDS assembly - replaceable ink delivery system - transports ink from ink supply station to carriage assembly

C8116-67048 Ink Supply Station - Ink supply station

C8118A-Ink_Supply_Station Ink Supply Station - Ink supply service station (iss) assembly

C8116-67015 Keypad - Keypad assembly

Q2550A Label - Label for DeskJet 660 Series, DeskJet 300, DeskJet 420C, DeskJet 1220 Series

Q2551A Label - Label for PSC 1118 Series, PSC 1200 Series All-in-One, PSC 1200 Series All in One, HP PSC 1210 All-in-One

Q2587A Label - White labels - 2.5cm (1.0in) x 6.6cm (2.6in) - 30 labels per sheet, 25 sheets per box

Q2588A Label - Label for OfficeJet 6100 Series, Digital Copier Printer 410, PSC 1110 Series All in One, PSC 1118 Series

Q2589A Label - Label for LaserJet 2400 Series, PhotoSmart 7830 Series, HP Photosmart 7850 Photo Series, Photosmart 7850 Photo Printer

Q2590A Label - Label for PSC 900 Series All in One, PhotoSmart 100 Printer, PhotoSmart 130 Series, Color LaserJet 9500 Series

Q2591A Label - Label for PSC 1200 Series All-in-One, PSC 1200 Series All in One, HP PSC 1210 All-in-One, OfficeJet 5110 Series All-in-One

Q2592A Label - Label for OfficeJet D Series All in One, OfficeJet 7100 Series All in One, OfficeJet V40 Series, PSC 900 Series All-in-One

Q2593A Label - Label for PSC 1200 Series All in One, Color LaserJet 5500 Series, OfficeJet D Series All-in-One, OfficeJet D Series All in One

Q2594A Label - White address labels - 8.4cm (3.3in) x 10cm (4in) - 6 labels per sheet, 100 sheets per box

C4287A Memory - 4MB flash DIMM memory - Font storage device

C7846A Memory - 64MB SDRAM - 100MHz synchronous DRAM - DIMM package

C9121A Memory - 128MB, 100-pin SDRAM DIMM memory module

Q1887A Memory - 64MB, 100-pin SDRAM DIMM memory module

Q7708AX Memory - 64MB SDRAM - 100MHz synchronous DRAM - DIMM package

Q7709AX Memory - 133 MHz 128MB, 100-pin SDRAM DIMM memory module Synchronous DRAM DIMM

C8118A-Motor_Carriage Motor Carriage - Carriage motor - motor that drives the carriage assembly

C8118A-Motor_Scanner Motor Scanner - Scanner unit motor - drives the scanner unit to scan documents to be copied, fax, or scanned.

C8118A-MTR_Srvce_Station Motor Service Station - Service station stepper motor (does not include cable) - moves the rack vertically in the service station assembly

6040-0990 Oil - Special lubricating oil - For carriage slider rod surface - (5cc oil)

C8116-67050 Overdrive Assembly - Overdrive assembly

C8118A-Overlay Overlay - Overlay unit which covers the control button or display (english overlay only), control panel or display sold seperately.

C8118A-Pad_Tray Pad Tray - Pad separator - (located on tray) assembled from plastic and rubber components; to help in separating sheet of media during printing

Q7981A Pan - Advanced High-Gloss Photo Paper - 13cm (5in) x 18cm (7in) - 20 sheets (Japan)

51634Y Paper - HP Premium Inkjet Paper - A size (8.5 x 11-inches) - 200 sheets

51634Z Paper - InkJet non-glossy LX paper - A4 size (21.0cm x 29.7cm) - 200 sheets per package

C1853A Paper - Premium InkJet Heavyweight Paper - A4 size (21.0cm x 29.7cm) - Coated on both sides - 100 sheets

C6817A Paper - Brochure and flyer paper - Glossy on both sides - A size (8.5 x 11-inches), 98 brightness - 50 sheets

C6818A Paper - Paper (Glossy) for OfficeJet 5615 Series, OfficeJet 5605 Series, OfficeJet 6310 All-in-One, OfficeJet 6301 Series

C6831A Paper - HP Premium Plus Glossy Photo Paper - A size (8.5 x 11-inches) - 20 sheets

C6832A Paper - Paper (Glossy) for DeskJet F4180 Series, HP Deskjet F4100 All-in-One printer series, DeskJet F4140 Series, DeskJet F4135 All-In-One

C6951A Paper - Paper (Matte) for PSC 1400 Series, OfficeJet 5610 Series, OfficeJet 5605 Series, OfficeJet 5615 Series

C6955A Paper - Professional Brochure and Flyer Paper (Matte) - A size (8.5 x 11-inches) - 50 sheets

C6983A Paper - Photo quality InkJet paper - With two sided semi-gloss finish - A size (8.5 x 11-inches) - 25 sheets per package

C6984A Paper - Paper (InkJet Photo) for DeskJet 3400 Series, PSC 2210 Series All in One, DeskJet 3800 Series, DeskJet 3325 Series

C7006A Paper - Paper (InkJet Photo) for DeskJet 6620 Series, PhotoSmart 100 Printer, PSC 900 Series All in One, PSC 900 Series All-in-One

C7007A Paper - Photo Quality InkJet Paper (Matte) - With two sided matte finish - A size (8.5 x 11-inches) - 100 sheets

C7013A Paper - Colorfast photo paper - A size (8.5 x 11-inches) - 20 sheets per package

C7014A Paper - Paper (Photo) for DeskJet 656 Series, DeskJet 3400 Series, DeskJet 3325 Series, DeskJet 3800 Series

Q1787A Paper - Linen Half-fold Greeting Card Paper (Ivory) - A size (8.5 x 11-inches) - 20 cards

Q1788A Paper - Linen Half-fold Greeting Card Paper (White) - A size (8.5 x 11-inches) - 20 cards

Q1934A Paper - Paper (Matte) for DeskJet 1220 Series, DeskJet 1200 Series, DesignJet 1055 Series, OfficeJet G55 Series

Q1935A Paper - Paper (Glossy) for Photosmart 475 series compact photo printer, PhotoSmart A430 Series, PhotoSmart D71XX Series, PhotoSmart D73XX Series

Q1951A Paper - Paper (Glossy) for PhotoSmart D71XX Series, PhotoSmart D73XX Series, HP Photosmart D7300 series, PhotoSmart D5155 Series

Q1969A Paper - Paper (Glossy) for DeskJet 660 Series, DeskJet 300, DeskJet 420C, DeskJet 1220 Series

Q1971A Paper - Paper (Photo) for DeskJet 660 Series, DeskJet 300, DeskJet 420C, DeskJet 1220 Series

Q1976A Paper - Paper (Semi-Glossy) for DeskJet 660 Series, DeskJet 300, DeskJet 420C, DeskJet 1220 Series

Q1977A Paper - Paper (Glossy) for Deskjet 460 Series, OfficeJet Pro K550 Series, Business Inkjet 2800 Series, DeskJet 9800

Q1977AC Paper - Premium Plus Photo Paper (High Gloss) - 10.2cm (4in) x 15.2cm (6in), finished size - 10.2cm (4in) x 16.5cm (6.5in), with tab - 20 sheets (Canada)

Q1978A Paper - Premium Plus Photo Paper (High Gloss) - 10.2cm (4in) x 15.2cm (6in), finished size - 10.2cm (4in) x 16.5cm (6.5in), with tab - 60 sheets

Q1978AC Paper - Premium Plus Photo Paper (High Gloss) - 10.2cm (4in) x 15.2cm (6in), finished size - 10.2cm (4in) x 16.5cm (6.5in), with tab - 60 sheets (Canada)

Q1979A Paper - Premium Plus Photo Paper (High Gloss) - 10.0cm (3.9in) x 15.0cm (5.9in), finished size - 10.0cm (3.9in) x 16.3cm (6.4in), with tab - 20 sheets

Q1980A Paper - Premium Plus Photo Paper (High Gloss) - 10.0cm (3.9in) x 15.0cm (5.9in), finished size - 10.0cm (3.9in) x 16.3cm (6.4in), with tab - 60 sheets

Q1987A Paper - Paper (Glossy) for OfficeJet G85 Series, OfficeJet K60, OfficeJet K80 Series, PSC 500 Series

Q1988A Paper - Paper (Glossy) for PhotoSmart 420 Series, HP Photosmart 422 Portable Photo Studio, PhotoSmart 475 Series, Photosmart 475 series compact photo printer

Q1989A Paper - Paper (Glossy) for PSC 1300 Series All in One, PSC 2300 Series, OfficeJet 6200 Series, OfficeJet 6210

Q1990A Paper - Paper (Glossy) for PhotoSmart 325 Series, PhotoSmart 375 Series, OfficeJet 5500 Series All-in-One, OfficeJet 5500 Series All in One

Q1991A Paper - Paper (Glossy) for PhotoSmart 230 Series, PhotoSmart 245 Series, PSC 2170 Series All-in-One, PSC 2170 Series All in One

Q2506A Paper - Premium Plus Photo Paper (Satin Matte) - 10.2cm (4in) x 15.2cm (6in) finished size - 10.2cm (4in) x 16.5cm (6.5in) with tab - 60 sheets

Q2507A Paper - Premium Plus Photo Paper (Satin-matte) - 10.0cm (3.9in) x 15.0cm (5.9in) finished size - 10.0cm (3.9in) x 16.3cm (6.4in) with tab - 60 sheets

Q2508A Paper - Premium Plus Photo Paper (Satin-Matte) - 10.0cm (3.9in) x 15.0cm (5.9in) finished size - 10.0cm (3.9in) x 16.3cm (6.4in) with tab - 60 sheets

Q2509A Paper - Paper (Semi-Glossy) for DesignJet 130 Series, DeskJet 1220 Series, Business InkJet 2600 Series, DeskJet 450 Series

Q2525A Paper - Paper (Glossy) for Business InkJet 3000 Series, Business InkJet 2230 Series, Business Inkjet 2300 Series, DeskJet 9300 Series

Q5431A Paper - Paper (Satin) for PhotoSmart A310 Series, PhotoSmart D50XX Series, PhotoSmart A520 Series, HP Photosmart A820 series Compact Photo Printers

Q5451A Paper - Paper (Glossy) for Photosmart 7400 Series, Photosmart 7450, PhotoSmart 8250 Series, PhotoSmart 8230 Series

Q7852A Paper - HP Delux Advance Glossy Photo Paper 25 sheets of A size HP Advanced glossy photo paper

Q8030A Paper - Paper (Matte) for DeskJet D13XX Series, DeskJet D1311 Series, DeskJet F4180 Series, HP Deskjet F4100 All-in-One printer series

C8116-60001 PC Board - Frmatter board assembly

C8116-67026 PC Board - Pca-Analog, A-Size Svc

C8116-67032 PC Board - Formatter PC board

C8116-67033 PC Board - Tray 1 interconnect PC board

C8116-67044 PC Board - Main logic PC board

C8116-67064 PC Board - Linefeed encoder PC board

C8116-69032 PC Board - Pca - Compton Svc

C8116-69044 PC Board - Pca-Main, Office A Svc

C8118A-PC_BRD PC Board - Ink cartridge carriage assembly pc board - includes carriage pc board only

C8118A-PC_BRD_DC PC Board DC - Internal power supply board - power cable plugs on this assembly, remove covers to install pc board.

C8118A-PC_BRD_Interface PC Board Interface - Internal print server lan interface board - plugs into peripheral eio. usefull for networking and multiple users.

J3110A PC Board Interface - Ethernet 10Base-T (RJ-45) EIO network HP JETDIRECT 600N internal print server PC board

J3111A PC Board Interface - Ethernet 10Base-T/10Base2 and LocalTalk (RJ-45, BNC, LocalTalk) EIO network PCA

J3258B PC Board Interface - External JetDirect 170X LAN interface module - Interfaces a parallel printer to an ethernet 10Base-T (RJ-45) LAN

J3263G PC Board Interface - HP JetDirect 300X external print server module (10Base-T and 100Base-TX) - Connects between printer parallel port and LAN network

J3264A PC Board Interface - HP JetDirect 500X external token ring print server module - Interfaces up to 3 parallel printers to a token ring (DB-9 or RJ-45) LAN

J3265G PC Board Interface - HP JetDirect 500X external token ring print server module - Interfaces up to 3 parallel printers to an ethernet 10Base-T (RJ-45), 10Base2 (BNC), or 100Base-TX (RJ-45) LAN

J4167A PC Board Interface - JetDirect 610N token ring LAN interface board - DB-9 and RJ-45 connectors

J6035A PC Board Interface - HP JetDirect 175X external print server - Has one 4-pin USB connector and one RJ-45 LAN connector - Connects to the printer via the USB port and the network via the LAN port

J6038A PC Board Interface - HP JetDirect 310X external print server - Fast Ethernet Internet connector for sharing network peripherals with USB ports, in a 10/100 TX LAN environment - Has one USB printer port and one RJ-45 10/100 Base-TX connector

J6057AR PC Board Interface - JetDirect 615N internal print server (10Base-T and 100Base-TX) LAN interface board - Plugs into peripheral EIO slot - Has a RJ-45 connector - Comes with software on CD-ROM and manual

J6058A PC Board Interface - HP JetDirect 680N internal wireless IEEE-802.11b (Wi-Fi) print server - Plugs into peripheral EIO slot

J7934G PC Board Interface - HP JetDirect 620n internal print server - 10BaseT and 100BaseTX LAN interface board - Plugs into peripheral EIO slot - Has an RJ-45 connector - Comes with software on CD-ROM and manual on CD-ROM

C8116-67039 Pen - Assy-Felt Oiler, 4-Pen Svc

C8116-67041 Pen - Cover-Connector, 4-Pen Svc

C8116-67062 Pickup Assembly - Simplexer assembly

C8118A-Pinchwheel Pinchwheel - Pinch assembly kit - includes all required pinch wheels, pinchwheel mounts and springs

8120-8452 Power Cord - Power cord (Black) - 2-wire, 1.8m (6.0ft) long - Has straight (F) C7 receptacle (for 220V in Chile)

8120-8900 Power Cord - Power cord (Flint Gray) - 2-wire, 18 AWG, 1.8m (6.0ft) long - Has straight (F) C7 receptacle (for 120V in the United States, Canada, Brazil, Latin America, and Saudi Arabia) Part 8120-8330 is no longer supplied. Please order the replacement, 8120-8900

8121-0017 Power Cord - Power cord (Flint Gray) - 2-wire, 18 AWG, 1.8m (6.0ft) long - Has straight (F) C7 receptacle (for 220V in Korea)

8121-0018 Power Cord - Power cord (Flint Gray) - 2-wire, 18 AWG, 1.8m (6.0ft) long - Has straight (F) C7 receptacle (for 220V in Australia and New Zealand)

8121-0019 Power Cord - Power cord (Flint Gray) - 18 AWG, 2-conductor, 1.8m (6.0ft) long - Has straight (F) C7 receptacle (For 220VAC in Argentina)

8121-0020 Power Cord - Power cord (Flint Gray) - 18 AWG, 2-conductor, 1.8m (6.0ft) long - Has straight (F) C7 receptacle (For 220VAC in South Africa)

8121-0021 Power Cord - Power cord (Flint Gray) - 18 AWG, 2-conductor, 1.8m (6.0ft) long - Has straight (F) C7 receptacle (For 100VAC in Japan)

8121-0022 Power Cord - Power cord (Flint Gray) - 2-wire, 18 AWG, 1.8m (6.0ft) long - Has straight (F) C7 receptacle (for 240V in the United Kingdom)

8121-0023 Power Cord - Power cord (Flint Gray) - 2-wire, 18 AWG, 1.8m (6.0ft) long - Has straight (F) C7 receptacle (for 220V in Europe, Asia Pacific, Germany, Spain, France, Netherlands, Switzerland, Italy, and Portugal)

8121-0024 Power Cord - Power cord (Flint Gray) - 2-wire, 18 AWG, 1.8m (6.0ft) long - Has straight (F) C7 receptacle (for 220V in China)

8121-0025 Power Cord - Power cord (Flint Gray) - 18 AWG, 2-conductor, 1.8m (6.0ft) long - Has straight (F) C7 receptacle (For 240VAC in India)

C8118A-Power_Cord Power Cord - Power module power cord- wall outlet cable to power module only. does not include power module.

C8118A-Power_MDLE Power Module - World wide power module - includes power module and power module to printer cord - does not include outlet to power module cord

C8118A-Power_MDLE_Assy Power Module Assy - World wide power module - includes power module and power module to printer cord - also, include outlet to power module cord

C8116-67034 Power Supply - Power supply - Accepts input voltage of 110 or 210 VAC and provides +3.3V, +5V, and +12V DC to the various electronic subsystems

C8118A-Power_Supply Power Supply - Power supply board (internal pwr supply unit in the office machine).

C8118A-Power_Supply_BRD Power Supply Board - High voltage power supply board

C8118A-Print_Mchnsm Print Mechanism - Print mechanism assembly - complete mechanism with carriage movement, paper picking and service station - does not include covers, printer base, print heads, ink cartridges, or any consumables.

J3263A Print Server - External JetDirect 300X LAN interface module - Interfaces a parallel printer to an ethernet 10Base-T (RJ-45) or 100Base-TX (RJ-45) LAN

J3265A Print Server - External JetDirect 500X LAN interface module - Interfaces up to 3 parallel printers to an ethernet 10Base-T (RJ-45), 10Base2 (BNC), or 100Base-TX (RJ-45) LAN

J6057A Print Server - JetDirect 615N internal print server LAN interface board - 10Base-T and 100Base-TX - Plugs into peripheral EIO slot, has RJ-45 connector

J7934A Print Server - JetDirect 620N Ethernet Print Server, internal print server LAN interface board - 10Base-T and 100Base-TX - Plugs into peripheral EIO slot, has RJ-45 connector.

C5023A Printhead - No. 12 black printhead

C5024A Printhead - No. 12 cyan printhead

C5025A Printhead - No. 12 magenta printhead

C5026A Printhead - No. 12 yellow printhead

C8118A-Pulley Pulley - Paper pick up tray motor pulley.

C8118A-Repair_InkJet Repair Service - Ship your product to us for a small diagnostic fee; and a professional service job. We will contact you with repair total and your diagnostic fee will be waived if unit is repaired. Service warranty is 30days labor and 90days for parts. Extended warranty option is available.

C8116-67040 Reservoir - Tray - Reservoir Svc

C8118A-Rod_Carriage Rod Carriage - Carriage rod - shaft that the carriage assembly rides on

C8118A-Rod_Scanner Rod Scanner - Scanner rod - shaft that the scanner assembly rides on

C8116-67019 Roller - Pick roller for Business InkJet 3000 Series

C8116-67020 Roller - Separation roller assembly

C8118A-Roller_Exit Roller Exit - Paper exit rollers - out put assembly.

C8118A-Roller_Pickup Roller Pickup - Pick up roller assembly for paper bottom tray. Lower feed roller assembly - for lower paper input tray

C8118A-Scanner Scanner - Copier scanner (optical) assembly - includes scanner assembly only scanner lens assembly (includes the charge coupled device (ccd)) the scanning lamp ADF analog processor board and ADF inverter board - major portion of the ADF main assembly.

C8118A-Scanner_Assy Scanner Assembly - Copier scanner & glass assembly - includes the chassis assembly scanner lens assembly (includes the charge coupled device (ccd)) the scanning lamp ADF analog processor board and ADF inverter board - major portion of the ADF main assembly.

C8118A-Scanner_Belt Scanner Belt - Scanner belt attaches from the scanner to the scanner motor.

C8118A-Scanner_Cable Scanner Cable - Flex circuit cable which connects to the scanner assembly. also known as flat cable, this cable moves along with the scanner unit (side to side) as it scans documents.

C8118A-Scanner_Motor Scanner Motor - Scanner driving motor

C8118A-Scanner_Unit Scanner Unit - Scanner unit includes the entire scanner base but not the ADF portion.

C8116-67024 Sensor - Transparency sensor - Detects the use of transparency media - Enables the printer to automatically switch to trasparency printing mode

C8118A-Sensor_Exit Sensor Exit - Exit media sensor sv

C8118A-Sensor_Open Sensor Open - Door sensor assembly - open door sensor

C8118A-Sensor_Out Sensor Out - OOPS sensor - out of paper sensor - detects the presence of the paper in the printer tray

C8118A-Sensor_Spot Sensor Spot - Spot sensor assembly is attached to the carriage assembly.

C8116-67059 Sensors - Assy - Edge Sensor Svc

C8116-67057 Separator - Separation trough

C8118A-Separator Separator - Pad separator - assembled from plastic and rubber components; to help in separating sheet of media during printing from bottom trays.

C8118A-Guide Service Guide - Printer Reference Guide (not a service manual) - Contains information such as product information, operation overview, paper behavior, maintenance, ink safety, and removal / replacement of parts. This is not a service manual for technical repair.

C8116-67018 Service Parts - Label - Warranty Void Svc

C8116-67045 Service Parts - Envelope Adjust Svc

C8116-67073 Service Parts - Pf Tray 2 Svc

C8116-69069 Service Parts - Titanium Svc

C8116-67047 Service Station - Hewlett Packard Business Inkjet Service station

C8118A-Service_Station Service Station - Service station assembly - for conditioning the printheads when the carriage is in its home position

C8125-67015 Sheet - Bij2300 500-Sheet Tray 2 Svc

C8116-67061 Shield - Shield-Emi, Flex Cable Svc

C8118A-SLED_Assy SLED Assembly - Sled assembly - white plastic piece with spring, wipers and boot (assembly that the ink cartridge parks on) - mounts on top of the service station assembly

C8118A-Slider Slider - Carriage base slider - plastic piece on the front end of the carriage that allows the carriage to slide side to side.

C8116-67025 Solenoid - Solenoid-Overdrive Svc

C8118A-Speaker Speaker - Speaker assembly - includes speaker cable.

C8118A-Spitton Spitton - Spittoon base - the bottom and main housing of the service station assembly - holds any residual ink from the print cartridge cleaning process

C8116-67022 Spring - Spring-X Bias, Duplexer Svc

C8118A-Spring_Cmprsn Spring Compression - Compression spring - on pulley wedge for carriage belt tension

C8116-67017 Stopper - Stopper - Latch Svc

C8116-67060 Strap - Strap-Blower Mounting Svc

C8116-67068 Support - Support - Front Left Svc

C8116-67046 Tensioner - Belt tensioner assembly

C8118A-Trailing_Cbl Trailing Cable - Trailing cable for scanner - cable connects from scanner to pc board.

C8116-67010 Tray - Output tray assembly - Tray 1

C8116-67011 Tray - Fixed input tray assembly - Tray 2 ( tray 3 700-sheet input unit is C8116-67069)

C8116-67021 Tray - Assy - Mss Tray 2 Svc

C8116-67069 Tray - 700-sheet input paper tray - Tray 3 - Extends media capacity

C8116-67071 Tray - 700-sheet input paper tray - Tray 3 - Extends media capacity

C8116-67072 Tray - Mp Tray 1 Svc

C8226A Tray - Business InkJet 3000 series 700-sheet paper tray

C8227A Tray - Business InkJet 3000 series 100-sheet multi-purpose tray

C8118A-Tray_Assy Tray Assembly - Paper input tray assembly for loading paper (bottom).

C8125-67028 Tray Assembly - 250 sheet tray and feeder assembly - Printer sits on top of this assembly

C8118A-Tray_Assy_CVR Tray Assembly Cover - Tray cover - the top cover for the paper pick up tray unit.

C8118A-Tray_Base Tray Base - Tray base- bottom base of the paper input tray.

C6030A Weight - HP Heavyweight Coated 914mm x 30,5m roll

C8118A-Window Window - Top/front access door assembly - print cartridge access door window.

HP Business Inkjet 3000DTN (C8118A)

HP parts list for C8118A HP Business Inkjet 3000DTN Printer
