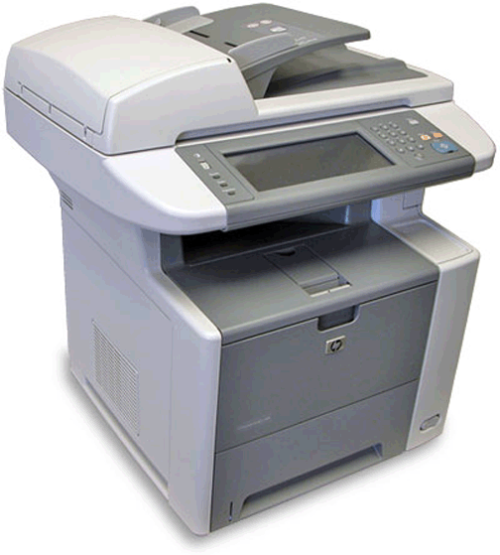

HP parts list for CC479A HP LaserJet m3027x multifunction printer
CB414-67919ADF - ADF assembly - Includes rear cover, cable, input tray, front cover, mylar replacement kit, white scan background, mylar holder assembly, white mylar backing with 2 springs, and left cover
CB414-67926ADF - ADF assembly - For the A size (8.5 x 11-inches) scanner assembly - Includes rear cover, cable, input tray, front cover,white scan background, and left cover
CB414-67928ADF - ADF assembly - For the A size (8.5 x 11-inches) scanner assembly - Includes rear cover, cable, input tray, front cover,white scan background, and left cover
CC476-67909ADF - ADF assembly - For the Legal size (8.5 x 14-inches) scanner assembly - Includes rear cover, cable, input tray, front cover, mylar replacement kit, white scan background, mylar holder assembly, white mylar backing with 2 springs, and left cover
CC476-67912ADF - ADF assembly - For the Legal size (8.5 x 14-inches) scanner assembly - Includes rear cover cable input tray front cover mylar replacement kit white scan background mylar holder assembly white mylar backing with 2 springs and left cover
CC476-67913ADF - ADF assembly - For the Legal size (8.5 x 14-inches) scanner assembly - Includes rear cover, cable, input tray, front cover, mylar replacement kit, white scan background, mylar holder assembly, white mylar backing with 2 springs, and left cover
CB414-67903Adf Input Tray - ADF Tray : ADF input paper tray assembly - Holds 50 sheets of paper. Automatic Document Feeder (ADF) Input Tray For Hewlett-packard (HP) Printers
RC1-4055-000CNArm - Door arm - White plastic arm that connects to left side cartridge access door
WT2-5056-000CNClip - Cable clip - `C` shaped White plastic
WT2-5678-000CNClip - Cable clip - White plastic push-in clip with mounting pin
WT2-5812-000CNClip - Cable clip - `C` shaped white plastic clip
XD9-0232-000CNClip - E-ring keeper - Attaches to drive end of registration roller to secure cluster gear
VS1-7257-007CNConnector - Drawer connector - Connector located on top of tray assembly frame (right side) which connects tray assemblies to each other
RC1-4060-000CNContact - Grounding contact - Tiny U-shaped metal cartridge grounding contact - Contacts copper grounding strip on left side of toner cartridge
RM1-4054-000CNContact - Contacts and cable - For toner cartridge memory tag - Connects to ECU memory control.
CB414-60101Control Panel - Control panel assembly - Control buttons and display located on top front of printer;Click to order the functional equivalent: CB414-60157
CB414-60157Control Panel - Mirror Control Panel/ Control panel assembly - Control buttons and display located on top front of printer
RC1-4108-000CNCover - Cover for main motor M1 - Located on lower right side of printer
RC2-0579-000CNCover - Gear cover - Mounts on the left side of the printer chassis.
RC2-0603-000CNCover - Right lower cover - Horizontal plastic cover - Mounts on the right lower side of the printer.
RC2-0605-000CNCover - Right upper cover - Used to cover the top side of the formatter board.
RC2-0612-000CNCover - Engine controller cover - Vertical cover located on the right back side of the printer.
RC2-0722-000CNCover - Right side cover - Provides acces to DIMMs - Located on the right side of the printer.
RC2-0726-000CNCover - Fax Cover - Mounts on the upper right side of the top cover assembly.
RC2-0727-000CNCover - Stapler cartidge cover - Located on the right side of the printer - Replaces the stapler door for devices without staplers.
RC2-0729-000CNCover - Internal fax cover (fax rail) - Located next to the fax cover on the top cover assembly
RC2-0736-000CNCover - Metal face plate cover - For the formatter - Contains openings for external connections
RC2-0739-000CNCover - Sensor cable cover - Plastic cover that protects the face up sensor cable
RL1-1723-000CNCover - Right front cover - Vertical plastic cover - Mounts on the right side of the printer.
RM1-3723-000CNCover - Multi-purpose input tray cover assembly - Includes pull-out and flip-out tray extensions.
RM1-3724-000CNCover - Rear cover assembly - Includes rear door assembly
RM1-3772-000CNCover - Top cover assembly - Mounts below the ADF and holds the paper when it�s printed
RM1-3772-030CNCover - Top cover assembly - Mounts below the ADF and holds the paper when it´s printed
RM1-3773-000CNCover - Left cover assembly - Protects the left side of the printer
RM1-3776-000CNCover - Right front cover - Vertical plastic cover - Mounts on the right side of the printerRight front cover - Vertical plastic cover - Mounts on the right side of the printer Replaced: RL1-1723-000CN
RM1-3790-000CNCover - Stapler cartidge cover - Located on the right side of the printer.
RM1-3722-000CNDoor - Cartridge access door assembly - Provides access to the cartridges
0950-4753Drive Assembly - 40GB SATA Hard drive - 5,400 RPM, 2.5 inch form factor, 9.5mm height
5851-0673Drive Assembly - Kit-Hard Disk Drive replacement
5851-3833Drive Assembly - 40GB SATA Hard drive - 5,400 RPM, 2.5 inch form factor, 9.5mm height Hard drive kit. For PATA (Parallel ATA) connector order Q7829-67935.
J7989GDrive Assembly - Hard drive - High performance EIO serial ATA hard drive.EIO hard disk - Can be installed in printers with EIO slots - Provides mass storate capability for downloading fonts and macros - May also hold print jobs.
RM1-3712-000CNDrive Assembly - Main drive assembly - Mounts on the right side of the printer - Metal plate with gears attached - Also known as main gear drive assembly.
RC1-4128-020CNDuct - Plastic duct that vents air from the lower right front fan to the laser/scanner.
RC2-0590-000CNDuct - Cartridge duct - Small vent duct to route air from the fan (FM1) to the cartridge area.
RK2-1497-000CNFan - Cooling fan - Located on the right side of the printer.
RK2-1499-000CNFan - Cooling fan (FM2) - Located on the left side of the printer - Small fan that cools the fuser assembly and print cartridge area
Q3701-60014Fax Module - Fax printed circuit assembly (PCA) - Accessed from the rear of the unit - Located on the formatter boardHP LaserJet analog fax accessory 300
RM1-3759-000CNFeeder - Lower paper feed assembly - Vertical transfer unit - Transfers paper from pickup assembly up to the printer input.
RC1-4027-000CNFlag - Sensor lever - Top of page sensor flag - Used to detect edge of paper
RM1-3742-000CNFlag - Face down full detect flag assembly - Goes on the right side of the top cover assembly
RM1-3743-000CNFlag - Face down flag assembly - Goes on the top cover assembly
RM1-3769-000CNFlag - Sensor flag assembly for tray 2 - Short rod with one flag on it - Mounts next to the pickup roller assembly
RA0-1003-000CNFoot - Rubber foot - For bottom of printer - Three used
5851-3996Fuser Assembly - Fusing assembly - For 110-127 VAC - Bonds toner to paper by heat - Includes 20-tooth gear
RM1-3717-000CNFuser Assembly - Fuser Assembly - For 110-127 VAC - Bonds toner to paper by heat - Includes 20-tooth gear
RM1-3717-020CNFuser Assembly - Fuser assembly - For 110 VAC - Bonds toner to paper with heat
RM1-3740-000CNFuser Assembly - Fusing assembly - Bonds toner to paper by heat - For 110VAC to 127VAC operation
RM1-3740-030CNFuser Assembly - Fuser Assembly - For 110-127 VAC - Bonds toner to paper by heat
RM1-3741-000CNFuser Assembly - Fuser Assembly - For 220 VAC to 240 VAC, 50Hz operation - Bonds toner to paper by heat
RM1-3741-030CNFuser Assembly - Fuser Assembly - For 220 VAC to 240 VAC operation - Bonds toner to paper with heat
RM1-3761-000cnFuser Assembly - Fuser Assembly - For 220 VAC to 240 VAC - Bonds toner to paper with heat - Includes 20-tooth gear
RM1-3761-020CNFuser Assembly - Fuser assembly - For 220 VAC - Bonds toner to paper with heat
CB414-67923Gear - Replacement gear kit - Includes 17,17,19 and 20 tooth gears
RC2-0657-000CNGear - Fuser thrust stopper - Located on the fuser drive assembly.
RM1-3714-000CNGear - Gear - Pick up roller gear assembly
RA0-1172-000CNGear Assembly - 17 tooth gear assembly - Includes the 17 tooth gear mounted on a black plastic lever/bracket
RM1-3746-000CNGear Assembly - Fuser drive side plate and gear assembly - Drive gear assembly and mounting plate for fuser - Located on right side of printer
RM1-3748-000CNGear Assembly - Duplexing pendulum assembly - Gear assembly that transfers power from main motor to run duplexing capability.
RC1-4085-000CNGround - Grounding plate - High voltage power supply grounding plate - Attaches to left rear of power supply
RC2-0588-000CNHolder - Cable holder - Mounts on the main drive assembly.
RC2-0592-000CNHolder - Main fan holder - Plastic fan holder for main cooling fan (FM1) - Located on the upper right side of the printer.
RC2-0595-000CNHolder - Holder - Plastic assembly that holds interlock switch for cover.
RC2-0622-000CNHolder - Fan holder - Chassis left fan holder
RC2-0632-000CNHolder - Switch holder - Holds the power on/off switch.
RC2-0634-000CNHolder - Link switch holder - Plastic guide that holds power link arm in place.
RL1-3167-000CN-5HP Parts - 5pk,Roller,Cassette Paper Pick-Up Tray
RM1-1521-030CNLaser Scanner - Laser/Scanner assembly - Mounts on top of print structure
RC1-3939-000CNLever - Paper sensor lever - Mechanical device that activates photo sensor PS902 Tray 1 paper sensor
RC1-4065-000CNLever - Grounding contact lever - Lever on left side that is moved by contact when the toner cartridge is installed
RC1-4066-020CNLever - Grounding contact lever - Lever on left side that pushes both contact springs against toner cartridge contacts on left side of cartridge
RK2-1488-000CNMotor - Main motor (M1) - DC motor located on the inner left side of the printer
RK2-1489-000CNMotor - Stepping DC motor (M2) - Drives all fuser rollers and fuser drive assembly
CB414-60102Overlay - Control planel overlay - Snaps on top of the control panel assembly (English)
CB414-60103Overlay - Control panel overlay - Snaps on top of the control panel assembly (French)
CB414-60104Overlay - Control panel overlay - Snaps on top of the control panel assembly (Italian)
CB414-60105Overlay - Control panel overlay - Snaps on top of the control panel assembly (Dutch)
CB414-60106Overlay - Control panel overlay - Snaps on top of the control panel assembly (Spanish)
CB414-60107Overlay - Control panel overlay - Snaps on top of the control panel assembly (for use in the Netherlands)
CB414-60108Overlay - Control panel overlay - Snaps on top of the control panel assembly (Portuguese)
CB414-60109Overlay - Control panel overlay - Snaps on top of the control panel assembly (Norwegian)
CB414-60110Overlay - Control panel overlay - Snaps on top of the control panel assembly (Swedish)
CB414-60111Overlay - Control panel overlay - Snaps on top of the control panel assembly (Finland)
CB414-60112Overlay - Control panel overlay - Snaps on top of the control panel assembly (Danish);Click to order the functional equivalent: CB414-60102
CB414-60113Overlay - Control panel overlay - Snaps on top of the control panel assembly (Polish)
CB414-60114Overlay - Control panel overlay - Snaps on top of the control panel assembly (Russian)
CB414-60115Overlay - Control panel overlay - Snaps on top of the control panel assembly (Czech)
CB414-60116Overlay - Control panel overlay - Snaps on top of the control panel assembly (Hungarian)
CB414-60117Overlay - Control panel overlay - Snaps on top of the control panel assembly (Chinese/Twi)
CB414-60118Overlay - Control panel overlay - Snaps on top of the control panel assembly (Chinese)
CB414-60119Overlay - Control panel overlay - Snaps on top of the control panel assembly (Korean)
CB414-60120Overlay - Control panel overlay - Snaps on top of the control panel assembly (Japanese)
CB414-60121Overlay - Control panel overlay - Snaps on top of the control panel assembly (Turkish)
CB414-60122Overlay - Control panel overlay - Snaps on top of the control panel assembly (Hebrew)
CB414-60123Overlay - Control panel overlay - Snaps on top of the control panel assembly (Greek)
CB414-60124Overlay - Control panel overlay - Snaps on top of the control panel assembly (Arabic)
CB414-60125Overlay - Control panel overlay - Snaps on top of the control panel assembly (Thai)
CB414-60151Overlay - Control panel overlay - Snaps on top of the control panel assembly (Croatian)
CB414-60152Overlay - Control panel overlay - Snaps on top of the control panel assembly (Romanian)
CB414-60153Overlay - Control panel overlay - Snaps on top of the control panel assembly (Slovakian)
CB414-60154Overlay - Control panel overlay - Snaps on top of the control panel assembly (Slovenian)
CB414-60194Overlay - Control panel overlay - Snaps on top of the control panel assembly (Chinese/Twi)
CB414-60195Overlay - Control panel overlay - Snaps on top of the control panel assembly (Chinese)
CB425-60103Overlay - Control panel overlay - Snaps on top of the control panel assembly (English)
CB425-60149Overlay - Control panel overlay - Snaps on top of the control panel assembly (English)Control Panel Overlay Ki Replacement.
RC1-0939-000CNPad - Separation pad assembly for the Tray 1 position and fits in a holder that sits just below the Tray 1 paper pickup roller.
RC2-0468-000CNPad - Right lower cushion - Located on the button of the printer - Small black foam rubber rectangle shaped pad.
RM1-3738-000CNPad - Tray 1 and 2 separation pad and holder assembly.
Q3701-60012PC Board - Fax printed circuit assembly (PCA) - Accessed from the rear of the unit - Located on the formatter boardHP LaserJet analog fax accessory 300
Q3701-60020PC Board - Fax printed circuit assembly (PCA) - Accessed from the rear of the unit - Located on the formatter boardHP LaserJet analog fax accessory 300
Q3701-60021PC Board - Modem PCA - HP LaserJet analog fax accessory 300
Q7819-61006PC Board - Formatter (Main logic) board - For HP LaserJet M3035/M3027 Series only
Q7819-61007PC Board - Formatter (Main logic) board - For HP LaserJet M3035/M3027 Series only
Q7819-61009PC Board - Formatter (main logic) board - For HP LaserJet M3035/M3027 Series only
RM1-3774-020CNPC Board - Engine controller assembly - For 110 VAC to 127 VAC - Engine controller PC board and metal pan - Provides all power supply and motor control functions
RM1-3774-030CNPC Board - Engine controller PC board assembly and metal pan - Provides all power supply and motor control functions - For 110 VAC to 127 VAC
RM1-3775-020CNPC Board - Engine controller assembly - 220-240VAC - Engine controller PC board and metal pan - Provides all power supply and motor control functions
RM1-3775-030CNPC Board - Engine controller PC board assembly and metal pan - Provides all power supply and motor control functions - For 220 VAC to 240 VAC operation
RM1-4077-000CNPC Board - Engine controller PC board assembly and metal pan - Provides all power supply and motor control functions - For 220 VAC to 240 VAC operation
J6035DPC Board Interface - HP JetDirect 175X external print server - Has one 4-pin USB connector and one RJ-45 LAN connector - Connects to the printer via the USB port and the network via the LAN port
J6035GPC Board Interface - JetDirect 175X external print server - Has one 4-pin USB connector and one RJ-45 LAN connector - Connects to the printer via the USB port and the network via the LAN port
J7934GPC Board Interface - HP JetDirect 620n internal print server - 10BaseT and 100BaseTX LAN interface board - Plugs into peripheral EIO slot - Has an RJ-45 connector - Comes with software on CD-ROM and manual on CD-ROM
J7942APC Board Interface - HP JetDirect en3700 external print server - Fast Ethernet Internet connector for sharing peripherals with USB ports, in a 10/100 TX LAN environment - Has one USB 2.0 printer port and one RJ-45 10/100 Base-TX connector - Includes software and power module
J7942GPC Board Interface - HP JetDirect en3700 external print server - Fast Ethernet Internet connector for sharing peripherals with USB ports, in a 10/100 TX LAN environment - Has one USB 2.0 printer port and one RJ-45 10/100 Base-TX connector - Includes software and power module
J7951GPC Board Interface - HP Jetdirect ew2400 802.11g wireless print server module - Includes power supply, USB cable, LAN/Ethernet cable, setup documentation and software
J7960GPC Board Interface - HP Jetdirect 625n internal ethernet print server - Provides 10BaseT, 100BaseTX, or 1000BaseT interface for products with an EIO port
J7961GPC Board Interface - HP Jetdirect 635n IPv6/IPsec Print Server - 10BaseT and 100BaseTX LAN interface board - Plugs into peripheral EIO slot - Has an RJ-45 connector - Comes with software on CD-ROM and manual on CD-ROM;Click to order the functional equivalent: J7961-69011
5851-4012Pickup Assembly - Kit Paper Pick-up AssemblyPaper pick-up assembly - Includes the pick-up roller, feed roller assembly, drive gears, and separation pad for tray 2 and 3
5851-4013Pickup Assembly - Paper pick-up roller assembly - For tray cassette 2 and 3 - Include separation pad for tray 2 and 3
RM1-3762-000CNPickup Assembly - Kit Paper Pick-up AssemblyPaper pick-up assembly - Includes the pick-up roller, feed roller assembly, drive gears, and separation pad for tray 2 and 3
RM2-3900-000CNPickup Assembly - Kit-Cassette Paper Pick-up Roller assbly
RM1-3727-000CNPlate - Bottom support plate for the roller assembly
8121-0731Power Cord - Power cord (Black) - 18 AWG, three conductor, 1.9m (75in) long - Has straight (F) C13 receptacle (For 220V in Europe)Limited supply only.
8121-0733Power Cord - Power cord (Black) - 18 AWG, three conductor, 1.9m (6.25ft) long - Has straight (F) C13 receptacle (For 220VAC in Denmark)
8121-0737Power Cord - Power cord (Black) - 18 AWG, three conductor, 1.9m (6.25ft) long - Has straight (F) C13 receptacle (For 240VAC in India and South Africa)
8121-0738Power Cord - Power cord (Black) - 18 AWG, three conductor, 1.9m (6.25ft) long - Has straight (F) C13 receptacle (For 220VAC in Switzerland)
8121-0921Power Cord - Power cord (Black) - 16 AWG, 2.5m (8.2ft) long - Has straight (F) C13 receptacle (for 125 VAC in USA and Canada)
8121-0946Power Cord - Power cord (Black) - 18 AWG, 220VAC, three conductor, 1.9m (6.25ft) long - Has 90 degree receptacle - For United Kingdom, Middle East, Philippines, Singapore, Hong Kong SAR, and Malaysia
8121-0947Power Cord - Power cord (Black) - 3-wire, 1.9m (6.2ft) long - Has 90 degrees (F) C13 receptacle (For 250V in Switzerland)
8121-0949Power Cord - Power cord (Black) - 3-wire, 1.9m (6.2ft) long - Has 90 degrees (F) C13 receptacle (For 250V in Denmark)
8121-0950Power Cord - Power cord (Black) - 18 AWG, three conductor, 1.9m (6.25ft) long - Has straight (F) C13 receptacle - For Southern Europe, Western Europe, Eastern Europe, Indonesia, Russia, Baltics, Vietnam, and Korea
8121-0954Power Cord - Power cord (Black) - 3-wire, 1.9m (6.2ft) long - Has 90 degrees (F) C13 receptacle (For 120V in the USA, Canada, and Mexico )
8121-1004Power Cord - Power cord (Flint Gray) - Three conductor, 1.9m (6.25ft) long - Has straight (F) C13 receptacle (For 220VAC in Israel)
8121-1005Power Cord - Power cord (Black) - 3-wire, 1.9m (6.2ft) long - Has 90 degrees (F) C13 receptacle (For 250V in Israel)
RM1-3758-000CNPower Supply - High voltage power supply PC board assembly.
RM1-4039-000cnPower Supply - High voltage power supply PC board assembly.
CC479A-Repair_LaserJetRepair Service - Ship your product to us for a small diagnostic fee; and a professional service job. We will contact you with repair total and your diagnostic fee will be waived if unit is repaired. Service warranty is 30days labor and 90days for parts. Extended warranty option is available.
RC2-0593-000CNRod - Fan rod - Metal rod that mounts against fan (FM1) on right side of printer - Used for noise reduction.
CB414-67904Roller - ADF feed roller assembly - Mounts in center of the ADF chassis - Includes gear, shaft, and clutch parts.
CB414-67918Roller - ADF feed roller assembly - Mounts in center of the ADF chassis - Includes gear, shaft, and clutch partsADF feed roller assembly - Mounts in center of the ADF chassis - Includes gear, shaft, and clutch parts
RC1-3994-000CNRoller - Face down roller - Small individual feed roller that rides against face down shaft roller - Held by torsion spring - Four used
RM1-3716-000CNRoller - Roller Assembly : Multi-purpose tray pickup roller assembly - Includes pickup roller, roller cam, right and left cams, both round rollers and dowel pin.
RM1-3749-000CNRoller - Face-down output roller assembly - Black roller shaft with four soft rollers.
WG8-5624-000CNSensor - Replacement for part WG8-5362-000CN ORDER WG8-5624-000CN PHOTO-INTERRUPTER TLP1241 Photo-sensor (TLP1241) - Sensor flag activated
RC1-4140-000CNSpring - Compression spring - Provides pressure to grounding contact link on left side of cartridge guide - Pushes link arm away when cartridge is removed
RC2-0576-000CNSpring - Torsion spring - Provides tension to the arm paper.
RC2-0665-000CNSpring - Torsion spring - Tiny spring that attaches the face down roller.
RU5-2385-000CNSpring - Compression spring - Provides pressure for Tray 1 seperation pad
RU5-2386-000CNSpring - Torsion spring - Provides tension for Tray 1 paper sensor flag
RU5-2388-000CNSpring - Tension spring - Provides tension for white plastic arm on left side of cartridge access door
RU5-2401-000CNSpring - Compression spring - Provides pressure for the large 201 tooth white gear on right side of printer
RU5-2403-000CNSpring - Tension spring - Provides tension for cartridge clamp lever that holds lefts side of cartridge in a stable position when inserted
RU5-2404-000CNSpring - Compression spring - Spring provides pressure to the laser shutter which when pulled back (spring is compressed) enables the laser scanner shutter by pressing up the plastic mechanical link on the underside of the laser/scanner assembly
RU5-2405-000CNSpring - Compression spring - Provides pressure for E-reader holder
RU5-2407-000CNSpring - Tension spring - Provides tension for cartridge access door arm
RU5-2408-000CNSpring - Compression spring - Right side transfer roller spring - Provides tension for transfer roller
RU5-2410-020CNSpring - Torsion spring - Provides pressure to move protective plate back into cartridge compartment when the cartridge is removed
RU5-2920-000CNSpring - Compression spring - Goes on the pendulum assembly
RC2-0702-000CNStop - Right cartridge stopper - Provided a predetermined position for the cartridge.
RC2-0707-000CNStop - Left cartridge stopper - Provided a predetermined position for the cartridge
RK2-0534-000CNSwitch - Microswitch - Door open switch - SW501
RC2-0724-000CNTray - Paper clip tray - Small square tray were you can put the paper clips - Located on the right side of the printer next to the stapler.
RC2-0725-000CNTray - Staple tray - Plastic support for paper while stapling - Attaches to stapler unit
RM1-3732-000CNTray - 500-sheet input tray - Paper cassette for tray 2. (RM1-3796-000CN is tray# 3)
RM1-3796-000CNTray - 500-sheet input tray - Paper cassette for tray 3. (RM1-3732-000CN is tray# 2)
Q7817-67901Tray Assembly - Optional 500-sheet paper input tray feeder assembly - Includes the paper feeder base assembly and 500-sheet paper cassette tray 3 - Holds Letter, A4, Legal, A5, B5 (JIS), Executive, and 8.5 x 13 paper sizes.
Q7817ATray Assembly - 500-sheet input tray - Paper cassette for tray 2
RM1-1490-000CNTray Assembly - MP/Tray 1 support assembly - Hinged support and adjustable paper width guide assembly - Tray 1 cover assembly attaches to this assembly
RC2-0652-000CNWasher - Plain Washer - Located on the pendulum assembly
Repair It
Exchange It
View Supplies
Service Manual
