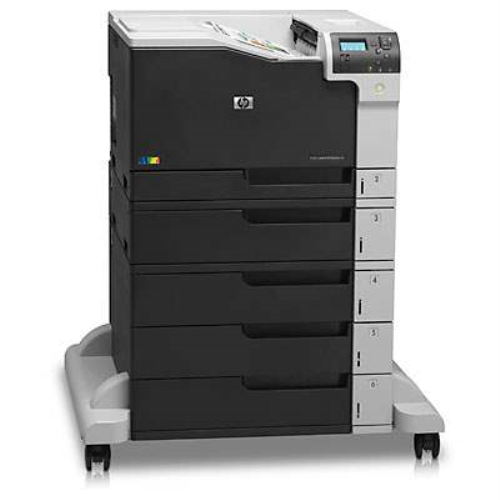

HP parts list for D3L10A Color LaserJet enterprise m750xh

CC468-69002 Absorber - Toner vacuum absorber service assembly - For 110 VAC

CC468-69003 Absorber - Toner vacuum absorber service assembly - For 220 VAC

RC2-6824-000CN Arm - Intermediate transfer belt (ITB) coupling release arm

RC2-7035-000CN Arm - Arm, Waste Toner, Left

RC2-7036-000CN Arm - Arm, Waste Toner, Right

CC522-67910 Belt - Intermediate transfer belt (ITB) maintenance assembly - Includes Secondary transfer roller, tray 2 pickup and separation roller, pick-up and feed rollers for the 500-sheet tray, and feed rollers for the high-capacity tray

CC522-67911 Belt - Intermediate transfer belt (ITB) repair assembly - Includes Intermediate transfer belt (ITB) and secondary transfer roller

CC522-69003 Belt - Intermediate Transfer Belt PM Kit

RM2-5833-000CN Belt - Intermediate transfer belt (ITB) repair assembly - Includes Intermediate transfer belt (ITB) and secondary transfer roller

RK2-2901-000CN Cable - USB cable - Internal cable that connects the USB port to the formatter

RM1-3575-000CN Cable - Paper pick-up option cable - Used for the 1 x 500-sheet input tray

RM1-3647-000CN Cable - Multi-sensor cable - Used for the 3 x 500-sheet paper feeder tray

RM1-3651-000CN Cable - Door open switch cable - Used for the 3 x 500-sheet paper feeder tray

RM1-6804-000CN Cable - Flat flexible cable assembly

RM1-6807-000CN Cable - Low voltage power supply cable

RM1-6811-000CN Cable - Low-voltage AC joint cable

RM1-6813-000CN Cable - Low-voltage power supply test cable

RM1-6822-000CN Cable - Primary transfer cable

RM1-6830-000CN Cable - Switch cable for HP CE708A

RM1-6833-000CN Cable - High-voltage power supply to low-voltage power supply left cable

RM1-6846-000CN Cable - Feed joint cable - Used for duplex models only

RM1-6849-000CN Cable - Cable - Conects the interconnect board (ICB) PCA to the control panel

RM1-6863-000CN Cable - Rear cable - Connects the laser scanner with the DC controller board

RM1-6867-000CN Cable - Low-voltage power supply SB joint cable - Used for duplex models only

RM1-6991-000CN Cable - Engine interface cable - Used for the 3 x 500-sheet feeder tray assembly

RM1-6992-000CN Cable - PCA joint cable - Used for the 3 x 500-sheet feeder tray assembly

RC2-6691-000CN Cap - T2 contact - For the second-transfer high-voltage PCA cap

CE980A Cartridge - Hewlett Packard toner collection Unit 150,000 pages yield aprx. CE980A

RC1-9896-000CN Caster - Double lock front caster - For the 1 x 500-sheet paper input tray

RC3-2994-000CN Caster - Rear Caster - For The 1x500-Sheet Paper Deck Assembly

RC2-6663-000CN Clamp - Edge clamp for HP CE708A

RC2-6674-000CN Clamp - Edge D clamp for HP CE708A

VS1-7207-019CN Connector - Snap tight black connector

VS1-7500-008CN Connector - Connector (8-pin)

VS1-7514-008CN Connector - 8-pin paper pick-up connector

WE8-6639-000CN Core - Ring core for HP CE708A

CE707-67902 Cover - Front cover assembly - Plastic cover that protects the front side of the printer

RC2-6573-000CN Cover - Imaging HVT cable cover

RC2-6574-000CN Cover - Main drive cable lower cover

RC2-6625-000CN Cover - Lower left handle cover

RC2-6626-000CN Cover - Rear right lower handle cover

RC2-6627-000CN Cover - Front right lower handle cover

RC2-6642-000CN Cover - Lower connector cover

RC2-6650-000CN Cover - Main cross-member cable cover

RC2-6670-000CN Cover - Handle guide cover

RC2-6713-000CN Cover - Front left hinge cover

RC2-6715-000CN Cover - Front right hinge cover

RC2-6732-000CN Cover - Front arm cover 1

RC2-6733-000CN Cover - Front arm cover 2

RC2-6737-000CN Cover - Internal lower front cover

RC2-6738-000CN Cover - Front center hinge cover

RC2-6760-000CN Cover - Cross-member left cover

RC2-6832-000CN Cover - Protective cable cover

RC2-6931-000CN Cover - Duplexing gear cover - Used for duplex models only

RC2-6962-000CN Cover - Cover, Waste Toner, 2

RC2-6963-000CN Cover - Waste toner cover

RC2-7204-000CN Cover - Guide cover - Cover the arm front guide

RC2-8424-000CN Cover - Right rear cable cover

RC2-9320-000CN Cover - Front right cover - For the paper feeder

RC2-9330-000CN Cover - Rear cover - For the paper feeder

RC2-9331-000CN Cover - Left cover - For the paper feeder

RC2-9332-000CN Cover - Lower handle lower cover - For the paper feeder

RC2-9343-000CN Cover - Right corner cover - For the 3 x 500-sheet paper feeder

RC2-9346-000CN Cover - Right lower cover - For the 3 x 500-sheet paper feeder

RC2-9347-000CN Cover - Right lower cover - For the 3 x 500-sheet paper feeder

RC2-9348-000CN Cover - Rear cover - For the 3 x 500-sheet paper feeder

RC2-9349-000CN Cover - Left cover - For the 3 x 500-sheet paper feeder

RC2-9350-000CN Cover - Left lower cover - For the 3 x 500-sheet paper feeder tray

RC2-9357-000CN Cover - Lower rear cover - For the 3 x 500-sheet paper feeder

RM1-6012-000CN Cover - Waste toner cover assembly

RM1-6948-000CN Cover - Right lower cover assembly - For the paper feeder

RM1-6949-000CN Cover - Front upper cover assembly - For the paper feeder

RM1-6958-000CN Cover - Front lower cover assembly - Used for the 3 x 500-sheet paper feeder tray assembly

RM1-7142-000CN Cover - Right rear cover - Rectangular shaped plastic cover that protects the right rear side of the printer

RM1-7143-000CN Cover - Left cover assembly - Plastic cover that protect the left side of the printer

RM1-7144-000CN Cover - Right front cover assembly - Includes control panel

RM1-7147-000CN Cover - Rear cover assembly - Plastic cover that protects the rear side of the printer

RM1-7148-000CN Cover - Top cover assembly - Plastic cover that protects the top part of the printer - Holds paper after it has been printed

RM1-6165-080CN Delivery - Paper delivery assembly. Paper delivery assembly CP5525n/CP5525dn/CP5525xh/CP5225/CP5225n/CP5225dn and similar units. Paper Delivery Assembly

CC522-67906 Door - Inner door service assembly - Access door for the four color cartridge

RC2-7034-000CN Door - Toner collection unit access door

RC2-7091-000CN Door - Upper right door

RM1-6007-360CN Door - Right Door Assy duplex

RM1-6946-000CN Door - Right door assembly - For the paper feeder

RM1-6946-010CN Door - Right Door Ass Y

RM1-6953-000CN Door - Right door assembly - Used for the 3 x 500-sheet paper feeder tray assembly

CE707-67904 Drive Assembly - Fusing drive assembly - Includes motor (M4) and the fuser gear assembly

CE707-67911 Drive Assembly - Fuser Drive unit

CE708-67901 Drive Assembly - Main drive assembly - Used for duplex models only

RM1-6005-000CN Drive Assembly - Duplex reverse drive assembly - Used for duplex models only

RM2-5832-000CN Drive Assembly - Kit-Main Drive Assembly Duplex

RC2-7300-000CN Duct - Front duct - Mounts next to the upper cartridge guide

RC2-8360-000CN Duct - Joint duct - Mounts on the right door area

RC2-8388-000CN Duct - Fan duct - Diverts air to the power supply fan (FM1) area

RK2-2276-000CN Fan - Cooling fan (FM1) - Provides air to the right side of the printer

RK2-2728-000CN Fan - Delivery Fan (FM3) - Provides air to the paper delivery area

RK2-3301-000CN Fan - Formatter cooling fan (FM3) - Provides air and cools the formatter area

RM1-6040-000CN Feeder - Toner feed assembly

RM1-6040-010CN Feeder - Toner feed assembly

D3L08-60001 Formatter - Formatter Replacement Kit

D3L08-67901 Formatter - Formatter Replacement Kit

D3L08-67905 Formatter - Formatter Replacement Kit

RC2-7196-000CN Frame - Front support frame - For the registration sensor assembly

RC2-7197-000CN Frame - Rear support frame - For the registration sensor assembly

CE707-67912 Fuser Assembly - Fusing Assembly - For 110 VAC operation - Bonds toner to paper with heat

CE707-67913 Fuser Assembly - Fusing Assembly - For 220 VAC operation - Bonds toner to paper with heat

RM1-5996-000CN Fuser Assembly - Fusing Assembly - For 110 VAC operation - Bonds toner to paper with heat

RU6-0771-000CN Gear - 25-tooth gear - For the duplex models only

RU6-0772-000CN Gear - 25-tooth gear - For the duplex models only

RU6-0773-000CN Gear - 74-tooth gear - For the duplex models only

RU6-0775-000CN Gear - 18/29-tooth gear - For simplex models only

RU6-0795-000CN Gear - Link worm gear for HP Color LaserJet CP5525 Printer

RM1-7914-060CN Gear Assembly - Fusing gear assembly

RM1-7914-070CN Gear Assembly - Fixing Gear Assembly

RC2-6546-000CN Guide - Fusing front guide

RC2-6547-000CN Guide - Fusing rear guide

RC2-6551-010CN Guide - Pre-Fixing Guide unit.

RC2-6587-000CN Guide - Cross-member cable front guide

RC2-6588-000CN Guide - Cross-member cable rear guide

RC2-6589-000CN Guide - Inside cable guide

RC2-6600-000CN Guide - Main cross-member cable guide

RC2-6628-000CN Guide - Laser scanner assembly guide

RC2-6632-000CN Guide - Front arm guide

RC2-6659-000CN Guide - Main drive cable guide

RC2-6661-000CN Guide - Imaging high voltage transceiver (HVT) cable guide

RC2-6662-000CN Guide - Low voltage transceiver (LVT) cable guide

RC2-6665-000CN Guide - DC controller support cable guide

RC2-6693-000CN Guide - Fusing AC cable guide

RC2-6841-000CN Guide - Cable upper guide

RC2-6842-000CN Guide - Cable right guide

RC2-7203-000CN Guide - Slide guide for HP CE708A

RC2-7297-000CN Guide - Paper feed guide assembly

RC3-0684-000CN Guide - Cable guide - Guides left high voltage power supply to the low voltage power supply cable

RM1-5990-000CN Guide - Upper cartridge guide assembly

RM1-6036-000CN Hardware - Auto-close assembly

RC2-6712-000CN Hinge - Inner door right hinge

RC2-6716-000CN Hinge - Inner door left hinge

RC2-7094-000CN Hinge - Front right door hinge

RC2-6638-000CN Holder - Paper pick-up connector holder

RC2-6645-000CN Holder - Right holder - Holds the door sensor (PS15)

RC2-6645-010CN Holder - Holder Door Detect Right

RC2-6648-000CN Holder - Fan holder - Holds formatter fan (FM3)

RC2-6655-000CN Holder - Flat flexible cable holder

RC2-6666-000CN Holder - Switch holder - Holds the power switch PCA

RC2-6680-000CN Holder - First power dispatching holder

RC2-6681-010CN Holder - Secondary transfer high voltage transceiver (HVT) holder

RC2-6682-000CN Holder - Secondary transfer power dispatching holder

RC2-6689-000CN Holder - Interlock switch holder - Holds 24V interlock switch (SW2)

RC2-7299-000CN Holder - Power supply fan holder - Holds fan (FM1)

RC2-8357-000CN Holder - Duplexing fan holder - Holds fusing fan (FM2)

RC2-6932-000CN Hook - Duplexing spring hook - For duplex models only

RC2-6847-010CN HP Parts - Cap, Lever, Rear

CC522-91019 Kit - Laserjet Image Transfer Kit - Transfer Belt Kit Assembly.

CE516A Kit - Laserjet Image Transfer Kit - Transfer Belt Kit Assembly.

CE980A Kit - Hewlett Packard toner collection Unit 150,000 pages yield aprx. CE980A

5851-5600 Label - Tray 2, 3, 4, 5,and 6 label

RU5-8804-000CN Label - Intermediate transfer belt insert FV label

RU5-8805-000CN Label - Intermediate transfer belt set RV label

RU5-8806-000CN Label - Intermediate transfer belt insert FH label

RU5-8807-000CN Label - Intermediate transfer belt set RH label

RU6-8042-000CN Label - Fusing insert label - Mounts on the rear fuser guide

RM1-6122-070CN Laser Scanner - Laser scanner assembly

RM1-6122-080CN Laser Scanner - Assy-Laser Scanner

RC2-6744-000CN Lever - Lever, Inner Door Pressure

RC2-7198-000CN Lever - Push lever - Mounts on the front arm guide

RC2-7199-000CN Lever - Lift lever - Mounts on the slide guide

RC2-7200-000CN Lever - Lift lever - Mounts on the arm front guide

RM1-3819-000CN Lifter - Lifter drive assembly - Provides lift support for high capacity input paper tray

RM1-6039-000CN Lifter - Lifter drive assembly

RM1-6043-000CN Lifter - Multi-porpuse/tray 1 lifter plate assembly

RM1-6043-030CN Lifter - Mp Lifter Plate Assy

RC2-6823-000CN Link - Intermediate transfer belt (ITB) coupling release link

RC2-7233-010CN Link - Link, Right Door, 2 Front

RC2-7236-000CN Link - Rear right door link

RC2-9327-000CN Link - Right door lower link - For the paper feeder

RC2-9335-000CN Link - Right door upper link - For the paper feeder

RC2-7018-000CN Lock - Seal, Toner Supporter Guide, 1

RC2-7234-000CN Lock - Lock, Door Link, Right

RC2-9303-000CN Lock - Rear handle lock - For the paper feeder

CE977-60090 Maintenance Kit - HP Maintenance roller kit feed rollers tray 1 pick up roller HCI rollers separation roller and tray 2 pick up roller Enterprise CP5525 M275 M750 and compatible models.

RK2-1331-000CN Motor - Stepping motor - Main drive motor for the printer - Motor M1

RK2-3298-000CN Motor - Developing disengagement stepping DC motor (M6) - Engages and disengages the developing unit - Used for the duplex models only

RM1-6074-000CN Motor - Fussing motor (M4) assembly - Drives the fuser pressure and delivery rollers, pressurizes and depressurizes the pressure roller, and engages and disengages the primary transfer roller

RM1-6088-000CN Motor - DC motor assembly - Includes motors (M1, M2, M3)

RC2-6717-000CN Mount - Mount, inner door toggle

RC2-6735-000CN Mount - Front arm cover mount

RC2-6743-000CN Mount - Inner door rail mount - Mounts on the front cover assembly

RC2-6745-000CN Mount - Mount, Stopper Arm

RM1-6065-000CN Multifunction - Formatter board metal case

CC522-67928 Pad - Multi-purpose/tray 1 pick-up roller and separation pad

CE707-67908 Pad - Separation pad assembly - For tray 1

RM1-6163-000CN Pad - Separation assembly for tray 1 on HP Color Laserjet CP5525 and Enterprise models.

CE707-67907 PC Board - Interconnect board (ICB) PCA

CE708-67902 PC Board - DC controller PC board assembly - Used for duplex model only

RK2-2881-000CN PC Board - Interconnect Board (ICB) Interconnect Board (ICB) PCA w/ Fan - CLJ CP5225 / CP5525 / M750 series PCA board HP Color Laserjet.

RK2-2884-000CN PC Board - Environment sensor PC board assembly

RM1-6742-000CN PC Board - Driver PCA - For used with duplex models only

RM1-6759-000CN PC Board - Power switch PCA assembly

RM1-6771-000CN PC Board - Interconnect board (ICB) PCA Range Inter Connect Board ICB Board For HP CP5525 M775 M750 CP5225 5525 5225 775 750 Series

RM1-6779-000CN PC Board - Toner remaining detection PC board assembly

RM1-6800-000CN PC Board - Imaging high-voltage PC board assembly

RM1-6802-000CN PC Board - Secondary transfer high-voltage PC board assembly

RM1-6987-000CN PC Board - Paper feeder driver PC board assembly

RM1-6989-000CN PC Board - Feeder PC board - Used for the 3 x 500-sheet paper feeder tray assembly

RM1-7004-000CN PC Board - Primary transfer high-voltage PC board

CE710-69007 Pickup Assembly - Tray 2 paper pick-up roller assembly - Includes paper pick-up roller and separation padTray 2 paper pick-up roller assembly - Includes paper pick-up roller and separation pad

RM1-6944-000CN Pickup Assembly - Paper pick-up assembly - For tray 2 assembly

RM1-6944-020CN Pickup Assembly - Paper Pick-Up Assy

RM2-5834-000CN Pickup Assembly - Tray 2 Paper Pick Roller Kit

RC2-6673-000CN Plate - Box pillar plate

RC2-7272-010CN Plate - Right front door link plate

RC2-7273-000CN Plate - Rear right door link plate

RC2-9649-000CN Plate - Plate, Arm Reinforcement

RC2-9687-000CN Plate - Protective flat flexible cable plate

RL1-2266-000CN Plate - Duplexing drive gear plate

RL1-2281-000CN Plate - Plate, Rt. Door Link Fixed, Fr

RL1-2282-000CN Plate - Rear right door link plate

RM1-6753-000CN Power Supply - Low voltage power supply assembly - For 110VAC

RM1-6754-000CN Power Supply - Low voltage power supply assembly - For 220VAC

RM2-7336-000CN Power Supply - Assy-low voltage power supply 110vac

RM2-7337-000CN Power Supply - Assy-Low Voltage Power Supply 220vac

RC2-6634-000CN Rail - Lower right door link rail

RC2-6635-000CN Rail - Rear lower door link rail

RC2-6724-000CN Rail - Cartridge auxiliary rail

RC2-7185-000CN Rail - Intermediate transfer belt (ITB) guide rail

RC2-7185-010CN Rail - Rail, I.T.Belt Guide

RC2-7193-000CN Rail - Intermediate transfer belt (ITB) guide rail

RL1-1390-000CN Rail - Right rail - Rail that the cassette tray mounts to - Located on the 1x500 high capacity input (HCI)

RL1-1391-000CN Rail - Left rail - Rail that the cassette tray mounts to - Located on the 1x500 high capacity input (HCI

RM1-6018-000CN Rail - Intermediate transfer belt (ITB) guide rail assembly

RM1-6019-000CN Rail - Intermediate transfer belt (ITB) guide rail assembly

RM1-6037-000CN Rail - Intermediate transfer belt (ITB) guide rail (R1) assembly

D3L10A-Repair_LaserJet Repair Service - Ship your product to us for a small diagnostic fee; and a professional service job. We will contact you with repair total and your diagnostic fee will be waived if unit is repaired. Service warranty is 30days labor and 90days for parts. Extended warranty option is available.

RC2-6611-000CN Rod - Spring rod for HP Color LaserJet Enterprise CP5525

CC522-67909 Roller - Paper pick-up feed and separation roller assembly - Use for the tray 3, 4, 5, or 6

CC522-67912 Roller - Secondary transfer roller assembly

CE707-67903 Roller - Paper pick-up roller assembly - Picks up media from the paper input tray

CE710-67904 Roller - Secondary (T2) transfer roller kit

RL1-2244-000CN Roller - Tray 1 pick up roller unit printers.

RM1-6035-000CN Roller - Paper Tray pick up roller assembly.

RM1-6128-000CN Roller - Secondary transfer roller assembly. 2ND Transfer roller. HP Printer CP5225/5525 M750/775

RM1-7916-010CN Roller - Kit- Paper Pickup Assembly

RM1-7916-020CN Roller - Kit- Paper Pickup Assembly

RM1-7927-000CN Roller - Secondary transfer roller assembly. 2ND Transfer roller. HP Printer CP5225/5525 M750/775

RY7-5226-000CN Roller - Kit-Trays 3-6 Pick/Feed Roller

RS5-9099-000CN Screw - Stepped screw - Larger shoulder screw used to fasten the left side cover to the frame of the 2,000-sheet paper feeder assembly (two used)

RC3-1013-000CN Sealant - Slide seal sheet

RC3-1014-000CN Sealant - Slide shutter seal

RM1-6164-000CN Sensor - Last paper presence sensor - Advice that there is just on sheet of paper left at the paper tray cassette

RM1-7922-000CN Sensor - Registration sensor assembly HP LaserJet CP5525/M750/M775 Registration sensor assembly

WG8-5935-000CN Sensor - Fuser Output sensor (SR5)

rm1-6010-000cn Separator - Separation Roller assembly tray 2

D3L10A-Manual_Color Service Manual - Printer Service Manual - Includes troubleshooting, error messages, paper jams, parts and parts diagrams.

CE707-67913-BU Service Parts - Fuser/Fixing Assy Kit 220v

CE707-69006 Service Parts - 110V Fuser Kit

CE980-67901-BU Service Parts - Toner collection unit kit

RC2-6847-000CN Service Parts - Cap, Lever, Rear

RU5-4979-000CN Shaft - Shaft, Right Door Link

RC2-7010-000CN Shutter - Exhaust shutter - Mounts on the toner feed assembly

RC2-7201-000CN Slider - Push slider - Mounts on the slide guide

VT2-5176-004CN Spacer - DC controller PCA spacer

RC2-6700-000CN Spring - Grounding spring - For the second-transfer high-voltage PCA

RC2-7092-000CN Spring - Leaf grounding spring

RC2-7209-000CN Spring - Grounding spring

RU6-2671-000CN Spring - Tension spring - Mounts on the duplexing drive gear plate

RU6-2683-000CN Spring - Compression spring - Provides compression to the exhaust shutter

RU6-2710-000CN Spring - Tension spring - Provides tension to the registration sensor assembly

RU6-2721-000CN Spring - Spring, Compression

RU6-2727-000CN Spring - Tension spring - Provides tension to the front right door link plate

RU6-2744-000CN Spring - Tension spring - Provides tension to the rear right door link plate

RU6-2767-000CN Spring - Contact spring - Mounts on the first power dispatching holder

RU6-2768-000CN Spring - Contact spring - Mounts on the first power dispatching holder

RU6-2771-000CN Spring - Contact spring - For second-transfer high-voltage PCA

RU6-2772-000CN Spring - Grounding spring - For the second-transfer high-voltage PCA

RU6-2831-000CN Spring - Tension spring - Provides tension to the waste toner right arm

RC2-6646-000CN Stop - Laser scanner stopper

RC2-6719-000CN Stop - Inner door stopper 1

RC2-6736-000CN Stop - Inner door stopper 2

RC2-6811-000CN Support - Developing coupling support

WC2-5512-000CN Switch - Door open detection switch (SW103)

WC4-5251-000CN Switch - Microswitch for HP Color LaserJet CP5525 Printer

CE980A Toner Collection - Hewlett Packard toner collection Unit 150,000 pages yield aprx. CE980A

CC522-91019 Transfer Assembly - Laserjet Image Transfer Kit - Transfer Belt Kit Assembly.

CE516-67901 Transfer Assembly - HP LaserJet Enterprise 700 Color M775f Transfer Belt Maintenance Kit

CE516-67910 Transfer Assembly - HP LaserJet Enterprise 700 Color M775f Transfer Belt Maintenance Kit

CE516A Transfer Assembly - Laserjet Image Transfer Kit - Transfer Belt Kit Assembly.

CE710-67907 Tray - Tray 2 REPLACEMENT Gray, Tray 2 Cassette - 250 sheet unit.

CF235-67917 Tray - Paper input tray - Use for tray 4 5 or 6 (cassette only)

CE725-67901 Tray Assembly - 3 x 500-sheet paper tray assembly - Used for trays 4, 5, and 6 with stand

CE725-67902 Tray Assembly - 3x500 paper feeder with stand kit

CE860-67901 Tray Assembly - 1 x 500-sheet paper tray assembly - Used as tray 3

CE860-67902 Tray Assembly - 1X500 sheet paper feeder kit 500-sheet paper tray assembly - Used as tray 3.

RM1-6045-000CN Tray Assembly - Multi-purpose/tray 1 assembly

HP Color LaserJet enterprise m750xh (D3L10A)

HP parts list for D3L10A HP Color LaserJet enterprise m750xh
