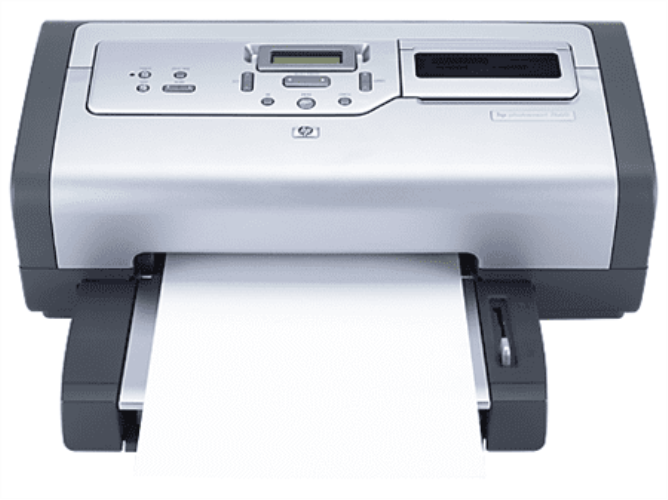

HP parts list for Q3013A HP photosmart 7660 photo printer
Q3013A-AbsorberAbsorber - Ink service station (ISS) bottom absorber foam - absorbs ink during the cleaning process. Service station absorber (sponge) - soaks up used ink during cartridge cleaning. Works as sled filters.
Q3013A-AC_AdapterAC Adapter - Power supply module or adapter - one end for connecting to the printer and other end to the power cord, or your ac adapter may have the pwr cord attached.
Q3013A-ActuatorActuator - Actuating unit. this part usually causes the carriage assembly to stalls on the left side of the printer, verify that the clutch actuator arm (slider arm).
Q3013A-ADF_ArmADF Arm - Senses paper in the ADF area tray / feeder tray. this is a front flapper arm - part of the paper separation mechanism for the paper pickup assembly - mounts just in front of the front separation belts in the ADF assembly.
Q3013A-ADF_Feed_AssyADF Feed Assembly - ADF assembly - does not include ADF input tray. ADF assembly includes the complete ADF assembly (motor, gears, rollers, sensor, does not include the ADF pad or plastic flatbed cover. (for entire unit please see ADF unit assembly).
Q3013A-ADF_Input_TrayAdf Input Tray - ADF tray ( for automatic document feeder) this is where papers are placed for feeding into unit.
Q3013A-ADF_MotorADF Motor - ADF motor - the scanner ADF motor is located on left rear corner of ADF drive, location varies from each unit. however, this is the main motor on the ADF unit.
Q3013A-ADF_Output_TrayADF Out Put Tray - ADF out put tray is where paper come out of ADF (automatic document feeder). For this unit we will ship the entire ADF Assembly.
Q3013A-ADF_PadADF Pad - ADF paper seperation pad assembly - mounts in the center of the ADF separation pad frame assembly. this pad prevents from multiple feeding or preventing paper jams while faxing scanning or copying.
Q3013A-ADF_Roller_KitADF Roller Kit - ADF upper pick roller replacement kit. these are the rollers that feed paper into the feeder to be scan copy or faxed.
Q3013A-ADF_ScannerADF Scanner - ADF scanner (optical) assembly - includes the chassis assembly scanner lens assembly (includes the charge coupled device (ccd)) the scanning lamp ADF analog processor board and ADF inverter board - this is the lower assembly that scans copies documents.
Q3013A-ADF_Sensor_BRDADF Sensor Board - ADF sensor pc board assembly - narrow strip pc board with the two document skew sensors, registration sensor, and timing sensor - mounts on top of the registration guide assembly in the ADF main assembly
Q3013A-ADF_Unit_AssyADF Unit Assembly - Complete replacement assembly unit for Officejet Copier top assembly only. This includes the ADF (automatic document feeder) for this unit.
Q3013A-Arm_DeliveryArm Delivery - Paper sensing arm - for 'paper out' or delivering paper sensing arm
Q3013A-Arm_PickupArm Pick Up - Paper detection arm - for registration plate on picking up paper
Q3013A-Arm_PlateArm Plate - Lever arm - used to lift the pressure plate lifter
Q3013A-Arm_SensingArm Sensing - Arm assembly senses paper in bottom tray
Q3013A-Arm_TensionArm Tension - Tension arm - maintains tension on carriage belt
Q3013A-Belt_ADFBelt ADF - Transport belt motor - provides the drive to transport paper through the ADF unit. this belt goes in the ADF assembly drive unit
Q3013A-Belt_CarriageBelt Carriage - Carriage belt - moves the carriage assembly across the carriage rod
Q3013A-Belt_DuplexBelt Duplex - Duplex timing belt - small belt that goes on the duplexer unit
Q3013A-Belt_PaperBelt Paper - Paper drive belt (usually a small belt) - this belt attaches to a gear which is driven by the paper drive motor assembly.
Q3013A-Belt_ScannerBelt Scanner - Scanner assembly belt. belt moves the scanner while copying or scanning documents.
Q3010-60033Bezel - PhotoSmart 7600 series control panel bezel (English)
Q3010-60034Bezel - PhotoSmart 7600 series control panel bezel (Spanish)
Q3010-60035Bezel - PhotoSmart 7600 series control panel bezel (Italian)
Q3010-60036Bezel - PhotoSmart 7600 series control panel bezel (German)
Q3010-60037Bezel - PhotoSmart 7600 series control panel bezel (Dutch)
Q3010-60038Bezel - PhotoSmart 7600 series control panel bezel (Brazilian Portuguese)
Q3010-60039Bezel - PhotoSmart 7600 series control panel bezel (Russian)
Q3010-60040Bezel - PhotoSmart 7600 series control panel bezel (Simplified Chinese)
Q3010-60041Bezel - PhotoSmart 7600 series control panel bezel (Traditional Chinese)
Q3010-60043Bezel - PhotoSmart 7600 series control panel bezel (Korean)
Q3010-60044Bezel - PhotoSmart 7600 series control panel bezel (French)
Q3013A-BezelBezel - Front panel overlay (bezel) - (english) control panel bezel - frame around display and control panel
Q3013A-Bracket_LeftBracket Left - Left bracket - carriage rod adjustment bracket (left)
Q3013A-Bracket_RightBracket Right - Right bracket - carriage rod adjustment bracket (right)
Q3013A-Bracket_TensionBracket Tension - Belt tension bracket - holds the carriage belt idler pulley
C8955AButton - Replacement duplexer module assembly - installs in rear of printer (in place of the rear clean out door assembly) - for performing two-sided printing.
C9930-80003Cable - Universal serial bus (USB) interface cable (Black) - Type `A` connector to Type `B` connector - 1.83m (6.0ft) long Part 8121-0099 is no longer supplied. Please order the replacement, C9930-80003
Q3013A-Cable_CarriageCable Carriage - Cable assembly which connects the main logic board to the carriage motor
Q3013A-Cable_InterfaceCable Interface - Parallel cable - connects from your printer to computer via your parallel port.
Q3013A-Cable_MchnsmCable Mechanism - Cable assembly which connects the main logic board to the print mechanism
Q3013A-Cable_PanelCable Panel - Cable Panel assembly - includes ribbon cable this is the cable that connects to the control panel or display.
Q3013A-Cable_USBCable USB - This interface cable is the standard 2.0 usb cable that connects to your printer and computer for printing.
Q3013A-CamCam - Drawer cam - short, spring loaded lever attached to the paper tray frame - used to draw input tray into position
Q3013A-Cap_LifterCap Lifter - These lifter caps hold the pressure plate lifter and the kicker spring in place.
Q3013A-Carriage_AssyCarriage Assembly - Ink cartridge carriage assembly - includes carriage, felt, felt retainers, ink cartridge latches, trailing cable, pc board, belt attachment hardware, and slider.
Q3013A-Carriage_BaseCarriage Base - Carriage base or pre-loader assembly - mounted to bottom of carriage base
Q3013A-Carriage_BeltCarriage Belt - Carriage drive belt, this belt is attached to the carriage and carriage motor, it moves the carriage side to side while priting.
Q3013A-Carriage_CableCarriage Cable - Flex circuit cable which connects the head driver board to the carriage assembly. in some units it is also known as the trailing cable, this cable moves along with the carriage unit (side to side).
Q3013A-Carriage_LatchCarriage Latch - A-arm latch - retains latch over the printheads on the carriage
Q3013A-Carriage_Latch_CVRCarriage Latch Cover - The carriage latch is used to keep the cartridge(s) in place. this latch(s) hold the cartridge(s) in place while carriage is printing or idle.
Q3013A-Carriage_MotorCarriage Motor - Carriage motor moves the carriage unit side to side. the carriage belt goes arround this motor, which controls carriage movement.
Q3013A-Carriage_OnlyCarriage Only - Carriage only - includes carriage, felt, felt retainers, ink cartridge latches - does not include trailing cable, pc board, belt attachment hardware, or slider (for complete carriage unit, please see carriage assembly).
Q3013A-Carriage_PC_BRDCarriage PC Board - This pc board attaches on the carriage, it is usually a small pc board that has carrage cable attached to it.
Q3013A-ChassisChassis - Chassis assembly - the large plastic item that forms the base of the print mechanism
Q3013A-Clutch_ADFClutch ADF - ADF paper clutch unit. clutch that controls movement on the ADF feeder
Q3013A-Clutch_FeedClutch Feed - Clutch unit resposible for unit picking up paper from the pick up unit.
Q3013A-Control_PanelControl Panel - Control panel assembly - control buttons and display on top front of the unit.
Q3013A-Cover_BackCover Back - Back cover of printer, it is usually removed to clear paper jams.
Q3013A-Cover_CartridgeCover Cartridge - This is the cover/ door that is opened to remove the cartridge(s) - usually, when this door opens the carriage moves.
Q3013A-Cover_MainCover Main - This is the main cover of the printer. it is the biggest piece of plastic the printer is made off.
Q3013A-DeflectorDeflector - Paper deflector - guides paper out of dispose assembly - through the internal paper path cover. paper deflector - directs paper from the media chassis to the print section of the printer chassis assembly
Q3013A-DisplayDisplay - Status led display (LCD display assembly).
Q3010-60009Door - Cleanout door assembly - Used to remove paper jams
Q3010-60016Door - Ink cartridge access door - Allows access to the ink cartridges
Q3013A-Door_CarriageDoor Carriage - Main front access door - covers the top of the printer and provide access to the carriage when open.
Q3013A-Door_CartridgeDoor Cartridge - Small front access door (drop down door) - for accessing print cartridge window - for print cartridge access door.
Q3013A-Door_RearDoor Rear - Rear cleanout door assembly - rear paper jam clean out door assembly.
Q3013A-Drive_AssyDrive Assembly - Paper drive roller kit - includes roller assembly, bushings, gear on roller, transmission gear kit, encoder disc, end thrust (axial) spring.
Q3013A-Drive_Assy_ADFDrive Assy ADF - Media chassis assembly (paper drive) - moves paper from ADF assembly to scanner assembly - includes media chassis, rollers, gears, flag, sensor, deflector, cable, springs
Q3013A-EncoderEncoder - Encoder spring - provides tension for encoder strip
Q3013A-Encoder_DiskEncoder Disk - Disk encoder - helps to provide position information of the paper
Q3013A-Encoder_StripEncoder Strip - Encoder strip - carriage position sensor reference
Q3013A-Extender_ADFExtender ADF - Paper extension for the automatic document feeder (ADF) input tray
Q3013A-Extender_InputExtender Input - Tray extension assembly (stopper) - tray with a paper stop on the input tray - extends to accomodate different media lenths
Q3013A-Feed_RollersFeed Rollers - Feed roller assembly - includes frame asembly, shaft with rollers, and encoder disk
Q3013A-Feed_Rollers_ADFFeed Rollers ADF - ADF feed roller kit - includes all rollers that feed paper through the feeder.
C3828AFilm - Film (Transparency) 8.5 x 11 5mil thick. for OfficeJet R65 Series PhotoSmart P1000 PhotoSmart P1100 OfficeJet G55 Series Transparency Film 200 SHEETS.
C3834AFilm - Film (Transparency) for DeskJet 1600 Series, DeskJet 2000 Series, DeskJet 800 Series, DeskJet 600 Series
Q3013A-Flag_ADFFlag ADF - Photo-sensor assembly - includes the sensor and mounting bracket - paper pickup roller home position sensor - activated by the sensor flag on the pickup roller assembly - mounths on the front frame of the ADF paper pickup assembly
Q3013A-FormatterFormatter - Formatter board assembly, this board communicates with your computer device and has MAC port connector.
Q3013A-Front_PanelFront Panel - Front panel assembly - includes lcd and actuator buttons
Q3013A-Gear_AssyGear Assembly - ADF gear assembly driven by ADF main motor
Q3013A-Gear_ClusterGear Cluster - Cluster gear, large gear on service station
Q3013A-Gear_DoubleGear Double - Transfer gear - has double gear attached on service station
Q3013A-Gear_MainGear Main - Paper pickup drive assembly - gear assembly located on right side of paper pickup assembly. gear moves the main paper pick up roller.
Q3013A-Guide_PaperGuide Paper - Upper paper guide - spring loaded flat plate that presses the media against the top of the feed roller assembly - caution: this part can easily be broken
Q3013A-Hinge_CvrHinge - Single cover end M-Hinge Hinge is for top cover supporting opening and closing of the cover. Most covers use 2 hinges this price includes 1pc Hinge.
Q3013A-HolderHolder - Ink cartridge holder - located on carriage unit, holder secures ink cartridge in place.
Q3013A-IdlerIdler - Scanner belt idler assembly - maintains scannter belt tension.
Q3013A-Ink_DLVRYInk Delivery System - RIDS assembly - replaceable ink delivery system - transports ink from ink supply station to carriage assembly
Q3010-90199Manual - Reference guide (International English, Greek, and Hebrew)
Q3010-90200Manual - Reference guide (International English, Croatian, Arabic, and Turkish)
Q3013A-Motor_ADFMotor ADF - ADF motor unit - drives ADF rollers on the feeder assembly
Q3013A-Motor_CarriageMotor Carriage - Carriage motor - motor that drives the carriage assembly
Q3013A-Motor_ScannerMotor Scanner - Scanner unit motor - drives the scanner unit to scan documents to be copied, fax, or scanned.
Q3013A-MTR_Srvce_StationMotor Service Station - Service station stepper motor (does not include cable) - moves the rack vertically in the service station assembly
Q3013A-OverlayOverlay - Overlay unit which covers the control button or display (english overlay only), control panel or display sold seperately.
Q3013A-Pad_ADFPad ADF - Pad separator - (located on ADF unit) assembled from plastic and rubber components; to help in separating sheet of media during faxing, scanning, or copying.
Q3013A-Pad_TrayPad Tray - Pad separator - (located on tray) assembled from plastic and rubber components; to help in separating sheet of media during printing
51634YPaper - HP Premium Inkjet Paper - A size (8.5 x 11-inches) - 200 sheets
C1812APaper - Greeting card paper pack (White) - A size (8.5 x 11-inches) - Includes 20 sheets and 20 envelopes
C1824APaper - Bright White InkJet Paper - A size (8.5 x 11-inches) - 500 sheets
C5976BPaper - Bright White InkJet Paper - A size (8.5 x 11-inches) - 250 sheets
C6039APaper - HP Delux Advance Glossy Photo Paper 25 sheets of A size HP Advanced glossy photo paper
C6039ACPaper - Paper (Glossy) for DeskJet 660 Series, DeskJet 420C, DeskJet 5550 Series, DeskJet 5600 Series
C6044APaper - HP Photo Greeting Cards (Glossy) - A size (8.5 x 11-inches) - 10 scored half-fold glossy cards and envelopes
C6817APaper - Brochure and flyer paper - Glossy on both sides - A size (8.5 x 11-inches), 98 brightness - 50 sheets
C6828APaper - Greeting card paper pack (Ivory, Matte) - A size (8.5 x 11-inches) - Felt textured - Includes 20 sheets and 20 envelopes
C6831APaper - HP Premium Plus Glossy Photo Paper - A size (8.5 x 11-inches) - 20 sheets
C6944APaper - Premium Plus Paper (High Gloss) - 10.2cm (4in) x 15.2cm (6in) - 20 sheets
C6955APaper - Professional Brochure and Flyer Paper (Matte) - A size (8.5 x 11-inches) - 50 sheets
C6979APaper - Premium Photo Paper (Glossy) - A size (8.5 x 11-inches) - 50 sheets
C6979ACPaper - Paper (Glossy) for DeskJet 660 Series, DeskJet 420C, DeskJet 5550 Series, DeskJet 5600 Series
C6983APaper - Photo quality InkJet paper - With two sided semi-gloss finish - A size (8.5 x 11-inches) - 25 sheets per package
C7007APaper - Photo Quality InkJet Paper (Matte) - With two sided matte finish - A size (8.5 x 11-inches) - 100 sheets
C7013APaper - Colorfast photo paper - A size (8.5 x 11-inches) - 20 sheets per package
C7018APaper - Photo Greeting Cards (White, Matte) - A size (8.5 x 11-inches), half fold, pre-scored - Includes 20 cards and 20 envelopes
C7019APaper - HP Textured Half-fold Greeting Cards (White) - A size (8.5 x 11-inches)
C7020APaper - Scored Tri-fold Brochure Paper (Glossy) - A size (8.5 x 11-inches) - 100 sheets
C7024APaper - Paper (Glossy) for DeskJet 5550 Series, DeskJet 450 Series, Digital Copier Printer 510 610, PhotoSmart 130 Series
C7025APaper - Paper (Glossy) for DeskJet 5550 Series, DeskJet 450 Series, Digital Copier Printer 510 610, PhotoSmart 100 Printer
C7891APaper - Paper (Glossy) for OfficeJet 5110 Series All in One, PhotoSmart 230 Series, PhotoSmart 7260 Series, Photosmart 7200 Printer
C7893APaper - Paper (Glossy) for PSC 2170 Series All in One, PSC 2350 All-In-One, PSC 2410 PhotoSmart Series, PSC 2500 PhotoSmart Series
C7894APaper - Paper (Glossy) for DeskJet 3300 Series, DeskJet 3400 Series, DeskJet 3800 Series, DeskJet 6100 Series
Q1785APaper - Paper (Glossy) for DeskJet 1220 Series, DeskJet 1200 Series, DesignJet 1055 Series, DeskJet 640 Series
Q1785ACPaper - Paper (Glossy) for DeskJet 5550 Series, DeskJet 5600 Series, OfficeJet K80 Series, DesignJet 100 Series
Q1787APaper - Linen Half-fold Greeting Card Paper (Ivory) - A size (8.5 x 11-inches) - 20 cards
Q1788APaper - Linen Half-fold Greeting Card Paper (White) - A size (8.5 x 11-inches) - 20 cards
Q1933APaper - Paper (Glossy) for OfficeJet 6200 Series, OfficeJet 6205, OfficeJet 6215, OfficeJet 6208
Q1959APaper - Paper (Glossy) for Color InkJet cp1160 Series, DeskJet 5550 Series, DeskJet 450 Series, Digital Copier Printer 510 610
Q1977APaper - Paper (Glossy) for Deskjet 460 Series, OfficeJet Pro K550 Series, Business Inkjet 2800 Series, DeskJet 9800
Q1977ACPaper - Premium Plus Photo Paper (High Gloss) - 10.2cm (4in) x 15.2cm (6in), finished size - 10.2cm (4in) x 16.5cm (6.5in), with tab - 20 sheets (Canada)
Q1978APaper - Premium Plus Photo Paper (High Gloss) - 10.2cm (4in) x 15.2cm (6in), finished size - 10.2cm (4in) x 16.5cm (6.5in), with tab - 60 sheets
Q1978ACPaper - Premium Plus Photo Paper (High Gloss) - 10.2cm (4in) x 15.2cm (6in), finished size - 10.2cm (4in) x 16.5cm (6.5in), with tab - 60 sheets (Canada)
Q1987APaper - Paper (Glossy) for OfficeJet G85 Series, OfficeJet K60, OfficeJet K80 Series, PSC 500 Series
Q1988APaper - Paper (Glossy) for PhotoSmart 420 Series, HP Photosmart 422 Portable Photo Studio, PhotoSmart 475 Series, Photosmart 475 series compact photo printer
Q1988ACPaper - Paper (Glossy) for DeskJet 660 Series, DeskJet 420C, DeskJet 5600 Series, OfficeJet K80 Series
Q2509APaper - Paper (Semi-Glossy) for DesignJet 130 Series, DeskJet 1220 Series, Business InkJet 2600 Series, DeskJet 450 Series
Q5431APaper - Paper (Satin) for PhotoSmart A310 Series, PhotoSmart D50XX Series, PhotoSmart A520 Series, HP Photosmart A820 series Compact Photo Printers
Q5431ACPaper - Premium Plus Photo paper (Soft Gloss, Satin Matte), with tab - 10.2cm (4in) x 15.2cm (6in) finished size - 10.2cm (4in) x 16.5cm (6.5in) with tab - 100 sheets
Q5433APaper - Paper (Satin) for Business Inkjet 2300 Series, Business InkJet 1100 Series, DeskJet 9600 Series, DeskJet 9300 Printer
Q5434APaper - Paper (Matte) for PSC 1300 Series All in One, PhotoSmart 2600 Series, Photosmart 2700 Series, OfficeJet 7200 Series
Q5436APaper - Paper (Matte) for PhotoSmart 475 Series, Photosmart 475 series compact photo printer, PhotoSmart A430 Series, PhotoSmart 420 Series
Q5440APaper - Paper (Semi-Glossy) for DeskJet 660 Series, DeskJet 300, DeskJet 5550 Series, DeskJet 640 Series
Q5440ACPaper - Paper (Semi-Glossy) for DeskJet 660 Series, DeskJet 300, DeskJet 5550 Series, DeskJet 640 Series
Q5443APaper - Paper (Matte) for Deskjet D1300 printer series, DeskJet D13XX Series, DeskJet D41XX Series, Deskjet D1341 Printer
Q5445APaper - Paper (Matte) for PhotoSmart C52XX Series, Photosmart C5200 Series All-in-One Printer Series, PhotoSmart D50XX Series, PSC 1400 Series
Q5449APaper - HP Premium Presentation Paper - A size (8.5 x 11-inches)
Q5450APaper - Paper (Matte) for DeskJet 5550 Series, DeskJet 5600 Series, OfficeJet K80 Series, DesignJet 100 Series
Q5477APaper - Paper (Glossy) for Photosmart 7700 Series Printer, PSC 2410 PhotoSmart Series, PSC 2500 PhotoSmart Series, PhotoSmart 8400 Series
Q5493APaper - Paper (Glossy) for Photosmart 7600 Series Printer, Photosmart 7600 Printer, PhotoSmart 7700 Printer, PhotoSmart 7700 Series Printer
Q5494APaper - Paper (Glossy) for DeskJet 9300 Printer, DeskJet 450 Series, Deskjet 460 Series, DeskJet 9800
Q5499APaper - Paper (Matte) for OfficeJet 7300 Series All in One, OfficeJet 7400 Series All in One, OfficeJet 7200 Series, OFFICEJET 7205
Q5504APaper - Paper (Matte) for DeskJet 6620 Series, DeskJet 3600 series, DeskJet 3300 Series, DeskJet 3700 Series
Q5505APaper - Paper (Matte) for OfficeJet 4200 Series All in One, PhotoSmart 8750 Series, HP PSC 1300 Series All-In-One, PSC 1300 Series All in One
Q5513APaper - Paper (Matte) for Photosmart 7700 Series Printer, PSC 2405 Series, PSC 2410 PhotoSmart Series, PSC 2500 PhotoSmart Series
Q6563APaper - Paper (Matte) for Digital Copier Printer 510 610, OfficeJet D Series All in One, OfficeJet 7100 Series All in One, OfficeJet V40 Series
Q6564APaper - Paper (Glossy) for DeskJet 660 Series, DeskJet 300, DeskJet 5600 Series, DeskJet 640 Series
Q6568APaper - Paper (Glossy) for DeskJet 660 Series, DeskJet 300, DesignJet 1055 Series, DeskJet 5550 Series
Q6568ACPaper - Paper (Glossy) for PhotoSmart C52XX Series, Photosmart C5200 Series All-in-One Printer Series, PhotoSmart D50XX Series, PSC 1400 Series
Q6569APaper - Premium Plus Soft-Gloss Photo Paper (Matte) - A size (8.5 x 11-inches) - 25 sheets (North America)
Q6569ACPaper - Paper (Matte) for Photosmart 7600 Printer, Photosmart 7600 Series Printer, PhotoSmart 7700 Printer, PhotoSmart 7700 Series Printer
Q6590APaper - Paper (Matte) for PhotoSmart 7900 Series Printer, PhotoSmart 7150 Printer, PhotoSmart 7350 Printer, Photosmart 7550v printer
Q6592APaper - Paper (Matte) for Photosmart 7200 Printer, Photosmart 7200 Series Printer, Photosmart 7600 Printer, Photosmart 7600 Series Printer
Q6593APaper - HP Premium Presentation Paper - A4 size (21.0cm x 29.7cm) - 150 sheets
Q6597APaper - Paper (Glossy) for DeskJet 660 Series, DeskJet 300, DeskJet 5600 Series, DeskJet 640 Series
Q6601APaper - Paper (Photo) for Business InkJet 2600 Series, DeskJet 9600 Series, DeskJet 9300 Printer, DeskJet 9800
Q7852APaper - HP Delux Advance Glossy Photo Paper 25 sheets of A size HP Advanced glossy photo paper
Q7892APaper - Paper (Glossy) for HP Photosmart 428 Series Portable Photo Studio, PhotoSmart D5155 Series, PhotoSmart D5145 Series, PhotoSmart A430 Series
Q7906APaper - Advanced Glossy Photo Paper - 10.2cm (4in) x 15.2cm (6in) finished size - 10.2cm (4in) x 16.5cm (6.5in) with tab - 100 sheets
Q3013A-PC_BRDPC Board - Ink cartridge carriage assembly pc board - includes carriage pc board only
Q3013A-PC_BRD_DCPC Board DC - Internal power supply board - power cable plugs on this assembly, remove covers to install pc board.
J6072APC Board Interface - HP bt1300 Bluetooth wireless printer adapter - Allows for wireless printing from Bluetooth enabled PCs, PDAs, phones, and cameras - Connects to either the parallel or USB port on the printer - Includes the power module and power cord
J7942APC Board Interface - HP JetDirect en3700 external print server - Fast Ethernet Internet connector for sharing peripherals with USB ports, in a 10/100 TX LAN environment - Has one USB 2.0 printer port and one RJ-45 10/100 Base-TX connector - Includes software and power module
J7942GPC Board Interface - HP JetDirect en3700 external print server - Fast Ethernet Internet connector for sharing peripherals with USB ports, in a 10/100 TX LAN environment - Has one USB 2.0 printer port and one RJ-45 10/100 Base-TX connector - Includes software and power module
Q3013A-PC_BRD_InterfacePC Board Interface - Internal print server lan interface board - plugs into peripheral eio. usefull for networking and multiple users.
Q3013A-PinchwheelPinchwheel - Pinch assembly kit - includes all required pinch wheels, pinchwheel mounts and springs
8120-6260Power Cord - Power cord (Black) - 18 AWG, 3-wire, 1.0m (3.3ft) long - Has straight (F) C13 receptacle (for USA, Canada, Taiwan, Latin America, and Saudi Arabia)
8120-6262Power Cord - Power cord (Black) - 18 AWG, 3-wire, 1.0m (3.3ft) - Has straight (F) C13 receptacle (for 240VAC in Europe except for Denmark, Ireland, Switzerland)
8120-8878Power Cord - Power cord (Black) - 17 AWG, 3-wire, 1.0m (3.3ft) long - Has straight (F) C13 receptacle (for 220VAC in Argentina)
8120-8879Power Cord - Power cord (Black) - 17 AWG, 1.0m (3.3ft) long - Has straight (F) C13 receptacle (for 240V in Australia)
8120-8880Power Cord - Power cord (Black) - 17 AWG, 3-wire, 1.0m (3.3ft) long - Has straight (F) C13 receptacle (for 220VAC in Chile)
8120-8881Power Cord - Power cord (Black) - 17 AWG, three conductor, 1.0m (3.3ft) long - Has straight (F) C13 receptacle (for 220VAC in Denmark)
8120-8882Power Cord - Power cord (Black) - 17 AWG, 3-wire, 1.0m (3.3ft) long - Has straight (F) C13 receptacle (for 240VAC in the United Kingdom, Hong Kong, Singapore, and Ireland)
8120-8883Power Cord - Power cord (Black) - 17 AWG, 3-wire, 1.0m (3.3ft) long - Has straight (F) C13 receptacle (for 220V in Israel)
8120-8884Power Cord - Power cord (Black) - 17 AWG, 3-wire, 1.0m (3.3ft) long - Has straight (F) C13 receptacle (for 220V in Korea)
8120-8885Power Cord - Power cord (Black) - 17 AWG, 3-wire, 1.0m (3.3ft) long - Has straight (F) C13 receptacle (for 220VAC in Switzerland)
8120-8886Power Cord - Power cord (Black) - 17 AWG, 3-wire, 1.0m (3.3ft) long - Has straight (F) C13 receptacle (for 240V in South Africa, Israel, and India)
8121-0564Power Cord - Power cord (Black) - 2.0m (6.6ft) long - Has straight (F) C13 receptacle (For 240V in India)
8121-0586Power Cord - Power cord (Black) - 3-wire, 17 AWG, 1.0m (3.3ft) long - Has straight (F) C13 receptacle (for 220V in Peoples Republic of China)
8121-0666Power Cord - Power cord (Black) - 17 AWG, 3-wire, 1.0m (3.3ft) long - Has straight (F) C13 receptacle (for 220VAC in Brazil and Thailand)
8121-1003Power Cord - Power cord (Black) - 3-wire, 17 AWG, 1.0m (3.3ft) long - Has straight (F) C13 receptacle - Opt919 (For 220V in Israel)
Q3013A-Power_CordPower Cord - Power module power cord- wall outlet cable to power module only. does not include power module.
0950-4401Power Module - Power module (universal / worldwide) - Input voltage 100-240VAC, 50-60Hz, 600mA - Output voltage 16/32VDC, Requires a separate, detachable AC power cord with C13 connector
0950-4404Power Module - Power module - three terminal, 120vac input, 60hz - wall mount - does not require a separate ac power cord (usa)
Q3013A-Power_MDLEPower Module - World wide power module - includes power module and power module to printer cord - does not include outlet to power module cord
Q7286-60218Power Module - Power module- Output voltage 16-32VDC, 40 watts - Requires separate AC power cord
Q3013A-Power_MDLE_AssyPower Module Assy - World wide power module - includes power module and power module to printer cord - also, include outlet to power module cord
Q3013A-Power_SupplyPower Supply - Power supply board (internal pwr supply unit in the office machine).
Q3013A-Print_MchnsmPrint Mechanism - Print mechanism assembly - complete mechanism with carriage movement, paper picking and service station - does not include covers, printer base, print heads, ink cartridges, or any consumables.
Q3010-69003Printer - Replacement PhotoSmart 7600 series printer - Does not include power cord, power module, or ink cartridges (Latin America)
Q3013A-Repair_InkJetRepair Service - Ship your product to us for a small diagnostic fee; and a professional service job. We will contact you with repair total and your diagnostic fee will be waived if unit is repaired. Service warranty is 30days labor and 90days for parts. Extended warranty option is available.
Q3013A-Rod_CarriageRod Carriage - Carriage rod - shaft that the carriage assembly rides on
Q3013A-Rod_ScannerRod Scanner - Scanner rod - shaft that the scanner assembly rides on
Q3013A-Roller_ADFRoller ADF - Feeder ADF roller for picking up paper from ADF unit.
Q3013A-Roller_PickupRoller Pickup - Pick up roller assembly for paper bottom tray. Lower feed roller assembly - for lower paper input tray
Q3013A-ScannerScanner - Copier scanner (optical) assembly - includes scanner assembly only scanner lens assembly (includes the charge coupled device (ccd)) the scanning lamp ADF analog processor board and ADF inverter board - major portion of the ADF main assembly.
Q3013A-Scanner_AssyScanner Assembly - Copier scanner & glass assembly - includes the chassis assembly scanner lens assembly (includes the charge coupled device (ccd)) the scanning lamp ADF analog processor board and ADF inverter board - major portion of the ADF main assembly.
Q3013A-Scanner_BeltScanner Belt - Scanner belt attaches from the scanner to the scanner motor.
Q3013A-Scanner_CableScanner Cable - Flex circuit cable which connects to the scanner assembly. also known as flat cable, this cable moves along with the scanner unit (side to side) as it scans documents.
Q3013A-Scanner_UnitScanner Unit - Scanner unit includes the entire scanner base but not the ADF portion.
Q3013A-Sensor_ADFSensor ADF - Photo-sensor assembly - includes the sensor and mounting bracket - paper pickup roller home position sensor - activated by the sensor flag on the pickup roller assembly - mounts on the front frame of the ADF paper pickup assembly
Q3013A-Sensor_OutSensor Out - OOPS sensor - out of paper sensor - detects the presence of the paper in the printer tray
Q3013A-Sensor_SpotSensor Spot - Spot sensor assembly is attached to the carriage assembly.
Q3013A-SeparatorSeparator - Pad separator - assembled from plastic and rubber components; to help in separating sheet of media during printing from bottom trays.
Q3013A-GuideService Guide - Printer Reference Guide (not a service manual) - Contains information such as product information, operation overview, paper behavior, maintenance, ink safety, and removal / replacement of parts. This is not a service manual for technical repair.
Q3013A-Service_StationService Station - Service station assembly - for conditioning the printheads when the carriage is in its home position
Q3013A-SLED_AssySLED Assembly - Sled assembly - white plastic piece with spring, wipers and boot (assembly that the ink cartridge parks on) - mounts on top of the service station assembly
Q3013A-SliderSlider - Carriage base slider - plastic piece on the front end of the carriage that allows the carriage to slide side to side.
Q3005-10005Software - Windows printer driver CD (English, French, and Spanish)
Q3010-10001Software - Windows printer driver CD (English, Japanese, Korean, and Simplified Chinese)
Q3015-10001Software - Windows printer driver CD (English, French, Italian, German, and Spanish)
Q3020-10001Software - Windows printer driver CD (English, Czech, Hungarian, Polish, and Turkish)
Q3013A-SpeakerSpeaker - Speaker assembly - includes speaker cable.
Q3013A-SpittonSpitton - Spittoon base - the bottom and main housing of the service station assembly - holds any residual ink from the print cartridge cleaning process
Q3013A-Spring_CmprsnSpring Compression - Compression spring - on pulley wedge for carriage belt tension
Q6625AStickers - HP Printable iPod Tattoos - 14.0cm (5.5in) x 21.6cm (8.5in) - 10 sheets
Q3013A-Trailing_CblTrailing Cable - Trailing cable for scanner - cable connects from scanner to pc board.
Q3010-60001Tray - Photo tray assembly - Holds 4x6-inch photo paper
Q3013A-Tray_AssyTray Assembly - Paper input tray assembly for loading paper (bottom).
Q3013A-Tray_Assy_CVRTray Assembly Cover - Tray cover - the top cover for the paper pick up tray unit.
Q3013A-Tray_BaseTray Base - Tray base- bottom base of the paper input tray.
Q3013A-WindowWindow - Top/front access door assembly - print cartridge access door window.
Repair It
Exchange It
View Supplies
Service Manual
