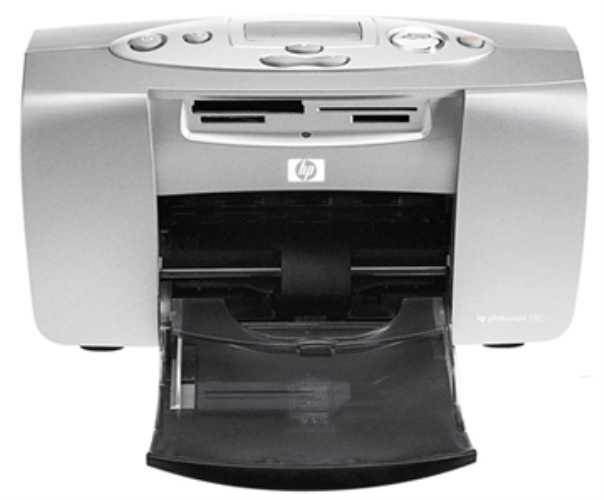

HP parts list for Q3041A Photosmart 130xi

Q3041A-Absorber Absorber - Ink service station (ISS) bottom absorber foam - absorbs ink during the cleaning process. Service station absorber (sponge) - soaks up used ink during cartridge cleaning. Works as sled filters.

0957-2288 AC Adapter - CBL: Power Supply

C8441-60030 AC Adapter - AC adapter (Wall mount) - For HP Photosmart 100 Printer series - Adapter plug required for use in Europe or UK - Does not require separate power cord (Worldwide)

C8442-60026 AC Adapter - AC power adapter - 120VAC - Wall mounted - Does not require detachable power cord (North America)

Q3041A-AC_Adapter AC Adapter - Power supply module or adapter - one end for connecting to the printer and other end to the power cord, or your ac adapter may have the pwr cord attached.

Q3382A AC Adapter - HP Photosmart printer car DC adapter - Plug into your automobile for backup power

Q3041A-Actuator Actuator - Actuating unit. this part usually causes the carriage assembly to stalls on the left side of the printer, verify that the clutch actuator arm (slider arm).

C8441-60034 Adapter - AC plug adapter - Connects to the universal AC adapter (Europe)

C8441-60035 Adapter - AC plug adapter - Connects to the universal AC adapter (UK and Ireland)

C8441-60036 Adapter - AC Plug adapter - Connects to the universal AC adapter (Australia and New Zealand)

C8441-60037 Adapter - AC plug adapter - Connects to the universal AC adapter (South Africa and India)

C8441-60038 Adapter - AC plug adapter - Connects to the universal AC adapter (Korea)

Q3041A-ADF_Arm ADF Arm - Senses paper in the ADF area tray / feeder tray. this is a front flapper arm - part of the paper separation mechanism for the paper pickup assembly - mounts just in front of the front separation belts in the ADF assembly.

Q3041A-ADF_Feed_Assy ADF Feed Assembly - ADF assembly - does not include ADF input tray. ADF assembly includes the complete ADF assembly (motor, gears, rollers, sensor, does not include the ADF pad or plastic flatbed cover. (for entire unit please see ADF unit assembly).

Q3041A-ADF_Input_Tray Adf Input Tray - ADF tray ( for automatic document feeder) this is where papers are placed for feeding into unit.

Q3041A-ADF_Motor ADF Motor - ADF motor - the scanner ADF motor is located on left rear corner of ADF drive, location varies from each unit. however, this is the main motor on the ADF unit.

Q3041A-ADF_Output_Tray ADF Out Put Tray - ADF out put tray is where paper come out of ADF (automatic document feeder). For this unit we will ship the entire ADF Assembly.

Q3041A-ADF_Pad ADF Pad - ADF paper seperation pad assembly - mounts in the center of the ADF separation pad frame assembly. this pad prevents from multiple feeding or preventing paper jams while faxing scanning or copying.

Q3041A-ADF_PC_BRD ADF PC Board - Control Board on the ADF unit

Q3041A-ADF_Roller_Kit ADF Roller Kit - ADF upper pick roller replacement kit. these are the rollers that feed paper into the feeder to be scan copy or faxed.

Q3041A-ADF_Scanner ADF Scanner - ADF scanner (optical) assembly - includes the chassis assembly scanner lens assembly (includes the charge coupled device (ccd)) the scanning lamp ADF analog processor board and ADF inverter board - this is the lower assembly that scans copies documents.

Q3041A-ADF_Sensor_BRD ADF Sensor Board - ADF sensor pc board assembly - narrow strip pc board with the two document skew sensors, registration sensor, and timing sensor - mounts on top of the registration guide assembly in the ADF main assembly

Q3041A-ADF_Unit_Assy ADF Unit Assembly - Complete replacement assembly unit for Officejet Copier top assembly only. This includes the ADF (automatic document feeder) for this unit.

Q3041A-Arm_Delivery Arm Delivery - Paper sensing arm - for 'paper out' or delivering paper sensing arm

Q3041A-Arm_Door Arm Door - Carriage access door sensor arm

Q3041A-Arm_Pickup Arm Pick Up - Paper detection arm - for registration plate on picking up paper

Q3041A-Arm_Plate Arm Plate - Lever arm - used to lift the pressure plate lifter

Q3041A-Arm_Sensing Arm Sensing - Arm assembly senses paper in bottom tray

Q3041A-Arm_Tension Arm Tension - Tension arm - maintains tension on carriage belt

Q3041A-Belt_ADF Belt ADF - Transport belt motor - provides the drive to transport paper through the ADF unit. this belt goes in the ADF assembly drive unit

Q3041A-Belt_Carriage Belt Carriage - Carriage belt - moves the carriage assembly across the carriage rod

Q3041A-Belt_Duplex Belt Duplex - Duplex timing belt - small belt that goes on the duplexer unit

Q3041A-Belt_Paper Belt Paper - Paper drive belt (usually a small belt) - this belt attaches to a gear which is driven by the paper drive motor assembly.

Q3041A-Belt_Scanner Belt Scanner - Scanner assembly belt. belt moves the scanner while copying or scanning documents.

Q3041A-Bezel Bezel - Front panel overlay (bezel) - (english) control panel bezel - frame around display and control panel

Q3041A-Bracket_Left Bracket Left - Left bracket - carriage rod adjustment bracket (left)

Q3041A-Bracket_Right Bracket Right - Right bracket - carriage rod adjustment bracket (right)

Q3041A-Bracket_Tension Bracket Tension - Belt tension bracket - holds the carriage belt idler pulley

C6518A Cable - Universal Serial Bus (USB) interface cable - Type 'A' connector to type 'B' connector - 2.0m (6.6ft) long

Q3041A-Cable_Carriage Cable Carriage - Cable assembly which connects the main logic board to the carriage motor

Q3041A-Cable_Interface Cable Interface - Parallel cable - connects from your printer to computer via your parallel port.

Q3041A-Cable_Mchnsm Cable Mechanism - Cable assembly which connects the main logic board to the print mechanism

Q3041A-Cable_Panel Cable Panel - Cable Panel assembly - includes ribbon cable this is the cable that connects to the control panel or display.

Q3041A-Cable_USB Cable USB - This interface cable is the standard 2.0 usb cable that connects to your printer and computer for printing.

Q3041A-Cam Cam - Drawer cam - short, spring loaded lever attached to the paper tray frame - used to draw input tray into position

Q3041A-Cap_Lifter Cap Lifter - These lifter caps hold the pressure plate lifter and the kicker spring in place.

Q3041A-Carriage_Assy Carriage Assembly - Ink cartridge carriage assembly - includes carriage, felt, felt retainers, ink cartridge latches, trailing cable, pc board, belt attachment hardware, and slider.

Q3041A-Carriage_Base Carriage Base - Carriage base or pre-loader assembly - mounted to bottom of carriage base

Q3041A-Carriage_Belt Carriage Belt - Carriage drive belt, this belt is attached to the carriage and carriage motor, it moves the carriage side to side while priting.

Q3041A-Carriage_Cable Carriage Cable - Flex circuit cable which connects the head driver board to the carriage assembly. in some units it is also known as the trailing cable, this cable moves along with the carriage unit (side to side).

Q3041A-Carriage_Latch Carriage Latch - A-arm latch - retains latch over the printheads on the carriage

Q3041A-Carriage_Latch_CVR Carriage Latch Cover - The carriage latch is used to keep the cartridge(s) in place. this latch(s) hold the cartridge(s) in place while carriage is printing or idle.

Q3041A-Carriage_Motor Carriage Motor - Carriage motor moves the carriage unit side to side. the carriage belt goes arround this motor, which controls carriage movement.

Q3041A-Carriage_Only Carriage Only - Carriage only - includes carriage, felt, felt retainers, ink cartridge latches - does not include trailing cable, pc board, belt attachment hardware, or slider (for complete carriage unit, please see carriage assembly).

Q3041A-Carriage_PC_BRD Carriage PC Board - This pc board attaches on the carriage, it is usually a small pc board that has carrage cable attached to it.

Q3041A-Chassis Chassis - Chassis assembly - the large plastic item that forms the base of the print mechanism

Q3041A-Clutch_ADF Clutch ADF - ADF paper clutch unit. clutch that controls movement on the ADF feeder

Q3041A-Clutch_Feed Clutch Feed - Clutch unit resposible for unit picking up paper from the pick up unit.

Q3041A-Control_Panel Control Panel - Control panel assembly - control buttons and display on top front of the unit.

Q3041A-Cover_Back Cover Back - Back cover of printer, it is usually removed to clear paper jams.

Q3041A-Cover_Cartridge Cover Cartridge - This is the cover/ door that is opened to remove the cartridge(s) - usually, when this door opens the carriage moves.

Q3041A-Cover_Main Cover Main - This is the main cover of the printer. it is the biggest piece of plastic the printer is made off.

Q3041A-Deflector Deflector - Paper deflector - guides paper out of dispose assembly - through the internal paper path cover. paper deflector - directs paper from the media chassis to the print section of the printer chassis assembly

Q3041A-Display Display - Status led display (LCD display assembly).

Q3041A-Door_Carriage Door Carriage - Main front access door - covers the top of the printer and provide access to the carriage when open.

Q3041A-Door_Cartridge Door Cartridge - Small front access door (drop down door) - for accessing print cartridge window - for print cartridge access door.

Q3041A-Door_Rear Door Rear - Rear cleanout door assembly - rear paper jam clean out door assembly.

Q3041A-Drive_Assy Drive Assembly - Paper drive roller kit - includes roller assembly, bushings, gear on roller, transmission gear kit, encoder disc, end thrust (axial) spring.

Q3041A-Drive_Assy_ADF Drive Assy ADF - Media chassis assembly (paper drive) - moves paper from ADF assembly to scanner assembly - includes media chassis, rollers, gears, flag, sensor, deflector, cable, springs

Q3041A-Duplexer Duplexer - Auto duplexer assembly - provides double sided printing capability

Q3041A-Encoder Encoder - Encoder spring - provides tension for encoder strip

Q3041A-Encoder_Disk Encoder Disk - Disk encoder - helps to provide position information of the paper

Q3041A-Encoder_Strip Encoder Strip - Encoder strip - carriage position sensor reference

Q3041A-Extender_ADF Extender ADF - Paper extension for the automatic document feeder (ADF) input tray

Q3041A-Extender_Input Extender Input - Tray extension assembly (stopper) - tray with a paper stop on the input tray - extends to accomodate different media lenths

Q3041A-Extender_Output Extender Output - Paper exit tray extension

Q3041A-Fan_PC_BRD Fan PC Board - Fan to cool power supply unit

Q3041A-Fan_Vaccum Fan Vaccum - Vacuum fan assembly

Q3041A-Feed_Rollers Feed Rollers - Feed roller assembly - includes frame asembly, shaft with rollers, and encoder disk

Q3041A-Feed_Rollers_ADF Feed Rollers ADF - ADF feed roller kit - includes all rollers that feed paper through the feeder.

Q3041A-Flag_ADF Flag ADF - Photo-sensor assembly - includes the sensor and mounting bracket - paper pickup roller home position sensor - activated by the sensor flag on the pickup roller assembly - mounths on the front frame of the ADF paper pickup assembly

Q3041A-Flag_Paper Flag Paper - OOPS flag - out of paper sensor

Q3041A-Formatter Formatter - Formatter board assembly, this board communicates with your computer device and has MAC port connector.

Q3041A-Front_Panel Front Panel - Front panel assembly - includes lcd and actuator buttons

Q3041A-Gear_Assy Gear Assembly - ADF gear assembly driven by ADF main motor

Q3041A-Gear_Cluster Gear Cluster - Cluster gear, large gear on service station

Q3041A-Gear_Double Gear Double - Transfer gear - has double gear attached on service station

Q3041A-Gear_Main Gear Main - Paper pickup drive assembly - gear assembly located on right side of paper pickup assembly. gear moves the main paper pick up roller.

Q3041A-Gear_Station Gear Station - Gears on shaft of spittoon station

Q3041A-Glass_ADF_Window Glass ADF Window - Small glass piece used when scanning - copying - faxing with ADF feeder for this unit will ship Q5888-00002.

Q3041A-Glass_Assy Glass Assembly - Main top copier glass assembly.

Q3041A-Guide_Paper Guide Paper - Upper paper guide - spring loaded flat plate that presses the media against the top of the feed roller assembly - caution: this part can easily be broken

Q3041A-Hinge_Cvr Hinge - Single cover end M-Hinge Hinge is for top cover supporting opening and closing of the cover. Most covers use 2 hinges this price includes 1pc Hinge.

Q3041A-Holder Holder - Ink cartridge holder - located on carriage unit, holder secures ink cartridge in place.

Q3041A-Idler Idler - Scanner belt idler assembly - maintains scannter belt tension.

Q3041A-Ink_DLVRY Ink Delivery System - RIDS assembly - replaceable ink delivery system - transports ink from ink supply station to carriage assembly

Q3041A-Ink_Supply_Station Ink Supply Station - Ink supply service station (iss) assembly

Q2550A Label - Label for DeskJet 660 Series, DeskJet 300, DeskJet 420C, DeskJet 1220 Series

Q2551A Label - Label for PSC 1118 Series, PSC 1200 Series All-in-One, PSC 1200 Series All in One, HP PSC 1210 All-in-One

Q2587A Label - White labels - 2.5cm (1.0in) x 6.6cm (2.6in) - 30 labels per sheet, 25 sheets per box

Q2588A Label - Label for OfficeJet 6100 Series, Digital Copier Printer 410, PSC 1110 Series All in One, PSC 1118 Series

Q2589A Label - Label for LaserJet 2400 Series, PhotoSmart 7830 Series, HP Photosmart 7850 Photo Series, Photosmart 7850 Photo Printer

Q2590A Label - Label for PSC 900 Series All in One, PhotoSmart 100 Printer, PhotoSmart 130 Series, Color LaserJet 9500 Series

Q2591A Label - Label for PSC 1200 Series All-in-One, PSC 1200 Series All in One, HP PSC 1210 All-in-One, OfficeJet 5110 Series All-in-One

Q2592A Label - Label for OfficeJet D Series All in One, OfficeJet 7100 Series All in One, OfficeJet V40 Series, PSC 900 Series All-in-One

Q2593A Label - Label for PSC 1200 Series All in One, Color LaserJet 5500 Series, OfficeJet D Series All-in-One, OfficeJet D Series All in One

Q2594A Label - White address labels - 8.4cm (3.3in) x 10cm (4in) - 6 labels per sheet, 100 sheets per box

Q6551A Label - High quality self-adhesive labels - A4 size (21.0cm x 29.7cm) sheets, 148mm x 105mm labels, four labels per sheet - Box of 25 sheets

Q6552A Label - High quality self-adhesive labels - A4 size (21.0cm x 29.7cm) sheets, 148mm x 105mm labels, four labels per sheet - Box of 100 sheets

Q6553A Label - High quality self-adhesive labels - A4 size (21.0cm x 29.7cm) sheets, 105mm x 74mm labels - Box of 100 sheets

Q6554A Label - High quality self-adhesive labels - A4 size (21.0cm x 29.7cm) sheets, 97mm x 42.3mm labels, 12 labels per sheet - Box of 25 sheets

Q6555A Label - High quality self-adhesive labels - A4 size (21.0cm x 29.7cm) sheets, 97mm x 42.3mm labels, 12 labels per sheet - Box of 100 sheets

Q6556A Label - High quality self-adhesive labels - A4 size (21.0cm x 29.7cm) sheets, 105mm x 37mm labels, 16 labels per sheet - Box of 100 sheets

Q6557A Label - High quality self-adhesive labels - A4 size (21.0cm x 29.7cm) sheets, 70mm x 42.3mm labels, 21 labels per sheet - Box of 100 sheets

Q6558A Label - High quality self-adhesive labels - A4 size (21.0cm x 29.7cm) sheets, 70mm x 36mm labels, 24 labels per sheet - Box of 25 sheets

Q6559A Label - High quality self-adhesive labels - A4 size (21.0cm x 29.7cm) sheets, 70mm x 36mm labels, 24 labels per sheet - Box of 100 sheets

Q6560A Label - High quality self-adhesive labels - A4 size (21.0cm x 29.7cm) sheets, 38mm x 21.2mm labels, 65 labels per sheet - Box of 25 sheets

Q3041A-Lid_Cover_Assy Lid Cover Assy - Top glass copier cover. Lid that pressed document onto the glass for copying or scanning document.

Q3041A-Motor_ADF Motor ADF - ADF motor unit - drives ADF rollers on the feeder assembly

Q3041A-Motor_Carriage Motor Carriage - Carriage motor - motor that drives the carriage assembly

Q3041A-Motor_Scanner Motor Scanner - Scanner unit motor - drives the scanner unit to scan documents to be copied, fax, or scanned.

Q3041A-MTR_Srvce_Station Motor Service Station - Service station stepper motor (does not include cable) - moves the rack vertically in the service station assembly

Q1607A Multifunction - Compact printer carrying case

Q3041A-Overlay Overlay - Overlay unit which covers the control button or display (english overlay only), control panel or display sold seperately.

Q3041A-Pad_ADF Pad ADF - Pad separator - (located on ADF unit) assembled from plastic and rubber components; to help in separating sheet of media during faxing, scanning, or copying.

Q3041A-Pad_Tray Pad Tray - Pad separator - (located on tray) assembled from plastic and rubber components; to help in separating sheet of media during printing

Q7981A Pan - Advanced High-Gloss Photo Paper - 13cm (5in) x 18cm (7in) - 20 sheets (Japan)

C6944A Paper - Premium Plus Paper (High Gloss) - 10.2cm (4in) x 15.2cm (6in) - 20 sheets

C6945A Paper - Premium Plus glossy InkJet photographic paper - 10.0cm (3.9in) x 15.0cm (5.9in) - 20 sheets per package

C6983A Paper - Photo quality InkJet paper - With two sided semi-gloss finish - A size (8.5 x 11-inches) - 25 sheets per package

C7006A Paper - Paper (InkJet Photo) for DeskJet 6620 Series, PhotoSmart 100 Printer, PSC 900 Series All in One, PSC 900 Series All-in-One

C7024A Paper - Paper (Glossy) for DeskJet 5550 Series, DeskJet 450 Series, Digital Copier Printer 510 610, PhotoSmart 130 Series

C7025A Paper - Paper (Glossy) for DeskJet 5550 Series, DeskJet 450 Series, Digital Copier Printer 510 610, PhotoSmart 100 Printer

C7891A Paper - Paper (Glossy) for OfficeJet 5110 Series All in One, PhotoSmart 230 Series, PhotoSmart 7260 Series, Photosmart 7200 Printer

C7893A Paper - Paper (Glossy) for PSC 2170 Series All in One, PSC 2350 All-In-One, PSC 2410 PhotoSmart Series, PSC 2500 PhotoSmart Series

C7894A Paper - Paper (Glossy) for DeskJet 3300 Series, DeskJet 3400 Series, DeskJet 3800 Series, DeskJet 6100 Series

Q1787A Paper - Linen Half-fold Greeting Card Paper (Ivory) - A size (8.5 x 11-inches) - 20 cards

Q1788A Paper - Linen Half-fold Greeting Card Paper (White) - A size (8.5 x 11-inches) - 20 cards

Q1951A Paper - Paper (Glossy) for PhotoSmart D71XX Series, PhotoSmart D73XX Series, HP Photosmart D7300 series, PhotoSmart D5155 Series

Q1952A Paper - Paper (Glossy) for PSC 2170 Series All in One, PSC 2350 All-In-One, PSC 2410 PhotoSmart Series, PSC 2500 PhotoSmart Series

Q1959A Paper - Paper (Glossy) for Color InkJet cp1160 Series, DeskJet 5550 Series, DeskJet 450 Series, Digital Copier Printer 510 610

Q1976A Paper - Paper (Semi-Glossy) for DeskJet 660 Series, DeskJet 300, DeskJet 420C, DeskJet 1220 Series

Q2509A Paper - Paper (Semi-Glossy) for DesignJet 130 Series, DeskJet 1220 Series, Business InkJet 2600 Series, DeskJet 450 Series

Q2509AC Paper - Paper (Semi-Glossy) for PSC 1300 Series All in One, PSC 2300 Series, PhotoSmart 130 Series, PSC 2100 Series All in One

Q2510A Paper - Paper (Photo) for DeskJet D1311 Series, DeskJet D24XX Series, HP DeskJet D1400 Printer Series, DeskJet D14XX Series

Q2511A Paper - Paper (Semi-Glossy) for Business InkJet 2600 Series, DeskJet 450 Series, Business InkJet 2230 Series, Business Inkjet 2300 Series

Q2525A Paper - Paper (Glossy) for Business InkJet 3000 Series, Business InkJet 2230 Series, Business Inkjet 2300 Series, DeskJet 9300 Series

Q5433A Paper - Paper (Satin) for Business Inkjet 2300 Series, Business InkJet 1100 Series, DeskJet 9600 Series, DeskJet 9300 Printer

Q5434A Paper - Paper (Matte) for PSC 1300 Series All in One, PhotoSmart 2600 Series, Photosmart 2700 Series, OfficeJet 7200 Series

Q5443A Paper - Paper (Matte) for Deskjet D1300 printer series, DeskJet D13XX Series, DeskJet D41XX Series, Deskjet D1341 Printer

Q5445A Paper - Paper (Matte) for PhotoSmart C52XX Series, Photosmart C5200 Series All-in-One Printer Series, PhotoSmart D50XX Series, PSC 1400 Series

Q5449A Paper - HP Premium Presentation Paper - A size (8.5 x 11-inches)

Q5451A Paper - Paper (Glossy) for Photosmart 7400 Series, Photosmart 7450, PhotoSmart 8250 Series, PhotoSmart 8230 Series

Q5498A Paper - Paper (Glossy) for OfficeJet 4100 Series All in One, OfficeJet 6100 Series, Digital Copier Printer 410, PSC 1110 Series All in One

Q5499A Paper - Paper (Matte) for OfficeJet 7300 Series All in One, OfficeJet 7400 Series All in One, OfficeJet 7200 Series, OFFICEJET 7205

Q5504A Paper - Paper (Matte) for DeskJet 6620 Series, DeskJet 3600 series, DeskJet 3300 Series, DeskJet 3700 Series

Q5505A Paper - Paper (Matte) for OfficeJet 4200 Series All in One, PhotoSmart 8750 Series, HP PSC 1300 Series All-In-One, PSC 1300 Series All in One

Q5513A Paper - Paper (Matte) for Photosmart 7700 Series Printer, PSC 2405 Series, PSC 2410 PhotoSmart Series, PSC 2500 PhotoSmart Series

Q6568A Paper - Paper (Glossy) for DeskJet 660 Series, DeskJet 300, DesignJet 1055 Series, DeskJet 5550 Series

Q6568AC Paper - Paper (Glossy) for PhotoSmart C52XX Series, Photosmart C5200 Series All-in-One Printer Series, PhotoSmart D50XX Series, PSC 1400 Series

Q6569A Paper - Premium Plus Soft-Gloss Photo Paper (Matte) - A size (8.5 x 11-inches) - 25 sheets (North America)

Q6569AC Paper - Paper (Matte) for Photosmart 7600 Printer, Photosmart 7600 Series Printer, PhotoSmart 7700 Printer, PhotoSmart 7700 Series Printer

Q6590A Paper - Paper (Matte) for PhotoSmart 7900 Series Printer, PhotoSmart 7150 Printer, PhotoSmart 7350 Printer, Photosmart 7550v printer

Q6592A Paper - Paper (Matte) for Photosmart 7200 Printer, Photosmart 7200 Series Printer, Photosmart 7600 Printer, Photosmart 7600 Series Printer

Q6593A Paper - HP Premium Presentation Paper - A4 size (21.0cm x 29.7cm) - 150 sheets

Q7906A Paper - Advanced Glossy Photo Paper - 10.2cm (4in) x 15.2cm (6in) finished size - 10.2cm (4in) x 16.5cm (6.5in) with tab - 100 sheets

Q3041A-PC_BRD PC Board - Ink cartridge carriage assembly pc board - includes carriage pc board only

Q3041A-PC_BRD_DC PC Board DC - Internal power supply board - power cable plugs on this assembly, remove covers to install pc board.

Q3041A-PC_BRD_Interface PC Board Interface - Internal print server lan interface board - plugs into peripheral eio. usefull for networking and multiple users.

C8443A Photo InkJet - HP Photosmart 130 Printer

Q3041A-Pinchwheel Pinchwheel - Pinch assembly kit - includes all required pinch wheels, pinchwheel mounts and springs

Q3041A-Power_Cord Power Cord - Power module power cord- wall outlet cable to power module only. does not include power module.

0950-4374 Power Module - AC power module (USA)

Q3041A-Power_MDLE Power Module - World wide power module - includes power module and power module to printer cord - does not include outlet to power module cord

Q3041A-Power_MDLE_Assy Power Module Assy - World wide power module - includes power module and power module to printer cord - also, include outlet to power module cord

Q3041A-Power_Supply Power Supply - Power supply board (internal pwr supply unit in the office machine).

Q3041A-Power_Supply_BRD Power Supply Board - High voltage power supply board

Q3041A-Print_Mchnsm Print Mechanism - Print mechanism assembly - complete mechanism with carriage movement, paper picking and service station - does not include covers, printer base, print heads, ink cartridges, or any consumables.

C8442-69003 Printer - Replacement PhotoSmart 130 printer - Does not include print cartridges, power module and power cord (Asia Pacific)

Q3041A-Pulley Pulley - Paper pick up tray motor pulley.

Q3041A-Pulley_ADF Pulley ADF - ADF feeder motor pulley

Q3041A-Repair_InkJet Repair Service - Ship your product to us for a small diagnostic fee; and a professional service job. We will contact you with repair total and your diagnostic fee will be waived if unit is repaired. Service warranty is 30days labor and 90days for parts. Extended warranty option is available.

Q3041A-Rod_Carriage Rod Carriage - Carriage rod - shaft that the carriage assembly rides on

Q3041A-Rod_Scanner Rod Scanner - Scanner rod - shaft that the scanner assembly rides on

Q3041A-Roller_ADF Roller ADF - Feeder ADF roller for picking up paper from ADF unit.

Q3041A-Roller_Exit Roller Exit - Paper exit rollers - out put assembly.

Q3041A-Roller_Pickup Roller Pickup - Pick up roller assembly for paper bottom tray. Lower feed roller assembly - for lower paper input tray

Q3041A-Scanner Scanner - Copier scanner (optical) assembly - includes scanner assembly only scanner lens assembly (includes the charge coupled device (ccd)) the scanning lamp ADF analog processor board and ADF inverter board - major portion of the ADF main assembly.

Q3041A-Scanner_Assy Scanner Assembly - Copier scanner & glass assembly - includes the chassis assembly scanner lens assembly (includes the charge coupled device (ccd)) the scanning lamp ADF analog processor board and ADF inverter board - major portion of the ADF main assembly.

Q3041A-Scanner_Belt Scanner Belt - Scanner belt attaches from the scanner to the scanner motor.

Q3041A-Scanner_Cable Scanner Cable - Flex circuit cable which connects to the scanner assembly. also known as flat cable, this cable moves along with the scanner unit (side to side) as it scans documents.

Q3041A-Scanner_Motor Scanner Motor - Scanner driving motor

Q3041A-Scanner_Unit Scanner Unit - Scanner unit includes the entire scanner base but not the ADF portion.

Q3041A-Sensor_ADF Sensor ADF - Photo-sensor assembly - includes the sensor and mounting bracket - paper pickup roller home position sensor - activated by the sensor flag on the pickup roller assembly - mounts on the front frame of the ADF paper pickup assembly

Q3041A-Sensor_Exit Sensor Exit - Exit media sensor sv

Q3041A-Sensor_Open Sensor Open - Door sensor assembly - open door sensor

Q3041A-Sensor_Out Sensor Out - OOPS sensor - out of paper sensor - detects the presence of the paper in the printer tray

Q3041A-Sensor_Spot Sensor Spot - Spot sensor assembly is attached to the carriage assembly.

Q3041A-Separator Separator - Pad separator - assembled from plastic and rubber components; to help in separating sheet of media during printing from bottom trays.

Q3041A-Guide Service Guide - Printer Reference Guide (not a service manual) - Contains information such as product information, operation overview, paper behavior, maintenance, ink safety, and removal / replacement of parts. This is not a service manual for technical repair.

Q3041A-Service_Station Service Station - Service station assembly - for conditioning the printheads when the carriage is in its home position

Q3041A-SLED_Assy SLED Assembly - Sled assembly - white plastic piece with spring, wipers and boot (assembly that the ink cartridge parks on) - mounts on top of the service station assembly

Q3041A-Slider Slider - Carriage base slider - plastic piece on the front end of the carriage that allows the carriage to slide side to side.

C8442-10001 Software - Software for PhotoSmart 130 Series, DeskJet 6620 Series, PhotoSmart 7350 Printer, PhotoSmart 7150 Printer

C8442-10002 Software - Software for PhotoSmart 130 Series, PhotoSmart 7550 Printer, PhotoSmart 230 Series, PhotoSmart 130 Printer

Q3041A-Speaker Speaker - Speaker assembly - includes speaker cable.

Q3041A-Spitton Spitton - Spittoon base - the bottom and main housing of the service station assembly - holds any residual ink from the print cartridge cleaning process

Q3041A-Spring_Cmprsn Spring Compression - Compression spring - on pulley wedge for carriage belt tension

Q3041A-Trailing_Cbl Trailing Cable - Trailing cable for scanner - cable connects from scanner to pc board.

Q3041A-Tray_Assy Tray Assembly - Paper input tray assembly for loading paper (bottom).

Q3041A-Tray_Assy_CVR Tray Assembly Cover - Tray cover - the top cover for the paper pick up tray unit.

Q3041A-Tray_Base Tray Base - Tray base- bottom base of the paper input tray.

Q3041A-Window Window - Top/front access door assembly - print cartridge access door window.

HP Photosmart 130xi (Q3041A)

HP parts list for Q3041A HP Photosmart 130xi Printer
