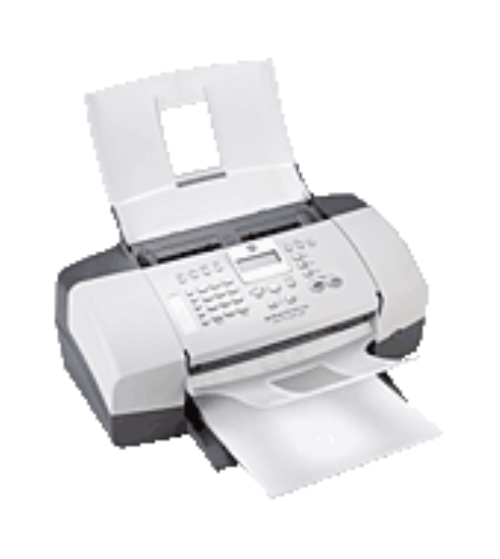

HP parts list for Q5603A OfficeJet 4215v All-in-One

C8974-80016 Absorber - Color ink absorber - Absorbs excess color ink during the cleaning process

C8974-80024 Absorber - Black ink absorber - Absorbs excess ink from black cartridges

Q5603A-Absorber Absorber - Ink service station (ISS) bottom absorber foam - absorbs ink during the cleaning process. Service station absorber (sponge) - soaks up used ink during cartridge cleaning. Works as sled filters.

Q5603A-AC_Adapter AC Adapter - Power supply module or adapter - one end for connecting to the printer and other end to the power cord, or your ac adapter may have the pwr cord attached.

Q5603A-Actuator Actuator - Actuating unit. this part usually causes the carriage assembly to stalls on the left side of the printer, verify that the clutch actuator arm (slider arm).

Q5600-40009 ADF - Tray-M-ADF Output

Q5600-40010 ADF - Tray-M-ADF Output Folder

Q5600-60006 ADF - ADF Output Tray Assy

Q5603A-ADF_Arm ADF Arm - Senses paper in the ADF area tray / feeder tray. this is a front flapper arm - part of the paper separation mechanism for the paper pickup assembly - mounts just in front of the front separation belts in the ADF assembly.

Q5603A-ADF_Feed_Assy ADF Feed Assembly - ADF assembly - does not include ADF input tray. ADF assembly includes the complete ADF assembly (motor, gears, rollers, sensor, does not include the ADF pad or plastic flatbed cover. (for entire unit please see ADF unit assembly).

Q5600-60005 Adf Input Tray - ADF Input Tray Assy

Q5603A-ADF_Input_Tray Adf Input Tray - ADF tray ( for automatic document feeder) this is where papers are placed for feeding into unit.

Q5603A-ADF_Motor ADF Motor - ADF motor - the scanner ADF motor is located on left rear corner of ADF drive, location varies from each unit. however, this is the main motor on the ADF unit.

Q5603A-ADF_Output_Tray ADF Out Put Tray - ADF out put tray is where paper come out of ADF (automatic document feeder). For this unit we will ship the entire ADF Assembly.

Q5603A-ADF_Pad ADF Pad - ADF paper seperation pad assembly - mounts in the center of the ADF separation pad frame assembly. this pad prevents from multiple feeding or preventing paper jams while faxing scanning or copying.

Q5603A-ADF_PC_BRD ADF PC Board - Control Board on the ADF unit

Q5603A-ADF_Roller_Kit ADF Roller Kit - ADF upper pick roller replacement kit. these are the rollers that feed paper into the feeder to be scan copy or faxed.

Q5603A-ADF_Scanner ADF Scanner - ADF scanner (optical) assembly - includes the chassis assembly scanner lens assembly (includes the charge coupled device (ccd)) the scanning lamp ADF analog processor board and ADF inverter board - this is the lower assembly that scans copies documents.

Q5603A-ADF_Sensor_BRD ADF Sensor Board - ADF sensor pc board assembly - narrow strip pc board with the two document skew sensors, registration sensor, and timing sensor - mounts on top of the registration guide assembly in the ADF main assembly

Q5603A-ADF_Unit_Assy ADF Unit Assembly - Complete replacement assembly unit for Officejet Copier top assembly only. This includes the ADF (automatic document feeder) for this unit.

Q5603A-Arm_Delivery Arm Delivery - Paper sensing arm - for 'paper out' or delivering paper sensing arm

Q5603A-Arm_Door Arm Door - Carriage access door sensor arm

Q5603A-Arm_Pickup Arm Pick Up - Paper detection arm - for registration plate on picking up paper

Q5603A-Arm_Plate Arm Plate - Lever arm - used to lift the pressure plate lifter

Q5603A-Arm_Sensing Arm Sensing - Arm assembly senses paper in bottom tray

Q5603A-Arm_Tension Arm Tension - Tension arm - maintains tension on carriage belt

C8974-60019 Assembly - Assy - Left Wall

Q5600-60010 Assembly - Printmech Assy

Q5600-60016 Assembly - Upper Scan Assy

Q5600-60017 Assembly - Lower Scan Assy

Q5600-60019 Assembly - Clean Out Assy

Q5600-60011 Base - Base Assembly

Q5603A-Battery Battery - Battery pack for hp printer

Q5603A-Belt_ADF Belt ADF - Transport belt motor - provides the drive to transport paper through the ADF unit. this belt goes in the ADF assembly drive unit

Q5603A-Belt_Carriage Belt Carriage - Carriage belt - moves the carriage assembly across the carriage rod

Q5603A-Belt_Duplex Belt Duplex - Duplex timing belt - small belt that goes on the duplexer unit

Q5603A-Belt_Paper Belt Paper - Paper drive belt (usually a small belt) - this belt attaches to a gear which is driven by the paper drive motor assembly.

Q5603A-Belt_Scanner Belt Scanner - Scanner assembly belt. belt moves the scanner while copying or scanning documents.

Q5601-60019 Bezel - Control Panel Bezel - OJ4215

Q5603-60002 Bezel - Control Panel Bezel - OJ4215V

Q5603A-Bezel Bezel - Front panel overlay (bezel) - (english) control panel bezel - frame around display and control panel

Q5600-60008 Body - ASF Tray Assy - Body

Q5603A-Bracket_Left Bracket Left - Left bracket - carriage rod adjustment bracket (left)

Q5603A-Bracket_Right Bracket Right - Right bracket - carriage rod adjustment bracket (right)

Q5603A-Bracket_Tension Bracket Tension - Belt tension bracket - holds the carriage belt idler pulley

8120-8909 Cable - Telephone cable - 3.0m (9.8ft) long (Black) - RJ-11 plug on one end (Austria)

8120-8910 Cable - Telephone cable - 3.0m (9.8ft) long (Black) - RJ-11 plug on one end (Belgium)

8120-8911 Cable - Telephone cable - 3.0m (9.8ft) long (Black) - RJ-11 plug on one end (Denmark)

8120-8913 Cable - Telephone cable - 3.0m (9.8ft) long (Black) - RJ-11 plug on one end (Israel)

8120-8914 Cable - Telephone cable - 3.0m (9.8ft) long (Black) - RJ-11 plug on one end (Italy)

8120-8915 Cable - Telephone cable (four conductor) - RJ-11 (M) to telephone plug/socket connector - 3m (9.8ft) long (Netherlands)

8120-8916 Cable - Telephone cable (Finland and Norway) - 3.0m (9.8ft) long (Black) - RJ-11 plug on one end, Norway phone plug on other end

8120-8917 Cable - Telephone cable (South Africa) - 3.0m (9.8ft) long (Black) - RJ-11 plug on one end, South Africa phone plug on other end

8120-8918 Cable - Telephone cable - 3.0m (9.8ft) long (Black) - RJ-11 plug on one end (Sweden)

8120-8920 Cable - Telephone cable - 3.0m (9.8ft) long (Black) - RJ-11 plug on one end (Turkey)

8120-8921 Cable - Telephone cable (five conductor) - RJ-11 (M) to BS-601A (M/F) - 3m (9.8ft) long (for the U.K., New Zealand, and Hong Kong)

8120-8922 Cable - Telephone cable - 3.0m (9.8ft) long (Black) - RJ-11 phone plug connectors (Eastern Europe, Czechoslovakia, Slovenia, and Hungary)

8120-8923 Cable - Telephone cable - 3.0m (9.8ft) long (Black) - RJ-11 plug on one end (France, Morocco, and Tunisa)

8121-0811 Cable - Telephone cable (2-wire) - RJ11 (M) connectors - 3m (10ft) long (USA, Canada, Mexico, Latin America, Greece, Poland, Saudi Arabia, Portugal, and Spain)

8121-0843 Cable - Telephone cable (2-wire) - RJ11 (M) connectors - 3m (10ft) long (USA, Canada, Mexico, Latin America, Greece, Poland, Saudi Arabia, Portugal, and Spain)

8121-0844 Cable - Telephone cable with bill tone filter - 3.0m (9.8ft) long (Black) - RJ-11 plug on one end (Switzerland)

8121-0868 Cable - Universal Serial Bus (USB) interface cable (Black) - Type 'A' connector to type 'B' connector - 1.83m (6.0ft) long

C6518A Cable - Universal Serial Bus (USB) interface cable - Type 'A' connector to type 'B' connector - 2.0m (6.6ft) long

C6520A Cable - Universal Serial Bus (USB) interface cable - Type 'A' connector to type 'B' connector - 3.0m (9.8ft) long

Q3500-80001 Cable - Telephone cable (2 Conductor) - RJ11 (M) to RJ11 (M) 3m (10ft) long (USA, Canada, Mexico, Latin America, Greece, Poland, Saudi Arabia, Portugal and Spain)

RS971AA Cable - HP USB 2.0 Interface Cable - Type 'A' connector to type 'B' connector - 1.83m (6.0ft) long

Q5603A-Cable_Carriage Cable Carriage - Cable assembly which connects the main logic board to the carriage motor

Q5603A-Cable_Interface Cable Interface - Parallel cable - connects from your printer to computer via your parallel port.

Q5603A-Cable_Mchnsm Cable Mechanism - Cable assembly which connects the main logic board to the print mechanism

Q5603A-Cable_Panel Cable Panel - Cable Panel assembly - includes ribbon cable this is the cable that connects to the control panel or display.

Q5603A-Cable_USB Cable USB - This interface cable is the standard 2.0 usb cable that connects to your printer and computer for printing.

Q5603A-Cam Cam - Drawer cam - short, spring loaded lever attached to the paper tray frame - used to draw input tray into position

C8974-60017 Cap - Cartridge cap - Keeps cartridges from drying out when carriage is parked in the service station

Q5603A-Cap_Lifter Cap Lifter - These lifter caps hold the pressure plate lifter and the kicker spring in place.

C8974-60035 Carriage - Assy - Carriage Drive

C8974-80030 Carriage - Lubt-Pfpe-Carriage(1346 C)

Q5600-00009 Carriage - Carriage Restrain

Q5603A-Carriage_Assy Carriage Assembly - Ink cartridge carriage assembly - includes carriage, felt, felt retainers, ink cartridge latches, trailing cable, pc board, belt attachment hardware, and slider.

Q5603A-Carriage_Base Carriage Base - Carriage base or pre-loader assembly - mounted to bottom of carriage base

Q5603A-Carriage_Belt Carriage Belt - Carriage drive belt, this belt is attached to the carriage and carriage motor, it moves the carriage side to side while priting.

Q5603A-Carriage_Cable Carriage Cable - Flex circuit cable which connects the head driver board to the carriage assembly. in some units it is also known as the trailing cable, this cable moves along with the carriage unit (side to side).

Q5603A-Carriage_Latch Carriage Latch - A-arm latch - retains latch over the printheads on the carriage

Q5603A-Carriage_Latch_CVR Carriage Latch Cover - The carriage latch is used to keep the cartridge(s) in place. this latch(s) hold the cartridge(s) in place while carriage is printing or idle.

Q5603A-Carriage_Motor Carriage Motor - Carriage motor moves the carriage unit side to side. the carriage belt goes arround this motor, which controls carriage movement.

Q5603A-Carriage_Only Carriage Only - Carriage only - includes carriage, felt, felt retainers, ink cartridge latches - does not include trailing cable, pc board, belt attachment hardware, or slider (for complete carriage unit, please see carriage assembly).

Q5603A-Carriage_PC_BRD Carriage PC Board - This pc board attaches on the carriage, it is usually a small pc board that has carrage cable attached to it.

Q5603A-Chassis Chassis - Chassis assembly - the large plastic item that forms the base of the print mechanism

Q5603A-Clutch_ADF Clutch ADF - ADF paper clutch unit. clutch that controls movement on the ADF feeder

Q5603A-Clutch_Feed Clutch Feed - Clutch unit resposible for unit picking up paper from the pick up unit.

Q5603A-Control_Panel Control Panel - Control panel assembly - control buttons and display on top front of the unit.

Q5600-40005 Cover - Power Upper Cover-(W/Hs)

Q5600-40006 Cover - Side Left Cover (w/o HS)

Q5600-40024 Cover - Cover-M_Lcd

Q5600-60003 Cover - Cover Top Assy (w/o HS)

Q5603A-Cover_Back Cover Back - Back cover of printer, it is usually removed to clear paper jams.

Q5603A-Cover_Cartridge Cover Cartridge - This is the cover/ door that is opened to remove the cartridge(s) - usually, when this door opens the carriage moves.

Q5603A-Cover_Main Cover Main - This is the main cover of the printer. it is the biggest piece of plastic the printer is made off.

Q5603A-Deflector Deflector - Paper deflector - guides paper out of dispose assembly - through the internal paper path cover. paper deflector - directs paper from the media chassis to the print section of the printer chassis assembly

Q5603A-Display Display - Status led display (LCD display assembly).

Q5603A-Door_Carriage Door Carriage - Main front access door - covers the top of the printer and provide access to the carriage when open.

Q5603A-Door_Cartridge Door Cartridge - Small front access door (drop down door) - for accessing print cartridge window - for print cartridge access door.

Q5603A-Door_Rear Door Rear - Rear cleanout door assembly - rear paper jam clean out door assembly.

Q5603A-Drive_Assy Drive Assembly - Paper drive roller kit - includes roller assembly, bushings, gear on roller, transmission gear kit, encoder disc, end thrust (axial) spring.

Q5603A-Drive_Assy_ADF Drive Assy ADF - Media chassis assembly (paper drive) - moves paper from ADF assembly to scanner assembly - includes media chassis, rollers, gears, flag, sensor, deflector, cable, springs

Q5603A-Duplexer Duplexer - Auto duplexer assembly - provides double sided printing capability

Q5603A-Encoder Encoder - Encoder spring - provides tension for encoder strip

Q5603A-Encoder_Disk Encoder Disk - Disk encoder - helps to provide position information of the paper

Q5603A-Encoder_Strip Encoder Strip - Encoder strip - carriage position sensor reference

Q5603A-Extender_ADF Extender ADF - Paper extension for the automatic document feeder (ADF) input tray

Q5603A-Extender_Input Extender Input - Tray extension assembly (stopper) - tray with a paper stop on the input tray - extends to accomodate different media lenths

Q5603A-Extender_Output Extender Output - Paper exit tray extension

Q5603A-Fan_PC_BRD Fan PC Board - Fan to cool power supply unit

Q5603A-Fan_Vaccum Fan Vaccum - Vacuum fan assembly

Q5603A-Feed_Rollers Feed Rollers - Feed roller assembly - includes frame asembly, shaft with rollers, and encoder disk

Q5603A-Feed_Rollers_ADF Feed Rollers ADF - ADF feed roller kit - includes all rollers that feed paper through the feeder.

C3828A Film - Film (Transparency) 8.5 x 11 5mil thick. for OfficeJet R65 Series PhotoSmart P1000 PhotoSmart P1100 OfficeJet G55 Series Transparency Film 200 SHEETS.

C3832A Film - Premium InkJet transparency film - A4 size (21.0cm x 29.7cm) - 20 sheets per package

C3834A Film - Film (Transparency) for DeskJet 1600 Series, DeskJet 2000 Series, DeskJet 800 Series, DeskJet 600 Series

C3835A Film - Film (Transparency) for DeskJet 1200 Series, DeskJet 500 Series, DeskJet 550C Series, DeskJet 850 Series

Q1973A Film - Film (Glossy) for DeskJet 3600 series, DesignJet 100 Series, DeskJet 450 Series, OfficeJet T65 Series

Q5603A-Flag_ADF Flag ADF - Photo-sensor assembly - includes the sensor and mounting bracket - paper pickup roller home position sensor - activated by the sensor flag on the pickup roller assembly - mounths on the front frame of the ADF paper pickup assembly

Q5603A-Flag_Paper Flag Paper - OOPS flag - out of paper sensor

Q1682-90101 Flyer - Flyer

Q5600-90170 Flyer - Flyer - SW Min Install (Bering)

Q5600-90171 Flyer - Flyer SW Min Install

Q5600-90192 Flyer - Flyer Bering User Guide

Q5600-90193 Flyer - Flyer Bering User Guide

C4557-40118 Foot - Rubber foot - Replacement rubber foot for the bottom of the printer (four used)

Q5603A-Formatter Formatter - Formatter board assembly, this board communicates with your computer device and has MAC port connector.

Q5603A-Front_Panel Front Panel - Front panel assembly - includes lcd and actuator buttons

Q5603A-Gear_Assy Gear Assembly - ADF gear assembly driven by ADF main motor

Q5603A-Gear_Cluster Gear Cluster - Cluster gear, large gear on service station

Q5603A-Gear_Double Gear Double - Transfer gear - has double gear attached on service station

Q5603A-Gear_Main Gear Main - Paper pickup drive assembly - gear assembly located on right side of paper pickup assembly. gear moves the main paper pick up roller.

Q5603A-Gear_Station Gear Station - Gears on shaft of spittoon station

Q5603A-Glass_ADF_Window Glass ADF Window - Small glass piece used when scanning - copying - faxing with ADF feeder for this unit will ship Q5888-00002.

Q5603A-Glass_Assy Glass Assembly - Main top copier glass assembly.

Q5603A-Guide_Paper Guide Paper - Upper paper guide - spring loaded flat plate that presses the media against the top of the feed roller assembly - caution: this part can easily be broken

Q5603A-Hinge_Cvr Hinge - Single cover end M-Hinge Hinge is for top cover supporting opening and closing of the cover. Most covers use 2 hinges this price includes 1pc Hinge.

Q5603A-Holder Holder - Ink cartridge holder - located on carriage unit, holder secures ink cartridge in place.

Q5603A-Idler Idler - Scanner belt idler assembly - maintains scannter belt tension.

Q5603A-Ink_DLVRY Ink Delivery System - RIDS assembly - replaceable ink delivery system - transports ink from ink supply station to carriage assembly

Q5603A-Ink_Supply_Station Ink Supply Station - Ink supply service station (iss) assembly

C6039-60010 Kit - Media sample kit - Contains various types of sample media

C6040-60010 Kit - Media Sample Kit for DeskJet 3600 series, OfficeJet 7100 Series All in One, Deskjet 460 Series, DeskJet 6620 Series

Q2504-60001 Kit - Media sample kit - Contains plain and photo paper sample print media (Asia Pacific)

Q5600-00018 Label - Label Paper - One Touch

Q6551A Label - High quality self-adhesive labels - A4 size (21.0cm x 29.7cm) sheets, 148mm x 105mm labels, four labels per sheet - Box of 25 sheets

Q6552A Label - High quality self-adhesive labels - A4 size (21.0cm x 29.7cm) sheets, 148mm x 105mm labels, four labels per sheet - Box of 100 sheets

Q6553A Label - High quality self-adhesive labels - A4 size (21.0cm x 29.7cm) sheets, 105mm x 74mm labels - Box of 100 sheets

Q6554A Label - High quality self-adhesive labels - A4 size (21.0cm x 29.7cm) sheets, 97mm x 42.3mm labels, 12 labels per sheet - Box of 25 sheets

Q6555A Label - High quality self-adhesive labels - A4 size (21.0cm x 29.7cm) sheets, 97mm x 42.3mm labels, 12 labels per sheet - Box of 100 sheets

Q6556A Label - High quality self-adhesive labels - A4 size (21.0cm x 29.7cm) sheets, 105mm x 37mm labels, 16 labels per sheet - Box of 100 sheets

Q6557A Label - High quality self-adhesive labels - A4 size (21.0cm x 29.7cm) sheets, 70mm x 42.3mm labels, 21 labels per sheet - Box of 100 sheets

Q6558A Label - High quality self-adhesive labels - A4 size (21.0cm x 29.7cm) sheets, 70mm x 36mm labels, 24 labels per sheet - Box of 25 sheets

Q6559A Label - High quality self-adhesive labels - A4 size (21.0cm x 29.7cm) sheets, 70mm x 36mm labels, 24 labels per sheet - Box of 100 sheets

Q6560A Label - High quality self-adhesive labels - A4 size (21.0cm x 29.7cm) sheets, 38mm x 21.2mm labels, 65 labels per sheet - Box of 25 sheets

Q5603A-Lid_Cover_Assy Lid Cover Assy - Top glass copier cover. Lid that pressed document onto the glass for copying or scanning document.

Q5600-90113 Manual - Officejet 4200 Series All-in One Basic users manual (English)

Q5600-90114 Manual - Officejet 4200 Series All-in One Basic users manual (Spanish)

Q5600-90116 Manual - Officejet 4200 Series All-in One Basic users manual (French)

Q5603A-Motor_ADF Motor ADF - ADF motor unit - drives ADF rollers on the feeder assembly

Q5603A-Motor_Carriage Motor Carriage - Carriage motor - motor that drives the carriage assembly

Q5603A-Motor_Scanner Motor Scanner - Scanner unit motor - drives the scanner unit to scan documents to be copied, fax, or scanned.

Q5603A-MTR_Srvce_Station Motor Service Station - Service station stepper motor (does not include cable) - moves the rack vertically in the service station assembly

Q5601-60020 Overlay - OfficeJet 4215 All-in-One control panel overlay (French)

Q5601-60024 Overlay - OfficeJet 4215 All-in-One control panel overlay (Spanish)

Q5601-60036 Overlay - OfficeJet 4215 All-in-One control panel overlay (International English)

Q5603A-Overlay Overlay - Overlay unit which covers the control button or display (english overlay only), control panel or display sold seperately.

Q5603A-Pad_ADF Pad ADF - Pad separator - (located on ADF unit) assembled from plastic and rubber components; to help in separating sheet of media during faxing, scanning, or copying.

Q5603A-Pad_Tray Pad Tray - Pad separator - (located on tray) assembled from plastic and rubber components; to help in separating sheet of media during printing

Q7981A Pan - Advanced High-Gloss Photo Paper - 13cm (5in) x 18cm (7in) - 20 sheets (Japan)

51634Y Paper - HP Premium Inkjet Paper - A size (8.5 x 11-inches) - 200 sheets

51634Z Paper - InkJet non-glossy LX paper - A4 size (21.0cm x 29.7cm) - 200 sheets per package

C1825A Paper - Bright White InkJet Paper - A4 size (21.0cm x 29.7cm) - 500 sheets

C5977A Paper - Bright White InkJet Paper - A4 size (21.0cm x 29.7cm) - 200 sheets

C5977B Paper - Bright White InkJet Paper - A4 size (21.0cm x 29.7cm) - 250 sheets

C6039A Paper - HP Delux Advance Glossy Photo Paper 25 sheets of A size HP Advanced glossy photo paper

C6039AC Paper - Paper (Glossy) for DeskJet 660 Series, DeskJet 420C, DeskJet 5550 Series, DeskJet 5600 Series

C6817A Paper - Brochure and flyer paper - Glossy on both sides - A size (8.5 x 11-inches), 98 brightness - 50 sheets

C6831A Paper - HP Premium Plus Glossy Photo Paper - A size (8.5 x 11-inches) - 20 sheets

C6832A Paper - Paper (Glossy) for DeskJet F4180 Series, HP Deskjet F4100 All-in-One printer series, DeskJet F4140 Series, DeskJet F4135 All-In-One

C6955A Paper - Professional Brochure and Flyer Paper (Matte) - A size (8.5 x 11-inches) - 50 sheets

C6979A Paper - Premium Photo Paper (Glossy) - A size (8.5 x 11-inches) - 50 sheets

C6979AC Paper - Paper (Glossy) for DeskJet 660 Series, DeskJet 420C, DeskJet 5550 Series, DeskJet 5600 Series

C7020A Paper - Scored Tri-fold Brochure Paper (Glossy) - A size (8.5 x 11-inches) - 100 sheets

C7040A Paper - Paper (Glossy) for Business Inkjet 2280 Series, Business InkJet 1100 Series, Business Inkjet 2300 Series, DeskJet 9600 Series

C7893A Paper - Paper (Glossy) for PSC 2170 Series All in One, PSC 2350 All-In-One, PSC 2410 PhotoSmart Series, PSC 2500 PhotoSmart Series

Q1785A Paper - Paper (Glossy) for DeskJet 1220 Series, DeskJet 1200 Series, DesignJet 1055 Series, DeskJet 640 Series

Q1933A Paper - Paper (Glossy) for OfficeJet 6200 Series, OfficeJet 6205, OfficeJet 6215, OfficeJet 6208

Q1952A Paper - Paper (Glossy) for PSC 2170 Series All in One, PSC 2350 All-In-One, PSC 2410 PhotoSmart Series, PSC 2500 PhotoSmart Series

Q1977A Paper - Paper (Glossy) for Deskjet 460 Series, OfficeJet Pro K550 Series, Business Inkjet 2800 Series, DeskJet 9800

Q1979A Paper - Premium Plus Photo Paper (High Gloss) - 10.0cm (3.9in) x 15.0cm (5.9in), finished size - 10.0cm (3.9in) x 16.3cm (6.4in), with tab - 20 sheets

Q1988A Paper - Paper (Glossy) for PhotoSmart 420 Series, HP Photosmart 422 Portable Photo Studio, PhotoSmart 475 Series, Photosmart 475 series compact photo printer

Q1988AC Paper - Paper (Glossy) for DeskJet 660 Series, DeskJet 420C, DeskJet 5600 Series, OfficeJet K80 Series

Q1989AC Paper - Paper (Glossy) for PSC 1400 Series, OfficeJet 5610 Series, OfficeJet 5605 Series, OfficeJet 5615 Series

Q1991A Paper - Paper (Glossy) for PhotoSmart 230 Series, PhotoSmart 245 Series, PSC 2170 Series All-in-One, PSC 2170 Series All in One

Q2519A Paper - Paper (Glossy) for DeskJet D13XX Series, DeskJet D1311 Series, DeskJet F4180 Series, HP Deskjet F4100 All-in-One printer series

Q5433A Paper - Paper (Satin) for Business Inkjet 2300 Series, Business InkJet 1100 Series, DeskJet 9600 Series, DeskJet 9300 Printer

Q5434A Paper - Paper (Matte) for PSC 1300 Series All in One, PhotoSmart 2600 Series, Photosmart 2700 Series, OfficeJet 7200 Series

Q5443A Paper - Paper (Matte) for Deskjet D1300 printer series, DeskJet D13XX Series, DeskJet D41XX Series, Deskjet D1341 Printer

Q5445A Paper - Paper (Matte) for PhotoSmart C52XX Series, Photosmart C5200 Series All-in-One Printer Series, PhotoSmart D50XX Series, PSC 1400 Series

Q5449A Paper - HP Premium Presentation Paper - A size (8.5 x 11-inches)

Q5450A Paper - Paper (Matte) for DeskJet 5550 Series, DeskJet 5600 Series, OfficeJet K80 Series, DesignJet 100 Series

Q5456A Paper - HP Advanced Gloss Photo Paper 25 Sht

Q5493A Paper - Paper (Glossy) for Photosmart 7600 Series Printer, Photosmart 7600 Printer, PhotoSmart 7700 Printer, PhotoSmart 7700 Series Printer

Q5494A Paper - Paper (Glossy) for DeskJet 9300 Printer, DeskJet 450 Series, Deskjet 460 Series, DeskJet 9800

Q5499A Paper - Paper (Matte) for OfficeJet 7300 Series All in One, OfficeJet 7400 Series All in One, OfficeJet 7200 Series, OFFICEJET 7205

Q5504A Paper - Paper (Matte) for DeskJet 6620 Series, DeskJet 3600 series, DeskJet 3300 Series, DeskJet 3700 Series

Q5505A Paper - Paper (Matte) for OfficeJet 4200 Series All in One, PhotoSmart 8750 Series, HP PSC 1300 Series All-In-One, PSC 1300 Series All in One

Q5513A Paper - Paper (Matte) for Photosmart 7700 Series Printer, PSC 2405 Series, PSC 2410 PhotoSmart Series, PSC 2500 PhotoSmart Series

Q5600-90148 Paper - Officejet 4200 Series All-in One setup poster (English)

Q5600-90149 Paper - Officejet 4200 Series All-in One setup poster (French and English)

Q5600-90150 Paper - Officejet 4200 Series All-in One setup poster (Spanish and Portuguese)

Q6564A Paper - Paper (Glossy) for DeskJet 660 Series, DeskJet 300, DeskJet 5600 Series, DeskJet 640 Series

Q6568A Paper - Paper (Glossy) for DeskJet 660 Series, DeskJet 300, DesignJet 1055 Series, DeskJet 5550 Series

Q6568AC Paper - Paper (Glossy) for PhotoSmart C52XX Series, Photosmart C5200 Series All-in-One Printer Series, PhotoSmart D50XX Series, PSC 1400 Series

Q6569A Paper - Premium Plus Soft-Gloss Photo Paper (Matte) - A size (8.5 x 11-inches) - 25 sheets (North America)

Q6569AC Paper - Paper (Matte) for Photosmart 7600 Printer, Photosmart 7600 Series Printer, PhotoSmart 7700 Printer, PhotoSmart 7700 Series Printer

Q6590A Paper - Paper (Matte) for PhotoSmart 7900 Series Printer, PhotoSmart 7150 Printer, PhotoSmart 7350 Printer, Photosmart 7550v printer

Q6592A Paper - Paper (Matte) for Photosmart 7200 Printer, Photosmart 7200 Series Printer, Photosmart 7600 Printer, Photosmart 7600 Series Printer

Q6593A Paper - HP Premium Presentation Paper - A4 size (21.0cm x 29.7cm) - 150 sheets

Q6597A Paper - Paper (Glossy) for DeskJet 660 Series, DeskJet 300, DeskJet 5600 Series, DeskJet 640 Series

Q7852A Paper - HP Delux Advance Glossy Photo Paper 25 sheets of A size HP Advanced glossy photo paper

Q7892A Paper - Paper (Glossy) for HP Photosmart 428 Series Portable Photo Studio, PhotoSmart D5155 Series, PhotoSmart D5145 Series, PhotoSmart A430 Series

Q7906A Paper - Advanced Glossy Photo Paper - 10.2cm (4in) x 15.2cm (6in) finished size - 10.2cm (4in) x 16.5cm (6.5in) with tab - 100 sheets

Q5600-60015 PC Board - Main logic PC board - Does not include support for handset

Q5603A-PC_BRD PC Board - Ink cartridge carriage assembly pc board - includes carriage pc board only

Q5603A-PC_BRD_DC PC Board DC - Internal power supply board - power cable plugs on this assembly, remove covers to install pc board.

C8974-60018 Pin - Assy - Wiping

Q5603A-Pinchwheel Pinchwheel - Pinch assembly kit - includes all required pinch wheels, pinchwheel mounts and springs

Q5600-00017 Plate - Plate - One Touch

C8974-60031 Platen - Assy - Platen

Q5621-90101 Post - Set up Poster (ENG)

8120-6312 Power Cord - Power cord (Black) - 2-wire, 18 AWG, 1.8m (6.0ft) long - Has straight (F) C7 receptacle (for 240V in Australia, Argentina, New Zealand, and China)

8120-6313 Power Cord - Power cord (Black) - 18 AWG two conductor 1.8m (6.0ft) long - Has straight (F) C7 receptacle (For 110-120VAC in the United States Canada Mexico Latin America and Taiwan)

8120-6316 Power Cord - Power cord (Black) - 2-wire, 18 AWG, 1.8m (6.0ft) long - Has straight (F) C7 receptacle (for 100V in Japan)

8120-8367 Power Cord - Power cord (Black) - 18 AWG, two conductor, 1.8m (6.0ft) long - Has straight (F) C7 receptacle (For 220VAC in Argentina)

8120-8373 Power Cord - Power cord (Black) - 18 AWG, two conductor, 1.8m (6.0ft) long - Has straight (F) C7 receptacle (For 220VAC in China)

8120-8441 Power Cord - Power cord (Black) - 2-wire, 18 AWG, 1.8m (6.0ft) long - Has straight (F) C7 receptacle (for 220V in Korea)

8120-8699 Power Cord - Power cord (Black) - 17 AWG, two conductor, 1.8m (6.0ft) long - Has straight (F) C7 receptacle and EPSR symbol molded into plug (For 220VAC in Hong Kong & UK)

8121-0020 Power Cord - Power cord (Flint Gray) - 18 AWG, 2-conductor, 1.8m (6.0ft) long - Has straight (F) C7 receptacle (For 220VAC in South Africa)

8121-0022 Power Cord - Power cord (Flint Gray) - 2-wire, 18 AWG, 1.8m (6.0ft) long - Has straight (F) C7 receptacle (for 240V in the United Kingdom)

8121-0023 Power Cord - Power cord (Flint Gray) - 2-wire, 18 AWG, 1.8m (6.0ft) long - Has straight (F) C7 receptacle (for 220V in Europe, Asia Pacific, Germany, Spain, France, Netherlands, Switzerland, Italy, and Portugal)

8121-0664 Power Cord - Power cord (Black) - Two conductor, 1.8m (6.0ft) long - Has straight (F) C7 receptacle (For 220VAC in Brazil and Thailand)

8121-0702 Power Cord - Power cord (Black, Volex Z730966) - 2-wire, 1.8m (6.0ft) long - Has straight (F) C7 receptacle (for 240V in India)

8121-1788 Power Cord - CBL: Power Cord 1.5m UK, HK, Sing, ME

Q5603A-Power_Cord Power Cord - Power module power cord- wall outlet cable to power module only. does not include power module.

Q5603A-Power_MDLE Power Module - World wide power module - includes power module and power module to printer cord - does not include outlet to power module cord

Q5603A-Power_MDLE_Assy Power Module Assy - World wide power module - includes power module and power module to printer cord - also, include outlet to power module cord

Q5600-60013 Power Supply - Power Supply Assy

Q5603A-Power_Supply Power Supply - Power supply board (internal pwr supply unit in the office machine).

Q5603A-Power_Supply_BRD Power Supply Board - High voltage power supply board

Q5603A-Print_Mchnsm Print Mechanism - Print mechanism assembly - complete mechanism with carriage movement, paper picking and service station - does not include covers, printer base, print heads, ink cartridges, or any consumables.

Q5603A-Pulley Pulley - Paper pick up tray motor pulley.

Q5603A-Pulley_ADF Pulley ADF - ADF feeder motor pulley

Q5603A-Repair_InkJet Repair Service - Ship your product to us for a small diagnostic fee; and a professional service job. We will contact you with repair total and your diagnostic fee will be waived if unit is repaired. Service warranty is 30days labor and 90days for parts. Extended warranty option is available.

Q5600-10001 Ring - Sw Cd Win Bering

Q5600-10007 Ring - Sw Cd Mac Bering

Q5603A-Rod_Carriage Rod Carriage - Carriage rod - shaft that the carriage assembly rides on

Q5603A-Rod_Scanner Rod Scanner - Scanner rod - shaft that the scanner assembly rides on

Q5603A-Roller_ADF Roller ADF - Feeder ADF roller for picking up paper from ADF unit.

Q5603A-Roller_Exit Roller Exit - Paper exit rollers - out put assembly.

Q5603A-Roller_Pickup Roller Pickup - Pick up roller assembly for paper bottom tray. Lower feed roller assembly - for lower paper input tray

Q5603A-Scanner Scanner - Copier scanner (optical) assembly - includes scanner assembly only scanner lens assembly (includes the charge coupled device (ccd)) the scanning lamp ADF analog processor board and ADF inverter board - major portion of the ADF main assembly.

Q5603A-Scanner_Assy Scanner Assembly - Copier scanner & glass assembly - includes the chassis assembly scanner lens assembly (includes the charge coupled device (ccd)) the scanning lamp ADF analog processor board and ADF inverter board - major portion of the ADF main assembly.

Q5603A-Scanner_Belt Scanner Belt - Scanner belt attaches from the scanner to the scanner motor.

Q5603A-Scanner_Cable Scanner Cable - Flex circuit cable which connects to the scanner assembly. also known as flat cable, this cable moves along with the scanner unit (side to side) as it scans documents.

Q5603A-Scanner_Motor Scanner Motor - Scanner driving motor

Q5603A-Scanner_Unit Scanner Unit - Scanner unit includes the entire scanner base but not the ADF portion.

Q5603A-Sensor_ADF Sensor ADF - Photo-sensor assembly - includes the sensor and mounting bracket - paper pickup roller home position sensor - activated by the sensor flag on the pickup roller assembly - mounts on the front frame of the ADF paper pickup assembly

Q5603A-Sensor_Exit Sensor Exit - Exit media sensor sv

Q5603A-Sensor_Open Sensor Open - Door sensor assembly - open door sensor

Q5603A-Sensor_Out Sensor Out - OOPS sensor - out of paper sensor - detects the presence of the paper in the printer tray

Q5603A-Sensor_Spot Sensor Spot - Spot sensor assembly is attached to the carriage assembly.

Q5603A-Separator Separator - Pad separator - assembled from plastic and rubber components; to help in separating sheet of media during printing from bottom trays.

Q5603A-Guide Service Guide - Printer Reference Guide (not a service manual) - Contains information such as product information, operation overview, paper behavior, maintenance, ink safety, and removal / replacement of parts. This is not a service manual for technical repair.

C8974-80029 Service Parts - Lubt-361f-Uv(1322 A)

Q1608-10009 Service Parts - Target Copy

Q1608-60027 Service Parts - CIS Scanner

Q5600-60024 Service Parts - PBA Sub-Op

Q5603A-Service_Station Service Station - Service station assembly - for conditioning the printheads when the carriage is in its home position

C8974-40032 Sled - Sled - Wiper

Q5603A-SLED_Assy SLED Assembly - Sled assembly - white plastic piece with spring, wipers and boot (assembly that the ink cartridge parks on) - mounts on top of the service station assembly

Q5603A-Slider Slider - Carriage base slider - plastic piece on the front end of the carriage that allows the carriage to slide side to side.

Q1682-10002 Software - CD Print Shop - Software for printing brochures and newsletters

Q1682-10003 Software - CD Print Shop - Software for creating business cards

Q1682-10004 Software - CD Print Shop - Software for creating letterheads and envelopes

Q5600-60023 Speaker - Speaker for HP OfficeJet 4200 Series All in One

Q5603A-Speaker Speaker - Speaker assembly - includes speaker cable.

Q5603A-Spitton Spitton - Spittoon base - the bottom and main housing of the service station assembly - holds any residual ink from the print cartridge cleaning process

C8941-00003 Spring - Encoder spring - Provides tension for encoder strip

Q5603A-Spring_Cmprsn Spring Compression - Compression spring - on pulley wedge for carriage belt tension

Q6625A Stickers - HP Printable iPod Tattoos - 14.0cm (5.5in) x 21.6cm (8.5in) - 10 sheets

C8941-80005 Strip - Encoder strip - Clear strip with position marks - Used by the sensor in the carriage assembly to determine position

Q5603A-Trailing_Cbl Trailing Cable - Trailing cable for scanner - cable connects from scanner to pc board.

Q5603A-Tray_Assy Tray Assembly - Paper input tray assembly for loading paper (bottom).

Q5603A-Tray_Assy_CVR Tray Assembly Cover - Tray cover - the top cover for the paper pick up tray unit.

Q5603A-Tray_Base Tray Base - Tray base- bottom base of the paper input tray.

Q5601-69001 Unit - OJ4215xi/v Exch Unit

Q5603A-Window Window - Top/front access door assembly - print cartridge access door window.

C8974-40028 Wiper - Scraper - Wiper

HP OfficeJet 4215v All-in-One (Q5603A)

HP parts list for Q5603A HP OfficeJet 4215v All-in-One Printer
