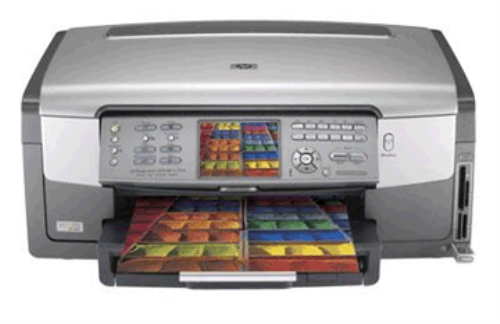

HP parts list for Q5863C photosmart 3313 all-in-one

Q5863C-Absorber Absorber - Ink service station (ISS) bottom absorber foam - absorbs ink during the cleaning process. Service station absorber (sponge) - soaks up used ink during cartridge cleaning. Works as sled filters.

Q5863C-AC_Adapter AC Adapter - Power supply module or adapter - one end for connecting to the printer and other end to the power cord, or your ac adapter may have the pwr cord attached.

1PQ6398A Accessory - HP bt450 Bluetooth Wireless Printer and PC Adapter - USB connectivity 30m (98.4ft) range transfer rate of 3mb/s (2.1mb/s)

30PAB0 Accessory - HP bt450 Bluetooth Wireless Printer and PC Adapter - USB connectivity 30m (98.4ft) range transfer rate of 3mb/s (2.1mb/s)

Q6236A Accessory - Wireless printing upgrade kit - Includes a printer receiver and PC receiver (For use in North America)

Q6259A Accessory - Wireless printing upgrade kit - Includes a printer receiver and PC receiver (For use in Europe)

Q6273-69001 Accessory - HP bt500 Bluetooth USB 2.0 Wireless Adapter - USB connectivity, 10 meters (32.80 feet) range, transfer rate of 3mb/s (2.1mb/s)

Q6273A Accessory - HP bt500 Bluetooth USB 2.0 Wireless Adapter - USB connectivity 10m (32.80ft) range transfer rate of 3mb/s (2.1mb/s)

Q6398A Accessory - HP bt450 Bluetooth Wireless Printer and PC Adapter - USB connectivity, 30m (98.4ft) range, transfer rate of 3mb/s (2.1mb/s)

Q5863C-Actuator Actuator - Actuating unit. this part usually causes the carriage assembly to stalls on the left side of the printer, verify that the clutch actuator arm (slider arm).

Q5863C-ADF_Arm ADF Arm - Senses paper in the ADF area tray / feeder tray. this is a front flapper arm - part of the paper separation mechanism for the paper pickup assembly - mounts just in front of the front separation belts in the ADF assembly.

Q5863C-ADF_Feed_Assy ADF Feed Assembly - ADF assembly - does not include ADF input tray. ADF assembly includes the complete ADF assembly (motor, gears, rollers, sensor, does not include the ADF pad or plastic flatbed cover. (for entire unit please see ADF unit assembly).

Q5863C-ADF_Input_Tray Adf Input Tray - ADF tray ( for automatic document feeder) this is where papers are placed for feeding into unit.

Q5863C-ADF_Motor ADF Motor - ADF motor - the scanner ADF motor is located on left rear corner of ADF drive, location varies from each unit. however, this is the main motor on the ADF unit.

Q5863C-ADF_Output_Tray ADF Out Put Tray - ADF out put tray is where paper come out of ADF (automatic document feeder). For this unit we will ship the entire ADF Assembly.

Q5863C-ADF_Pad ADF Pad - ADF paper seperation pad assembly - mounts in the center of the ADF separation pad frame assembly. this pad prevents from multiple feeding or preventing paper jams while faxing scanning or copying.

Q5863C-ADF_PC_BRD ADF PC Board - Control Board on the ADF unit

Q5863C-ADF_Roller_Kit ADF Roller Kit - ADF upper pick roller replacement kit. these are the rollers that feed paper into the feeder to be scan copy or faxed.

Q5863C-ADF_Scanner ADF Scanner - ADF scanner (optical) assembly - includes the chassis assembly scanner lens assembly (includes the charge coupled device (ccd)) the scanning lamp ADF analog processor board and ADF inverter board - this is the lower assembly that scans copies documents.

Q5863C-ADF_Sensor_BRD ADF Sensor Board - ADF sensor pc board assembly - narrow strip pc board with the two document skew sensors, registration sensor, and timing sensor - mounts on top of the registration guide assembly in the ADF main assembly

Q5863C-ADF_Unit_Assy ADF Unit Assembly - Complete replacement assembly unit for Officejet Copier top assembly only. This includes the ADF (automatic document feeder) for this unit.

Q5863C-Arm_Delivery Arm Delivery - Paper sensing arm - for 'paper out' or delivering paper sensing arm

Q5863C-Arm_Door Arm Door - Carriage access door sensor arm

Q5863C-Arm_Pickup Arm Pick Up - Paper detection arm - for registration plate on picking up paper

Q5863C-Arm_Plate Arm Plate - Lever arm - used to lift the pressure plate lifter

Q5863C-Arm_Sensing Arm Sensing - Arm assembly senses paper in bottom tray

Q5863C-Arm_Tension Arm Tension - Tension arm - maintains tension on carriage belt

Q5863C-Belt_ADF Belt ADF - Transport belt motor - provides the drive to transport paper through the ADF unit. this belt goes in the ADF assembly drive unit

Q5863C-Belt_Carriage Belt Carriage - Carriage belt - moves the carriage assembly across the carriage rod

Q5863C-Belt_Duplex Belt Duplex - Duplex timing belt - small belt that goes on the duplexer unit

Q5863C-Belt_Paper Belt Paper - Paper drive belt (usually a small belt) - this belt attaches to a gear which is driven by the paper drive motor assembly.

Q5863C-Belt_Scanner Belt Scanner - Scanner assembly belt. belt moves the scanner while copying or scanning documents.

Q5863-60029 Bezel - Front bezel (faceplate) assembly - For the Photosmart 3313 series printers (English for use in North America)

Q5863-60030 Bezel - Front bezel (faceplate) assembly - For the Photosmart 3313 series printers (French)

Q5863-60031 Bezel - Front bezel (faceplate) assembly - For the Photosmart 3313 series printers (Russian)

Q5863-60032 Bezel - Front bezel (faceplate) assembly - For the Photosmart 3313 series printers (Ukrainian)

Q5863C-Bezel Bezel - Front panel overlay (bezel) - (english) control panel bezel - frame around display and control panel

Q5863C-Bracket_Left Bracket Left - Left bracket - carriage rod adjustment bracket (left)

Q5863C-Bracket_Right Bracket Right - Right bracket - carriage rod adjustment bracket (right)

Q5863C-Bracket_Tension Bracket Tension - Belt tension bracket - holds the carriage belt idler pulley

8120-8913 Cable - Telephone cable - 3.0m (9.8ft) long (Black) - RJ-11 plug on one end (Israel)

8120-8917 Cable - Telephone cable (South Africa) - 3.0m (9.8ft) long (Black) - RJ-11 plug on one end, South Africa phone plug on other end

8120-8921 Cable - Telephone cable (five conductor) - RJ-11 (M) to BS-601A (M/F) - 3m (9.8ft) long (for the U.K., New Zealand, and Hong Kong)

8120-8923 Cable - Telephone cable - 3.0m (9.8ft) long (Black) - RJ-11 plug on one end (France, Morocco, and Tunisa)

8121-0811 Cable - Telephone cable (2-wire) - RJ11 (M) connectors - 3m (10ft) long (USA, Canada, Mexico, Latin America, Greece, Poland, Saudi Arabia, Portugal, and Spain)

8121-0868 Cable - Universal Serial Bus (USB) interface cable (Black) - Type 'A' connector to type 'B' connector - 1.83m (6.0ft) long

Q5863C-Cable_Carriage Cable Carriage - Cable assembly which connects the main logic board to the carriage motor

Q5863C-Cable_Interface Cable Interface - Parallel cable - connects from your printer to computer via your parallel port.

Q5863C-Cable_Mchnsm Cable Mechanism - Cable assembly which connects the main logic board to the print mechanism

Q5863C-Cable_Panel Cable Panel - Cable Panel assembly - includes ribbon cable this is the cable that connects to the control panel or display.

Q5863C-Cable_USB Cable USB - This interface cable is the standard 2.0 usb cable that connects to your printer and computer for printing.

Q5863C-Cam Cam - Drawer cam - short, spring loaded lever attached to the paper tray frame - used to draw input tray into position

Q5863C-Cap_Lifter Cap Lifter - These lifter caps hold the pressure plate lifter and the kicker spring in place.

Q5863C-Carriage_Assy Carriage Assembly - Ink cartridge carriage assembly - includes carriage, felt, felt retainers, ink cartridge latches, trailing cable, pc board, belt attachment hardware, and slider.

Q5863C-Carriage_Base Carriage Base - Carriage base or pre-loader assembly - mounted to bottom of carriage base

Q5863C-Carriage_Belt Carriage Belt - Carriage drive belt, this belt is attached to the carriage and carriage motor, it moves the carriage side to side while priting.

Q5863C-Carriage_Cable Carriage Cable - Flex circuit cable which connects the head driver board to the carriage assembly. in some units it is also known as the trailing cable, this cable moves along with the carriage unit (side to side).

Q5863C-Carriage_Latch Carriage Latch - A-arm latch - retains latch over the printheads on the carriage

Q5863C-Carriage_Latch_CVR Carriage Latch Cover - The carriage latch is used to keep the cartridge(s) in place. this latch(s) hold the cartridge(s) in place while carriage is printing or idle.

Q5863C-Carriage_Motor Carriage Motor - Carriage motor moves the carriage unit side to side. the carriage belt goes arround this motor, which controls carriage movement.

Q5863C-Carriage_Only Carriage Only - Carriage only - includes carriage, felt, felt retainers, ink cartridge latches - does not include trailing cable, pc board, belt attachment hardware, or slider (for complete carriage unit, please see carriage assembly).

Q5863C-Carriage_PC_BRD Carriage PC Board - This pc board attaches on the carriage, it is usually a small pc board that has carrage cable attached to it.

Q5863C-Chassis Chassis - Chassis assembly - the large plastic item that forms the base of the print mechanism

Q5863C-Clutch_ADF Clutch ADF - ADF paper clutch unit. clutch that controls movement on the ADF feeder

Q5863C-Clutch_Feed Clutch Feed - Clutch unit resposible for unit picking up paper from the pick up unit.

Q5863C-Control_Panel Control Panel - Control panel assembly - control buttons and display on top front of the unit.

Q5863C-Cover_Back Cover Back - Back cover of printer, it is usually removed to clear paper jams.

Q5863C-Cover_Cartridge Cover Cartridge - This is the cover/ door that is opened to remove the cartridge(s) - usually, when this door opens the carriage moves.

Q5863C-Cover_Main Cover Main - This is the main cover of the printer. it is the biggest piece of plastic the printer is made off.

Q5863C-Deflector Deflector - Paper deflector - guides paper out of dispose assembly - through the internal paper path cover. paper deflector - directs paper from the media chassis to the print section of the printer chassis assembly

Q5863C-Display Display - Status led display (LCD display assembly).

Q5863C-Door_Carriage Door Carriage - Main front access door - covers the top of the printer and provide access to the carriage when open.

Q5863C-Door_Cartridge Door Cartridge - Small front access door (drop down door) - for accessing print cartridge window - for print cartridge access door.

Q5863C-Door_Rear Door Rear - Rear cleanout door assembly - rear paper jam clean out door assembly.

Q5863C-Drive_Assy Drive Assembly - Paper drive roller kit - includes roller assembly, bushings, gear on roller, transmission gear kit, encoder disc, end thrust (axial) spring.

Q5863C-Drive_Assy_ADF Drive Assy ADF - Media chassis assembly (paper drive) - moves paper from ADF assembly to scanner assembly - includes media chassis, rollers, gears, flag, sensor, deflector, cable, springs

Q5582A Duplexer - Two-sided printing accessory (duplexer) - For Photosmart 3200, 3300, 8250, C5100, C6100, C7100 series printers - Includes user guide

Q5863C-Duplexer Duplexer - Auto duplexer assembly - provides double sided printing capability

Q5863C-Encoder Encoder - Encoder spring - provides tension for encoder strip

Q5863C-Encoder_Disk Encoder Disk - Disk encoder - helps to provide position information of the paper

Q5863C-Encoder_Strip Encoder Strip - Encoder strip - carriage position sensor reference

Q5863C-Extender_ADF Extender ADF - Paper extension for the automatic document feeder (ADF) input tray

Q5863C-Extender_Input Extender Input - Tray extension assembly (stopper) - tray with a paper stop on the input tray - extends to accomodate different media lenths

Q5863C-Extender_Output Extender Output - Paper exit tray extension

Q5863C-Fan_PC_BRD Fan PC Board - Fan to cool power supply unit

Q5863C-Fan_Vaccum Fan Vaccum - Vacuum fan assembly

Q5863C-Feed_Rollers Feed Rollers - Feed roller assembly - includes frame asembly, shaft with rollers, and encoder disk

Q5863C-Feed_Rollers_ADF Feed Rollers ADF - ADF feed roller kit - includes all rollers that feed paper through the feeder.

C3828A Film - Film (Transparency) 8.5 x 11 5mil thick. for OfficeJet R65 Series PhotoSmart P1000 PhotoSmart P1100 OfficeJet G55 Series Transparency Film 200 SHEETS.

C3832A Film - Premium InkJet transparency film - A4 size (21.0cm x 29.7cm) - 20 sheets per package

C3834A Film - Film (Transparency) for DeskJet 1600 Series, DeskJet 2000 Series, DeskJet 800 Series, DeskJet 600 Series

C3835A Film - Film (Transparency) for DeskJet 1200 Series, DeskJet 500 Series, DeskJet 550C Series, DeskJet 850 Series

C3836A Film - Premium High-Gloss Film - A size (8.5 x 11-inches) - 50 sheets

C3836AC Film - Film (Glossy) for DeskJet D23XX Series, DeskJet D41XX Series, DeskJet 1200 Series, DeskJet 1220 Series

C3837A Film - Film (Glossy) for DeskJet 1600 Series, OfficeJet 700 Series, DeskJet 895, DeskJet 895 Series

Q1958A Film - Film (Glossy) for DeskJet 3940 Series, DeskJet 660 Series, DeskJet 6500 Series, DeskJet 420C

Q1973A Film - Film (Glossy) for DeskJet 3600 series, DesignJet 100 Series, DeskJet 450 Series, OfficeJet T65 Series

Q1981A Film - Film (Glossy) for DeskJet 6500 Series, DeskJet D14XX Series, HP Deskjet F4100 All-in-One printer series, DeskJet D24XX Series

Q5863C-Flag_ADF Flag ADF - Photo-sensor assembly - includes the sensor and mounting bracket - paper pickup roller home position sensor - activated by the sensor flag on the pickup roller assembly - mounths on the front frame of the ADF paper pickup assembly

Q5863C-Flag_Paper Flag Paper - OOPS flag - out of paper sensor

Q5863C-Formatter Formatter - Formatter board assembly, this board communicates with your computer device and has MAC port connector.

Q5863C-Front_Panel Front Panel - Front panel assembly - includes lcd and actuator buttons

Q5863C-Gear_Assy Gear Assembly - ADF gear assembly driven by ADF main motor

Q5863C-Gear_Cluster Gear Cluster - Cluster gear, large gear on service station

Q5863C-Gear_Double Gear Double - Transfer gear - has double gear attached on service station

Q5863C-Gear_Main Gear Main - Paper pickup drive assembly - gear assembly located on right side of paper pickup assembly. gear moves the main paper pick up roller.

Q5863C-Gear_Station Gear Station - Gears on shaft of spittoon station

Q5863C-Glass_ADF_Window Glass ADF Window - Small glass piece used when scanning - copying - faxing with ADF feeder for this unit will ship Q5888-00002.

Q5863C-Glass_Assy Glass Assembly - Main top copier glass assembly.

Q5863C-Guide_Paper Guide Paper - Upper paper guide - spring loaded flat plate that presses the media against the top of the feed roller assembly - caution: this part can easily be broken

Q5863C-Hinge_Cvr Hinge - Single cover end M-Hinge Hinge is for top cover supporting opening and closing of the cover. Most covers use 2 hinges this price includes 1pc Hinge.

Q5863C-Holder Holder - Ink cartridge holder - located on carriage unit, holder secures ink cartridge in place.

Q5863C-Idler Idler - Scanner belt idler assembly - maintains scannter belt tension.

Q5863C-Ink_DLVRY Ink Delivery System - RIDS assembly - replaceable ink delivery system - transports ink from ink supply station to carriage assembly

Q5863C-Ink_Supply_Station Ink Supply Station - Ink supply service station (iss) assembly

C6049A Iron On Transfers - Iron-On Transfers for DeskJet 2500C Series, HP DeskJet D1400 Printer Series, DeskJet D24XX Series, DeskJet F4180 Series

C6050A Iron On Transfers - Iron-On Transfers for OfficeJet K80 Series, OfficeJet 700 Series, OfficeJet T45 Series, OfficeJet T65 Series

C6065A Iron On Transfers - Iron-On Transfers for DeskJet 6620 Series, OfficeJet V40 Series, PSC 2100 Series All in One, DeskJet 640 Series

C7917A Iron On Transfers - Iron-On Transfers for DeskJet F4140 Series, DeskJet D41XX Series, DeskJet D23XX Series, DeskJet F4135 All-In-One

Q1974A Iron On Transfers - Iron-On Transfers for OfficeJet G55 Series, OfficeJet 7100 Series All in One, DeskJet 3700 Series, Deskjet 460 Series

Q5863C-Lid_Cover_Assy Lid Cover Assy - Top glass copier cover. Lid that pressed document onto the glass for copying or scanning document.

Q5841-60008 Media - Ay transparent media holder

Q7865A Memory - Memory for Photosmart C4283 All-in-One, PhotoSmart C42X0 Series, HP Photosmart C4200 All-In-One printer series, PhotoSmart C4210 Series

Q5863C-Motor_ADF Motor ADF - ADF motor unit - drives ADF rollers on the feeder assembly

Q5863C-Motor_Carriage Motor Carriage - Carriage motor - motor that drives the carriage assembly

Q5863C-Motor_Scanner Motor Scanner - Scanner unit motor - drives the scanner unit to scan documents to be copied, fax, or scanned.

Q5863C-MTR_Srvce_Station Motor Service Station - Service station stepper motor (does not include cable) - moves the rack vertically in the service station assembly

Q5863C-Overlay Overlay - Overlay unit which covers the control button or display (english overlay only), control panel or display sold seperately.

Q5863C-Pad_ADF Pad ADF - Pad separator - (located on ADF unit) assembled from plastic and rubber components; to help in separating sheet of media during faxing, scanning, or copying.

Q5863C-Pad_Tray Pad Tray - Pad separator - (located on tray) assembled from plastic and rubber components; to help in separating sheet of media during printing

Q7981A Pan - Advanced High-Gloss Photo Paper - 13cm (5in) x 18cm (7in) - 20 sheets (Japan)

51634Y Paper - HP Premium Inkjet Paper - A size (8.5 x 11-inches) - 200 sheets

51634Z Paper - InkJet non-glossy LX paper - A4 size (21.0cm x 29.7cm) - 200 sheets per package

C1825A Paper - Bright White InkJet Paper - A4 size (21.0cm x 29.7cm) - 500 sheets

C5977B Paper - Bright White InkJet Paper - A4 size (21.0cm x 29.7cm) - 250 sheets

C6039A Paper - HP Delux Advance Glossy Photo Paper 25 sheets of A size HP Advanced glossy photo paper

C6039AC Paper - Paper (Glossy) for DeskJet 660 Series, DeskJet 420C, DeskJet 5550 Series, DeskJet 5600 Series

C6042A Paper - Paper (Matte) for DeskJet D14XX Series, DeskJet D42XX Series, PhotoSmart 7350 Printer, PhotoSmart 7150 Printer

C6044A Paper - HP Photo Greeting Cards (Glossy) - A size (8.5 x 11-inches) - 10 scored half-fold glossy cards and envelopes

C6045A Paper - HP Photo Greeting Cards (Glossy) - A4 size (21.0cm x 29.7cm) - 10 scored half-fold glossy cards and envelopes

C6765A Paper - Paper (Glossy) for PSC 1500 Series, PSC 1500 Series All-In-One, PhotoSmart D71XX Series, PhotoSmart D73XX Series

C6817A Paper - Brochure and flyer paper - Glossy on both sides - A size (8.5 x 11-inches), 98 brightness - 50 sheets

C6818A Paper - Paper (Glossy) for OfficeJet 5615 Series, OfficeJet 5605 Series, OfficeJet 6310 All-in-One, OfficeJet 6301 Series

C6828A Paper - Greeting card paper pack (Ivory, Matte) - A size (8.5 x 11-inches) - Felt textured - Includes 20 sheets and 20 envelopes

C6829A Paper - Paper (Textured) for PSC 2100 Series All in One, OfficeJet V40 Series, DeskJet 1280 Series, Color InkJet cp1700 Series

C6832A Paper - Paper (Glossy) for DeskJet F4180 Series, HP Deskjet F4100 All-in-One printer series, DeskJet F4140 Series, DeskJet F4135 All-In-One

C6951A Paper - Paper (Matte) for PSC 1400 Series, OfficeJet 5610 Series, OfficeJet 5605 Series, OfficeJet 5615 Series

C6955A Paper - Professional Brochure and Flyer Paper (Matte) - A size (8.5 x 11-inches) - 50 sheets

C6979A Paper - Premium Photo Paper (Glossy) - A size (8.5 x 11-inches) - 50 sheets

C6979AC Paper - Paper (Glossy) for DeskJet 660 Series, DeskJet 420C, DeskJet 5550 Series, DeskJet 5600 Series

C7018A Paper - Photo Greeting Cards (White, Matte) - A size (8.5 x 11-inches), half fold, pre-scored - Includes 20 cards and 20 envelopes

C7019A Paper - HP Textured Half-fold Greeting Cards (White) - A size (8.5 x 11-inches)

C7020A Paper - Scored Tri-fold Brochure Paper (Glossy) - A size (8.5 x 11-inches) - 100 sheets

C7025A Paper - Paper (Glossy) for DeskJet 5550 Series, DeskJet 450 Series, Digital Copier Printer 510 610, PhotoSmart 100 Printer

C7040A Paper - Paper (Glossy) for Business Inkjet 2280 Series, Business InkJet 1100 Series, Business Inkjet 2300 Series, DeskJet 9600 Series

C7891A Paper - Paper (Glossy) for OfficeJet 5110 Series All in One, PhotoSmart 230 Series, PhotoSmart 7260 Series, Photosmart 7200 Printer

C7893A Paper - Paper (Glossy) for PSC 2170 Series All in One, PSC 2350 All-In-One, PSC 2410 PhotoSmart Series, PSC 2500 PhotoSmart Series

C7894A Paper - Paper (Glossy) for DeskJet 3300 Series, DeskJet 3400 Series, DeskJet 3800 Series, DeskJet 6100 Series

C7897A Paper - Paper (Glossy) for DeskJet F4140 Series, DeskJet F4135 All-In-One, DeskJet F4180 Series, HP Deskjet F4100 All-in-One printer series

C7898A Paper - Paper (Glossy) for DeskJet D13XX Series, DeskJet D1311 Series, DeskJet F4180 Series, HP Deskjet F4100 All-in-One printer series

CR667A Paper - HP Premium Plus Soft-gloss Photo Paper-50 Letter/8.5 x 11 in

Q1785A Paper - Paper (Glossy) for DeskJet 1220 Series, DeskJet 1200 Series, DesignJet 1055 Series, DeskJet 640 Series

Q1785AC Paper - Paper (Glossy) for DeskJet 5550 Series, DeskJet 5600 Series, OfficeJet K80 Series, DesignJet 100 Series

Q1786A Paper - Paper (Glossy) for DeskJet 450 Series, OfficeJet V40 Series, PSC 700 Series All in One, PSC 900 Series All-in-One

Q1787A Paper - Linen Half-fold Greeting Card Paper (Ivory) - A size (8.5 x 11-inches) - 20 cards

Q1788A Paper - Linen Half-fold Greeting Card Paper (White) - A size (8.5 x 11-inches) - 20 cards

Q1933A Paper - Paper (Glossy) for OfficeJet 6200 Series, OfficeJet 6205, OfficeJet 6215, OfficeJet 6208

Q1934A Paper - Paper (Matte) for DeskJet 1220 Series, DeskJet 1200 Series, DesignJet 1055 Series, OfficeJet G55 Series

Q1935A Paper - Paper (Glossy) for Photosmart 475 series compact photo printer, PhotoSmart A430 Series, PhotoSmart D71XX Series, PhotoSmart D73XX Series

Q1951A Paper - Paper (Glossy) for PhotoSmart D71XX Series, PhotoSmart D73XX Series, HP Photosmart D7300 series, PhotoSmart D5155 Series

Q1952A Paper - Paper (Glossy) for PSC 2170 Series All in One, PSC 2350 All-In-One, PSC 2410 PhotoSmart Series, PSC 2500 PhotoSmart Series

Q1977A Paper - Paper (Glossy) for Deskjet 460 Series, OfficeJet Pro K550 Series, Business Inkjet 2800 Series, DeskJet 9800

Q1977AC Paper - Premium Plus Photo Paper (High Gloss) - 10.2cm (4in) x 15.2cm (6in), finished size - 10.2cm (4in) x 16.5cm (6.5in), with tab - 20 sheets (Canada)

Q1978A Paper - Premium Plus Photo Paper (High Gloss) - 10.2cm (4in) x 15.2cm (6in), finished size - 10.2cm (4in) x 16.5cm (6.5in), with tab - 60 sheets

Q1978AC Paper - Premium Plus Photo Paper (High Gloss) - 10.2cm (4in) x 15.2cm (6in), finished size - 10.2cm (4in) x 16.5cm (6.5in), with tab - 60 sheets (Canada)

Q1979A Paper - Premium Plus Photo Paper (High Gloss) - 10.0cm (3.9in) x 15.0cm (5.9in), finished size - 10.0cm (3.9in) x 16.3cm (6.4in), with tab - 20 sheets

Q1980A Paper - Premium Plus Photo Paper (High Gloss) - 10.0cm (3.9in) x 15.0cm (5.9in), finished size - 10.0cm (3.9in) x 16.3cm (6.4in), with tab - 60 sheets

Q1988A Paper - Paper (Glossy) for PhotoSmart 420 Series, HP Photosmart 422 Portable Photo Studio, PhotoSmart 475 Series, Photosmart 475 series compact photo printer

Q1988AC Paper - Paper (Glossy) for DeskJet 660 Series, DeskJet 420C, DeskJet 5600 Series, OfficeJet K80 Series

Q1989A Paper - Paper (Glossy) for PSC 1300 Series All in One, PSC 2300 Series, OfficeJet 6200 Series, OfficeJet 6210

Q1989AC Paper - Paper (Glossy) for PSC 1400 Series, OfficeJet 5610 Series, OfficeJet 5605 Series, OfficeJet 5615 Series

Q1990A Paper - Paper (Glossy) for PhotoSmart 325 Series, PhotoSmart 375 Series, OfficeJet 5500 Series All-in-One, OfficeJet 5500 Series All in One

Q1991A Paper - Paper (Glossy) for PhotoSmart 230 Series, PhotoSmart 245 Series, PSC 2170 Series All-in-One, PSC 2170 Series All in One

Q1993A Paper - Paper (Matte) for DeskJet 1220 Series, DeskJet 1200 Series, DesignJet 1055 Series, Color InkJet cp1160 Series

Q1994A Paper - Paper (Matte) for PSC 1400 Series, OfficeJet 5610 Series, OfficeJet 5605 Series, OfficeJet 5615 Series

Q2502A Paper - Paper (Glossy) for DeskJet 5600 Series, DeskJet 9600 Series, DeskJet 9800, DeskJet 5100 Series

Q2502AC Paper - Paper (Glossy) for OfficeJet 4315 Series, OfficeJet 4355 Series, HP Officejet 4300 All-in-One Series, DeskJet F3XX Series

Q2503A Paper - Premium Plus Photo Paper (High Gloss) - 10.0cm (3.9in) x 15.0cm (5.9in), borderless (without tab) - 20 sheets (Europe)

Q2504A Paper - Paper (Glossy) for DeskJet F3XX Series, HP Deskjet F300 All-in-One printer series, PSC 1400 Series All-In-One, PhotoSmart C52XX Series

Q2505A Paper - Paper (Glossy) for OfficeJet 4315 Series, OfficeJet 4355 Series, HP Officejet 4300 All-in-One Series, DeskJet F3XX Series

Q2506A Paper - Premium Plus Photo Paper (Satin Matte) - 10.2cm (4in) x 15.2cm (6in) finished size - 10.2cm (4in) x 16.5cm (6.5in) with tab - 60 sheets

Q2507A Paper - Premium Plus Photo Paper (Satin-matte) - 10.0cm (3.9in) x 15.0cm (5.9in) finished size - 10.0cm (3.9in) x 16.3cm (6.4in) with tab - 60 sheets

Q2508A Paper - Premium Plus Photo Paper (Satin-Matte) - 10.0cm (3.9in) x 15.0cm (5.9in) finished size - 10.0cm (3.9in) x 16.3cm (6.4in) with tab - 60 sheets

Q2509A Paper - Paper (Semi-Glossy) for DesignJet 130 Series, DeskJet 1220 Series, Business InkJet 2600 Series, DeskJet 450 Series

Q2509AC Paper - Paper (Semi-Glossy) for PSC 1300 Series All in One, PSC 2300 Series, PhotoSmart 130 Series, PSC 2100 Series All in One

Q2510A Paper - Paper (Photo) for DeskJet D1311 Series, DeskJet D24XX Series, HP DeskJet D1400 Printer Series, DeskJet D14XX Series

Q2511A Paper - Paper (Semi-Glossy) for Business InkJet 2600 Series, DeskJet 450 Series, Business InkJet 2230 Series, Business Inkjet 2300 Series

Q2519A Paper - Paper (Glossy) for DeskJet D13XX Series, DeskJet D1311 Series, DeskJet F4180 Series, HP Deskjet F4100 All-in-One printer series

Q2525A Paper - Paper (Glossy) for Business InkJet 3000 Series, Business InkJet 2230 Series, Business Inkjet 2300 Series, DeskJet 9300 Series

Q5431A Paper - Paper (Satin) for PhotoSmart A310 Series, PhotoSmart D50XX Series, PhotoSmart A520 Series, HP Photosmart A820 series Compact Photo Printers

Q5433A Paper - Paper (Satin) for Business Inkjet 2300 Series, Business InkJet 1100 Series, DeskJet 9600 Series, DeskJet 9300 Printer

Q5434A Paper - Paper (Matte) for PSC 1300 Series All in One, PhotoSmart 2600 Series, Photosmart 2700 Series, OfficeJet 7200 Series

Q5436A Paper - Paper (Matte) for PhotoSmart 475 Series, Photosmart 475 series compact photo printer, PhotoSmart A430 Series, PhotoSmart 420 Series

Q5437A Paper - Paper (Glossy) for OfficeJet 6200 Series, OfficeJet 6205, OfficeJet 6215, OfficeJet 6208

Q5440A Paper - Paper (Semi-Glossy) for DeskJet 660 Series, DeskJet 300, DeskJet 5550 Series, DeskJet 640 Series

Q5440AC Paper - Paper (Semi-Glossy) for DeskJet 660 Series, DeskJet 300, DeskJet 5550 Series, DeskJet 640 Series

Q5441A Paper - Paper (Semi-Glossy) for OfficeJet 4100 Series All in One, PSC 1110 Series All in One, PSC 1200 Series All-in-One, PSC 1200 Series All in One

Q5442A Paper - Paper (Semi-Glossy) for OfficeJet D Series All in One, OfficeJet 7100 Series All in One, OfficeJet V40 Series, PSC 2100 Series All in One

Q5443A Paper - Paper (Matte) for Deskjet D1300 printer series, DeskJet D13XX Series, DeskJet D41XX Series, Deskjet D1341 Printer

Q5445A Paper - Paper (Matte) for PhotoSmart C52XX Series, Photosmart C5200 Series All-in-One Printer Series, PhotoSmart D50XX Series, PSC 1400 Series

Q5450A Paper - Paper (Matte) for DeskJet 5550 Series, DeskJet 5600 Series, OfficeJet K80 Series, DesignJet 100 Series

Q5451A Paper - Paper (Glossy) for Photosmart 7400 Series, Photosmart 7450, PhotoSmart 8250 Series, PhotoSmart 8230 Series

Q5456A Paper - HP Advanced Gloss Photo Paper 25 Sht

Q5458A Paper - Paper (Glossy) for DeskJet 300, DeskJet 640 Series, Designjet 30gp, DesignJet 130 Series

Q5477A Paper - Paper (Glossy) for Photosmart 7700 Series Printer, PSC 2410 PhotoSmart Series, PSC 2500 PhotoSmart Series, PhotoSmart 8400 Series

Q5493A Paper - Paper (Glossy) for Photosmart 7600 Series Printer, Photosmart 7600 Printer, PhotoSmart 7700 Printer, PhotoSmart 7700 Series Printer

Q5494A Paper - Paper (Glossy) for DeskJet 9300 Printer, DeskJet 450 Series, Deskjet 460 Series, DeskJet 9800

Q5498A Paper - Paper (Glossy) for OfficeJet 4100 Series All in One, OfficeJet 6100 Series, Digital Copier Printer 410, PSC 1110 Series All in One

Q5499A Paper - Paper (Matte) for OfficeJet 7300 Series All in One, OfficeJet 7400 Series All in One, OfficeJet 7200 Series, OFFICEJET 7205

Q6567A Paper - Paper (Glossy) for HP Deskjet F300 All-in-One printer series, DeskJet F3XX Series, PSC 1400 Series All-In-One, PhotoSmart C52XX Series

Q6568A Paper - Paper (Glossy) for DeskJet 660 Series, DeskJet 300, DesignJet 1055 Series, DeskJet 5550 Series

Q6568AC Paper - Paper (Glossy) for PhotoSmart C52XX Series, Photosmart C5200 Series All-in-One Printer Series, PhotoSmart D50XX Series, PSC 1400 Series

Q6569A Paper - Premium Plus Soft-Gloss Photo Paper (Matte) - A size (8.5 x 11-inches) - 25 sheets (North America)

Q6597A Paper - Paper (Glossy) for DeskJet 660 Series, DeskJet 300, DeskJet 5600 Series, DeskJet 640 Series

Q6638A Paper - Paper (Glossy) for DeskJet 300, DeskJet 640 Series, Designjet 30gp, DesignJet 130 Series

Q6638AC Paper - Paper (Glossy) for Photosmart 475 series compact photo printer, PhotoSmart A510 Series, HP Photosmart A510 Printer series, PhotoSmart A430 Series

Q6639A Paper - Paper (Glossy) for PSC 1400 Series, OfficeJet 5610 Series, OfficeJet 5605 Series, OfficeJet 5615 Series

Q7852A Paper - HP Delux Advance Glossy Photo Paper 25 sheets of A size HP Advanced glossy photo paper

Q7852AC Paper - Paper (Glossy) for Deskjet D1341 Printer, DeskJet D13XX Series, DeskJet D1311 Series, DeskJet F4180 Series

Q7853A Paper - Paper (Glossy) for Business Inkjet 1200 Series, OfficeJet Pro K550 Series, Business Inkjet 2800 Series, DeskJet 9800

Q7854A Paper - Paper (Glossy) for DeskJet D1311 Series, DeskJet F4180 Series, HP Deskjet F4100 All-in-One printer series, DeskJet F4140 Series

Q7860A Paper - Advanced Glossy Paper - 10cm (4in) x 15cm (6in), borderless (without tab) - 20 sheets (Asia Pacific)

Q7861A Paper - Paper (Glossy) for DeskJet 3840 Series, DeskJet 6620 Series, DeskJet 6800 Series, DeskJet D23XX Series

Q7862A Paper - Paper (Glossy) for HP PSC 1300 Series All-In-One, PSC 1300 Series All in One, OfficeJet 6200 Series, OfficeJet 6210

Q7863A Paper - Paper (Glossy) for DeskJet 3520 Series, DeskJet 3600 Series, DeskJet 5940 Series, DeskJet 6620 Series

Q7864A Paper - Paper (Glossy) for OfficeJet 6205, OfficeJet 6215, OfficeJet 6208, PhotoSmart 3110 Series

Q7867A Paper - Paper (Glossy) for Color LaserJet 4730MFP Series, OfficeJet 6310 All-in-One, OfficeJet 6301 Series, OfficeJet 4315 Series

Q7868A Paper - Paper (Glossy) for Photosmart 3200 All-in-One Series, Photosmart 3300 Series, PSC 1500 Series, PSC 1500 Series All-In-One

Q7871A Paper - Paper (Glossy) for PSC 1300 Series All in One, Color LaserJet 2820 Series, OFFICEJET 7205, PSC 1600 Series

Q7892A Paper - Paper (Glossy) for HP Photosmart 428 Series Portable Photo Studio, PhotoSmart D5155 Series, PhotoSmart D5145 Series, PhotoSmart A430 Series

Q7906A Paper - Advanced Glossy Photo Paper - 10.2cm (4in) x 15.2cm (6in) finished size - 10.2cm (4in) x 16.5cm (6.5in) with tab - 100 sheets

Q7907A Paper - Paper (Glossy) for PhotoSmart 2575 Series, PSC 1200 Series All-in-One, PSC 1300 Series All in One, PSC 1400 Series

Q7986A Paper - Paper (Glossy) for PSC 1300 Series All in One, OfficeJet 6200 Series, OfficeJet 6210, OfficeJet 3213

Q7987A Paper - Paper (Glossy) for PSC 1300 Series All in One, OfficeJet 6200 Series, OfficeJet 6210, OfficeJet 3213

Q8015A Paper - Holiday Photo Cards - 10.2cm (4in) x 21.6cm (8.5in) - Includes 40 cards, 40 envelopes, and a CD-ROM with 150 holiday templates

Q8016A Paper - Holiday Photo Cards - 10.2cm (4in) x 21.6cm (8.5in) - Includes 20 cards, 20 envelopes, and a CD-ROM with 150 holiday templates

Q8030A Paper - Paper (Matte) for DeskJet D13XX Series, DeskJet D1311 Series, DeskJet F4180 Series, HP Deskjet F4100 All-in-One printer series

Q8690A Paper - Paper (Glossy) for DeskJet 300, DeskJet 640 Series, Designjet 30gp, DesignJet 130 Series

Q8695A Paper - Paper (Glossy) for HP Photosmart C3100 Series All-in-one, PhotoSmart C3180 Series, PhotoSmart C3150 Series, PhotoSmart C3140 Series

Q8696A Paper - Paper (Glossy) for DeskJet 300, DeskJet 640 Series, Designjet 30gp, DesignJet 130 Series

Q8744A Paper - Paper (Glossy) for HP OfficeJet Pro K550 Color Printer, HP DeskJet 460 Mobile Printer, DeskJet 450 Series, OfficeJet v40 All-In-One

Q8760A Paper - Paper (Semi-Glossy) for PhotoSmart C41X0 Series, Photosmart C4183 All-in-One, PhotoSmart C51XX Series, Photosmart C5180 Series All-In-One

Q8761A Paper - Paper (Semi-Glossy) for DeskJet 640 Series, DeskJet 450 Series, DeskJet 9300 Printer, DeskJet 9800

Q8764A Paper - Paper (Glossy) for DeskJet 640 Series, DeskJet 450 Series, DeskJet 9300 Printer, DeskJet 9800

Q5863C-PC_BRD PC Board - Ink cartridge carriage assembly pc board - includes carriage pc board only

Q5863C-PC_BRD_DC PC Board DC - Internal power supply board - power cable plugs on this assembly, remove covers to install pc board.

Q5863C-PC_BRD_Interface PC Board Interface - Internal print server lan interface board - plugs into peripheral eio. usefull for networking and multiple users.

Q5863C-Pinchwheel Pinchwheel - Pinch assembly kit - includes all required pinch wheels, pinchwheel mounts and springs

8121-0731 Power Cord - Power cord (Black) - 18 AWG, three conductor, 1.9m (75in) long - Has straight (F) C13 receptacle (For 220V in Europe)Limited supply only.

8121-0732 Power Cord - Power cord (Black) - 18 AWG, three conductor, 1.9m (75in) long - Has straight (F) C13 receptacle (For 220V in Israel)

8121-0737 Power Cord - Power cord (Black) - 18 AWG, three conductor, 1.9m (6.25ft) long - Has straight (F) C13 receptacle (For 240VAC in India and South Africa)

Q5863C-Power_Cord Power Cord - Power module power cord- wall outlet cable to power module only. does not include power module.

Q5863C-Power_MDLE Power Module - World wide power module - includes power module and power module to printer cord - does not include outlet to power module cord

Q5863C-Power_MDLE_Assy Power Module Assy - World wide power module - includes power module and power module to printer cord - also, include outlet to power module cord

Q5863C-Power_Supply Power Supply - Power supply board (internal pwr supply unit in the office machine).

Q5863C-Power_Supply_BRD Power Supply Board - High voltage power supply board

Q5863C-Print_Mchnsm Print Mechanism - Print mechanism assembly - complete mechanism with carriage movement, paper picking and service station - does not include covers, printer base, print heads, ink cartridges, or any consumables.

9222-3275 Protector - Photo paper storage bag

Q5863C-Pulley Pulley - Paper pick up tray motor pulley.

Q5863C-Pulley_ADF Pulley ADF - ADF feeder motor pulley

Q5863C-Repair_InkJet Repair Service - Ship your product to us for a small diagnostic fee; and a professional service job. We will contact you with repair total and your diagnostic fee will be waived if unit is repaired. Service warranty is 30days labor and 90days for parts. Extended warranty option is available.

Q5863C-Rod_Carriage Rod Carriage - Carriage rod - shaft that the carriage assembly rides on

Q5863C-Rod_Scanner Rod Scanner - Scanner rod - shaft that the scanner assembly rides on

Q5863C-Roller_ADF Roller ADF - Feeder ADF roller for picking up paper from ADF unit.

Q5863C-Roller_Exit Roller Exit - Paper exit rollers - out put assembly.

Q5863C-Roller_Pickup Roller Pickup - Pick up roller assembly for paper bottom tray. Lower feed roller assembly - for lower paper input tray

Q5863C-Scanner Scanner - Copier scanner (optical) assembly - includes scanner assembly only scanner lens assembly (includes the charge coupled device (ccd)) the scanning lamp ADF analog processor board and ADF inverter board - major portion of the ADF main assembly.

Q5863C-Scanner_Assy Scanner Assembly - Copier scanner & glass assembly - includes the chassis assembly scanner lens assembly (includes the charge coupled device (ccd)) the scanning lamp ADF analog processor board and ADF inverter board - major portion of the ADF main assembly.

Q5863C-Scanner_Belt Scanner Belt - Scanner belt attaches from the scanner to the scanner motor.

Q5863C-Scanner_Cable Scanner Cable - Flex circuit cable which connects to the scanner assembly. also known as flat cable, this cable moves along with the scanner unit (side to side) as it scans documents.

Q5863C-Scanner_Motor Scanner Motor - Scanner driving motor

Q5863C-Scanner_Unit Scanner Unit - Scanner unit includes the entire scanner base but not the ADF portion.

Q5863C-Sensor_ADF Sensor ADF - Photo-sensor assembly - includes the sensor and mounting bracket - paper pickup roller home position sensor - activated by the sensor flag on the pickup roller assembly - mounts on the front frame of the ADF paper pickup assembly

Q5863C-Sensor_Exit Sensor Exit - Exit media sensor sv

Q5863C-Sensor_Open Sensor Open - Door sensor assembly - open door sensor

Q5863C-Sensor_Out Sensor Out - OOPS sensor - out of paper sensor - detects the presence of the paper in the printer tray

Q5863C-Sensor_Spot Sensor Spot - Spot sensor assembly is attached to the carriage assembly.

Q5863C-Separator Separator - Pad separator - assembled from plastic and rubber components; to help in separating sheet of media during printing from bottom trays.

Q5863C-Guide Service Guide - Printer Reference Guide (not a service manual) - Contains information such as product information, operation overview, paper behavior, maintenance, ink safety, and removal / replacement of parts. This is not a service manual for technical repair.

Q5861-60042 Service Parts - Ay, Doc Lid, Super

Q5863C-Service_Station Service Station - Service station assembly - for conditioning the printheads when the carriage is in its home position

Q5863C-SLED_Assy SLED Assembly - Sled assembly - white plastic piece with spring, wipers and boot (assembly that the ink cartridge parks on) - mounts on top of the service station assembly

Q5863C-Slider Slider - Carriage base slider - plastic piece on the front end of the carriage that allows the carriage to slide side to side.

Q5863C-Speaker Speaker - Speaker assembly - includes speaker cable.

Q5863C-Spitton Spitton - Spittoon base - the bottom and main housing of the service station assembly - holds any residual ink from the print cartridge cleaning process

Q5863C-Spring_Cmprsn Spring Compression - Compression spring - on pulley wedge for carriage belt tension

Q6625A Stickers - HP Printable iPod Tattoos - 14.0cm (5.5in) x 21.6cm (8.5in) - 10 sheets

Q7982A Stickers - HP Printable iPod Mini Tattoos - 10.2cm (4in) x 15.2cm (6in) - five sheets

Q8046A Stickers - HP CD/DVD Tattoos - 13cm (5in) x 18cm (7in) - 15 sheets (USA, Latin America, and Canada)

Q8047A Stickers - HP CD/DVD Tattoos - 13cm (5in) x 18cm (7in) - 15 sheets (Europe, Middle East, and Africa)

Q5863C-Trailing_Cbl Trailing Cable - Trailing cable for scanner - cable connects from scanner to pc board.

Q5841-60217 Tray - Ay-output tray rohs

Q5863C-Tray_Assy Tray Assembly - Paper input tray assembly for loading paper (bottom).

Q5863C-Tray_Assy_CVR Tray Assembly Cover - Tray cover - the top cover for the paper pick up tray unit.

Q5863C-Tray_Base Tray Base - Tray base- bottom base of the paper input tray.

Q5863C-Window Window - Top/front access door assembly - print cartridge access door window.

HP photosmart 3313 all-in-one printer (Q5863C)

HP parts list for Q5863C HP photosmart 3313 all-in-one printer
