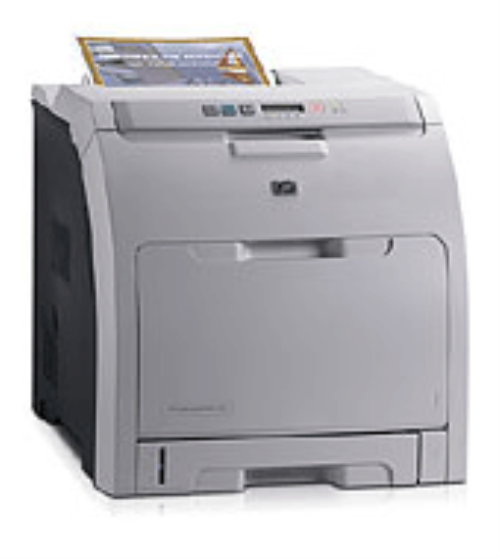

HP parts list for Q7825A Color LaserJet 2700n

RM1-2678-000CN Base - Right rear base assembly - Right side guide for paper tray - Rear black plastic printer foot attaches to this piece

RM1-2759-040CN Belt - Electrostatic Tranfer Belt (ETB) assembly - Includes the assembly structure, ETB belt, drive roller and drive motor M5 - Wide belt assembly which feeds the paper past each toner cartridge - Simplex model only

RM1-2759-090CN Belt - ETB ASSY Electrostatic Tranfer Belt (ETB) assembly - Includes the assembly structure, ETB belt, drive roller and drive motor M5 - Wide belt assembly which feeds the paper past each toner cartridge - Simplex model only

RC1-7959-000CN Block - MP/Tray 1 block - Replaces media sensor in paper pickup assembly - Used on Color LaserJet 3000 only

RC1-7551-000CN Bracket - Left rear bracket - This is the sheet metal box that supports the Low Voltage Power Supply so the top cover fits

RC1-6517-000CN Bushing - Roller bushing - Left side bushing for feed roller inside of paper pick up assembly

RC1-6518-000CN Bushing - Roller bushing - Right side bushing for feed roller inside of paper pick up assembly

RC1-6573-000CN Bushing - Gear bushing - Located between 29 tooth image drive gear and chassis on right side of printer

RC1-6823-000CN Bushing - Gear bushing - Located between the 48 tooth cam gear and the metal chassis on the right side of printer - Four used

RK2-0967-000CN Cable - Scanner cable - Short flat scanner cable

RK2-0969-000CN Cable - Flat cable - Ribbon cable that connects the DC controller board to the Driver board - Flat drive cable 1 - Connector J1023 to J401

RK2-0970-000CN Cable - Flat cable - Ribbon cable that connects the DC controller board to the Driver board - Flat drive cable 2 - Connector J1022 to J201

RK2-0971-000CN Cable - Scanner cable - Long flat scanner cable

RM1-2587-000CN Cable - Control panel cable - Connects control panel to Low Voltage power supply

RM1-2592-000CN Cable - Power control cable - Connects DC Controller board to Low Voltage power supply

RM1-2594-000CN Cable - Scanner cable - Cable between scanner motors and DC controller PCA

RM1-2595-000CN Cable - Temperature sensor cable - Connects environment sensor to DC controller board

RM1-2596-000CN Cable - Control panel cable - From control panel to High Voltage Power Supply (HVPS)

RM1-2597-000CN Cable - Fuser cable - Connects Fuser to DC controller and Low Voltage power supply

RM1-2603-000CN Cable - Sensor cable - Senses when the Electrostatic Transfer Belt (ETB) is locked in place - This is the ETB's electrical connection with the rest of the printer

RM1-2605-000CN Cable - Driver cable - From DC Controller board to Driver board

RM1-2608-000CN Cable - Electrostatic Transfer Belt (ETB) cable - Connects Driver PC board to ETB

RM1-2610-000CN Cable - Drum motor cable - Connects cartridge drive motors M6 and M7 to Driver PCA

RM1-2611-000CN Cable - Solenoid and motor cable - Connects CST pickup and MP Tray pickup solenoids to Driver PCA - Also connects feed motor M4 to Driver PCA

RM1-2613-000CN Cable - Cassette feeder cable - Connects Driver PCA to 500 sheet paper feeder PCA

RM1-2619-000CN Cable - Fuser drive cable - Connects Driver board to Fuser drive motor (M1) and Fuser pressure release sensor

RM1-2624-000CN Cable - Media sensor cable - Connects media type with sensor - Located on the 500-sheet feeder assembly

RM1-2625-000CN Cable - Paper sensor cable - Connects paper sensor in front section of 500 sheet tray to 500 Sheet Paper Feeder PC board

RM1-2627-000CN Cable - E-label or memory tag cable

RM1-2628-000CN Cable - Paper full cable - From Driver PCA to connector J821

RM1-2629-000CN Cable - Drum motor cable - Connects cartridge drive motors M8 and M9 to Driver PCA - For Color LaserJet 3000 only

RM1-2630-000CN Cable - Paper sensor cable - Cable that connects to the face down paper tray full sensor SR706 - For Color LaserJet 3000/3600/3800 series simlex printers

RC1-6638-000CN Cam - Left slide cam - Small plastic cam that moves inside left side door rod link

RC1-6645-000CN Cam - Right slide cam � Cam that actuates the cartridge levers and locks

RC1-6645-010CN Cam - Right slide cam � Cam that actuates the cartridge levers and locks

RM1-2700-050CN Cassette - Cassette ppu assy

RM1-2705-060CN Cassette - Cassette, 250 sheet

WT2-5944-000CN Clamp - Cable clamp - Used to attach Driver board ribbon cable 1 and 2 to DC controller board

RC1-6519-000CN Clutch - Clutch, mechanical

RM1-2683-000CN Contact - High voltage toner contact assembly - Electrical contacts for all four toner cartridges

RM1-2683-020CN Contact - High voltage toner contact assembly - Electrical contacts for all four toner cartridges

RM1-3868-000CN Control Panel - Control panel assembly - Enables user interaction and communication with printer

RC1-6405-000CN Cover - Gear assembly cover - Cover for paper pickup gear assembly on right lower side of printer

RC1-6491-000CN Cover - Front cover - Front cover for 250 sheet paper tray/cassette

RC1-6607-000CN Cover - PC board cover - Pickup and feed driver PCA cover

RC1-6609-000CN Cover - Roller cover - Covers the cassette paper pickup roller assembly

RC1-6611-000CN Cover - Sensor cover - Small metal cover for paper sensor located at right rear of paper pickup assembly

RC1-6612-000CN Cover - Paper registration cover - Small metal cover for paper registration sensor located at left rear of paper pickup assembly

RC1-6627-000CN Cover - Rear cover - External metal rear cover of printer

RC1-6651-000CN Cover - Shutter cover - Left side toner cartridge shutter cover - Four used

RC1-6687-000CN Cover - Left side cover - Plastic cover for left side of printer - Does not include HP logo

RC1-6687-020CN Cover - Left cover assembly - Plastic cover that protects the left side of the printer

RC1-6690-000CN Cover - MP/Tray 1 cover - Front of printer cover that goes over the drop down multi-purpose input tray

RC1-6792-010CN Cover - Left rear cover - Legal paper size cassette cover - Located at rear/bottom of printer

RC1-6945-000CN Cover - Front cassette cover - Plastic front cover for 500 sheet paper tray

RC1-7550-000CN Cover - Rear upper cover - Small upper cover that the internal sheet metal rear cover attaches to

RC1-7577-000CN Cover - Small rear cover - Small metal cover that attaches with one screw to large metal rear cover of printer

RL1-1097-000CN Cover - MP/Tray 1 cover - Front of printer cover that goes over the drop down multi-purpose input tray

RM1-2669-000CN Cover - Right side cover - Plastic cover for right side of printer

RM1-2669-010CN Cover - Right cover assembly - Plastic cover that protects the right side of the printer

RM1-2672-030CN Cover - Top cover assembly - Top plastic cover of printer that fuser access door mounts on -Simplex model only

RM1-2673-000CN Cover - Front cover assembly - Plastic front cover assembly for printer - MP/Tray 1 attaches to this assembly - For Color LaserJet 3000/3600/3800 series simplex models only

RM1-2673-010CN Cover - Front cover assembly - Plastic cover that protects the front part of the printer

RM1-2671-000CN Door - Fuser access door - Flip up access door on top of printer that allows access to Fuser Assembly - For simplex model only

CB441-67907 Drive Assembly - Main drive assembly - Main gear assembly on right side of printer - Motors M6 through M9 mount to this assembly

RM1-2668-000CN Drive Assembly - Fuser drive gear assembly - Includes fuser drive motor - Motor M1

RM1-2679-020CN Drive Assembly - Paper pickup drive assembly - Gear assembly located on right side of paper pickup assembly

RM1-2687-000CN Drive Assembly - Developer disengagement drive assembly

RM1-2751-000CN Drive Assembly - Main drive assembly - Main gear assembly on right side of printer - Motors M6 through M9 mount to this assembly

RC1-6632-000CN Duct - Air duct - Deflects air from fan FM1

RC1-7546-000CN Duct - Air duct - This duct goes from fan FM1 to under the Low Voltage power supply

RC1-7547-000CN Duct - Fan duct - Diverts air from Fan 1 near the back of printer - Duct 2

RC1-7548-000CN Duct - Fan duct - Diverts air from Fan 1 to front of printer and helps cool the Low Voltage Power Supply (LVPS) - Duct 3

RM1-2710-000CN Extension - MP/Tray 1 extension - Flip out paper support extension for MP/Tray 1

RK2-0954-000CN Fan - Cooling fan - Provides cooling for printer

Q5985A Feeder - HP 500 SHEET INPUT TRAY 500 sheet tray and feeder assembly - Printer sits on top of this assembly

92296T Film - Film (Transparency) for LaserJet II, LaserJet III, LaserJet 4 Series, LaserJet 4L Series

92296U Film - Film (Transparency) for LaserJet 33x0 MFP Seriess, LaserJet 4100 Series, LaserJet P2xxx Printer, Color LaserJet CM1015 MFP

C2934A Film - Film (Transparency) for Color LaserJet 5, Color LaserJet 5M Series, Color LaserJet 8500 Series, Color LaserJet 4500 Series

C2936A Film - Color LaserJet transparency film - A4 size (21.0cm x 29.7cm) - 50 sheets per box

RM1-2663-020CN Fixing Assembly - Printer Fuser Assembly (For 100 to 120VAC operation) - Bonds toner to paper with heat

RM1-2763-000CN Fixing Assembly - Printer Fuser Assembly (For 100 to 120VAC operation) - Bonds toner to paper with heat

RM1-4348-000CN Fixing Assembly - Hewlett Packard Printer Fuser Assembly (For 100 to 120VAC operation) - Bonds toner to paper with heat

RC1-6286-000CN Flag - Output bin sensor - For the Color LaserJet 2700 printer series

RC1-6605-000CN Flag - Aliention flag - Senses if the black or all the color cartridges are in the proper position - Two used (this price is for 1pc).

RC1-7597-000CN Flag - Sensing lever - This device senses when the packaging material is removed from the toner cartridges

RC1-6650-000CN Foot - Rear foot - Black plastic foot for rear base of printer - Two used

RL1-1067-000CN Foot - Rubber foot - Black rubber foot for front base of printer - Two used

RM1-2665-000CN Fuser Assembly - Hewlett Packard Fuser Assembly (For 100 to 120VAC operation) - Bonds toner to paper with heat

RM1-2665-170CN Fuser Assembly - Fuser Assembly (For 100 to 120VAC operation) - Bonds toner to paper with heat

RM1-2665-180CN Fuser Assembly - Fuser Assembly - Bonds toner to paper with heat - For 100VAC to 120VAC operation

RM1-2665-220CN Fuser Assembly - Printer Fuser Assembly (For 100 to 120VAC operation) - Bonds toner to paper with heat

RM1-2671-010CN Fuser Assembly - Fusing upper cover assy

RM1-2743-000cn Fuser Assembly - Replacement for part RM1-2743-000CN Fuser Assembly (200 - 240VAC) - Bonds toner to paper by heat

RM1-2743-180CN Fuser Assembly - Fuser Assembly - For 220 VAC to 240 VAC operation - Bonds toner to paper with heat

RM1-2743-220CN Fuser Assembly - Fuser Assembly - For 220 VAC to 240 VAC operation - Bonds toner to paper with heat

RM1-2763-020CN Fuser Assembly - Fixing / Fuser Assembly - For 100 VAC to 120 VAC operation - Bonds toner to paper with heat

RM1-2763-030CN Fuser Assembly - Fuser Assembly - For 110 VAC operation - Bonds toner to paper with heat

RM1-2764-020CN Fuser Assembly - Fusing assembly - For 220 VAC to 240 VAC operation - Bonds toner to paper with heat

RC1-6521-000CN Gear - Drive gear - 18 tooth gear on right side of paper pickup assembly

RC1-6571-000CN Gear - 58 tooth drive gear - Located between the toner motor and image drive assembly - Fout used

RC1-6575-000CN Gear - Image drive gear - 29 tooth image drive gear - Located inside chassis on right side of printer

RC1-6584-000CN Gear - Cam gear - 48 tooth gear associated with the cartridge for engaging the developing rollers - Four used

RC1-6589-000CN Gear - 41 tooth gear - Mechanically connects the four cartridge engaging rollers - Two used

RC1-6593-000CN Gear - Cluster gear - 19 tooth/30 tooth gear mounted in gear assembly on right side of printer

RC1-6594-000CN Gear - 31 tooth gear - Gear located in the fuser drive assembly on top RC1-6275

RC1-6596-000CN Gear - Cluster gear - 17 tooth/41 tooth gear mounted in gear assembly on right side of printer

RM1-2701-000CN Gear - Cst. ppu gear assy

RL1-1069-000CN Gear Assembly - Gear assembly - Small gear assembly that comes off when removing paper pickup drive assembly on lower right front of printer

RM1-2704-000CN Gear Assembly - Gear assembly - MP/Tray 1 paper pickup gear assembly

RC1-6825-000CN Guard - Cable guard - Protects the cables (non-flat type) from being pinched between PC boards and sheet metal on upper left side of printer

RC1-6499-000CN Guide - Cassette guide - Left side guide for media cassette

RC1-6502-000CN Guide - Cassette guide - Right side guide for media cassette.

RC1-6629-000CN Guide - Cartridge guide - Left side guide assembly for toner cartridges

RC1-6681-000CN Guide - Cable guide - Fuser cable housing - Located in upper left side of printer

RC1-6682-000CN Guide - Right side cable guide - Located in the bottom right side of the printer - Round molded part fits over a motor - Black plastic

RC1-6772-000CN Guide - Flat cable guide - Located on the bottom of the printer and help guide flat cables from the Driver PCA, Memory board, and the Tray 2 media sensor up to the DC Controller PCA - This is the guide on the right rear side of printer

RC1-6773-000CN Guide - Flat cable guide - Located on the bottom of the printer and help guide flat cables from the Driver PCA, Memory board, and the Tray 2 media sensor up to the DC Controller PCA - This is the guide on the left rear side of printer

RC1-6795-000CN Guide - Paper guide crossmember cover - Used as a support to help guide paper through the paper path - Located inside near top of printer

RC1-7544-000CN Guide - Upper right cable guide - Located on top of the main drive assembly and runs vertically along the almost full length of it - Black plastic.

RC1-7545-000CN Guide - Right side cable guide - Located below upper right cable guide

RM1-2771-000CN Guide - Cartridge guide - Right side guide assembly for toner cartridges

RM1-2776-020CN Guide - Ppu guide assy for HP Color LaserJet 2700 Printer

RM1-2776-030CN Guide - Paper pick-up guide ass paper pick-up guide assy.

RC1-6691-000CN Hinge - Right rear cover hinge - Legal paper size tray cover hinge - Located at right rear/bottom of printer

RC1-6631-000CN Holder - Fan holder - Mounting assembly for main cooling fan - Located on lower left side of printer - Fan FM1

RC1-6652-000CN Holder - Drawer connector holder - This is the connector holder for Tray 3, where the electrical connections are made between the printer and Tray 3 - Black plastic

RC1-6653-000CN Holder - Drawer holder - Sheet metal piece that holds the connector for the fuser - Left side of printer

RC1-6673-000CN Holder - Electrostatic Transfer Belt (ETB) holder - Left side ETB support

RC1-6673-020CN Holder - Electrostatic Transfer Belt (ETB) holder - Left side ETB support

RC1-6674-000CN Holder - Electrostatic Transfer Belt (ETB) holder - Right side ETB support

RC1-6771-020CN Holder - Toner cartridge holder - Plastic support for right side of toner cartridge - Four used

RM1-2735-020CN Holder - Paper separation pad holder - Attaches to front center of 500 sheet paper cassette

Q6551A Label - High quality self-adhesive labels - A4 size (21.0cm x 29.7cm) sheets, 148mm x 105mm labels, four labels per sheet - Box of 25 sheets

Q6552A Label - High quality self-adhesive labels - A4 size (21.0cm x 29.7cm) sheets, 148mm x 105mm labels, four labels per sheet - Box of 100 sheets

Q6553A Label - High quality self-adhesive labels - A4 size (21.0cm x 29.7cm) sheets, 105mm x 74mm labels - Box of 100 sheets

Q6554A Label - High quality self-adhesive labels - A4 size (21.0cm x 29.7cm) sheets, 97mm x 42.3mm labels, 12 labels per sheet - Box of 25 sheets

Q6555A Label - High quality self-adhesive labels - A4 size (21.0cm x 29.7cm) sheets, 97mm x 42.3mm labels, 12 labels per sheet - Box of 100 sheets

Q6556A Label - High quality self-adhesive labels - A4 size (21.0cm x 29.7cm) sheets, 105mm x 37mm labels, 16 labels per sheet - Box of 100 sheets

Q6557A Label - High quality self-adhesive labels - A4 size (21.0cm x 29.7cm) sheets, 70mm x 42.3mm labels, 21 labels per sheet - Box of 100 sheets

Q6558A Label - High quality self-adhesive labels - A4 size (21.0cm x 29.7cm) sheets, 70mm x 36mm labels, 24 labels per sheet - Box of 25 sheets

Q6559A Label - High quality self-adhesive labels - A4 size (21.0cm x 29.7cm) sheets, 70mm x 36mm labels, 24 labels per sheet - Box of 100 sheets

RM1-2952-000CN Laser Scanner - Laser/scanner assembly - For Color LaserJet 3000 only

RM1-6339-000CN Laser Scanner - Laser/scanner assembly - For Color LaserJet 3000/2700 series only

RC1-7554-010CN Latch - Left latch - Left side paper guide/latch directly under control panel

RC1-7555-000CN Latch - Right latch - Right side paper guide/latch directly under control panel

RC1-6633-000CN Lever - Lock lever - This is the left side lock for the three color cartridges

RC1-6636-000CN Lever - Lever slide lock - Slide that locks and unlocks the individual levers on the left side

RC1-6640-000CN Lever - One Lock lever usually come in either wht or blk - Four total used on the printer this price is for 1 PC. Item will ship with HP CLJ 3800/3600/3000 (Cartridge Lock Replacement instructions recommended Q5982-instructions_kit).

RC1-6640-020CN Lever - One Lock lever usually come in either wht or blk - Four total used on the printer, this price is for 1 PC. Item will ship with HP CLJ 3800/3600/3000 Cartridge Lock Replacement Procedure, A MUST!(will be included)

RC1-6643-000CN Lever - Lever slide lock - Slide that locks and unlocks the individual levers on the right side (purchase suggested instructions Q5982-instructions_kit).

RC1-6643-020CN Lever - Lever slide lock - Slide that locks and unlocks the individual levers on the right side (purchase suggested instructions Q5982-instructions_kit).

RC1-6643-030CN Lever - Lever slide lock - Slide that locks and unlocks the individual levers on the right side (purchase suggested instructions Q5982-instructions_kit).

RC1-7618-000CN Lever - Lever lock - Left side upper lever lock for Black cartridge

RC1-6381-000CN Link - Tray hinge link - Left side link for drop down multipurpose input tray hinge

RC1-6382-000CN Link - Tray hinge link - Right side link for drop down multipurpose input tray hinge

RC1-6639-000CN Link - Left rod link - Left side door rod link

RC1-6646-000CN Link - Right rod link - Right side door rod link

RC1-6700-000CN Link - Switch link arm - Connects the on/off switch on the right side door to the actual switch on the LVPS - Metal rod link

Q5982-67923 Lock - Cartridge lock kit - 4 lock lever 4 grounding spring 4 tension spring and instructions. Will include Critical install instructions Q5982-Instructions_kit (instructions may be purchased separately).

Q5982-67925 Lock - Cartridge lock kit - 4 lock lever 4 grounding spring 4 tension spring and instructions. Will include Critical install instructions Q5982-Instructions_kit (instructions may be purchased separately).

RC1-6641-000CN Lock - Grounding spring � Provides chassis ground for toner cartridges - Four used for this printer this price is for qty 1. (purchase suggested instructions Q5982-instructions_kit).

CB442-67220 Maintenance Kit - Maintenance kit 220V printer. KIT assembly Hewlett Packard Color LaserJet products. Includes fuser unit 220v separation pad tray 1 and tray 2 pick up rollers tray 1 and tray 2.

CB442-67909 Maintenance Kit - Maintenance kit assembly Hewlett Packard Color LaserJet products. Includes fuser unit 110v, separation pad tray 1 and tray 2, pick up rollers tray 1 and tray 2.

Q7707A Memory - HP 32MB 133 MHz Synchronous SDRAM DIMM

Q7708A Memory - HP 64MB 133 MHz Synchronous DRAM DIMM

Q7709A Memory - 133 MHz 128MB, 100-pin SDRAM DIMM memory module Synchronous DRAM DIMM

RK2-0937-000CN Motor - DC motor - Electrostatic Transfer Belt drive motor - Motor M5 - Simplex models only

RK2-0939-000CN Motor - Paper pick up/feed motor - Located on lower right front of printer - Motor M4

RM1-2689-000CN Motor - Drive motor - Print cartridge drive motor assembly

RM1-2773-000CN Motor - Drive motor - Print cartridge drive motor assembly

RC1-6684-000CN Mount - Left side hinge mount - Left side ETB guide hinge mount

RM1-2699-000CN Pad - Separtation pad - MP/Tray 1 separation pad assembly

RM1-2709-000CN Pad - Separation pad assembly (Does not include spring) - Mounts toward the front of the 250 sheet paper cassette tray assembly

CHP910 Paper - HP Copy Paper - A4 size (21.0cm x 29.7cm) - 500 sheets

Q1298A Paper - LaserJet Satin finish tough paper - A size (8.5 x 11-inches) - Will not tear and will withstand outdoor weather conditions - Can print on both sides

Q2413A Paper - Premium LaserJet cover paper - Heavyweight (75lb), smooth finish on both sides, 96 brightness - A size (8.5 x 11-inches) - 100 sheets per box

Q2418A Paper - Paper (Glossy) for Color LaserJet 9500 Series, Color LaserJet 5550 Series, LaserJet 9040 9050 Series, Color LaserJet 2700 Printer

Q2546A Paper - Paper (Glossy) for LaserJet 3390 All-in-One, LaserJet 3000 Series, Color LaserJet 4700, Color LaserJet 3000 series

Q2546AC Paper - Paper (Glossy) for Color LaserJet CM1015 MFP, Color LaserJet CM1017 MFP, Color LaserJet 2700 Printer

Q2547A Paper - Paper (Glossy) for Color LaserJet CM1015 MFP, Color LaserJet CM1017 MFP, Color LaserJet 2700 Printer

Q6541A Paper - HP Color Laser Soft-gloss Presentation Paper - A size (8.5 x 11-inches) - 200 sheets

Q6541AC Paper - Paper (Glossy) for Color LaserJet 5500 Series, Color LaserJet CM1015 MFP, Color LaserJet CM1017 MFP, Color LaserJet 3500 Series

Q6542A Paper - Paper (Glossy) for LaserJet 5200 series, LaserJet 1320t Printer, Color LaserJet 2605 Printer, Color LaserJet 2700 Printer

Q6543A Paper - Paper (Matte) for Color LaserJet 4700, LaserJet 1320t Printer, LaserJet P3xxx Printer, Color LaserJet 2605 Printer

Q6544A Paper - Paper (Matte) for LaserJet 4P Series, LaserJet 2100 Series, Color LaserJet 5500 Series, Color LaserJet 9500 Series

Q6545AC Paper - Paper (Glossy) for Color LaserJet 5500 Series, Color LaserJet CM1015 MFP, Color LaserJet CM1017 MFP, Color LaserJet 3500 Series

Q6546A Paper - Paper (Glossy) for Color LaserJet CM1015 MFP, Color LaserJet CM1017 MFP, Color LaserJet 5550 Series, Color LaserJet 2700 Printer

Q6549A Paper - Paper (Matte) for Color LaserJet 5500 Series, Color LaserJet 9500 Series, Color LaserJet 1600 Printer, Color LaserJet CM1015 MFP

Q6607A Paper - Paper (Glossy) for Color LaserJet 5500 Series, Color LaserJet 1600 Printer, Color LaserJet CM1015 MFP, Color LaserJet CM1017 MFP

Q6608A Paper - Paper (Glossy) for Color LaserJet 5500 Series, Color LaserJet 1600 Printer, Color LaserJet CM1015 MFP, Color LaserJet CM1017 MFP

Q6608AC Paper - Paper (Glossy) for Color LaserJet 5500 Series, Color LaserJet CM1015 MFP, Color LaserJet CM1017 MFP, Color LaserJet 3700 Series

Q6610A Paper - Paper (Glossy) for Color LaserJet 3500 Series, Color LaserJet 3700 Series, Color LaserJet 5550 Series, Color LaserJet 2820 Series

Q6611A Paper - Paper (Glossy) for Color LaserJet 5500 Series, Color LaserJet 1600 Printer, Color LaserJet CM1015 MFP, Color LaserJet CM1017 MFP

Q6612A Paper - Paper (Glossy) for Color LaserJet 5500 Series, Color LaserJet 1600 Printer, Color LaserJet CM1015 MFP, Color LaserJet CM1017 MFP

Q6614A Paper - Paper (Glossy) for Color LaserJet 5500 Series, Color LaserJet CM1015 MFP, Color LaserJet CM1017 MFP, Color LaserJet CP4005 Series

Q6616A Paper - Paper (Glossy) for Color LaserJet 5500 Series, Color LaserJet CM1015 MFP, Color LaserJet CM1017 MFP, Color LaserJet CP4005 Series

CB441-67902 PC Board - Low voltage power supply board - 110 to 127VAC input

CB441-67903 PC Board - Low voltage power supply board - 220 to 240VAC input

Q7825-67901 PC Board - Clj2700 formatter, n bundles

Q7825-67902 PC Board - Formatter (Main logic) board - For the Color LaserJet 2700n printer only

Q7825-69002 PC Board - Formatter (Main logic) board - For the Color LaserJet 2700n printer only

RK2-1007-000CN PC Board - LVPS Discharge Tool - RK2-1007-000CN

RM1-2576-000CN PC Board - Cassette sensor PCA - Senses when paper tray is correctly installed

RM1-2578-070CN PC Board - High voltage power supply board

RM1-2578-100CN PC Board - High voltage power supply board

RM1-2578-120CN PC Board - High-voltage PCA assembly - For the Color LaserJet 2700/3000 printer series

RM1-2581-000CN PC Board - Driver PC board assembly

RM1-2583-000CN PC Board - 500 sheet paper feeder PC Board - 500 sheet paper feeder tray controller PC Board.

RM1-2585-000CN PC Board - Toner cartridge sensor PC board

RM1-2600-100CN PC Board - DC controller PCA assembly - DC Controller Board for Color LaserJet 2700 3000 CLJ Laser Printer series

RM1-2600-120CN PC Board - DC controller PCA assembly - For Color LaserJet 2700/3000 printer series

RM1-2600-140CN PC Board - DC controller PCA assembly - DC Controller Board for Color LaserJet 2700 3000 CLJ Laser Printer series

RM1-2632-000CN PC Board - Relay PC board - Includes ribbon cable that connects to DC controller board

RM1-4377-040CN PC Board - HP Low voltage power supply board - 110 to 127VAC input

RM1-4378-040CN PC Board - Low voltage power supply board - 220 to 240VAC input

J6035G PC Board Interface - JetDirect 175X external print server - Has one 4-pin USB connector and one RJ-45 LAN connector - Connects to the printer via the USB port and the network via the LAN port

J7942A PC Board Interface - HP JetDirect en3700 external print server - Fast Ethernet Internet connector for sharing peripherals with USB ports, in a 10/100 TX LAN environment - Has one USB 2.0 printer port and one RJ-45 10/100 Base-TX connector - Includes software and power module

J7942G PC Board Interface - HP JetDirect en3700 external print server - Fast Ethernet Internet connector for sharing peripherals with USB ports, in a 10/100 TX LAN environment - Has one USB 2.0 printer port and one RJ-45 10/100 Base-TX connector - Includes software and power module

J7951G PC Board Interface - HP Jetdirect ew2400 802.11g wireless print server module - Includes power supply, USB cable, LAN/Ethernet cable, setup documentation and software

RM1-2725-020CN Pickup Assembly - 500-sheet feeder/paper pickup assembly - Includes both the feeder roller and pickup roller assemblies for the 500 sheet paper tray assembly

RM1-2725-030CN Pickup Assembly - 500-sheet feeder/paper pickup assembly - Includes both the feeder roller and pickup roller assemblies for the 500 sheet paper tray assembly

RM1-2774-060CN Pickup Assembly - Paper pickup assembly - For the Color LaserJet 2700/3000 printer series

RM1-2774-080CN Pickup Assembly - Paper pick-up assembly - For the Color LaserJet 2700/3000 printer series

RC1-6824-020CN Plate - Cvr, side plate rht

RC1-6875-000CN Plate - Plate, left for HP Color LaserJet 2700 Printer

RC1-7576-000CN Plate - Drive plate cross member - Cross member plate that attaches to duplexer separation drive assembly on right side of printer

8121-0921 Power Cord - Power cord (Black) - 16 AWG, 2.5m (8.2ft) long - Has straight (F) C13 receptacle (for 125 VAC in USA and Canada)

RK2-0956-000CN Power Supply - PARTS replacement low voltage power supply board 110 to 127v ac input unit.

RK2-0957-000CN Power Supply - Replacement for part RM1-4378-040CN Low voltage power supply board - 220 to 240VAC input

RK2-1564-060CN Power Supply - Low voltage power supply board - For 220 to 240 VAC input

Q7825A-Repair_LaserJet Repair Service - Ship your product to us for a small diagnostic fee; and a professional service job. We will contact you with repair total and your diagnostic fee will be waived if unit is repaired. Service warranty is 30days labor and 90days for parts. Extended warranty option is available.

XD9-0235-000CN Retainer - E-Type retainer ring/clip

Q5982-67926 Roller - Paper pickup roller - 250 sheet cassette paper pickup roller.

RM1-2702-000CN Roller - Paper pickup roller - 250 sheet cassette paper pickup roller

RM1-2727-000CN Roller - 500 sheet tray paper pickup roller assembly & Tray 2 & 3 Pick Up Roller Assembly - Wide gray rubber roller with serrated rollers on each side of it - Located in front upper portion of 500 sheet tray feeder frame

RM1-2741-000CN Roller - Paper pickup roller - MP/Tray 1 paper pickup roller

RM1-2775-000CN Roller - Pre-registration guide - Registration roller guide assembly located at rear of paper pickup assembly

RM1-2775-020CN Roller - Pre-registration guide - Registration roller guide assembly located at rear of paper pickup assembly

XA9-0685-000CN Screw - M4X6 pan-head Phillips screw with annular nails - 8mm long

XA9-1447-000CN Screw - M12 pan-head Phillips screw with annular nails - 8mm long

XA9-1449-000CN Screw - M3 pan-head Phillips screw with machine threads - 8mm long

XA9-1500-000CN Screw - M3 pan-head Phillips screw with flat washer - 8mm long

XA9-1566-000CN Screw - M3X6 pan-head Phillips screw with annular nails - 8mm long

XB4-7401-005CN Screw - M4 truss head (flanged) screw - 10mm long - Typically used to secure plastic parts to the left and right side plates

RM1-2590-000CN Sensor - Cbl, cass sensor

RM1-2726-000CN Sensor - Media sensor assembly - Sensor that detects the type of media being used

WG8-5696-000CN Sensor - Photo-interrupter sensor assembly (Does not include the sensor flag)

WG8-5935-000CN Sensor - Fuser Output sensor (SR5)

WP2-5214-000CN Sensor - Temperature sensor - Also referred to as environment sensor

Q7825A-Manual_Color Service Manual - Printer Service Manual - Includes troubleshooting, error messages, paper jams, parts and parts diagrams.

Q7825-69001 Service Parts - Clj2700 frter, n bundles

RM1-2600-110CN Service Parts - Clj3000 Dc Controller R1.50.0

RM1-2600-150CN Service Parts - Clj3000 Dc Controller R1.50.0

RM1-2759-070CN Service Parts - Etb Assy

RM1-2774-000CN Service Parts - Paper Pick-Up Assy

RC1-7599-000CN Shield - PC board shield - Driver PC board shield - Black plastic piece that covers Driver PCA

RC1-6383-000CN Spring - Tension spring - Provides tension for front dropdown multipurpose paper input tray - Two used

RC1-6516-000CN Spring - Tension spring - Provides tension for the feed roller bushing inside of paper pick up assembly

RC1-6520-000CN Spring - Compression spring - Provides pressure for clutch and 18 tooth gear on right side of paper pickup assembly

RC1-6634-000CN Spring - Tension spring - Spring that connects between the cartridge locks and the slider plate on left side of printer - Four used

RC1-6641-020CN Spring - Grounding spring � Provides chassis ground for toner cartridges - Four used for this printer, this price is for qty 1.

RC1-6677-000CN Spring - Tension spring - Provides tension for right side toner cartridge lock lever - Four used (purchase suggested instructions Q5982-instructions_kit).

RC1-7552-000CN Spring - Tension spring - Provides tension for right and left paper guides directly under the control panel - Two used

RC1-7583-000CN Spring - Grounding spring - Provides grounding for main cooling fan - Fan FM1

RC1-7598-000CN Spring - Tension spring - Provides tension for sensing lever on left side of printer

RC1-6668-000CN Support - Upper support cover - This is black plastic under the sheet metal that is under the fuser

RM1-2670-000CN Switch - Interlock switch asembly - Front door open switch - SW1

RM1-2705-070CN Tray - 250-sheet paper tray assembly - Pull out cassette that the paper is loaded into - Does NOT include the paper feed base assembly

RM1-2705-080CN Tray - Paper cassette - 250 sheet paper tray assembly - Pull out cassette that the paper is loaded into - Does NOT include the paper feed base assembly

RM1-2711-030CN Tray - Input tray assembly - MP/Tray 1 paper input tray asembly - Drop down tray on front of printer

RM1-2732-030CN Tray - 500 sheet paper input tray, CASSETTE, 500 SHEET500 sheet paper input tray

Q5985-67901 Tray Assembly - 500 sheet tray and feeder assembly - Printer sits on top of this assembly

RM1-2711-040CN Tray Assembly - Multi-purpose/tray 1 paper input tray asembly - Drop down tray on front of printer

RM1-2777-020CN Tray Assembly - Paper output tray - Face down paper output tray assembly on top rear of printer - For Color LaserJet 3000 series only

HP Color LaserJet 2700n (Q7825A)

HP parts list for Q7825A HP Color LaserJet 2700n Printer
