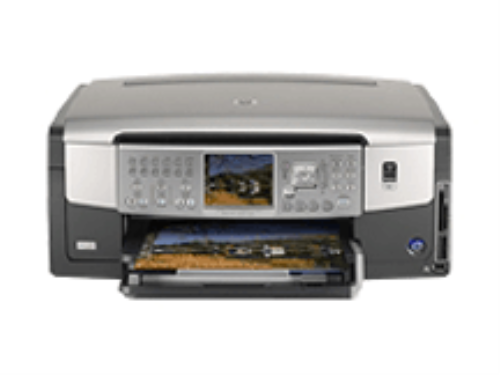

HP parts list for Q8200A HP Photosmart C7180 All-In-One Printer
Q8200A-AbsorberAbsorber - Ink service station (ISS) bottom absorber foam - absorbs ink during the cleaning process. Service station absorber (sponge) - soaks up used ink during cartridge cleaning. Works as sled filters.
Q8200A-AC_AdapterAC Adapter - Power supply module or adapter - one end for connecting to the printer and other end to the power cord, or your ac adapter may have the pwr cord attached.
Q6273AAccessory - HP bt500 Bluetooth USB 2.0 Wireless Adapter - USB connectivity 10m (32.80ft) range transfer rate of 3mb/s (2.1mb/s)
Q8200A-ActuatorActuator - Actuating unit. this part usually causes the carriage assembly to stalls on the left side of the printer, verify that the clutch actuator arm (slider arm).
Q3093-80004Adapter - Adapter - Two to four wire phone cord adaptor
Q8200A-ADF_ArmADF Arm - Senses paper in the ADF area tray / feeder tray. this is a front flapper arm - part of the paper separation mechanism for the paper pickup assembly - mounts just in front of the front separation belts in the ADF assembly.
Q8200A-ADF_Feed_AssyADF Feed Assembly - ADF assembly - does not include ADF input tray. ADF assembly includes the complete ADF assembly (motor, gears, rollers, sensor, does not include the ADF pad or plastic flatbed cover. (for entire unit please see ADF unit assembly).
Q8200A-ADF_Input_TrayAdf Input Tray - ADF tray ( for automatic document feeder) this is where papers are placed for feeding into unit.
Q8200A-ADF_MotorADF Motor - ADF motor - the scanner ADF motor is located on left rear corner of ADF drive, location varies from each unit. however, this is the main motor on the ADF unit.
Q8200A-ADF_Output_TrayADF Out Put Tray - ADF out put tray is where paper come out of ADF (automatic document feeder). For this unit we will ship the entire ADF Assembly.
Q8200A-ADF_PadADF Pad - ADF paper seperation pad assembly - mounts in the center of the ADF separation pad frame assembly. this pad prevents from multiple feeding or preventing paper jams while faxing scanning or copying.
Q8200A-ADF_Roller_KitADF Roller Kit - ADF upper pick roller replacement kit. these are the rollers that feed paper into the feeder to be scan copy or faxed.
Q8200A-ADF_ScannerADF Scanner - ADF scanner (optical) assembly - includes the chassis assembly scanner lens assembly (includes the charge coupled device (ccd)) the scanning lamp ADF analog processor board and ADF inverter board - this is the lower assembly that scans copies documents.
Q8200A-ADF_Sensor_BRDADF Sensor Board - ADF sensor pc board assembly - narrow strip pc board with the two document skew sensors, registration sensor, and timing sensor - mounts on top of the registration guide assembly in the ADF main assembly
Q8200A-ADF_Unit_AssyADF Unit Assembly - Complete replacement assembly unit for Officejet Copier top assembly only. This includes the ADF (automatic document feeder) for this unit.
Q8200A-Arm_DeliveryArm Delivery - Paper sensing arm - for 'paper out' or delivering paper sensing arm
Q8200A-Arm_PickupArm Pick Up - Paper detection arm - for registration plate on picking up paper
Q8200A-Arm_PlateArm Plate - Lever arm - used to lift the pressure plate lifter
Q8200A-Arm_SensingArm Sensing - Arm assembly senses paper in bottom tray
Q8200A-Arm_TensionArm Tension - Tension arm - maintains tension on carriage belt
Q8200A-Belt_ADFBelt ADF - Transport belt motor - provides the drive to transport paper through the ADF unit. this belt goes in the ADF assembly drive unit
Q8200A-Belt_CarriageBelt Carriage - Carriage belt - moves the carriage assembly across the carriage rod
Q8200A-Belt_DuplexBelt Duplex - Duplex timing belt - small belt that goes on the duplexer unit
Q8200A-Belt_PaperBelt Paper - Paper drive belt (usually a small belt) - this belt attaches to a gear which is driven by the paper drive motor assembly.
Q8200A-Belt_ScannerBelt Scanner - Scanner assembly belt. belt moves the scanner while copying or scanning documents.
Q8200A-BezelBezel - Front panel overlay (bezel) - (english) control panel bezel - frame around display and control panel
Q8200A-Bracket_LeftBracket Left - Left bracket - carriage rod adjustment bracket (left)
Q8200A-Bracket_RightBracket Right - Right bracket - carriage rod adjustment bracket (right)
Q8200A-Bracket_TensionBracket Tension - Belt tension bracket - holds the carriage belt idler pulley
8121-0811Cable - Telephone cable (2-wire) - RJ11 (M) connectors - 3m (10ft) long (USA, Canada, Mexico, Latin America, Greece, Poland, Saudi Arabia, Portugal, and Spain)
8121-0868Cable - Universal Serial Bus (USB) interface cable (Black) - Type 'A' connector to type 'B' connector - 1.83m (6.0ft) long
Q8200A-Cable_CarriageCable Carriage - Cable assembly which connects the main logic board to the carriage motor
Q8200A-Cable_InterfaceCable Interface - Parallel cable - connects from your printer to computer via your parallel port.
Q8200A-Cable_MchnsmCable Mechanism - Cable assembly which connects the main logic board to the print mechanism
Q8200A-Cable_PanelCable Panel - Cable Panel assembly - includes ribbon cable this is the cable that connects to the control panel or display.
Q8200A-Cable_USBCable USB - This interface cable is the standard 2.0 usb cable that connects to your printer and computer for printing.
Q8200A-CamCam - Drawer cam - short, spring loaded lever attached to the paper tray frame - used to draw input tray into position
Q8200A-Cap_LifterCap Lifter - These lifter caps hold the pressure plate lifter and the kicker spring in place.
UG609ECare Pack - HP 3 year Care Pack w/Next Day Exchange for Printers
UH610ECare Pack - HP 4 year Care Pack w/Next Day Exchange for Printers
US284ECare Pack - HP Basic Installation Service for one consumer printer with wireless capability
US285ECare Pack - HP Premium Installation Service with wireless network setup for up to three PCs and/or printers
Q8200A-Carriage_AssyCarriage Assembly - Ink cartridge carriage assembly - includes carriage, felt, felt retainers, ink cartridge latches, trailing cable, pc board, belt attachment hardware, and slider.
Q8200A-Carriage_BaseCarriage Base - Carriage base or pre-loader assembly - mounted to bottom of carriage base
Q8200A-Carriage_BeltCarriage Belt - Carriage drive belt, this belt is attached to the carriage and carriage motor, it moves the carriage side to side while priting.
Q8200A-Carriage_CableCarriage Cable - Flex circuit cable which connects the head driver board to the carriage assembly. in some units it is also known as the trailing cable, this cable moves along with the carriage unit (side to side).
Q8200A-Carriage_LatchCarriage Latch - A-arm latch - retains latch over the printheads on the carriage
Q8200A-Carriage_Latch_CVRCarriage Latch Cover - The carriage latch is used to keep the cartridge(s) in place. this latch(s) hold the cartridge(s) in place while carriage is printing or idle.
Q8200A-Carriage_MotorCarriage Motor - Carriage motor moves the carriage unit side to side. the carriage belt goes arround this motor, which controls carriage movement.
Q8200A-Carriage_OnlyCarriage Only - Carriage only - includes carriage, felt, felt retainers, ink cartridge latches - does not include trailing cable, pc board, belt attachment hardware, or slider (for complete carriage unit, please see carriage assembly).
Q8200A-Carriage_PC_BRDCarriage PC Board - This pc board attaches on the carriage, it is usually a small pc board that has carrage cable attached to it.
Q5861-40008Case - Right side case assembly - For the Photosmart C7100 All-in-One printer series
Q8200A-ChassisChassis - Chassis assembly - the large plastic item that forms the base of the print mechanism
Q8200A-Clutch_ADFClutch ADF - ADF paper clutch unit. clutch that controls movement on the ADF feeder
Q8200A-Clutch_FeedClutch Feed - Clutch unit resposible for unit picking up paper from the pick up unit.
Q8192-60002Control Panel - Control panel - Enables user interaction and communication with printer
Q8192-60152Control Panel - Control panel - Assembled plastic part with electronic PCA (Operating voltage: 5- 3.3VAC) - Enables user interaction and communication with printer
Q8200A-Control_PanelControl Panel - Control panel assembly - control buttons and display on top front of the unit.
Q8192-60153Cover - Document cover - Plastic lid that covers scanner glass
Q8200A-Cover_BackCover Back - Back cover of printer, it is usually removed to clear paper jams.
Q8200A-Cover_CartridgeCover Cartridge - This is the cover/ door that is opened to remove the cartridge(s) - usually, when this door opens the carriage moves.
Q8200A-Cover_MainCover Main - This is the main cover of the printer. it is the biggest piece of plastic the printer is made off.
Q8200A-DeflectorDeflector - Paper deflector - guides paper out of dispose assembly - through the internal paper path cover. paper deflector - directs paper from the media chassis to the print section of the printer chassis assembly
Q8200A-DisplayDisplay - Status led display (LCD display assembly).
Q5841-60224Door - Cleanout assembly door - Rear access door that provides access to paper jams
Q8200A-Door_CarriageDoor Carriage - Main front access door - covers the top of the printer and provide access to the carriage when open.
Q8200A-Door_CartridgeDoor Cartridge - Small front access door (drop down door) - for accessing print cartridge window - for print cartridge access door.
Q8200A-Door_RearDoor Rear - Rear cleanout door assembly - rear paper jam clean out door assembly.
Q8200A-Drive_AssyDrive Assembly - Paper drive roller kit - includes roller assembly, bushings, gear on roller, transmission gear kit, encoder disc, end thrust (axial) spring.
Q8200A-Drive_Assy_ADFDrive Assy ADF - Media chassis assembly (paper drive) - moves paper from ADF assembly to scanner assembly - includes media chassis, rollers, gears, flag, sensor, deflector, cable, springs
Q5582ADuplexer - Two-sided printing accessory (duplexer) - For Photosmart 3200, 3300, 8250, C5100, C6100, C7100 series printers - Includes user guide
Q8200A-EncoderEncoder - Encoder spring - provides tension for encoder strip
Q8200A-Encoder_DiskEncoder Disk - Disk encoder - helps to provide position information of the paper
Q8200A-Encoder_StripEncoder Strip - Encoder strip - carriage position sensor reference
Q8200A-Extender_ADFExtender ADF - Paper extension for the automatic document feeder (ADF) input tray
Q8200A-Extender_InputExtender Input - Tray extension assembly (stopper) - tray with a paper stop on the input tray - extends to accomodate different media lenths
Q8200A-Feed_RollersFeed Rollers - Feed roller assembly - includes frame asembly, shaft with rollers, and encoder disk
Q8200A-Feed_Rollers_ADFFeed Rollers ADF - ADF feed roller kit - includes all rollers that feed paper through the feeder.
Q8200A-Flag_ADFFlag ADF - Photo-sensor assembly - includes the sensor and mounting bracket - paper pickup roller home position sensor - activated by the sensor flag on the pickup roller assembly - mounths on the front frame of the ADF paper pickup assembly
Q8200A-FormatterFormatter - Formatter board assembly, this board communicates with your computer device and has MAC port connector.
Q8200A-Front_PanelFront Panel - Front panel assembly - includes lcd and actuator buttons
Q8200A-Gear_AssyGear Assembly - ADF gear assembly driven by ADF main motor
Q8200A-Gear_ClusterGear Cluster - Cluster gear, large gear on service station
Q8200A-Gear_DoubleGear Double - Transfer gear - has double gear attached on service station
Q8200A-Gear_MainGear Main - Paper pickup drive assembly - gear assembly located on right side of paper pickup assembly. gear moves the main paper pick up roller.
Q8200A-Guide_PaperGuide Paper - Upper paper guide - spring loaded flat plate that presses the media against the top of the feed roller assembly - caution: this part can easily be broken
Q8200A-Hinge_CvrHinge - Single cover end M-Hinge Hinge is for top cover supporting opening and closing of the cover. Most covers use 2 hinges this price includes 1pc Hinge.
Q8200A-HolderHolder - Ink cartridge holder - located on carriage unit, holder secures ink cartridge in place.
Q8200A-IdlerIdler - Scanner belt idler assembly - maintains scannter belt tension.
C9087-60008Ink Delivery System - Ink delivery system assembly - For the Photosmart C7100/C6280/C5100 All-in-One printer series
Q8200A-Ink_DLVRYInk Delivery System - RIDS assembly - replaceable ink delivery system - transports ink from ink supply station to carriage assembly
Q8200A-Motor_ADFMotor ADF - ADF motor unit - drives ADF rollers on the feeder assembly
Q8200A-Motor_CarriageMotor Carriage - Carriage motor - motor that drives the carriage assembly
Q8200A-Motor_ScannerMotor Scanner - Scanner unit motor - drives the scanner unit to scan documents to be copied, fax, or scanned.
Q8200A-MTR_Srvce_StationMotor Service Station - Service station stepper motor (does not include cable) - moves the rack vertically in the service station assembly
Q8200A-OverlayOverlay - Overlay unit which covers the control button or display (english overlay only), control panel or display sold seperately.
Q8200A-Pad_ADFPad ADF - Pad separator - (located on ADF unit) assembled from plastic and rubber components; to help in separating sheet of media during faxing, scanning, or copying.
Q8200A-Pad_TrayPad Tray - Pad separator - (located on tray) assembled from plastic and rubber components; to help in separating sheet of media during printing
C7890-60004Paper - Media starter kit - Includes five sheets of 10cm (4in) x 15cm (6in) HP Advanced photo paper
Q5458APaper - Paper (Glossy) for DeskJet 300, DeskJet 640 Series, Designjet 30gp, DesignJet 130 Series
Q8690APaper - Paper (Glossy) for DeskJet 300, DeskJet 640 Series, Designjet 30gp, DesignJet 130 Series
Q8695APaper - Paper (Glossy) for HP Photosmart C3100 Series All-in-one, PhotoSmart C3180 Series, PhotoSmart C3150 Series, PhotoSmart C3140 Series
Q8696APaper - Paper (Glossy) for DeskJet 300, DeskJet 640 Series, Designjet 30gp, DesignJet 130 Series
Q8698APaper - Paper (Glossy) for PhotoSmart 2575 Series, OfficeJet 5605 Series, OfficeJet 5615 Series, OfficeJet 6310 All-in-One
Q8744APaper - Paper (Glossy) for HP OfficeJet Pro K550 Color Printer, HP DeskJet 460 Mobile Printer, DeskJet 450 Series, OfficeJet v40 All-In-One
C9087-60014PC Board - Carriage PC board (PCA) - Located below the carriage cover
Q8200A-PC_BRDPC Board - Ink cartridge carriage assembly pc board - includes carriage pc board only
Q8200A-PC_BRD_DCPC Board DC - Internal power supply board - power cable plugs on this assembly, remove covers to install pc board.
Q8200A-PC_BRD_InterfacePC Board Interface - Internal print server lan interface board - plugs into peripheral eio. usefull for networking and multiple users.
Q8200A-PinchwheelPinchwheel - Pinch assembly kit - includes all required pinch wheels, pinchwheel mounts and springs
Q5841-40018Plotter - Left side case assembly - For the Photosmart C7100 All-in-One printer series
Q8192-60009Plotter - Left side front case assembly - For the Photosmart C7100 All-in-One printer series
C8413-40030Plug - RJ11 Plug - Inserted into the RJ11 socket when not in use
Q3093-40033Plug - RJ45 Plug - Inserted into the RJ45 socket when not in use (For use in Europe)
8121-0729Power Cord - Power cord (Black) - 18 AWG, three conductor, 1.9m (6.25ft) long - Has straight (F) C13 receptacle (For 220V in Argentina)
8121-0731Power Cord - Power cord (Black) - 18 AWG, three conductor, 1.9m (75in) long - Has straight (F) C13 receptacle (For 220V in Europe)Limited supply only.
8121-0733Power Cord - Power cord (Black) - 18 AWG, three conductor, 1.9m (6.25ft) long - Has straight (F) C13 receptacle (For 220VAC in Denmark)
8121-0734Power Cord - Power cord (Black) - 18 AWG, three conductor, 2.3m (7.5ft) long - Has straight (F) C13 receptacle (For 220V in Brazil and Thailand)
8121-0735Power Cord - Power cord (Black) - 18 AWG, three conductor, 1.9m (6.25ft) long - Has straight (F) C13 receptacle (For 220V in Chile)
8121-0737Power Cord - Power cord (Black) - 18 AWG, three conductor, 1.9m (6.25ft) long - Has straight (F) C13 receptacle (For 240VAC in India and South Africa)
8121-0738Power Cord - Power cord (Black) - 18 AWG, three conductor, 1.9m (6.25ft) long - Has straight (F) C13 receptacle (For 220VAC in Switzerland)
8121-0739Power Cord - Power cord (Black) - 18 AWG, three conductor, 1.9m (6.25ft) long - Has straight (F) C13 receptacle (For 240V in Singapore, Hong Kong and the U.K.)
8121-0740Power Cord - Power cord (Black) - 3-wire, 18 AWG, 1.9m (75in) long - Has straight (F) C13 receptacle (for 120V in the USA, Canada, Mexico, and Taiwan)
8121-1004Power Cord - Power cord (Flint Gray) - Three conductor, 1.9m (6.25ft) long - Has straight (F) C13 receptacle (For 220VAC in Israel)
Q8200A-Power_CordPower Cord - Power module power cord- wall outlet cable to power module only. does not include power module.
0957-2104Power Module - Power module - Input voltage 100-240VAC, 50/60Hz, 3.24A - Output voltage 33.7VDC, 95 watts - Requires separate AC power cord
Q5841-69007Power Module - Power module - Input voltage 100-240VAC, 50/60Hz - 11.5 watts
Q8200A-Power_MDLEPower Module - World wide power module - includes power module and power module to printer cord - does not include outlet to power module cord
Q8200A-Power_MDLE_AssyPower Module Assy - World wide power module - includes power module and power module to printer cord - also, include outlet to power module cord
Q8200A-Power_SupplyPower Supply - Power supply board (internal pwr supply unit in the office machine).
Q8200A-Print_MchnsmPrint Mechanism - Print mechanism assembly - complete mechanism with carriage movement, paper picking and service station - does not include covers, printer base, print heads, ink cartridges, or any consumables.
Q8200A-PulleyPulley - Paper pick up tray motor pulley.
Q8200A-Repair_InkJetRepair Service - Ship your product to us for a small diagnostic fee; and a professional service job. We will contact you with repair total and your diagnostic fee will be waived if unit is repaired. Service warranty is 30days labor and 90days for parts. Extended warranty option is available.
Q8200A-Rod_CarriageRod Carriage - Carriage rod - shaft that the carriage assembly rides on
Q8200A-Rod_ScannerRod Scanner - Scanner rod - shaft that the scanner assembly rides on
Q8200A-Roller_ADFRoller ADF - Feeder ADF roller for picking up paper from ADF unit.
Q8200A-Roller_PickupRoller Pickup - Pick up roller assembly for paper bottom tray. Lower feed roller assembly - for lower paper input tray
Q8200A-ScannerScanner - Copier scanner (optical) assembly - includes scanner assembly only scanner lens assembly (includes the charge coupled device (ccd)) the scanning lamp ADF analog processor board and ADF inverter board - major portion of the ADF main assembly.
Q8200A-Scanner_AssyScanner Assembly - Copier scanner & glass assembly - includes the chassis assembly scanner lens assembly (includes the charge coupled device (ccd)) the scanning lamp ADF analog processor board and ADF inverter board - major portion of the ADF main assembly.
Q8200A-Scanner_BeltScanner Belt - Scanner belt attaches from the scanner to the scanner motor.
Q8200A-Scanner_CableScanner Cable - Flex circuit cable which connects to the scanner assembly. also known as flat cable, this cable moves along with the scanner unit (side to side) as it scans documents.
Q8200A-Scanner_UnitScanner Unit - Scanner unit includes the entire scanner base but not the ADF portion.
Q8200A-Sensor_ADFSensor ADF - Photo-sensor assembly - includes the sensor and mounting bracket - paper pickup roller home position sensor - activated by the sensor flag on the pickup roller assembly - mounts on the front frame of the ADF paper pickup assembly
Q8200A-Sensor_OutSensor Out - OOPS sensor - out of paper sensor - detects the presence of the paper in the printer tray
Q8200A-Sensor_SpotSensor Spot - Spot sensor assembly is attached to the carriage assembly.
Q8200A-SeparatorSeparator - Pad separator - assembled from plastic and rubber components; to help in separating sheet of media during printing from bottom trays.
Q8200A-GuideService Guide - Printer Reference Guide (not a service manual) - Contains information such as product information, operation overview, paper behavior, maintenance, ink safety, and removal / replacement of parts. This is not a service manual for technical repair.
C9087-60023Service Station - Service station assembly - For conditioning the ink cartridges when the carriage is in its home position
Q8200A-Service_StationService Station - Service station assembly - for conditioning the printheads when the carriage is in its home position
Q8200A-SLED_AssySLED Assembly - Sled assembly - white plastic piece with spring, wipers and boot (assembly that the ink cartridge parks on) - mounts on top of the service station assembly
Q8200A-SliderSlider - Carriage base slider - plastic piece on the front end of the carriage that allows the carriage to slide side to side.
Q8200A-SpeakerSpeaker - Speaker assembly - includes speaker cable.
Q8200A-SpittonSpitton - Spittoon base - the bottom and main housing of the service station assembly - holds any residual ink from the print cartridge cleaning process
Q8200A-Spring_CmprsnSpring Compression - Compression spring - on pulley wedge for carriage belt tension
Q8046AStickers - HP CD/DVD Tattoos - 13cm (5in) x 18cm (7in) - 15 sheets (USA, Latin America, and Canada)
Q8047AStickers - HP CD/DVD Tattoos - 13cm (5in) x 18cm (7in) - 15 sheets (Europe, Middle East, and Africa)
Q8200A-Trailing_CblTrailing Cable - Trailing cable for scanner - cable connects from scanner to pc board.
Q8192-60194Tray - Upper photo paper tray - For Photosmart All-in-One printers
Q8192-60195Tray - Face-up output tray assembly - For the Photosmart C7100 All-in-One printer series
Q8192-60196Tray - Lower photo paper tray - For Photosmart All-in-One printers
Q8200A-Tray_AssyTray Assembly - Paper input tray assembly for loading paper (bottom).
Q8200A-Tray_Assy_CVRTray Assembly Cover - Tray cover - the top cover for the paper pick up tray unit.
Q8200A-Tray_BaseTray Base - Tray base- bottom base of the paper input tray.
Q8200A-WindowWindow - Top/front access door assembly - print cartridge access door window.
Repair It
Exchange It
View Supplies
Service Manual
