HP parts list for W1A31A LaserJet Pro MFP M428dw

0960-4528 Antenna - Antenna Pcb Assy I-Pex 1.13mm/200mm/Blk

B3Q11-40001 Base - Control panel mount base

RK2-6931-000CN Cable - Formatter flat flexible cable - For use with the M426/M427 printer series

RK2-9901-000CN Cable - Laser/scanner flat flexible cable (FFC) CABLE FLEXIBLE FLAT LASER.

RM2-2556-000CN Cable - Tag cable assembly

B3Q10-60145 Chassis - Control panel mount chassis assembly

VS1-7258-007CN Connector - Drawer connector - Connector located on bottom of tray assembly frame on right side, which connects tray assemblies to each other

9170-2659 Core - Core ferrite ribbon core

B3Q11-40002 Cover - Control panel mount cover

C5F99-40003 Cover - Fax port cover - For printer models M426fdn, M426fdw, 427fdn, and M427fdw

RC4-2961-000CN Cover - Near field communication (NFC) cover - For use with M426/M427 model only

RC4-3082-000CN Cover - Cassette rear plastic cover

RC4-3108-000CN Cover - Inner left rear cover

RC4-3207-000CN Cover - Top cover assembly - U shaped plastic cover that protects the top part of the printer

RC4-3219-000CN Cover - Full detect sensor cover

RC4-3299-000CN Cover - Rear USB cover

RM2-2567-000CN Door - Assy - Cartridge Door

RM2-5405-000CN Door - Rear door assembly - For the duplex models only

RK2-8068-000CN Fan - Fan (FM1) assembly

RK2-8068-010CN Fan - Fan;Part RK2-8068-010CN is no longer supplied. Please order the replacement, RK2-8068-000CN

9170-2437 Ferrite Assembly - Integrated scanner assembly (ISA) ferrite assembly

RM2-2554-000CN Fuser Assembly - Fusing assembly - For 110-127 VAC - Bonds toner to the paper with heat

RM2-2555-000BU Fuser Assembly - Fuser assembly - For 220 VAC - Bonds toner to paper with heat

RM2-2555-000CN Fuser Assembly - Fuser Assembly 220V

RC4-3217-000CN Guide - Cable guide - Mounts on the top cover assembly

RC4-2891-000CN Holder - Duct fan holder - Holds fan (FM1)

RC4-3133-000CN Holder - Right transfer roller holder

RC4-3134-000CN Holder - Holder Transfer Roller Left HP Pro M402DN M403 M426 M427 Holder Transfer Roller Left

0960-4025 HP Parts - Gtk Wireless Module. GTK Wireless Module LaserJet M404 M429 M428 M454 M479

C5F98-40003 HP Parts - Cover-Core

RM2-5375-000CN HP Parts - Tray 2 Sensor Assy. for HP Laserjet Pro M402 M403 M426MFP M427MFP Tray 2 Sensor Assembly

RM2-5454-000CN HP Parts - Assembly-Duplexing De-Skew Roller

W1A30-60101 HP Parts - Assy-Control Panel Ffc

B3Q10-60128 Lifter - Integrated scanner assembly lift assembly - For use with the M477 model only

RC4-4479-000CN Link - Pressure release link

RM2-9531-000CN Motor - Assy-Main Motor

5851-7008 Mount - Assy-USB A F Panel Mount To WTB 285mm

B3Q10-00060 Mylar - Mylar-Ramp

B3Q10-40048 Mylar - Holder-Mylar

7121-8686 NamePlate - HP logo jewel

5851-6550 Pad - Thermal transfer pad

RL2-0657-000CN Pad - Multi-purpose/tray 1 separation pad

RM2-7508-000CN PC Board - High-voltage power supply (HVPS) PC board

RM2-7510-000CN PC Board - Connecting PC board assembly - Use with duplex models only

RM2-8506-000CN PC Board - Power switch PC board assembly

RM3-7580-000CN PC Board - Dc Controller Pcb Assy

RM3-7580-020CN PC Board - Assy - Dc Controller Pcb

RM3-7580-030CN PC Board - Assy-DC Controller PCB

RM3-7580-040CN PC Board - Assy-DC Controller PCB

RM3-7580-050CN PC Board - Dc Controller Pcb Assy

RM3-7580-060CN PC Board - Dc Controller Pcb Assy

C9000-40075 Picker Assembly - Tire-Pick, Non-Marking

RM2-5452-000CN Pickup Assembly - Tray 2 paper pick-up roller assembly

RM2-5452-010CN Pickup Assembly - Paper Pick-Up Roller Assy Tray2

B3Q10-40041 Pin - Integrated scanner assembly lift slider pin - For use with the M477 model only

RL2-0656-000CN Roller - Roller-Multi-Purpose

RM1-4023-000CN Roller - Transfer roller assembly - Long metal shaft with black roller

RM2-2039-000CN Roller - Transfer Roller Assembly

RM2-2577-000CN Roller - Registration roller assembly - Next set of rollers after paper feed

RM2-5397-000BU Roller - Tray2 Separation Roller Assy

RM2-5397-000CN Roller - Tray 2 separation roller assembly

RM2-5452-000B Roller - Paper Pickup Roller Assy (Tray2)

RM2-5452-000BU Roller - Paper Pick-Up Roller Ass'Y (Tray2)

RM2-5452-010BM Roller - 160 Pc-Paper Pick-Up Roller Ass'Y Tray2

RM2-2891-000CN Scanner - Laser/scanner assembly

RM2-2891-010CN Scanner - Assy-Laser Scanner

RM2-4862-000CN Scanner - Assy-Laser Scanner

CF258-67902 Service Parts - SVC 58X Crtg-Black Toner M404/M428 AMS

RC4-2938-000CN Service Parts - Bracket, Usb

RL2-0656-000BU Service Parts - Roller-Multi-Purpose

RM2-2039-000BU Service Parts - Transfer Roller Assembly

RM2-2554-000BU Service Parts - Fuser Assembly 110v

RM2-2578-000CN Service Parts - Assy - Right Cover

RM2-5375-000BU Service Parts - Tray 2 Sensor Assy. for HP Laserjet Pro M402 M403 M426MFP M427MFP Tray 2 Sensor Assembly

RM2-5392-010BU Service Parts - Assy-Cassette

RM2-5397-000MP Service Parts - MultiPack Qty 20 TRAY2 SEPARATION ROLLER

RM2-5405-000BU Service Parts - Rear Door Assy

RM2-5452-000BM Service Parts - 160 Pc-Paper Pickup Roller Assy (Tray2)

RM3-7413-000CN Service Parts - L.V Power Supply Pcb Assy 110-127v

RM3-7414-000CN Service Parts - L.V Power Supply Pcb Assy 220-240v

W1A28-00002 Service Parts - HP LaserJet Pro MFP M428dw Nameplate

W1A30-40001 Service Parts - Bracket-WiFi

W1A73-60108 Service Parts - Assy-Simplex GSO

W2Q13-60103 Service Parts - Assembly-Control Panel

RU8-2935-000CN Spring - Spring, Compression

RC4-3002-000CN Support - Cartridge door assembly shaft support

D9P29-67018 Tray Assembly - Optional 550-sheet tray 3 paper feeder assembly. M402 M404 M406 M426 M428 M430 550 Sheet Feeder Assy.

RC4-3231-000CN Tray Assembly - Paper delivery output tray assembly - Holds paper after it has been printed

RM2-5392-010CN Tray Assembly - Cassette Assembly for HP LaserJet M304 M305 M329 M404n M405 M428 M429fdw 304 305 329 404 405 428 429 Paper Tray 2

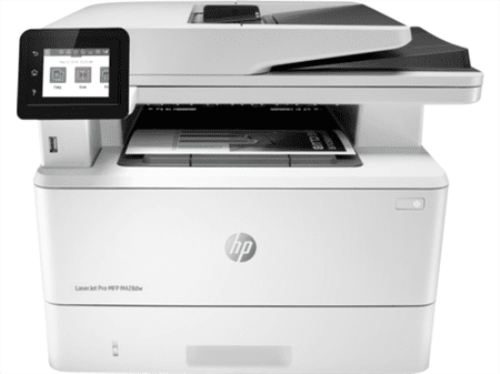

HP LaserJet Pro MFP M428dw (W1A31A)
